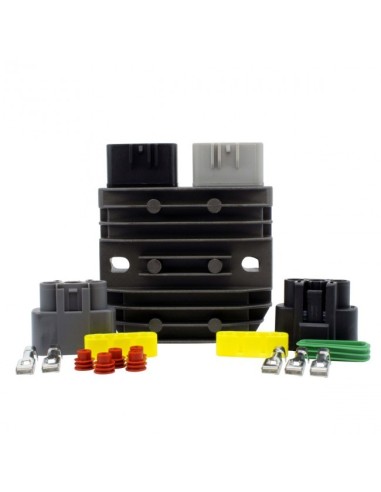

Regulator Rectifier Polaris RZR900 Ranger 570 800 900 1000 RZR570 RZR800 RZR900 Ranger Crew 800 OEM 4012941
CARMS020-106028
Last items in stock
€149.00
Tax included
OEM 4012941
- Series Regulator Rectifier
-
2020
Polaris
RZR 4 900 XP Turbo
UTV 2020 Polaris RZR 4 900 XP Turbo
RZR 900 XP Turbo
UTV 2020 Polaris RZR 900 XP Turbo
RZR PRO XP
UTV 2020 Polaris RZR PRO XP
RZR PRO XP 4
UTV 2020 Polaris RZR PRO XP 4
Ranger 150 EFI
UTV 2020 Polaris Ranger 150 EFI
Ranger Crew 1000 XP
UTV 2020 Polaris Ranger Crew 1000 XP
Ranger XP 1000
UTV 2020 Polaris Ranger XP 1000
2019
Polaris
RZR 4 900 XP Turbo
UTV 2019 Polaris RZR 4 900 XP Turbo
RZR 900 XP Turbo
UTV 2019 Polaris RZR 900 XP Turbo
Ranger 150 EFI
UTV 2019 Polaris Ranger 150 EFI
Ranger Crew 1000 XP
UTV 2019 Polaris Ranger Crew 1000 XP
Ranger XP 1000
UTV 2019 Polaris Ranger XP 1000
2018
Polaris
RZR 4 900 XP Turbo
UTV 2018 Polaris RZR 4 900 XP Turbo
RZR 900 XP Turbo
UTV 2018 Polaris RZR 900 XP Turbo
RZR XP Turbo
UTV 2018 Polaris RZR XP Turbo
Ranger 150 EFI
UTV 2018 Polaris Ranger 150 EFI
2017
Polaris
Ranger 800 6x6
UTV 2017 Polaris Ranger 800 6x6
2016
Polaris
RZR 570 EFI
UTV 2016 Polaris RZR 570 EFI
Ranger 800 6x6
UTV 2016 Polaris Ranger 800 6x6
2015
Polaris
M1400
UTV 2015 Polaris M1400
RZR 570 EFI
UTV 2015 Polaris RZR 570 EFI
Ranger 570
UTV 2015 Polaris Ranger 570
Ranger 800 6x6
UTV 2015 Polaris Ranger 800 6x6
Ranger ETX EFI F/C
UTV 2015 Polaris Ranger ETX EFI F/C
2014
Polaris
RZR 4 800
UTV 2014 Polaris RZR 4 800
RZR 570 EFI
UTV 2014 Polaris RZR 570 EFI
RZR 800 EFI
UTV 2014 Polaris RZR 800 EFI
RZR 800 S
UTV 2014 Polaris RZR 800 S
Ranger 570
UTV 2014 Polaris Ranger 570
Ranger 800
UTV 2014 Polaris Ranger 800
Ranger Crew 570
UTV 2014 Polaris Ranger Crew 570
Ranger Crew 800
UTV 2014 Polaris Ranger Crew 800
2013
Polaris
RZR 4 800
UTV 2013 Polaris RZR 4 800
RZR 570 EFI
UTV 2013 Polaris RZR 570 EFI
RZR 570 EPS
UTV 2013 Polaris RZR 570 EPS
RZR 800 EFI
UTV 2013 Polaris RZR 800 EFI
RZR 800 S
UTV 2013 Polaris RZR 800 S
Ranger 800
UTV 2013 Polaris Ranger 800
Ranger Crew 800
UTV 2013 Polaris Ranger Crew 800
2012
Polaris
RZR 4 800
UTV 2012 Polaris RZR 4 800
RZR 800 EFI
UTV 2012 Polaris RZR 800 EFI
RZR 800 S
UTV 2012 Polaris RZR 800 S
Ranger 800
UTV 2012 Polaris Ranger 800
Ranger 800 XP
UTV 2012 Polaris Ranger 800 XP
Ranger Crew 800
UTV 2012 Polaris Ranger Crew 800
2011
Polaris
RZR 4 800
UTV 2011 Polaris RZR 4 800
RZR 800 EFI
UTV 2011 Polaris RZR 800 EFI
RZR 800 S
UTV 2011 Polaris RZR 800 S
Ranger 800
UTV 2011 Polaris Ranger 800
Ranger Crew 800
UTV 2011 Polaris Ranger Crew 800 -
OEM 4012941
-
Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85° -
Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it’s smaller than the OEM one.With enhanced technology design
This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.Brand new series voltage regulator rectifier
THE ULTIMATE SOLUTION TO YOUR REGULATOR RECTIFIER PROBLEMS!
It is time to update or replace your voltage regulator with the advanced series type. It runs cooler than all OEM, Shunt or MOSFET, diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components

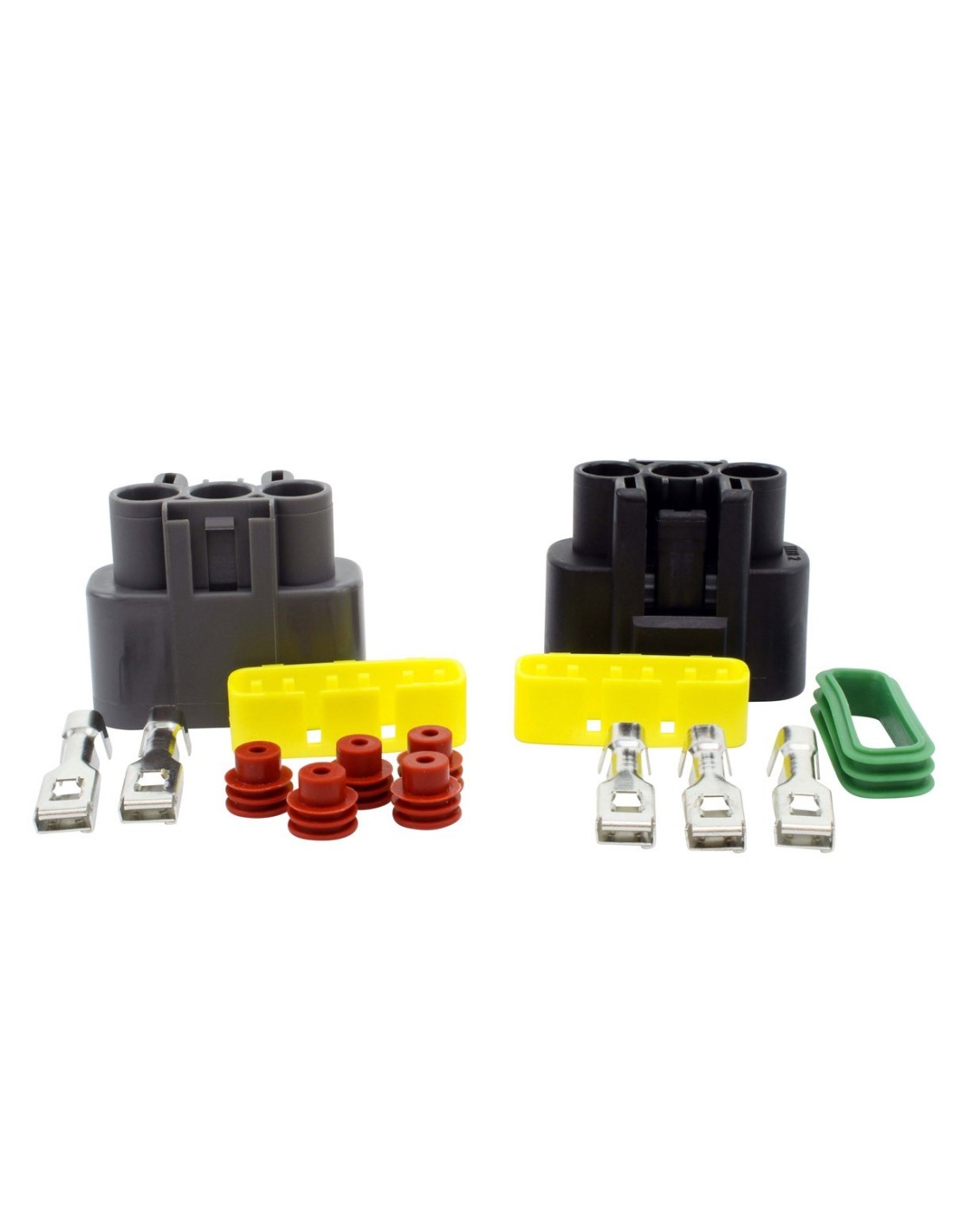

All shipped products are testedWe even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
