OEM 31120-MCF-D31

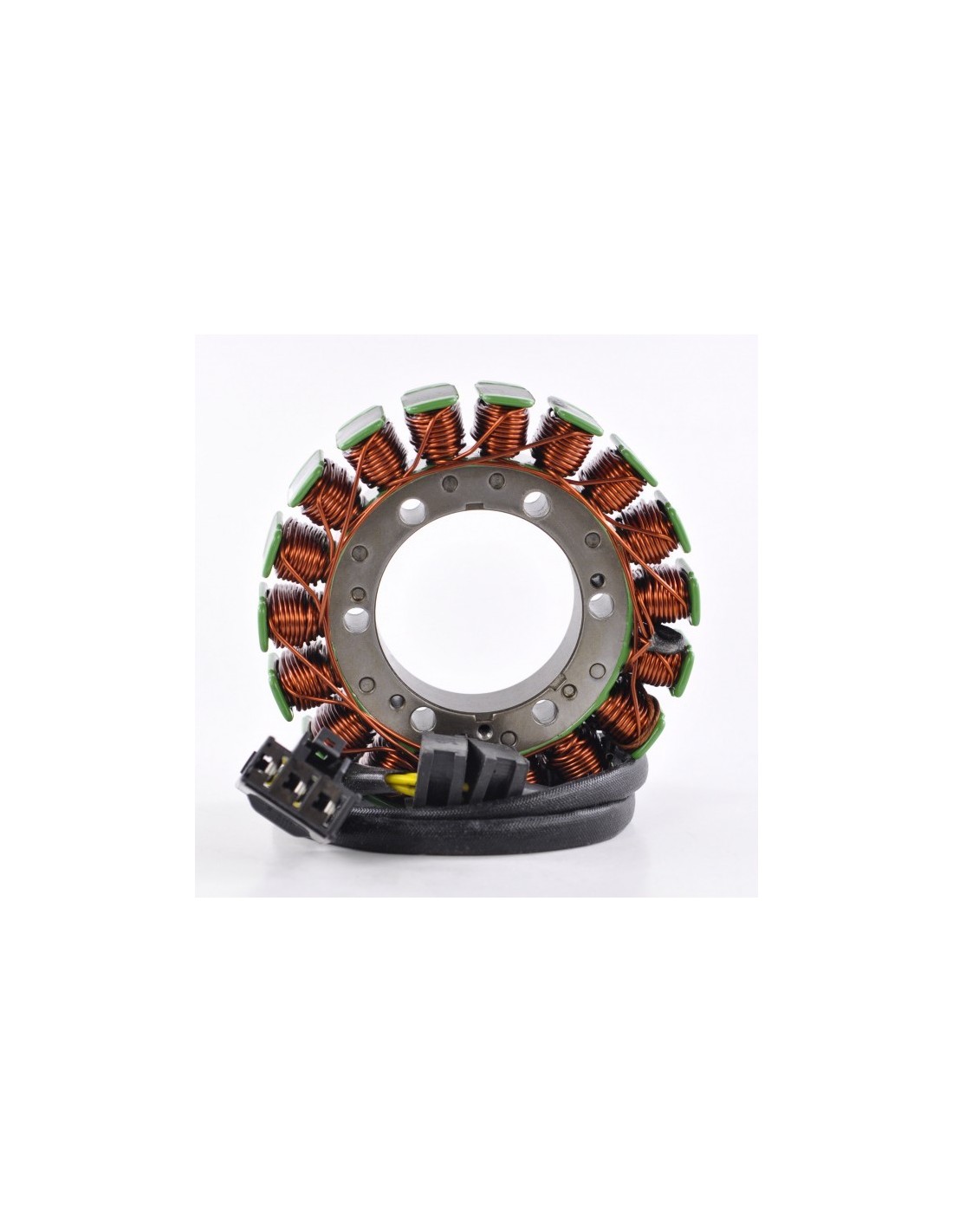

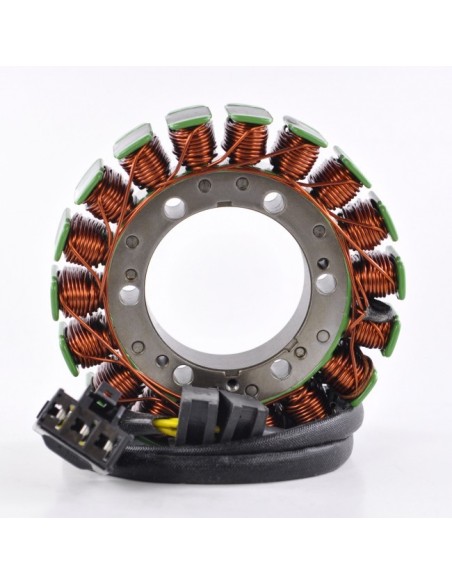

Stator Honda RVT1000R RC51
OEM 31120-MCF-D31
Resistant to 200 degrees Celsius
2002 Honda RVT 1000 RC 51
2003 Honda RVT 1000 RC 51
2004 Honda RVT 1000 RC 51
2005 Honda RVT 1000 RC 51
2006 Honda RVT 1000 RC 51
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 24 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 685 mm
Other specifications :
Number of wires : 3

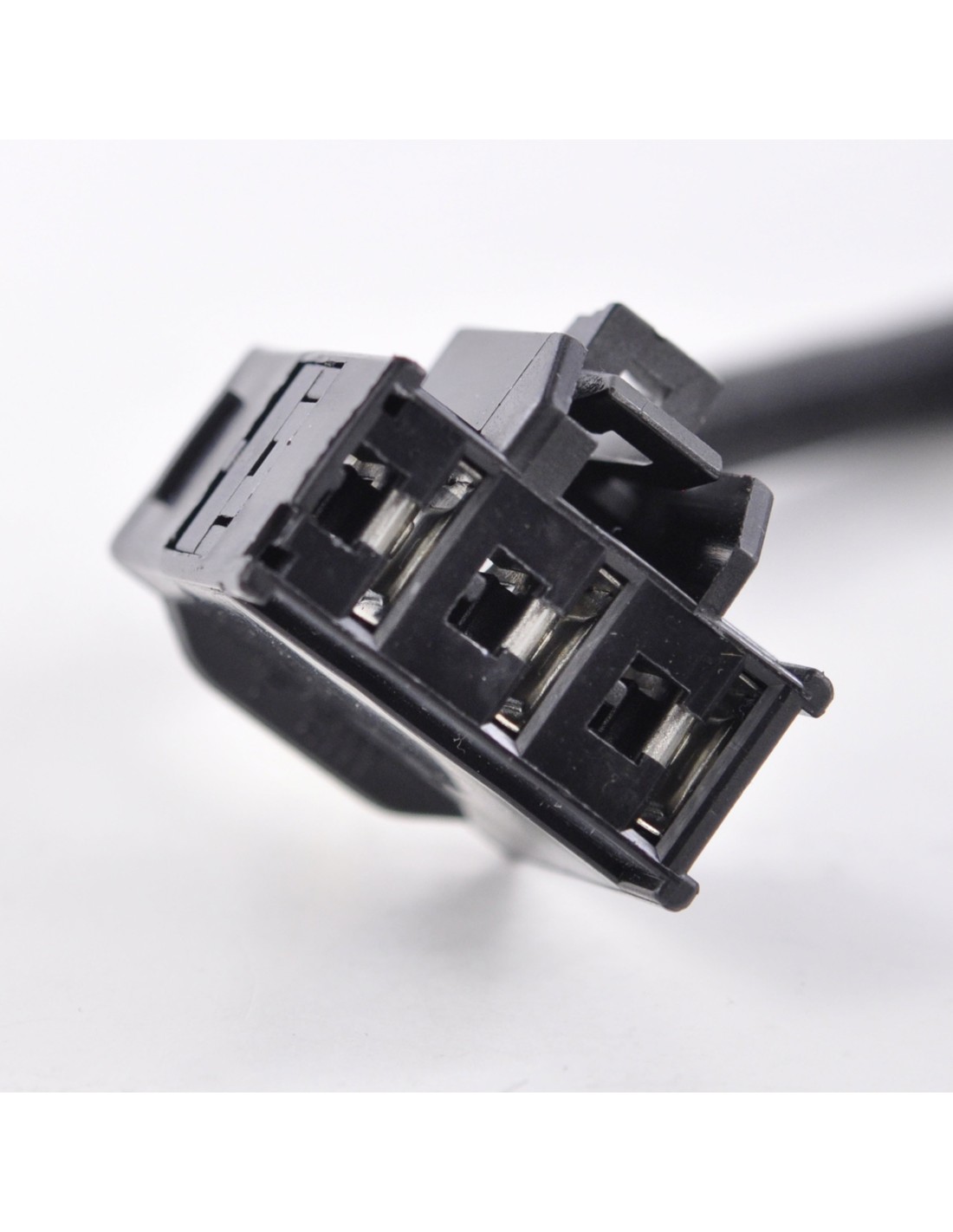

Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.7 ohms +-20%
