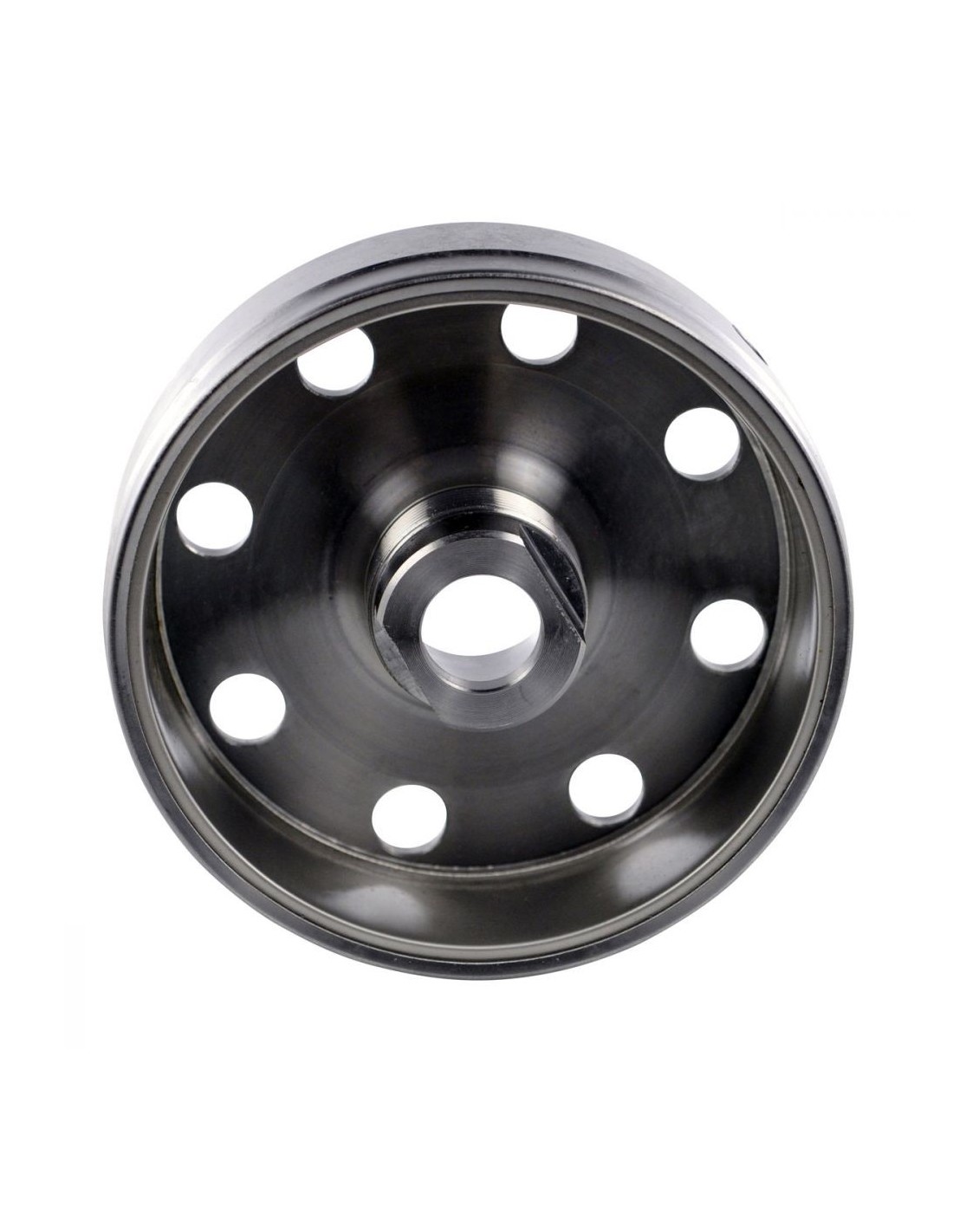

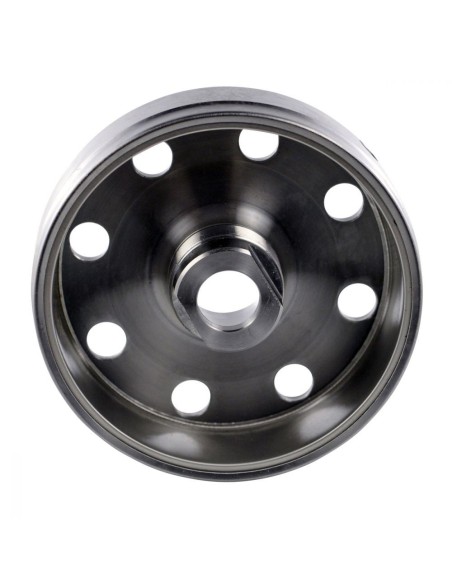

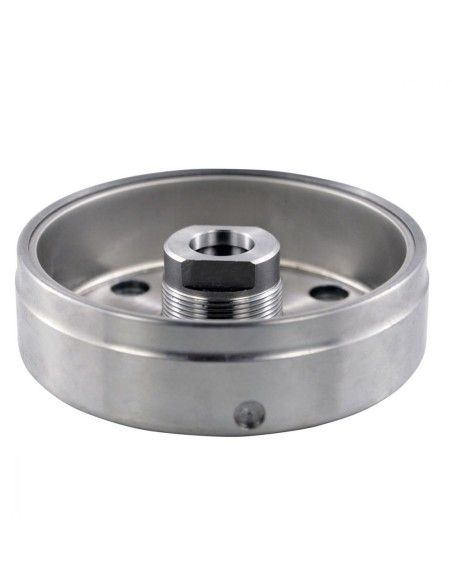

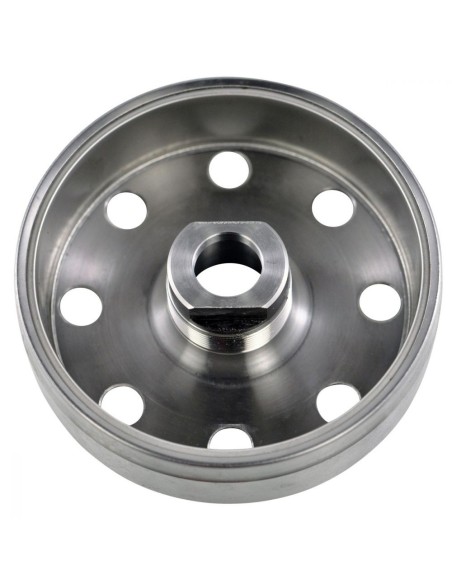

Flywheel Rotor Kokusan Aprilia RSV4 1000 Tuono 1000 V4 Tuono 1100 V4 OEM 2D000049 1A010574

Rotor Kokusan Flywheel Aprilia RSV4 1000 Tuono 1000 V4 Tuono 1100 V4

2020 Aprilia Tuono V4 1100
2020 Aprilia RSV4 1100 Factory
2019 Aprilia Tuono V4 1100
2019 Aprilia RSV4 RR 1000
2019 Aprilia RSV4 1100 Factory
2018 Aprilia RSV4 RR 1000
2018 Aprilia RSV4 RF 1000
2017 Aprilia Tuono V4 1100
2017 Aprilia RSV4 RR 1000
2017 Aprilia RSV4 RF 1000
2017 Aprilia RSV4 1000 Factory
2016 Aprilia Tuono V4 1100
2016 Aprilia RSV4 RR 1000
2016 Aprilia RSV4 RF 1000
2016 Aprilia RSV4 1000 Factory
2015 Aprilia Tuono V4 1100
2015 Aprilia Tuono V4 1000
2015 Aprilia RSV4 RR 1000
2015 Aprilia RSV4 RF 1000
2015 Aprilia RSV4 R 1000
2015 Aprilia RSV4 1000 Factory
2014 Aprilia Tuono V4 1000
2014 Aprilia RSV4 R 1000
2014 Aprilia RSV4 1000 Factory
2013 Aprilia Tuono V4 1000
2013 Aprilia RSV4 R 1000
2013 Aprilia RSV4 1000 Factory
2012 Aprilia Tuono V4 1000
2012 Aprilia RSV4 R 1000
2012 Aprilia RSV4 1000 Factory
2011 Aprilia RSV4 R 1000
2011 Aprilia RSV4 1000 Factory

OEM
2D000049
1A010574

Dimensions:

Outer diameter: 121 mm

Outer diameter #2: 119 mm

Inner diameter: 107 mm

Inner diameter of center housing: 19.2 mm

Outer diameter of center housing: 34 mm

Thickness (outer): 34.8 mm

Thickness (inner): 30 mm

Heavy-duty Kokusan brand recall-type OEM flywheel
Triple-tested heavy-duty stator

With this kit, you will be able to upgrade your current failure-prone charging system with a heavy-duty version using the latest technologies.

Features

Built to OEM size

Fits precisely in your ride: install it and forget it.

Improved epoxy

Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping

Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing

Eliminates crankshaft vibrations for longer engine longevity.


Please note: There is two possible kits for RSV4 engine. If your RSV4 engine number is lower than 3413, you will need CARMS120-104926.. Please compare our flywheel to your original.

Due to the shallow taper of the Aprilia crankshaft, it is critical to use the OEM flywheel lockup tool (Aprilia Part Number 020914Y) to secure the flywheel from turning while you loosen and tighten the flywheel bolt. Do NOT use an impact gun, especially to install the flywheel bolt, as the massive torque can force the flywheel too far onto the crankshaft and rub on the timing chain guide bolt behind it. The flywheel bolt MUST be tightened with a torque wrench to the OEM spec of 88 ft/lbs (120 N/m) to prevent any issues.
