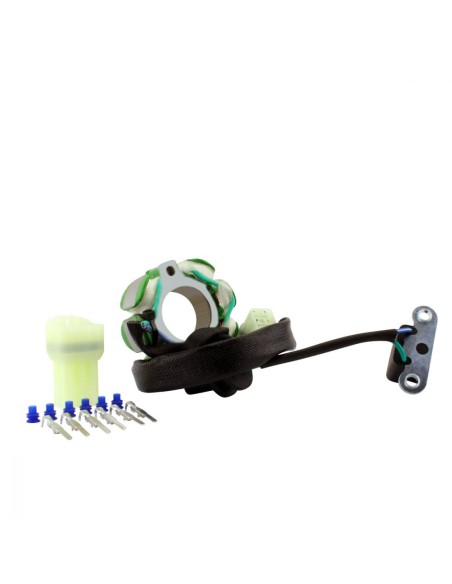

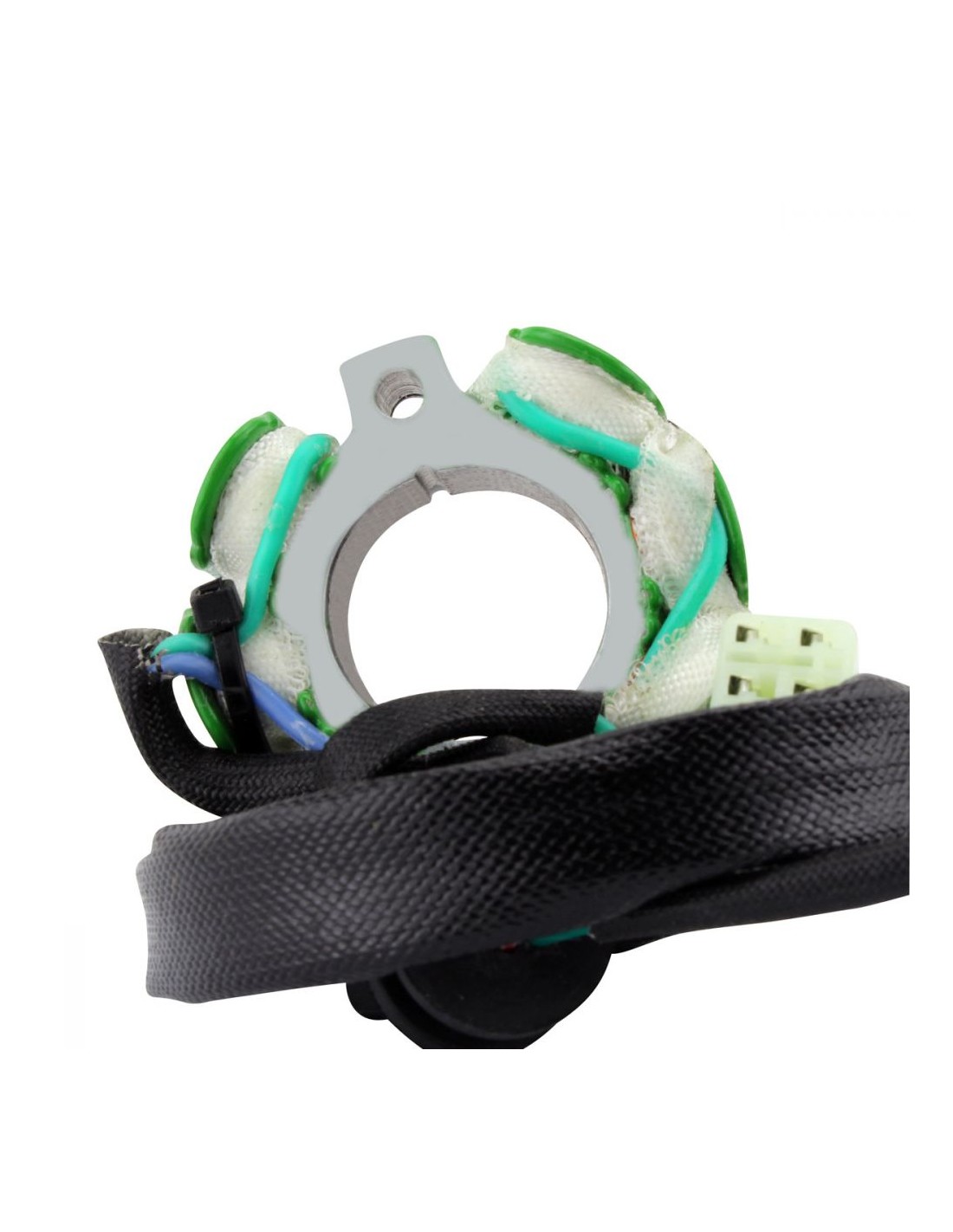

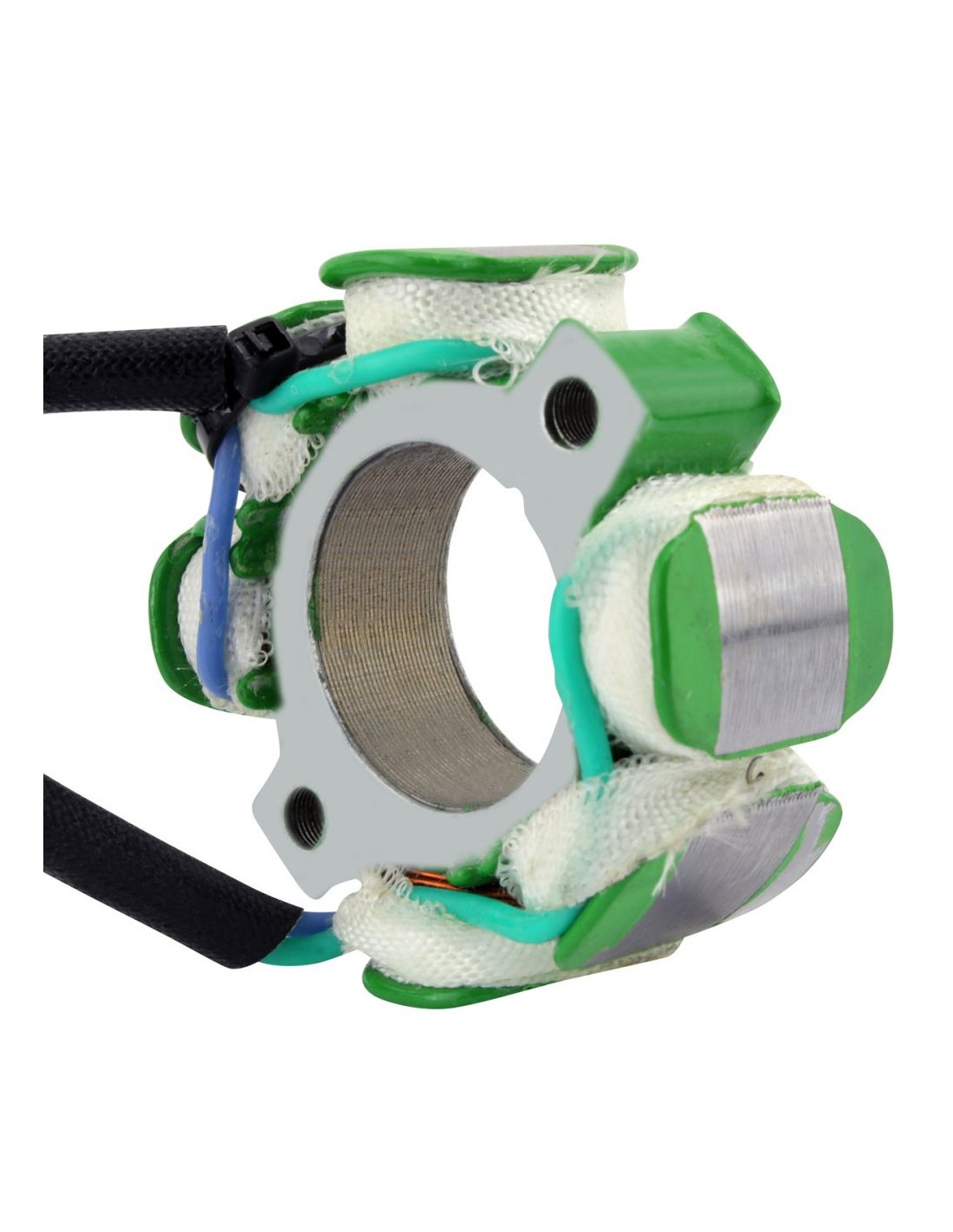

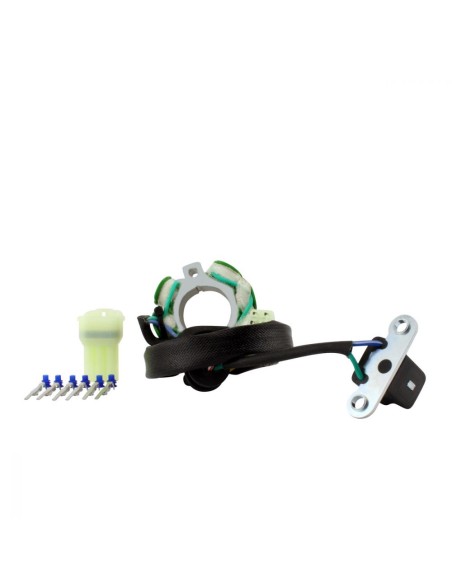

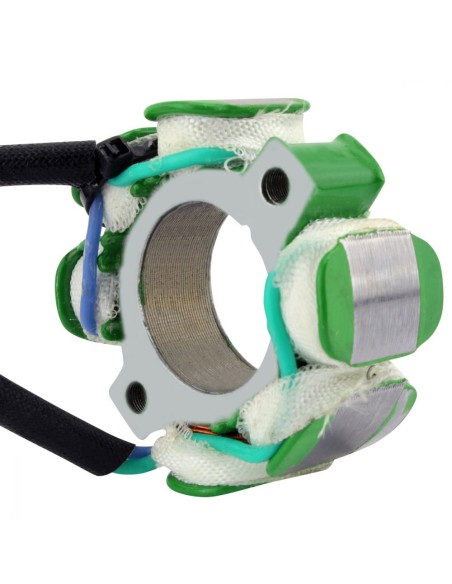

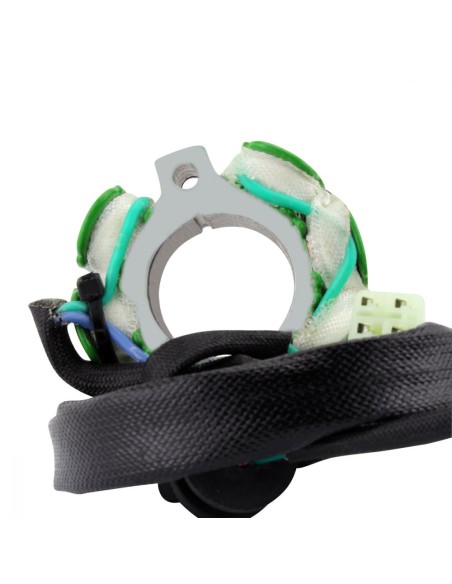

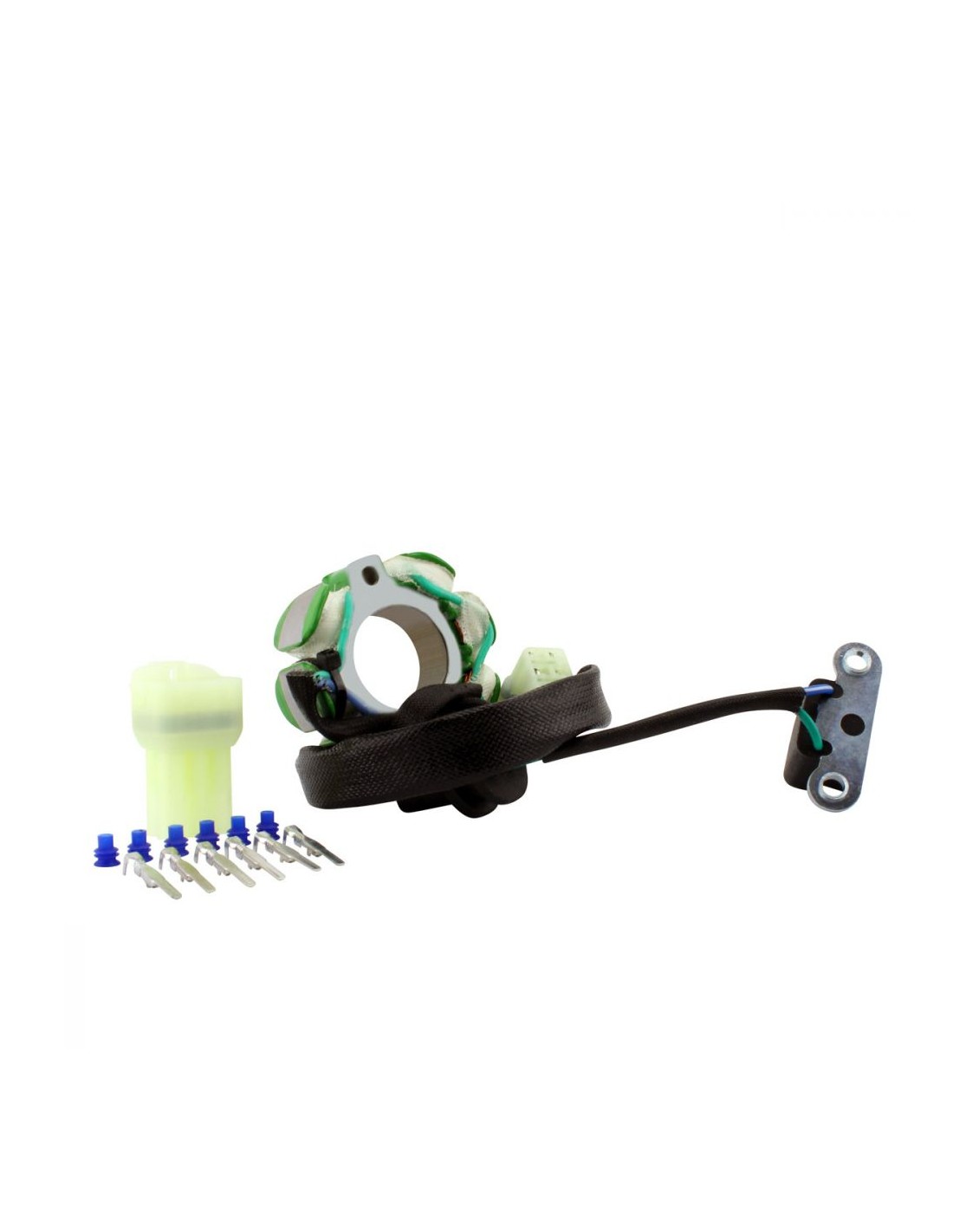

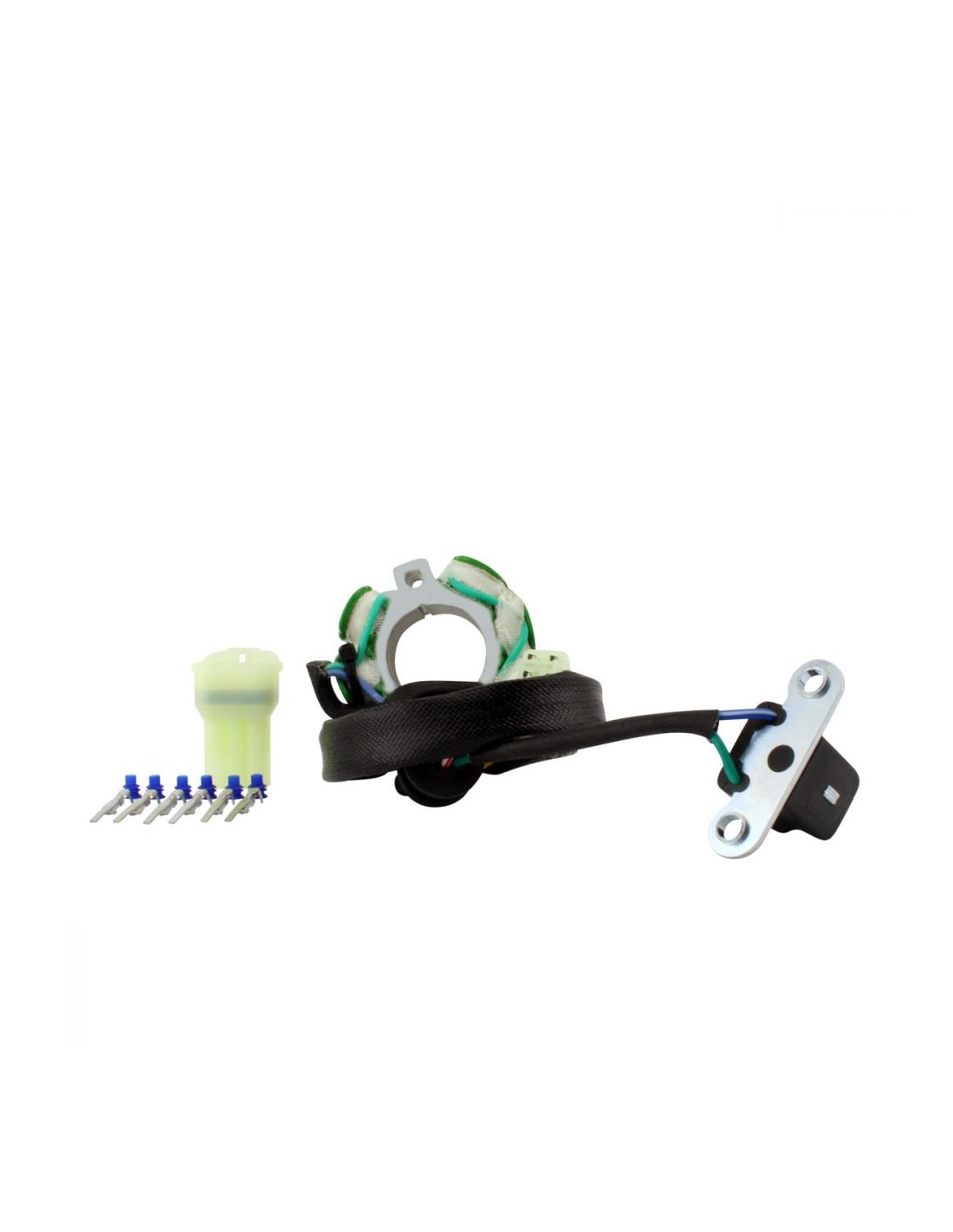

Stator
Ignition Only
Suzuki RM-Z450 (2005-2007)
OEM 32101-35G00
Dimensions:
Interior diameter: 28 mm
Exterior diameter: 58 mm
Thickness: 12 mm

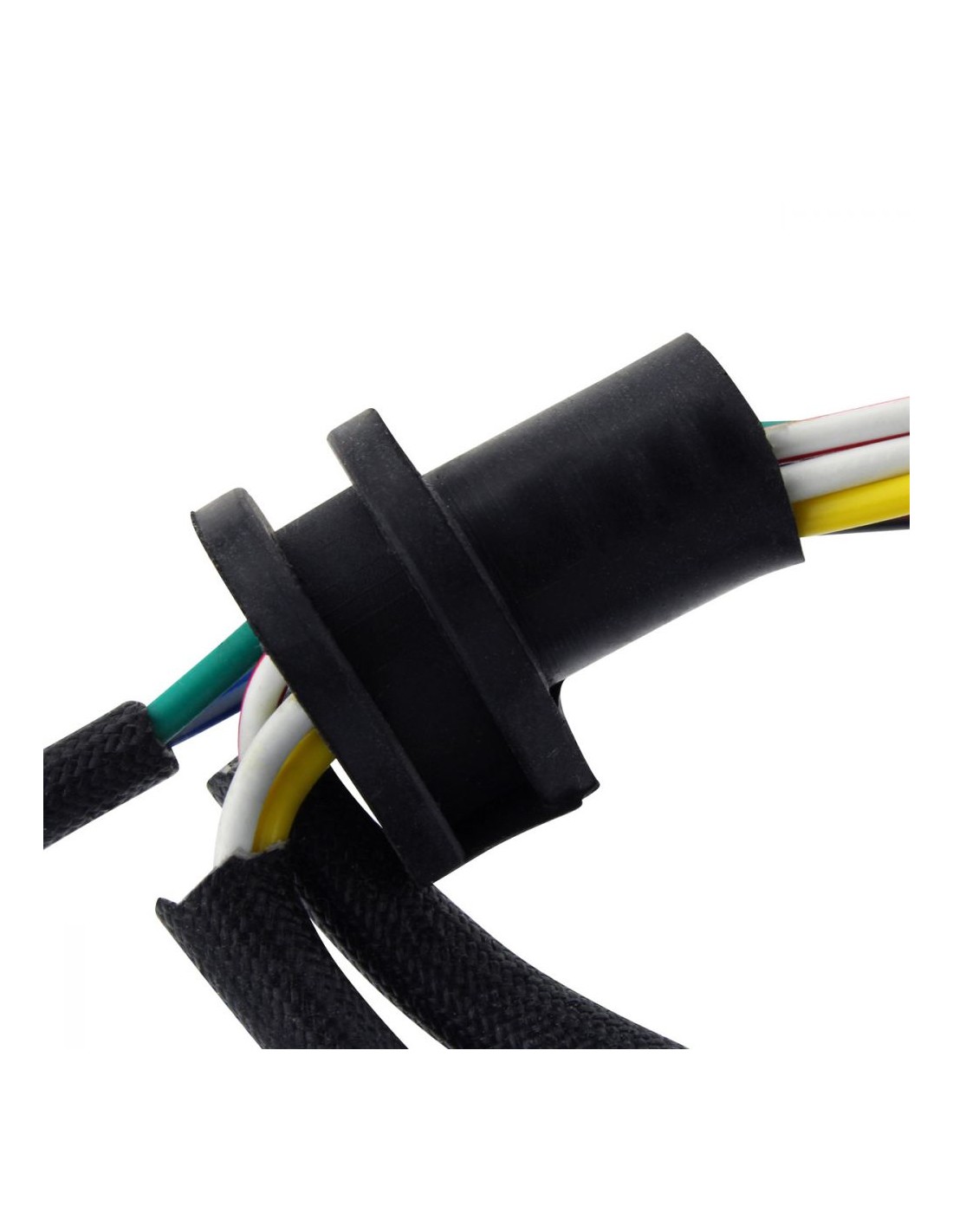

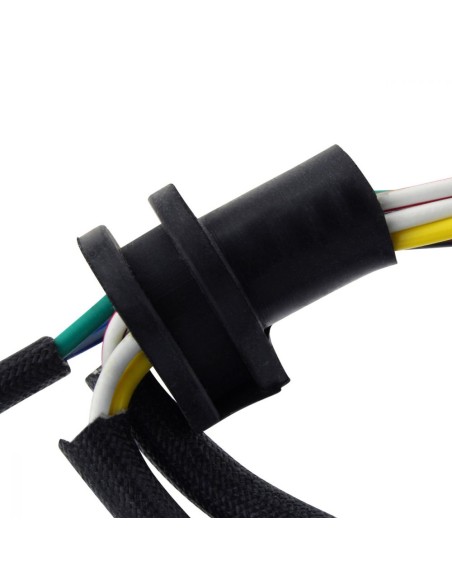

Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 265 mm

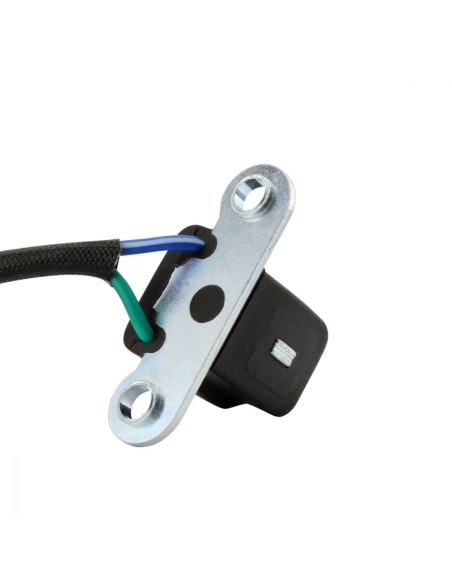

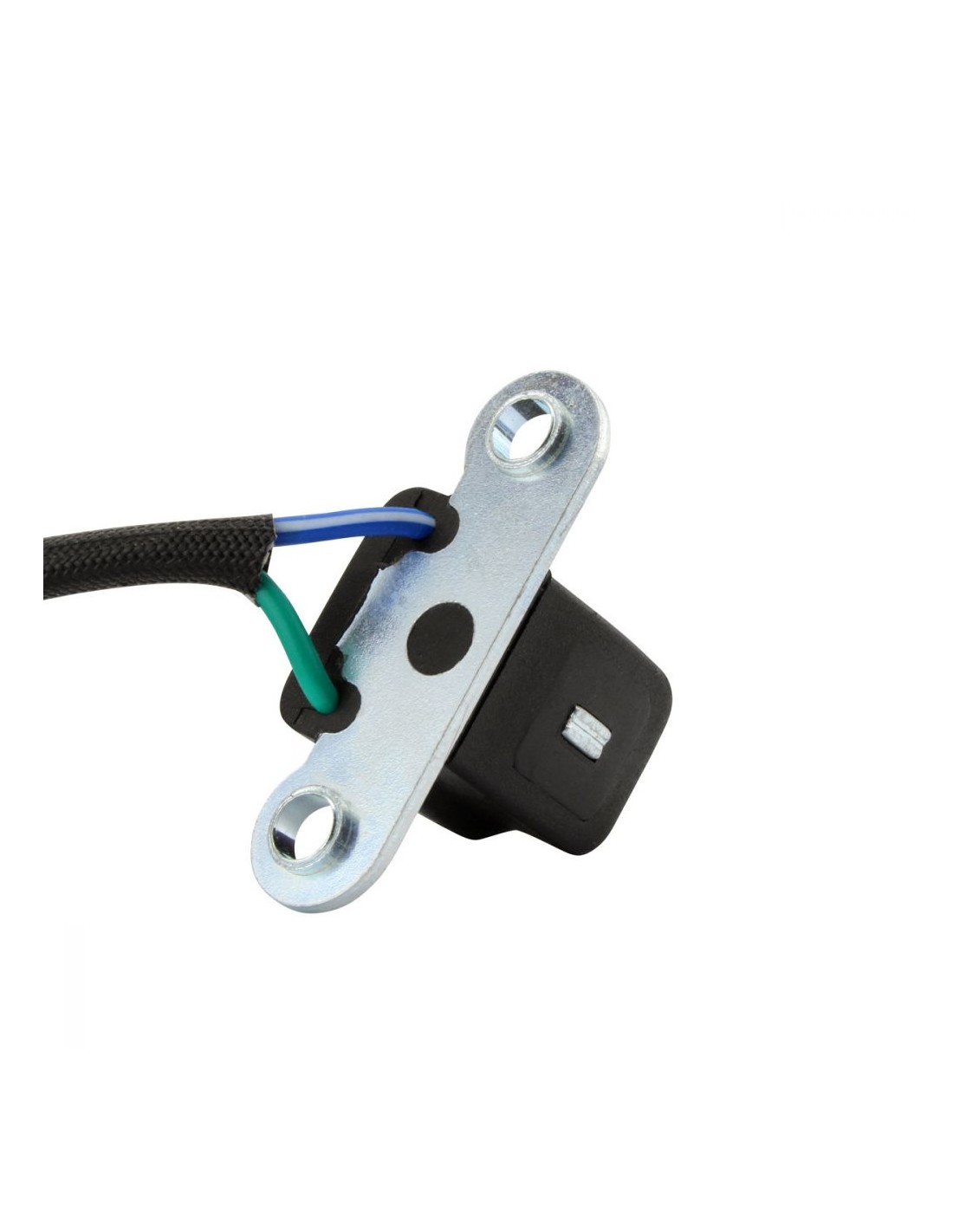

Length of pickup coil's wire to grommet: 50 mm
Other specifications:
Number of wires: 6

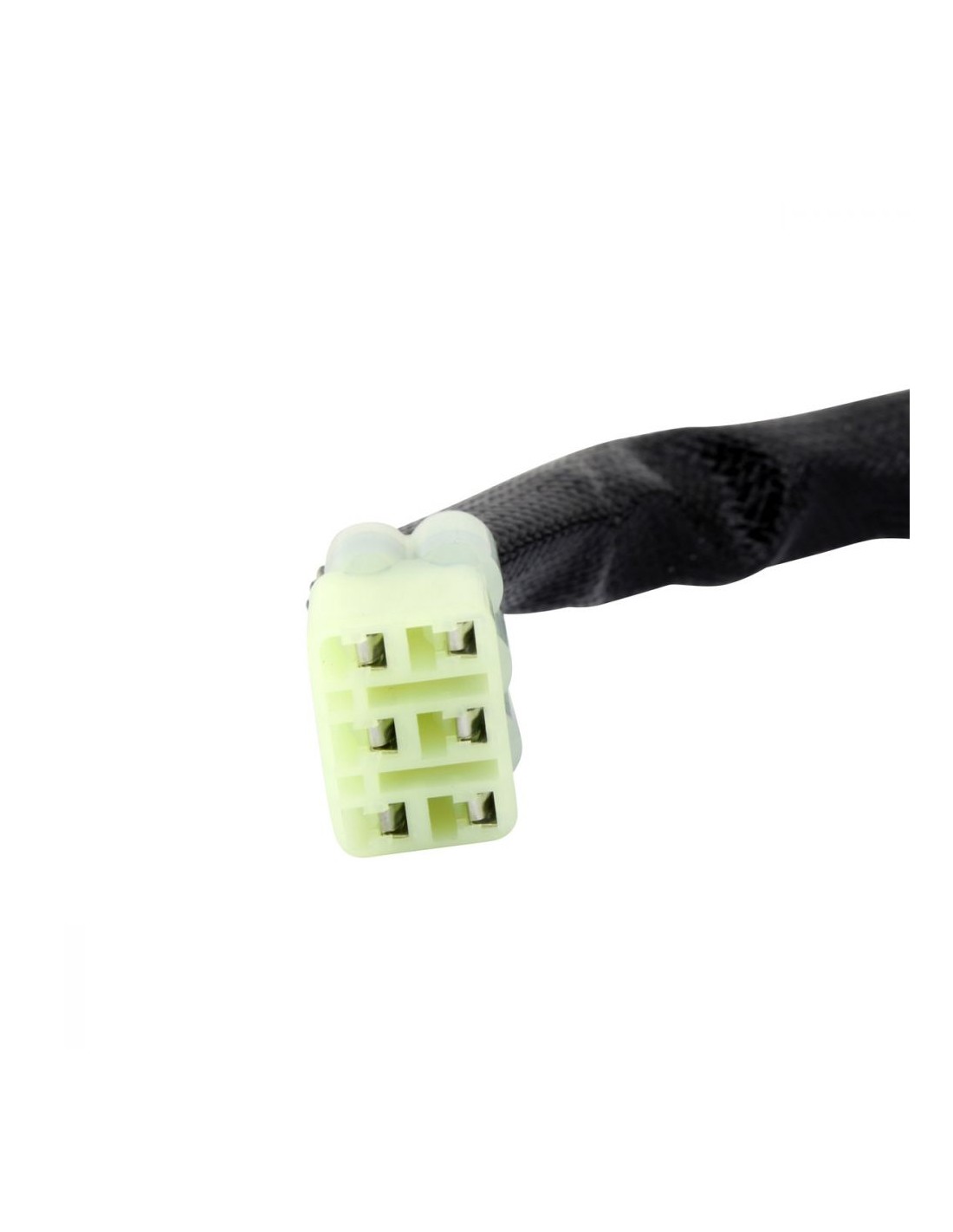

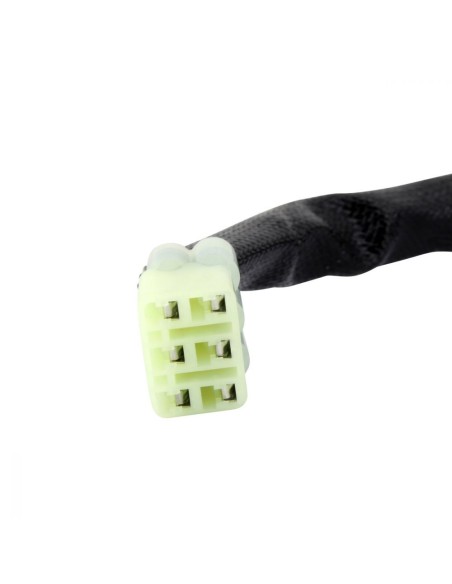

Number of plugs: 1
Number of pins: 6
Number of poles: 6
Wire to wire resistance:
Alternator: Yellow to Black/White = 3 ohms +-20%
Pickup: Green to Red = 100 ohms +-20%
Source: White/Red to Black/Red = 38 ohms +-20%
