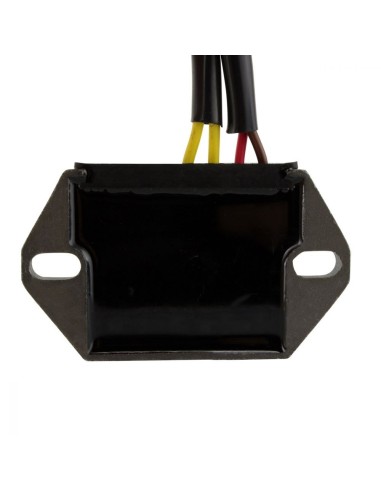

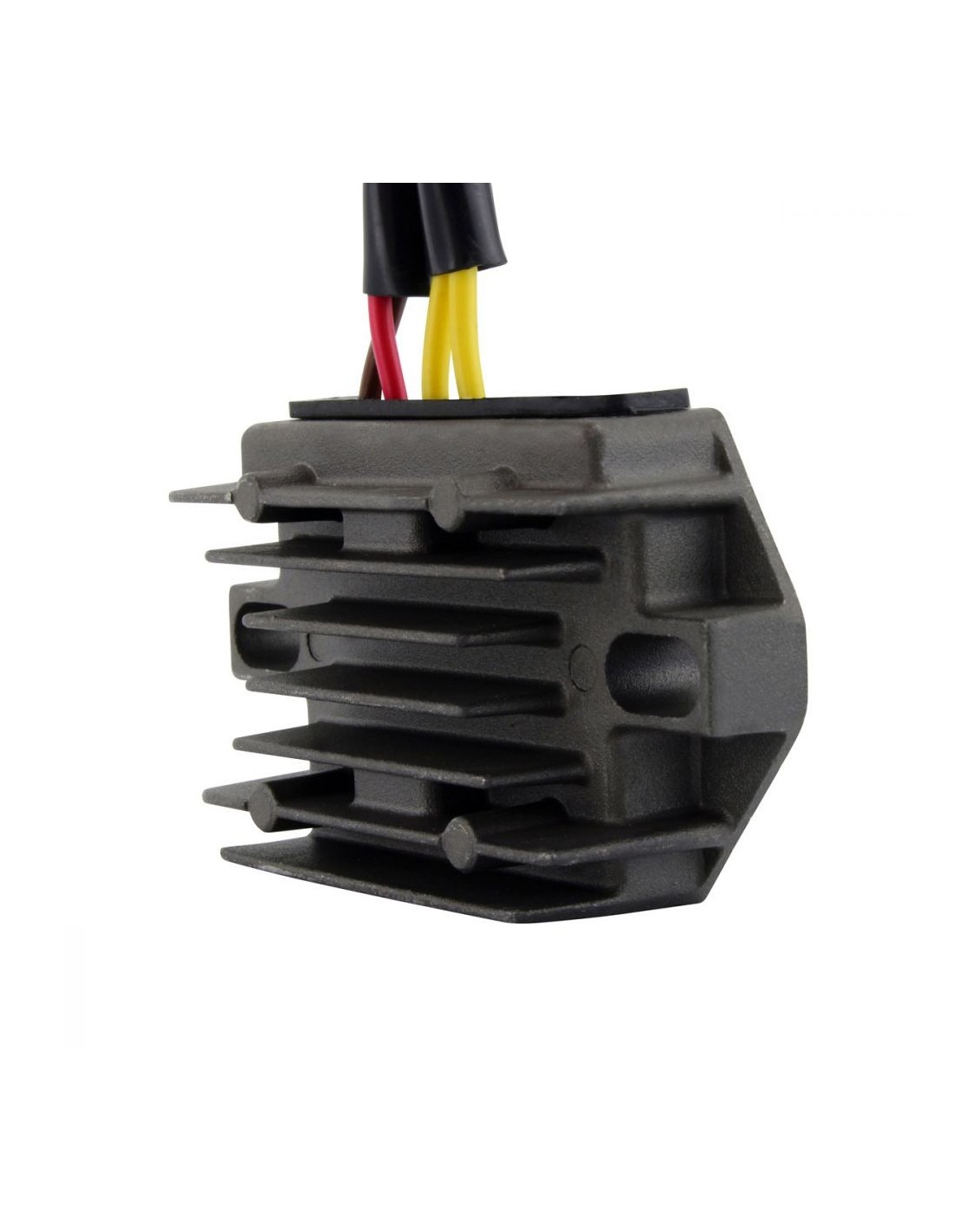

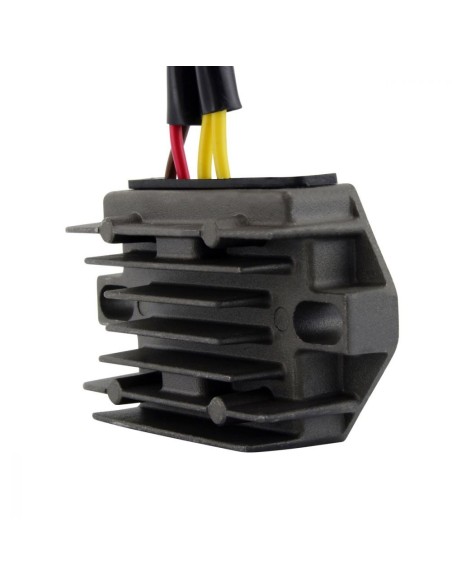

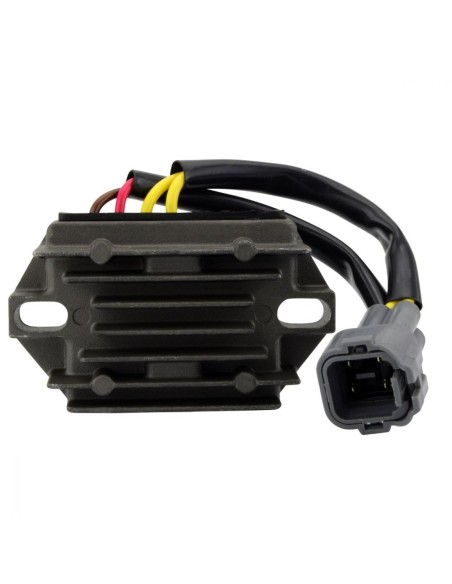

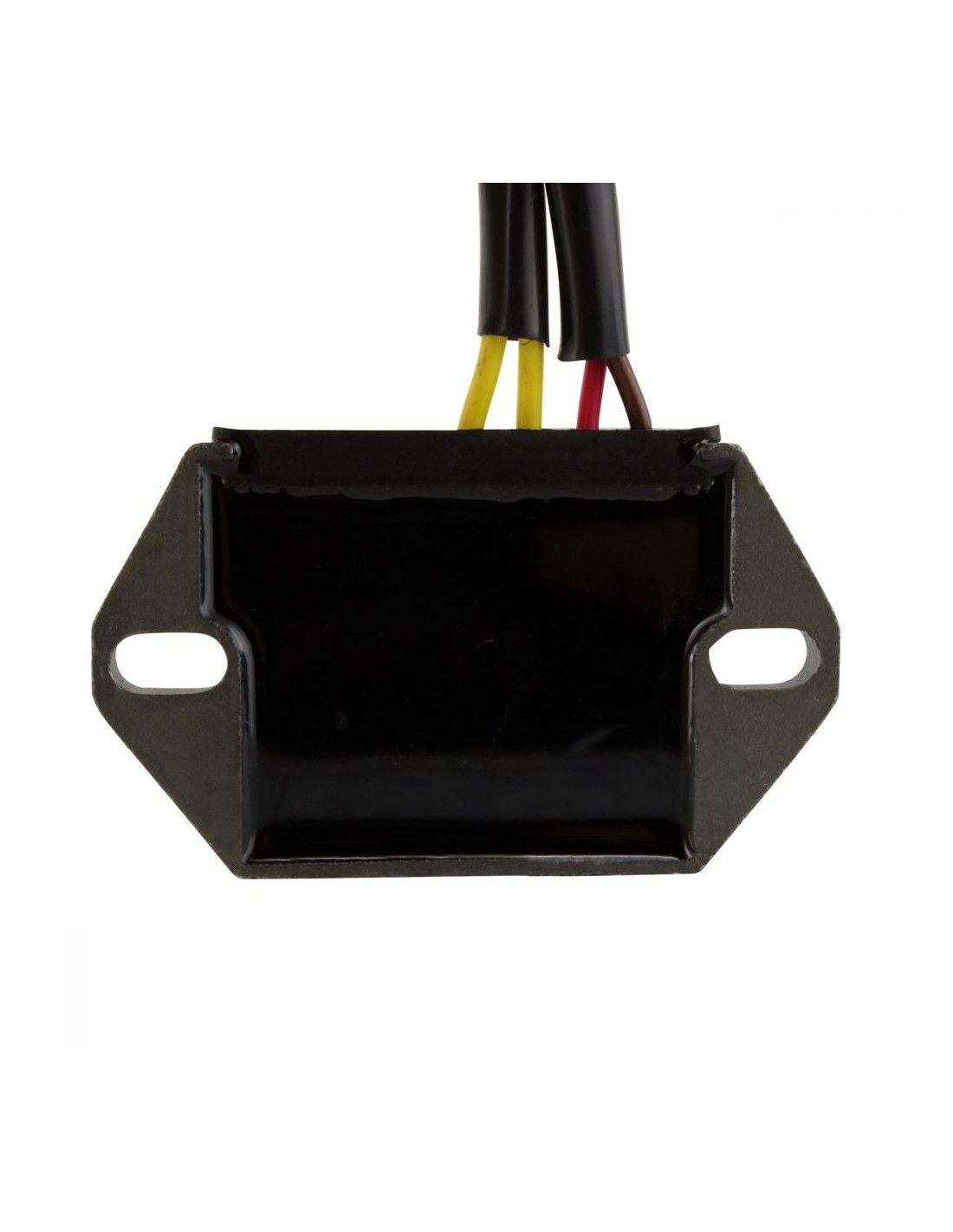

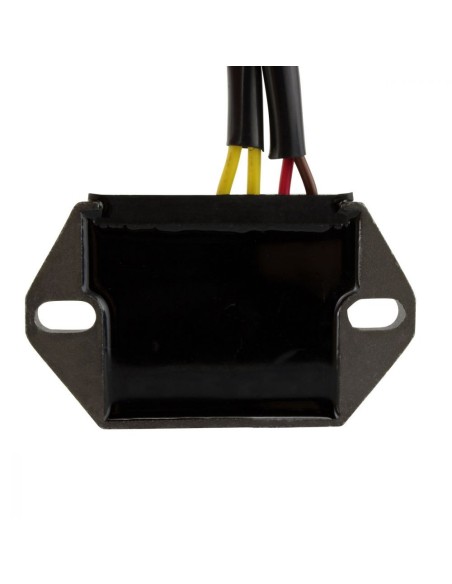

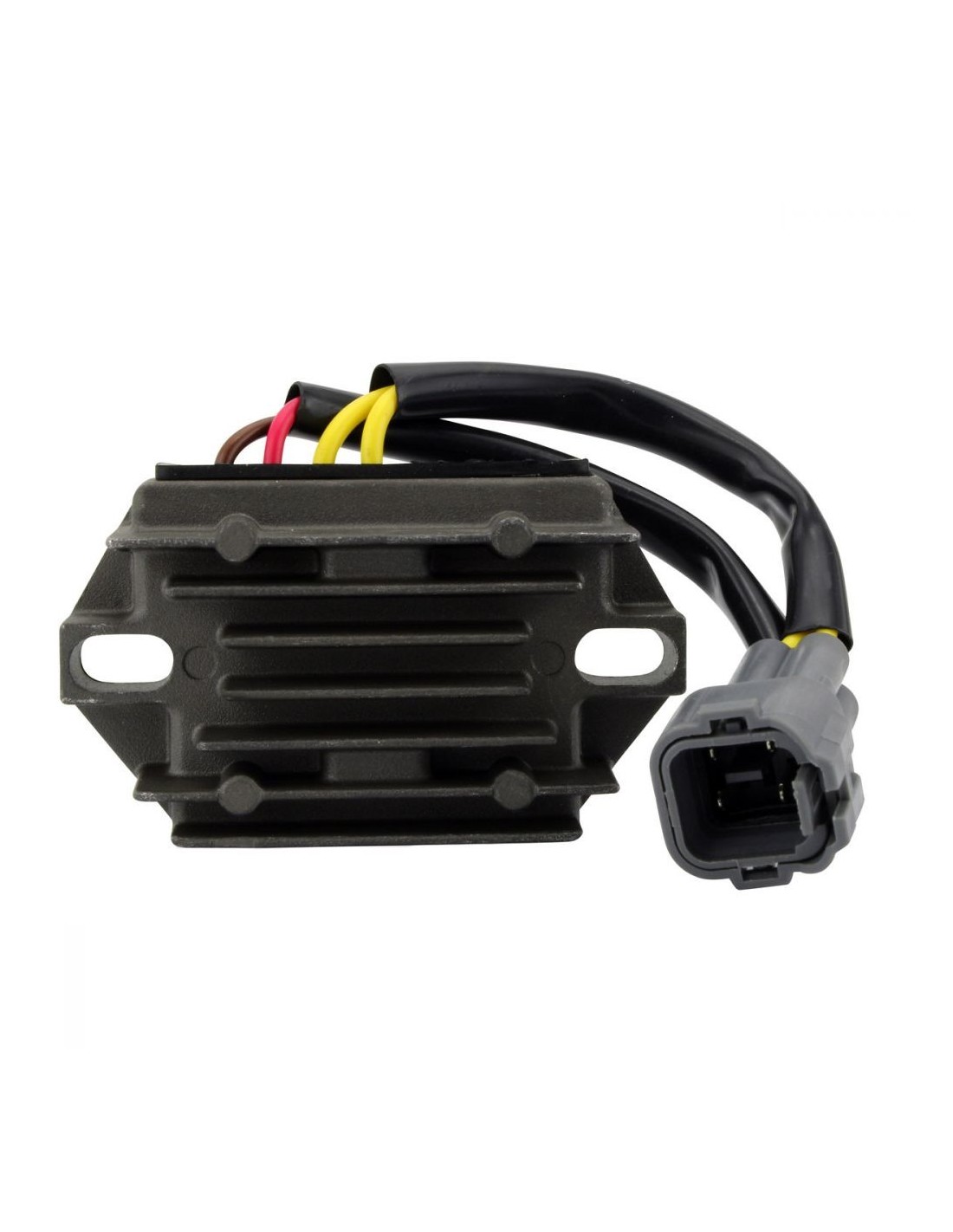

OEM 32800-28H00
2024 Suzuki RM Z 450
2023 Suzuki RM Z 450
2022 Suzuki RM Z 450
2022 Suzuki RM Z 250
2021 Suzuki RM Z 450
2020 Suzuki RM Z 450
2019 Suzuki RM Z 450
2018 Suzuki RM Z 450
2018 Suzuki RM Z 250
2017 Suzuki RM Z 450
2017 Suzuki RM Z 250
2016 Suzuki RM Z 450
2016 Suzuki RM Z 250
2015 Suzuki RM Z 450
2015 Suzuki RM Z 250
2014 Suzuki RM Z 450
2014 Suzuki RM Z 250
2013 Suzuki RM Z 450
2013 Suzuki RM Z 250
2012 Suzuki RM Z 450
2012 Suzuki RM Z 250
2011 Suzuki RM Z 450
2011 Suzuki RM Z 250
2010 Suzuki RM Z 450
2010 Suzuki RM Z 250
2009 Suzuki RM Z 450
Dimensions:
Width: 44 mm
Length: 76 mm
Height: 22 mm
Wires length: 90 mm
Distance between fixation holes center to center: 60 mm
Other specifications:

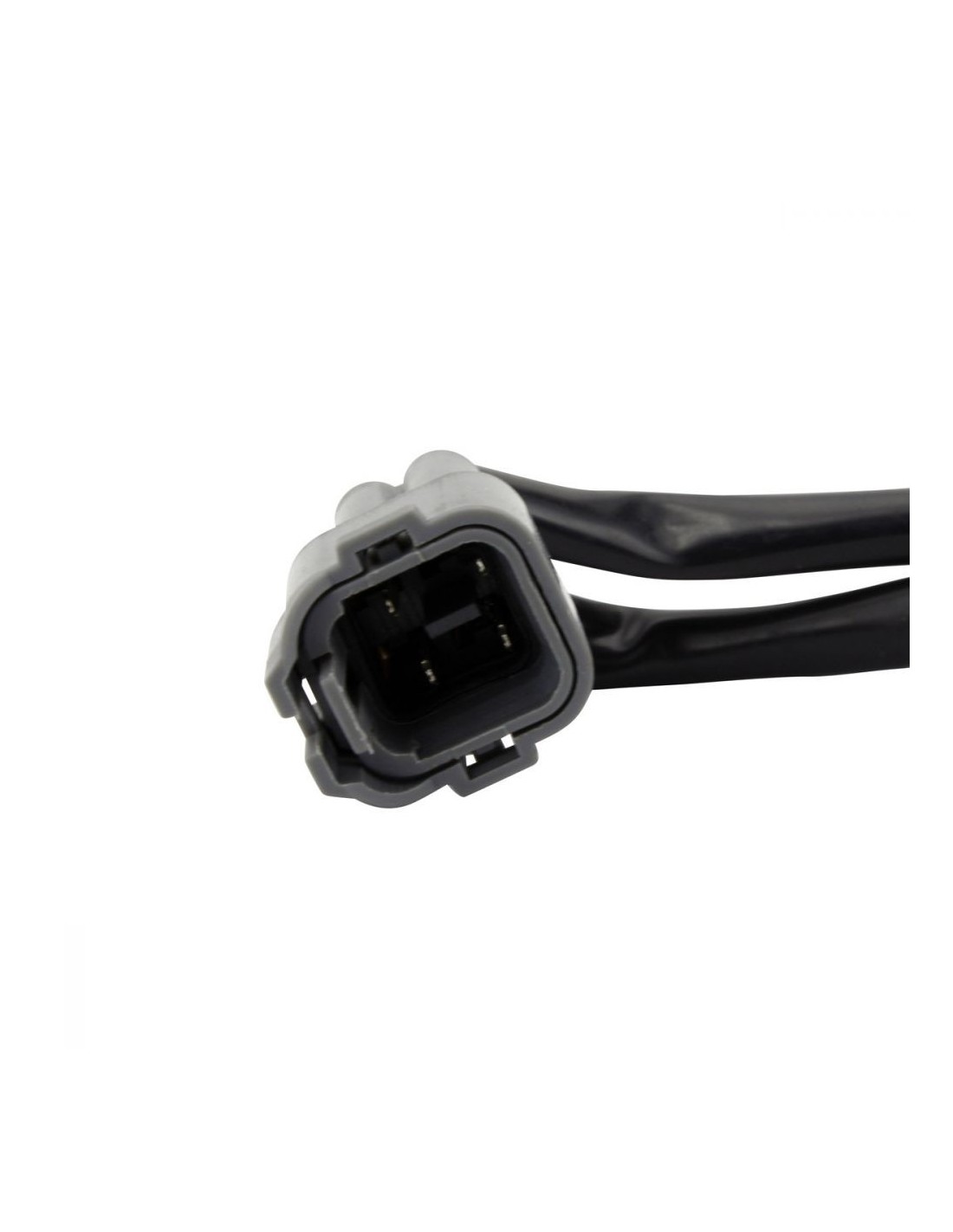

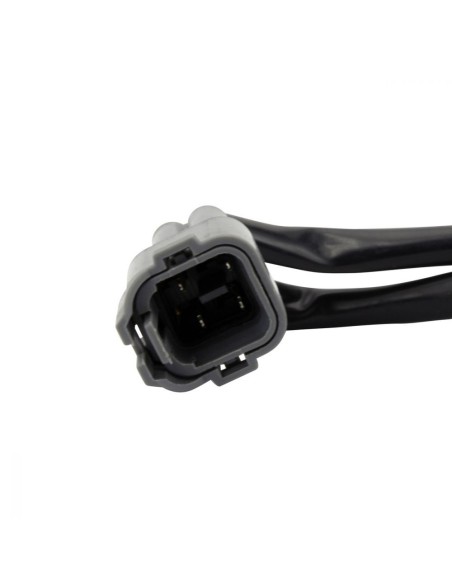

Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
For the model RM 450 Z 2009 two regulators are possible. Our regulator covers vehicles with Vin # JS1RL42A000504733
OEM 32800-28H00
