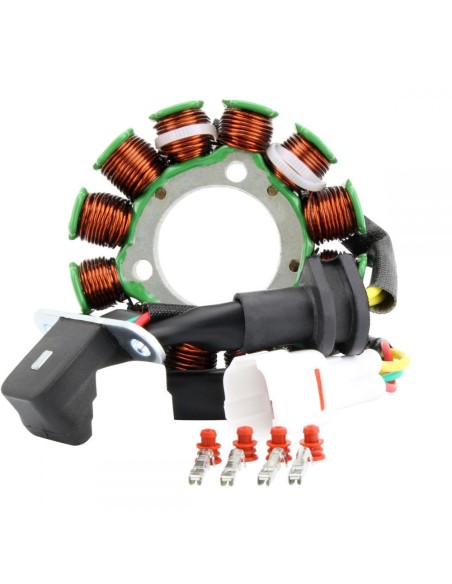

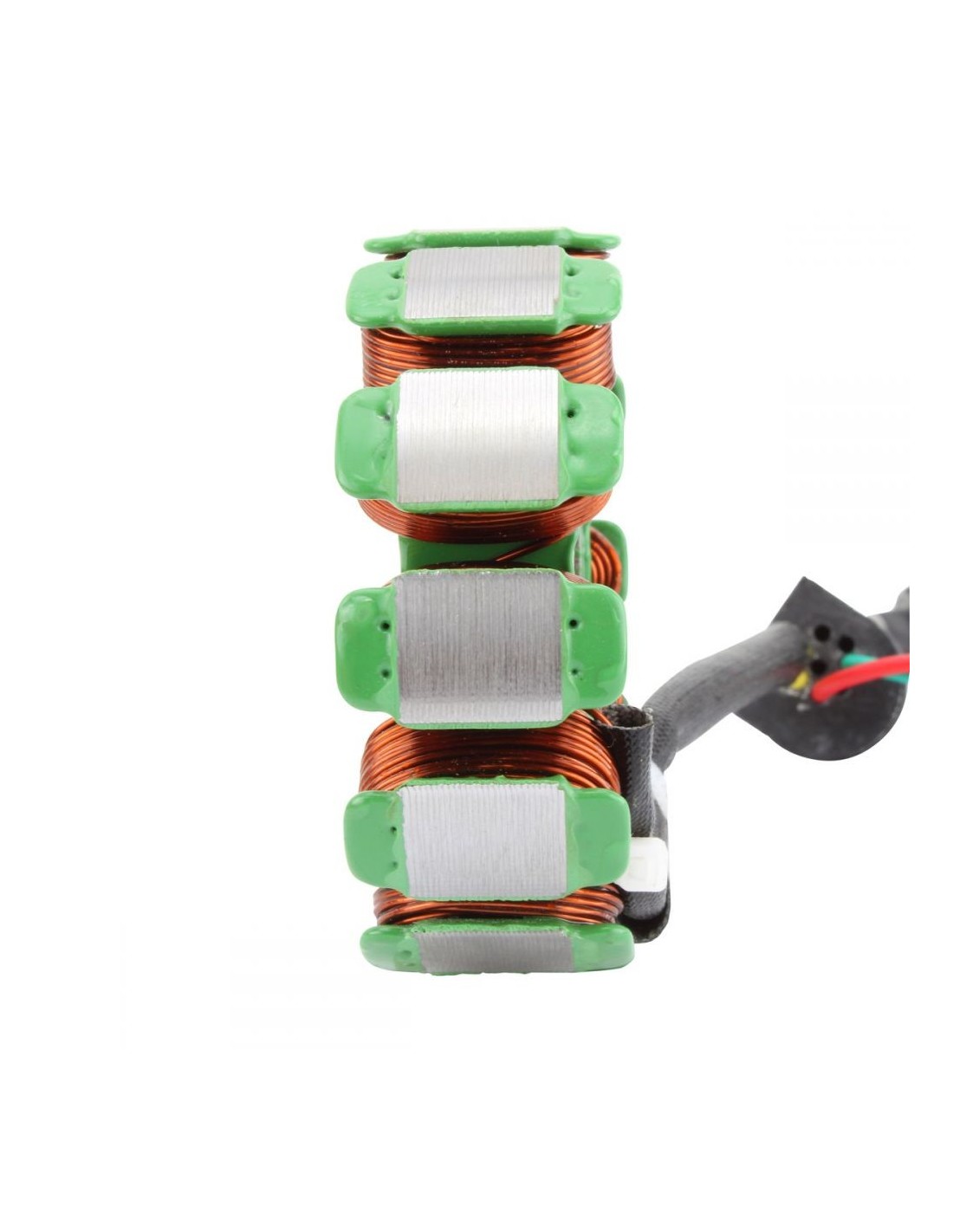

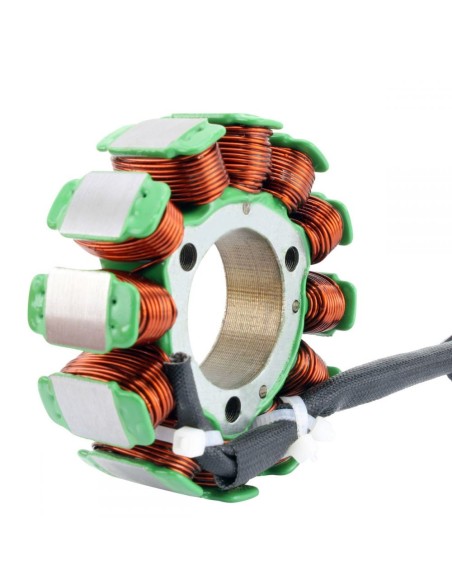

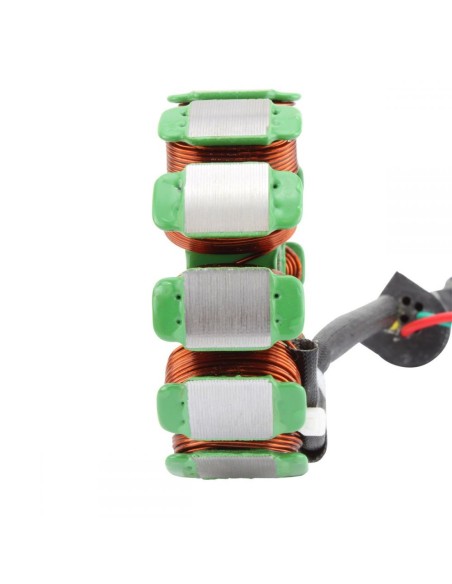

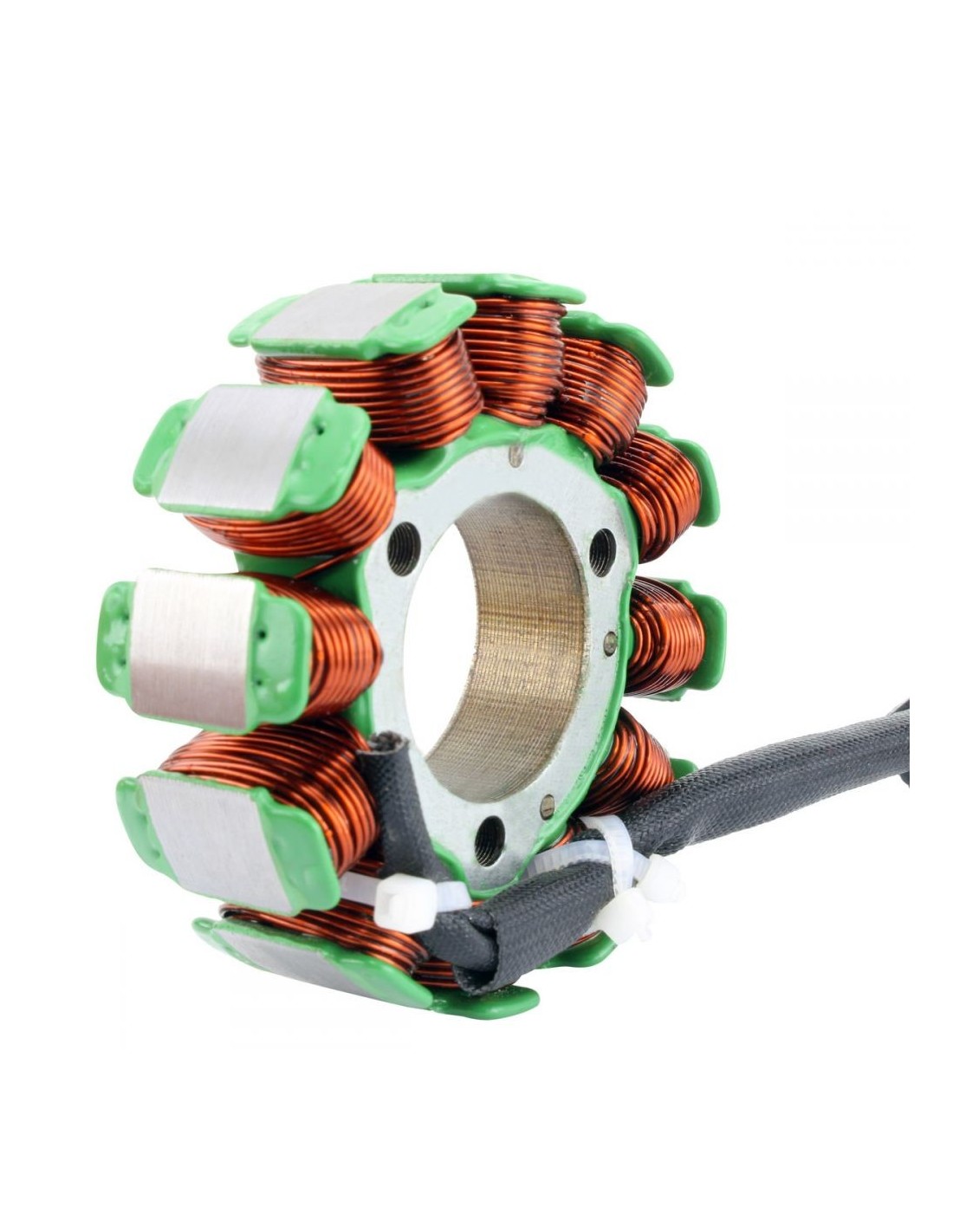

Stator Suzuki RMZ250 RMZ450 OEM 32101-28HA0

2022 Suzuki RM Z 450

2020 Suzuki RM Z 450

2019 Suzuki RM 450 Z

2018 Suzuki RM-Z250

2018 Suzuki RM 450 Z

2017 Suzuki RM-Z250

2017 Suzuki RM 450 Z

2016 Suzuki RM-Z250

2016 Suzuki RM 450 Z

2015 Suzuki RM-Z250

2015 Suzuki RM 450 Z

2014 Suzuki RM-Z250

2014 Suzuki RM 450 Z

2013 Suzuki RM-Z250

2013 Suzuki RM 450 Z

OEM 32101-28HA0 32101-28HA1

Dimensions :

Interior diameter : 32 mm

Exterior diameter : 76.6 mm

Thickness : 14 mm

Length of wires stator to grommet : 90 mm

Length of wires grommet to plug : 380 mm

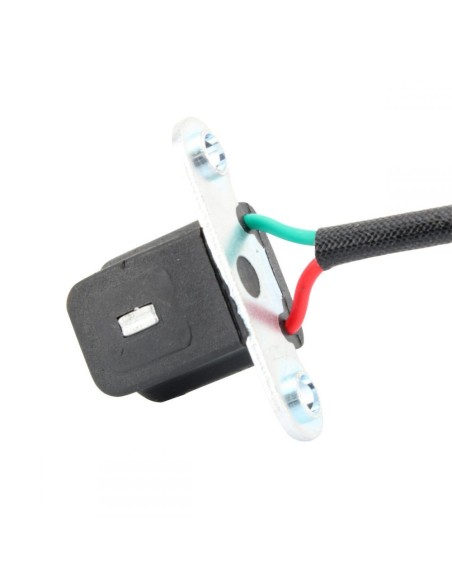

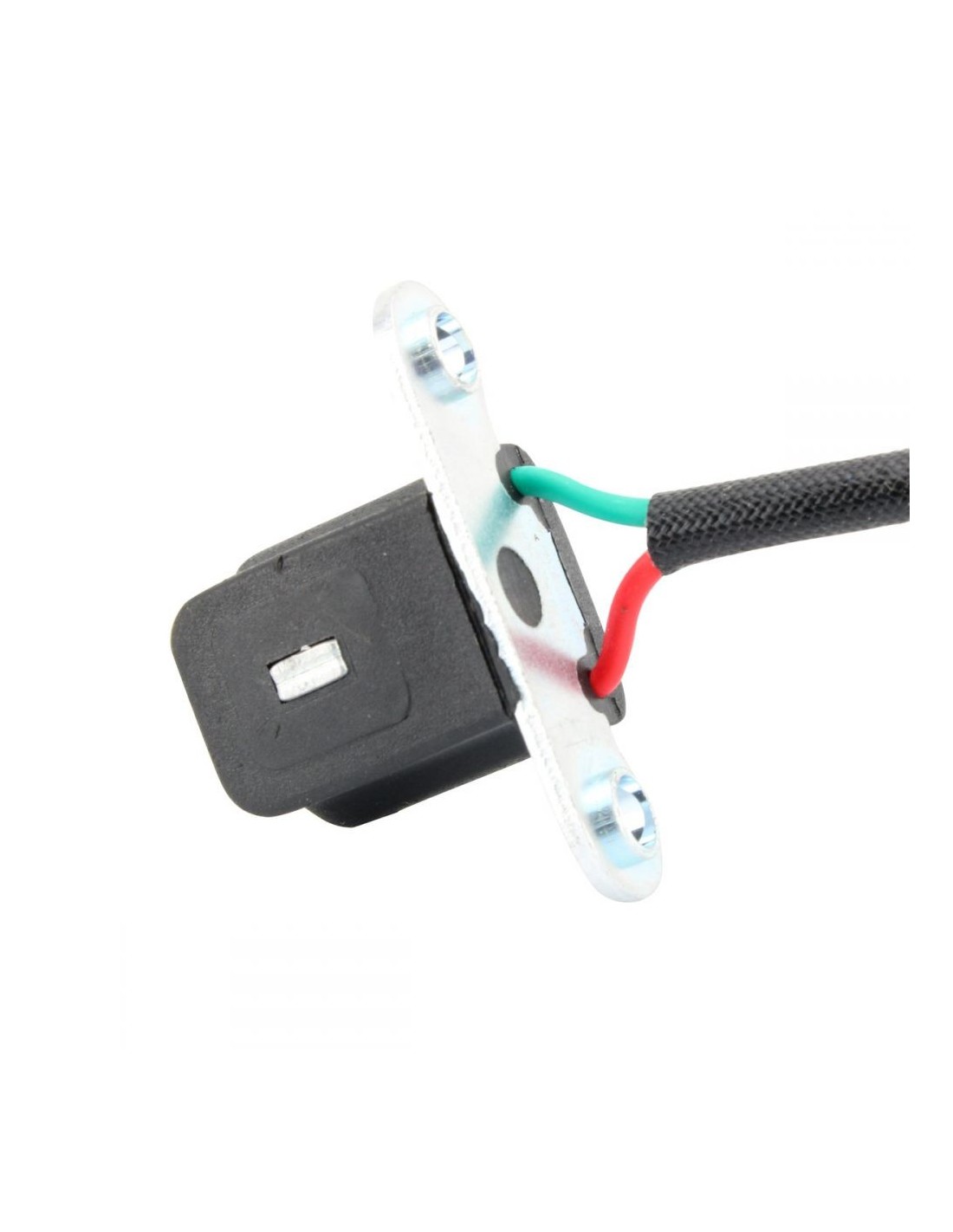

Length of pickup coil's wire to grommet : 30 mm

Other specifications :

Number of wires : 4

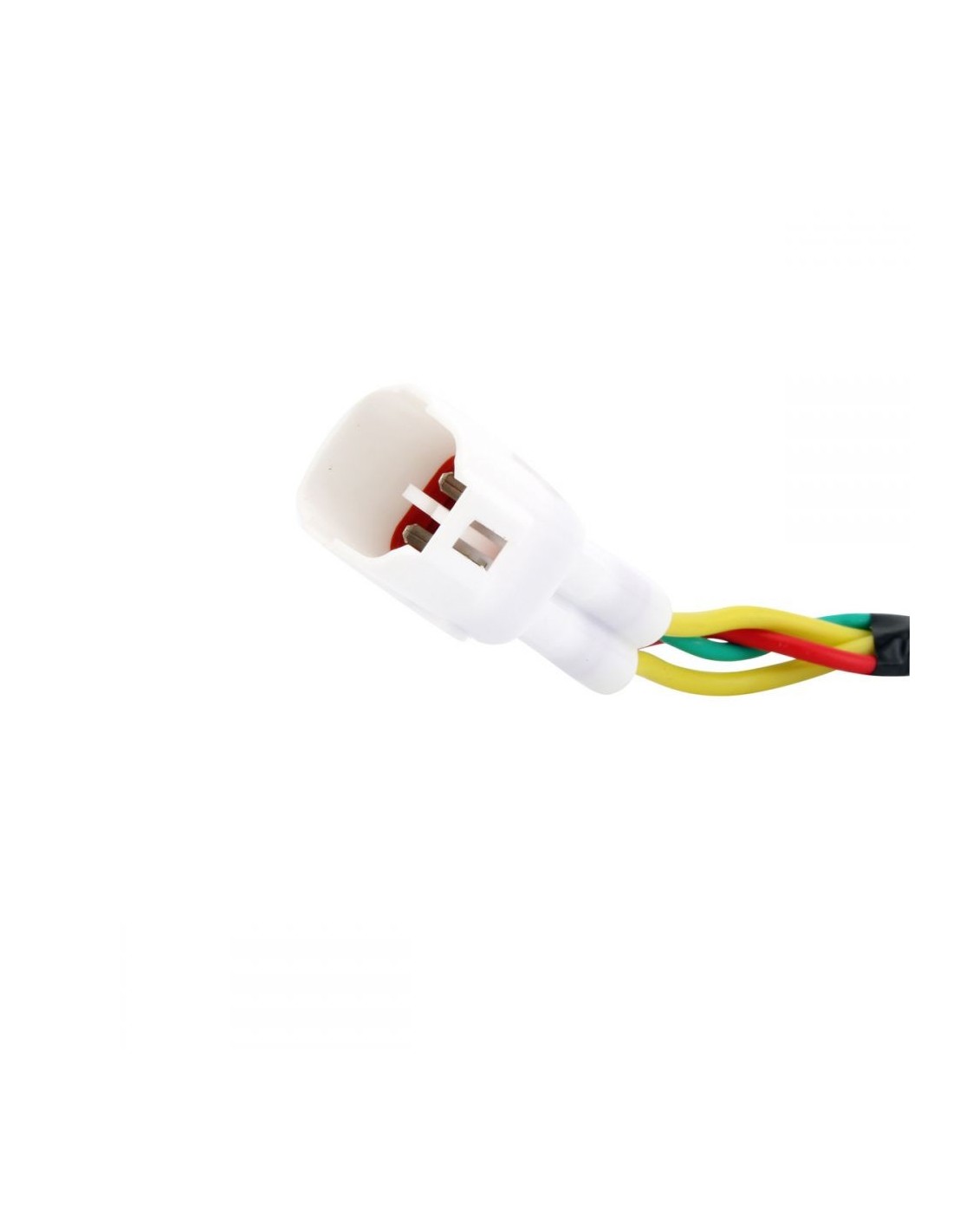

Number of plugs : 1

Number of pins : 4

Number of poles : 12

Wire to wire resistance :

Alternator : Yellow to Yellow = 1.8 ohms +-20%

Pickup : = Red to Green = 100 ohms +-20%
