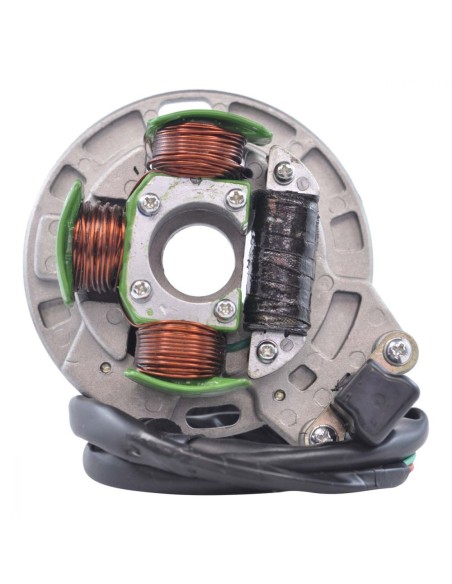

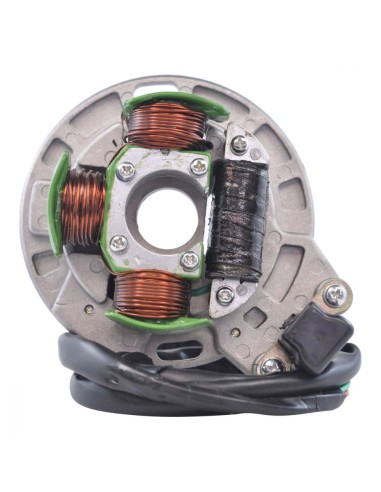

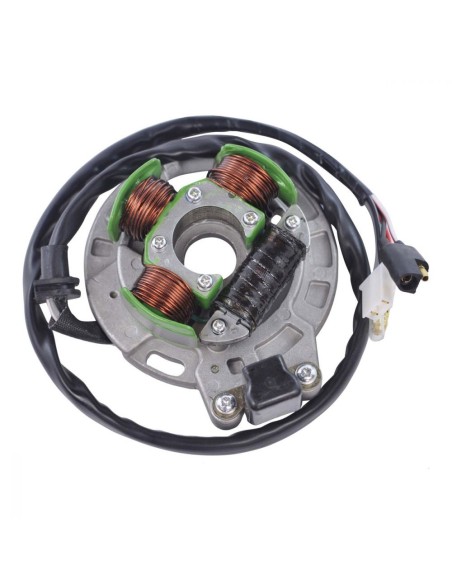

OEM 32101-05D00 32101-05D01
1998 Suzuki RMX 250
1997 Suzuki RMX 250
1996 Suzuki RMX 250
1995 Suzuki RMX 250
1994 Suzuki RMX 250
1993 Suzuki RMX 250
1992 Suzuki RMX 250
1991 Suzuki RMX 250
1990 Suzuki RMX 250
1989 Suzuki RMX 250
OEM 32101-05D00
32101-05D01
Dimensions :
Interior diameter : 29 mm
Exterior diameter : 84 mm

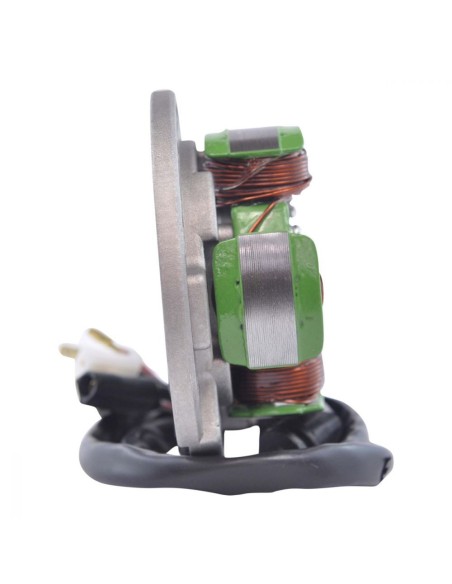

Thickness : 14 mm
Length of wires stator to grommet : 20 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 6

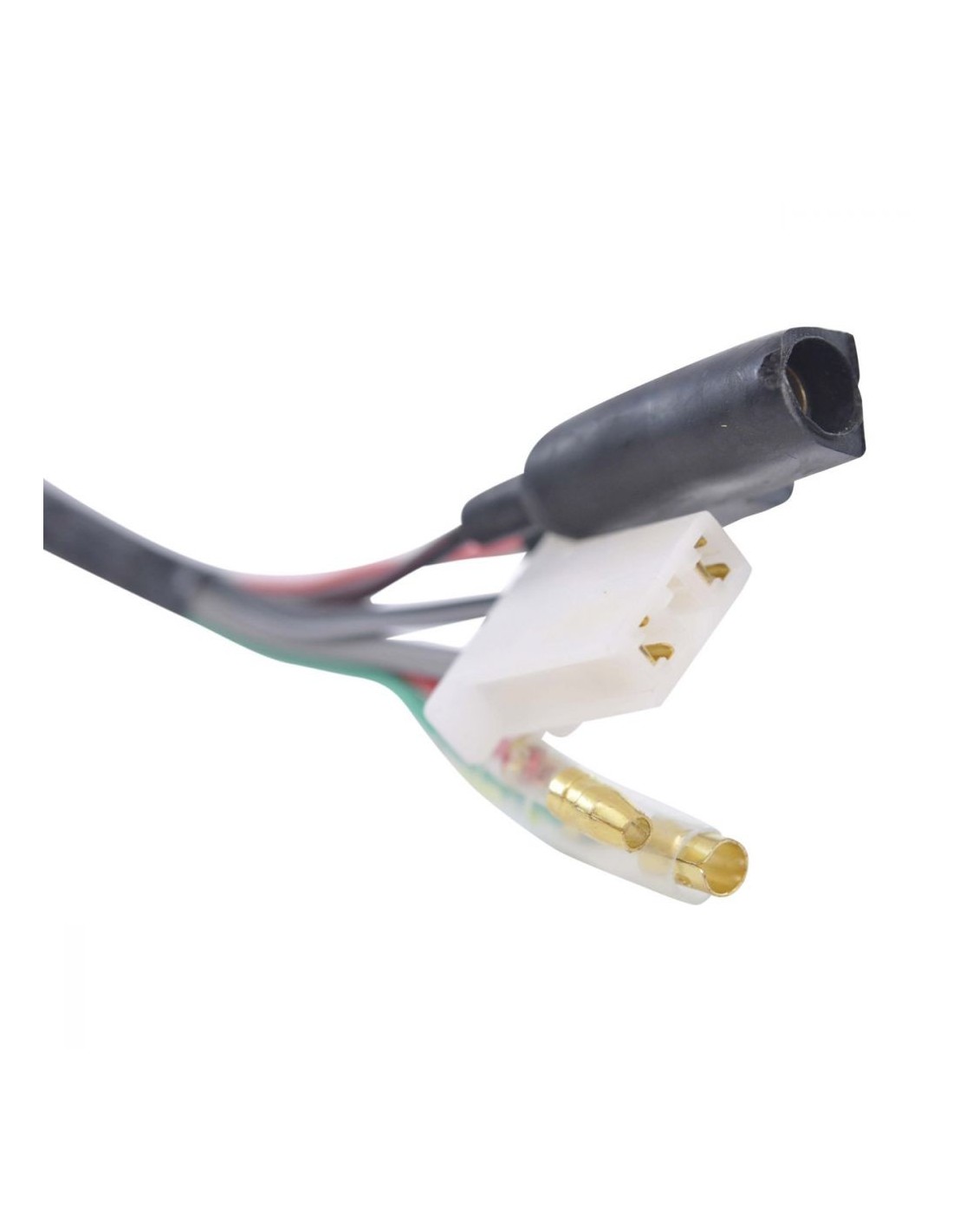

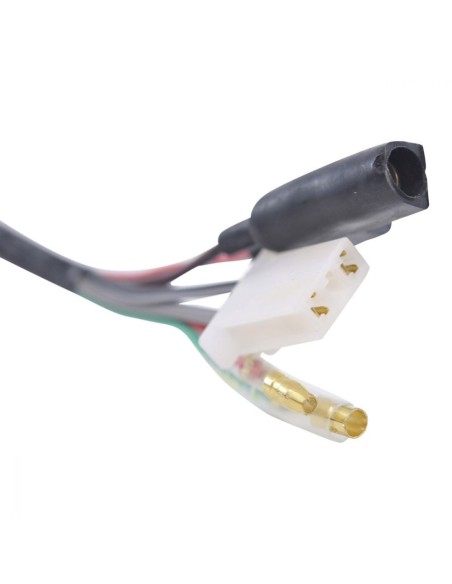

Number of plugs : 4
Number of pins : 6
Wire to wire resistance :
Alternator : Grey to Black/White = 0.04 ohms +-20%
Source : Black/Red to White/Red = 134 ohms +-20%
