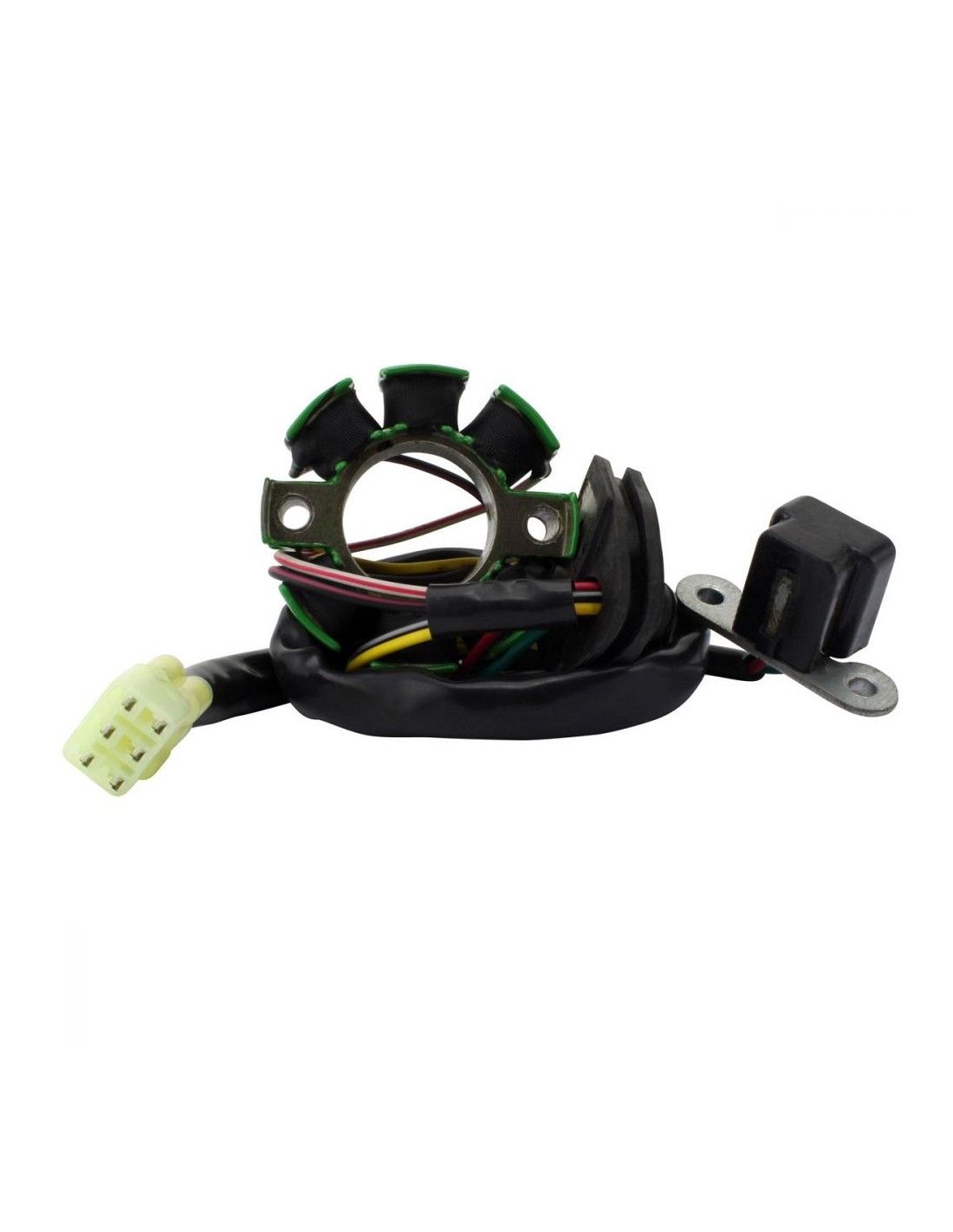

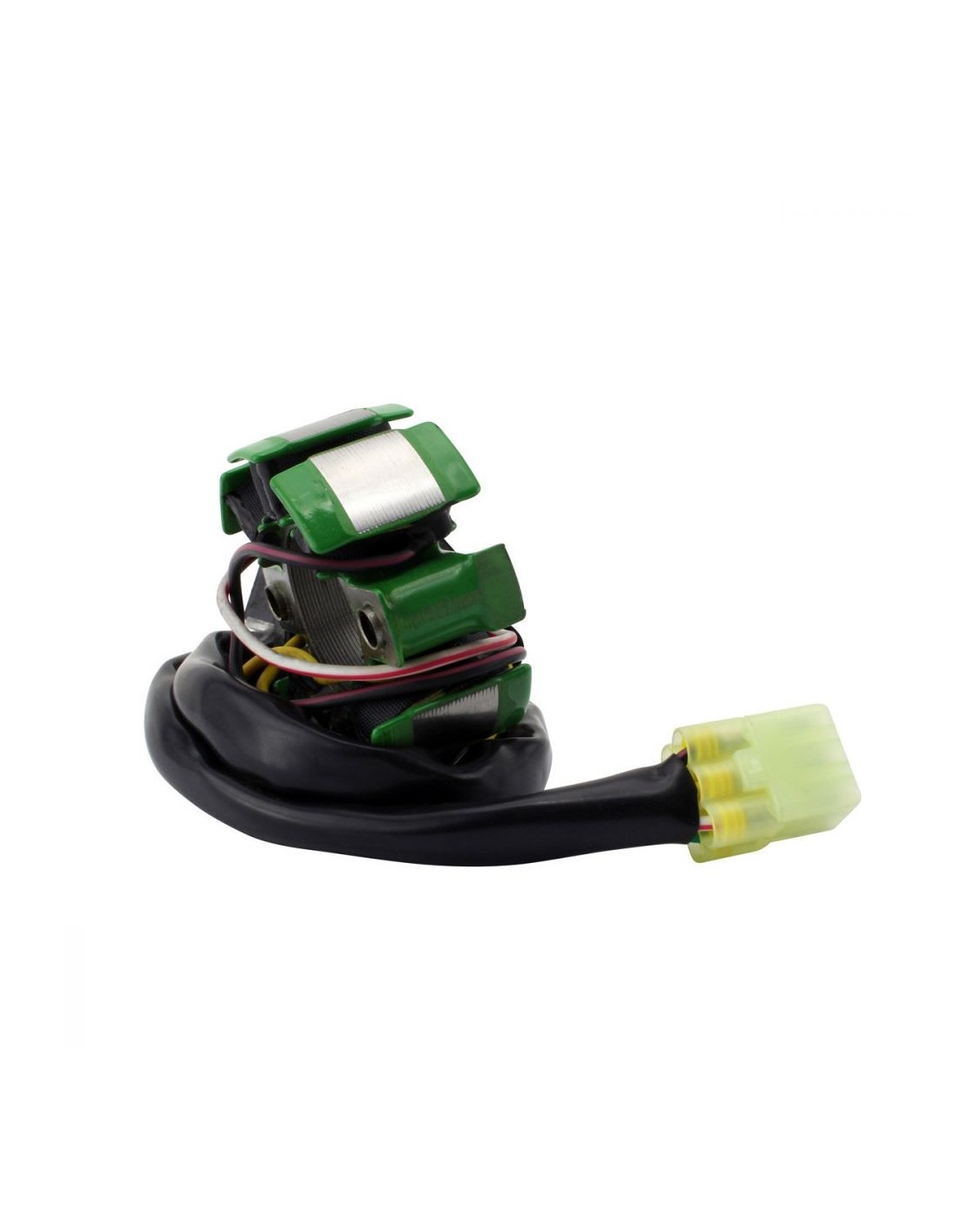

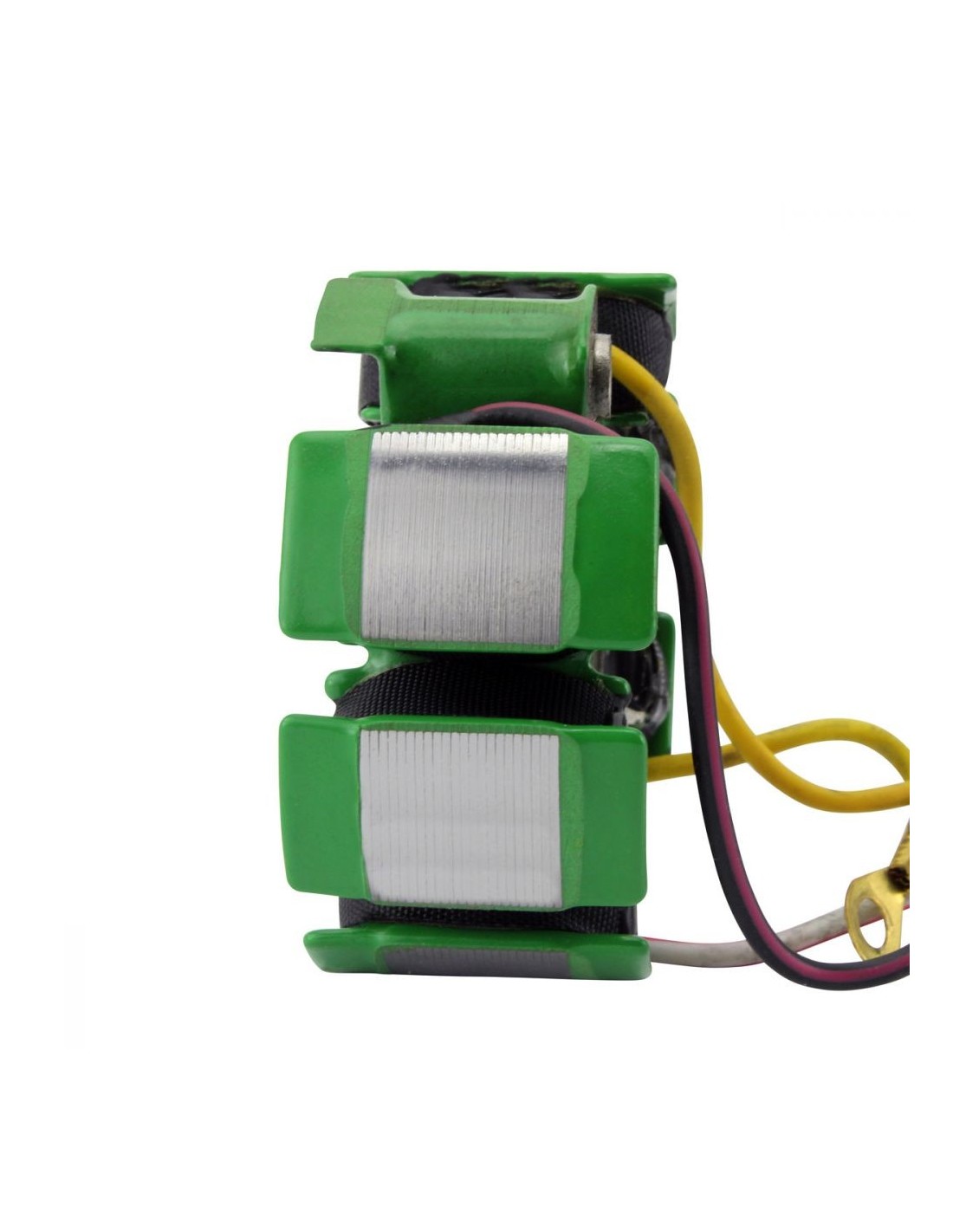

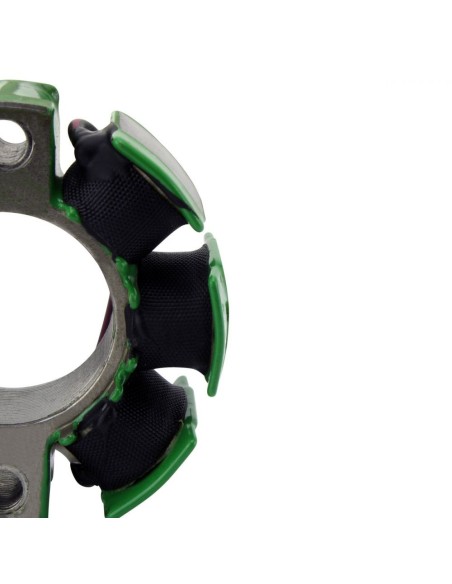

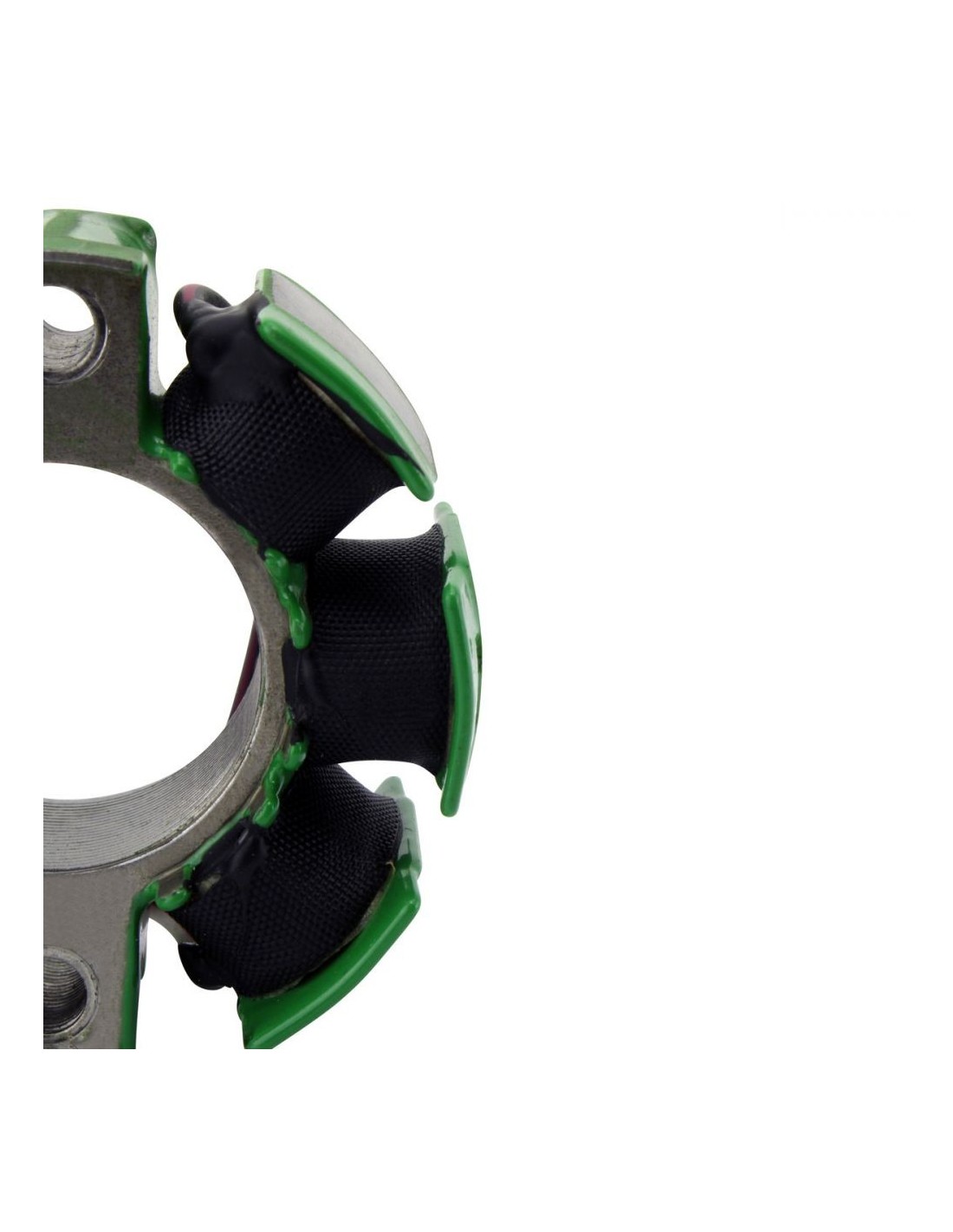

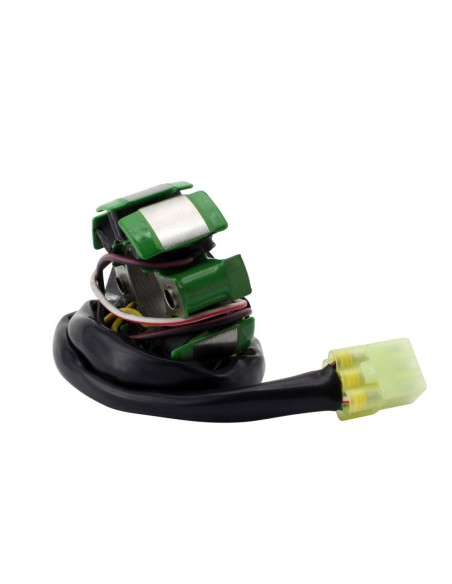

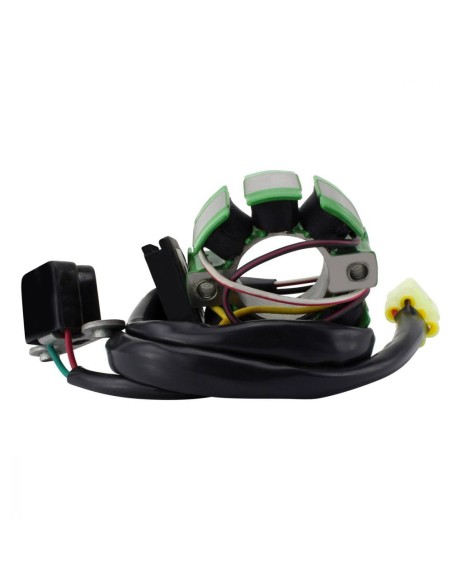

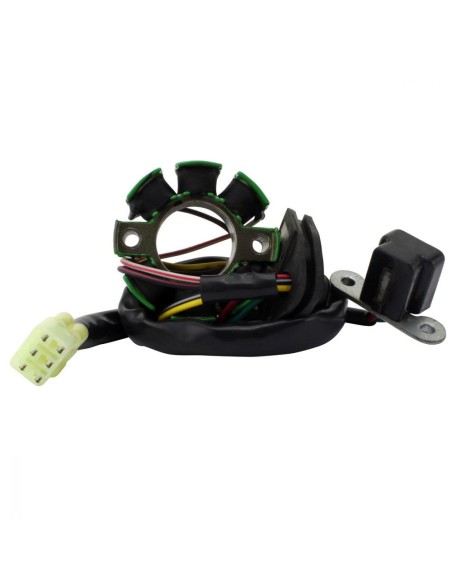

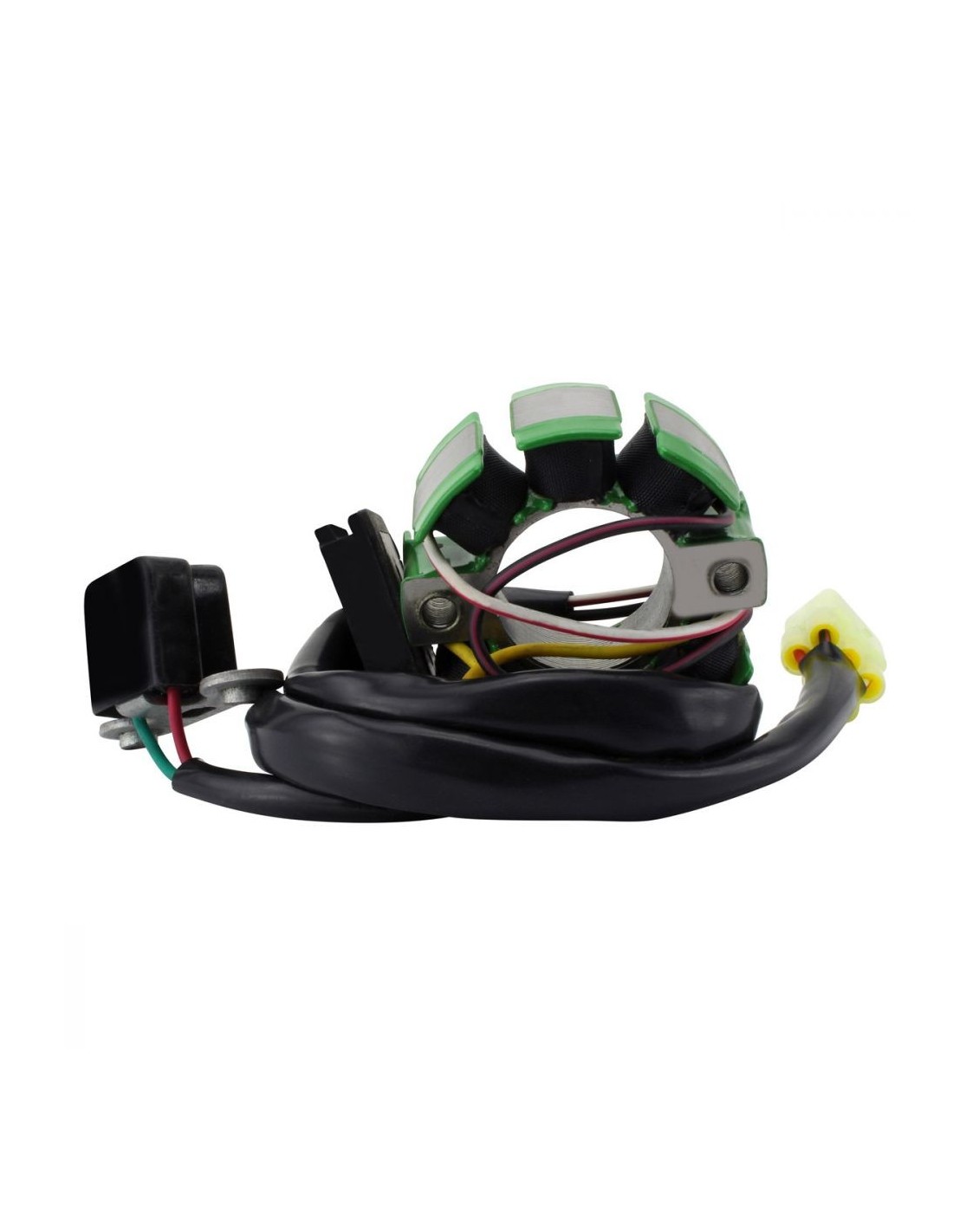

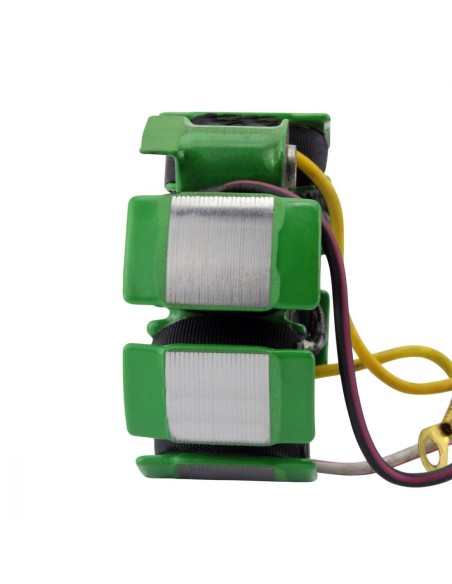

Stator
RM250 (2001-2008)
OEM 32101-37F00 / 32101-37F10 / 32101-37F30
Ignition Only
Dimensions:
Interior diameter: 28 mm
Exterior diameter: 58 mm
Thickness: 16 mm
Length of wires stator to grommet: 20 mm
Length of wires grommet to plug: 415 mm
Length of pickup coil's wire to grommet: 95 mm
Other specifications:
Number of wires: 6

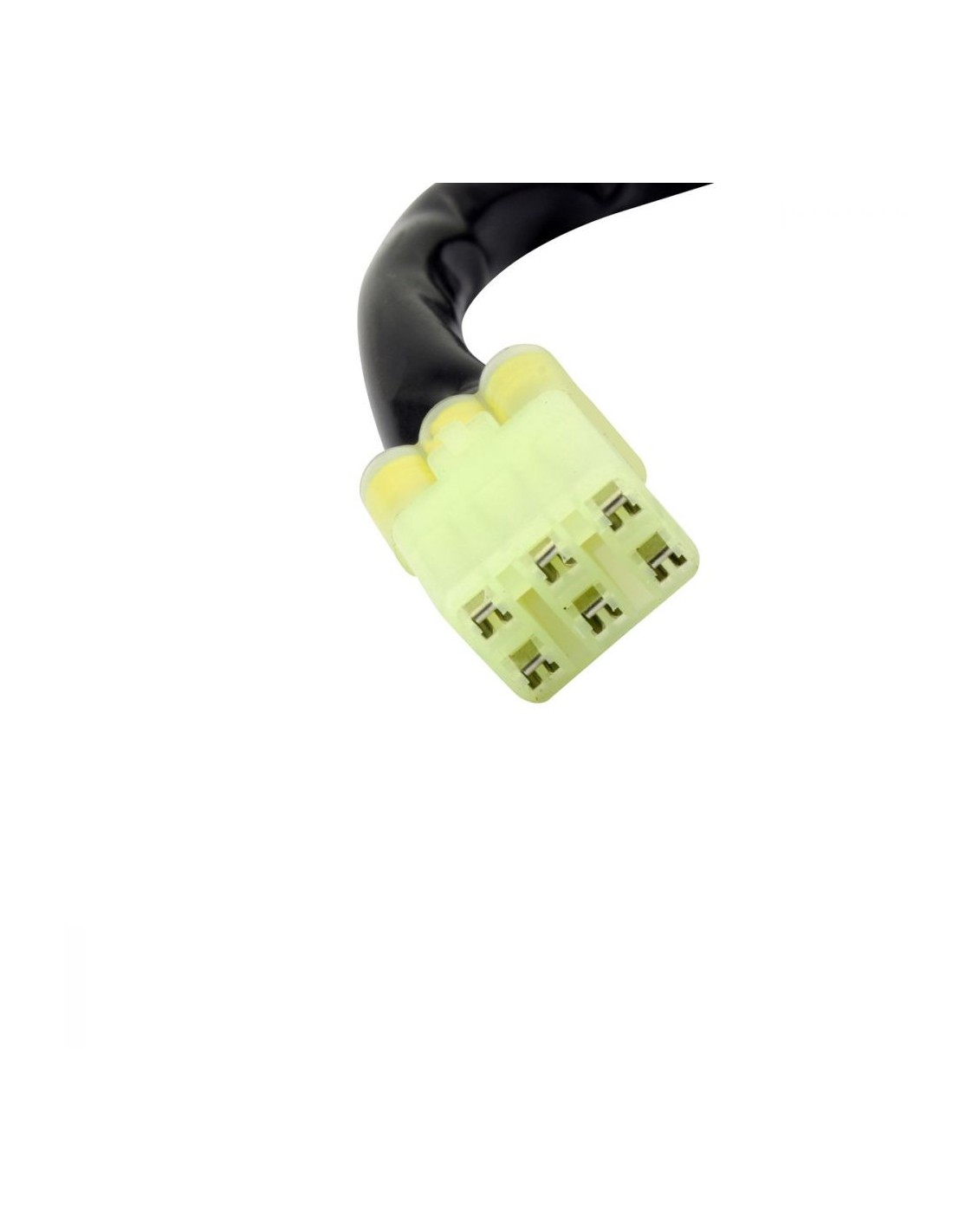

Number of plugs: 1
Number of pins: 6
Number of poles: 8
Wire to wire resistance:

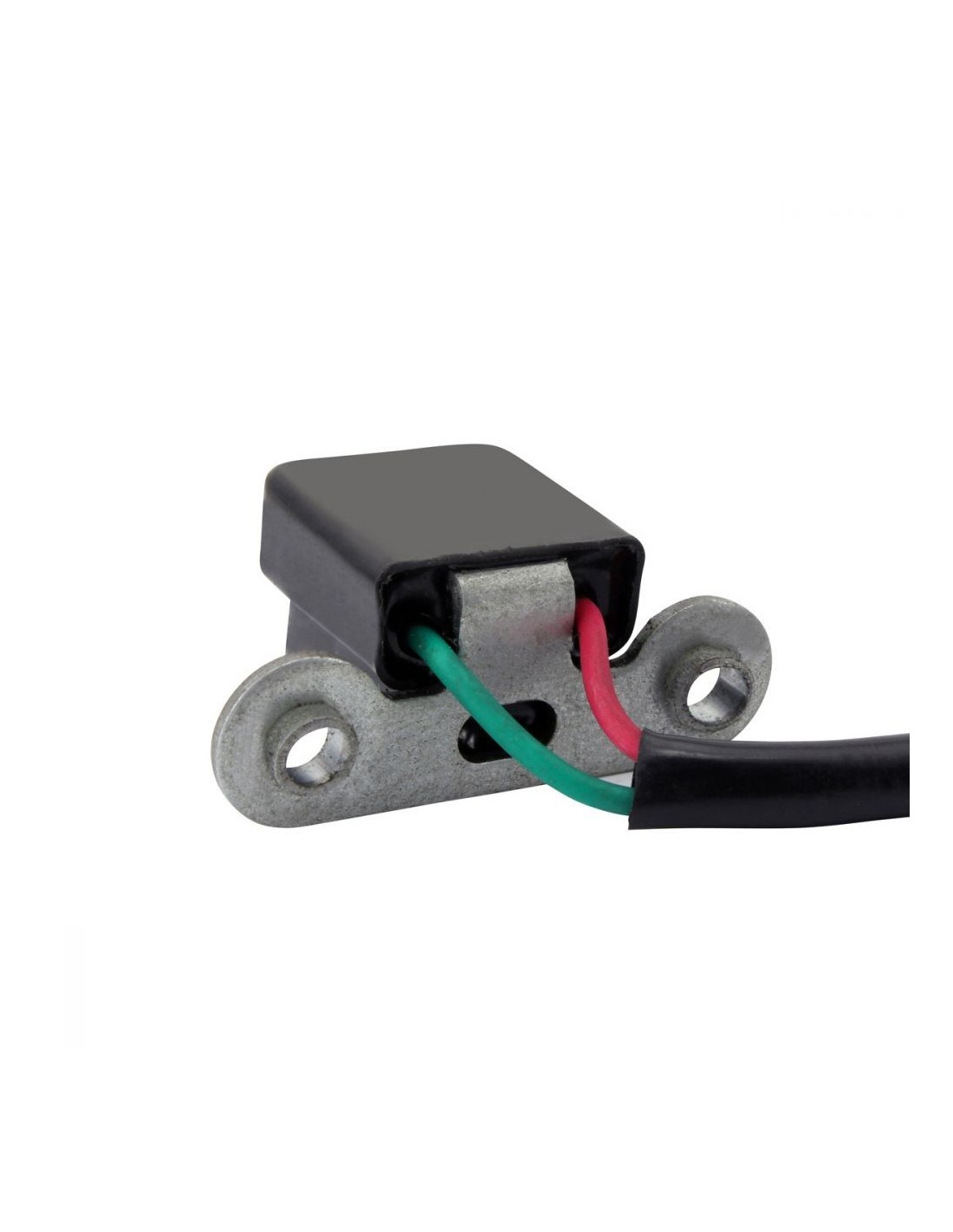

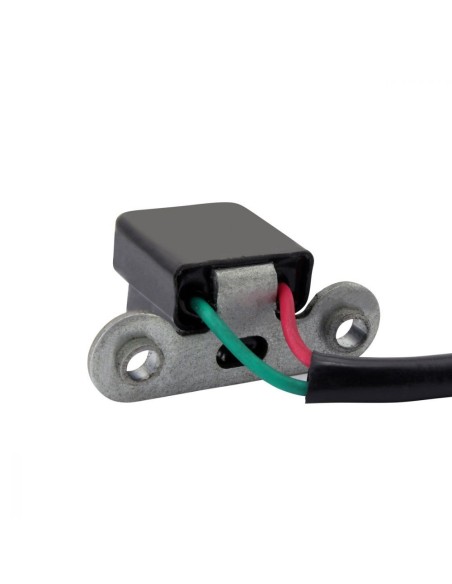

Pickup: Green to Red = 96 ohms +-20%
Source Coil 1 : Black/White to Yellow = 1.7 ohms +-20%
Source Coil 2 : Black/Red to Red/White= 39 ohms +-20%
