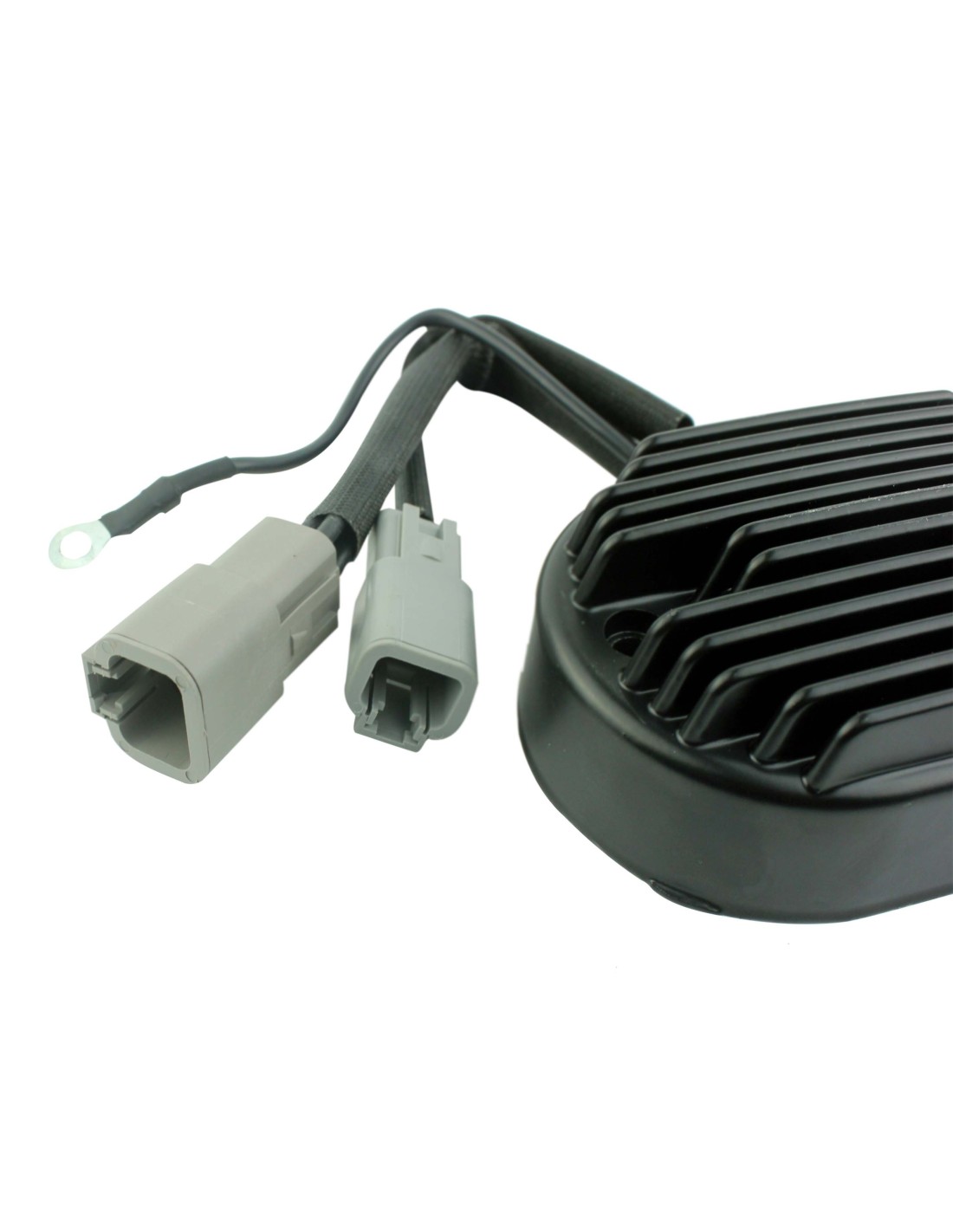

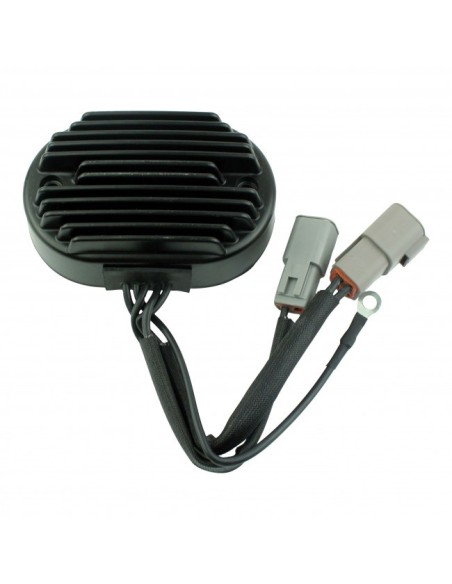

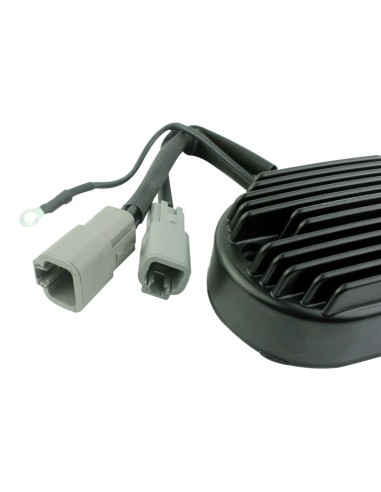

Regulator Rectifier Mosfet Harley Davidson Fat Boy 1580 Heritage Softail 1584 Softail 1584 OEM 74540-07

Regulator Rectifier Mosfet

2007 Harley Davidson Fat Boy 1580 FLSTF1580
2007 Harley Davidson Heritage Softail 1584 FLSTC1584
2007 Harley Davidson Softail 1584 Custom - FXSTC1584
2007 Harley Davidson Softail 1584 Deluxe - FLSTN1584
2007 Harley Davidson Softail 1584 Deuce - FXSTD1584
2007 Harley Davidson Softail 1584 FXST1584
2007 Harley Davidson Softail 1584 Fat Boy - FLSTF1584
2007 Harley Davidson Softail 1584 Night Train - FXSTB1584
2007 Harley Davidson Softail 1584 Springer Classic - FLSTC1584

OEM
74540-07

Dimensions :
Width : 90mm
Length : 130mm
Height: 40mm
Fixation holes center to center : 95mm
Wires length: 200mm 200mm

Other specifications :

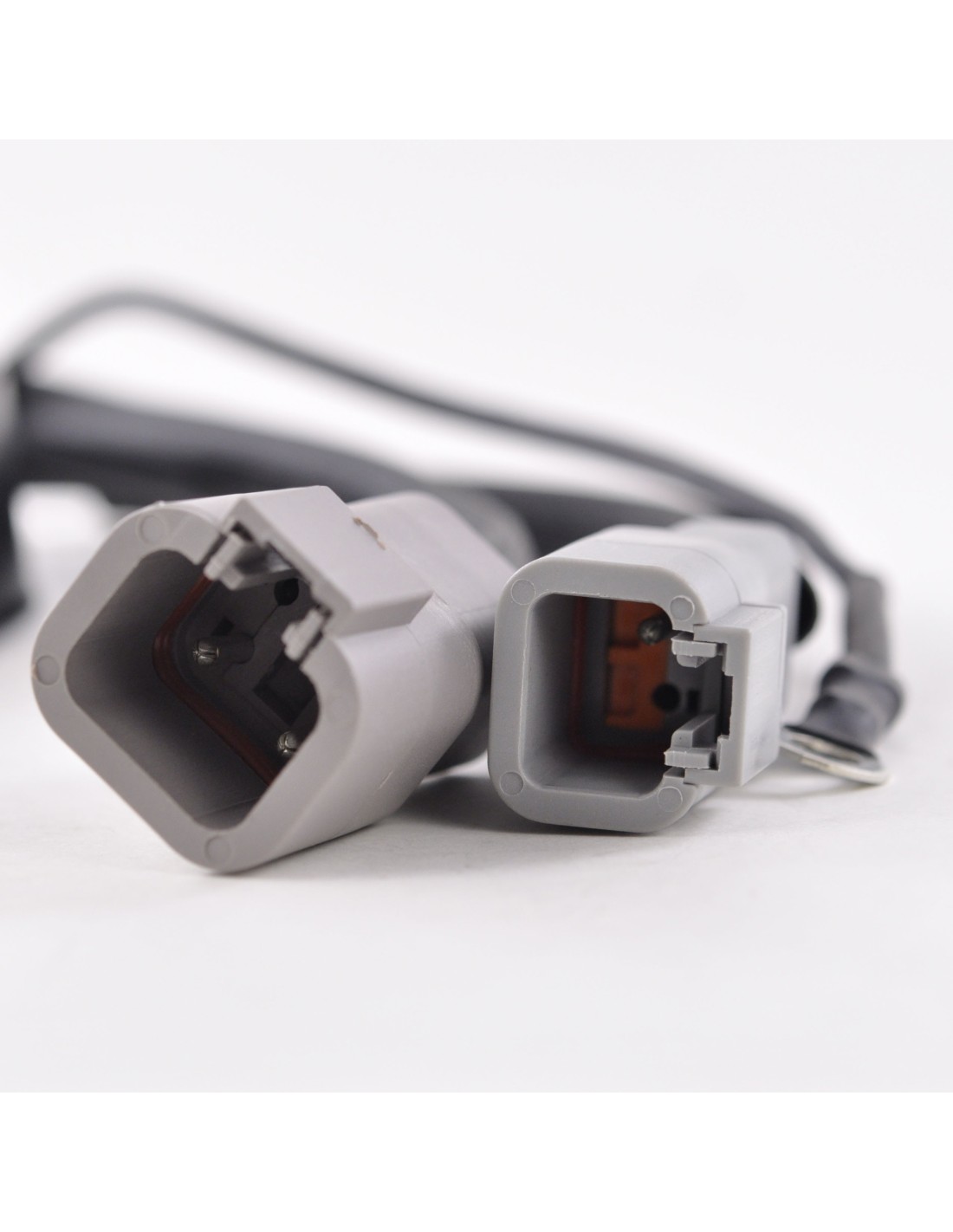

Number of plugs : 2
Number of pins : 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
