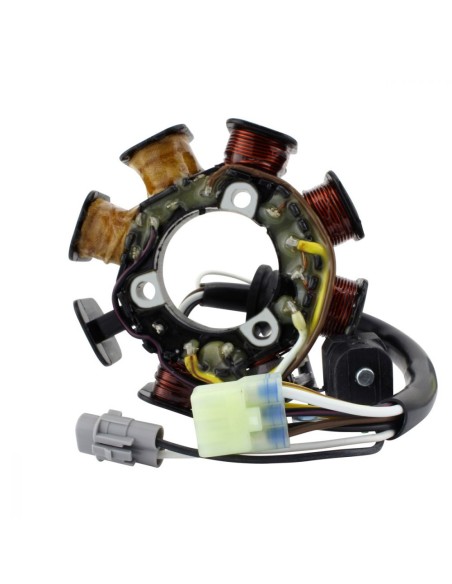

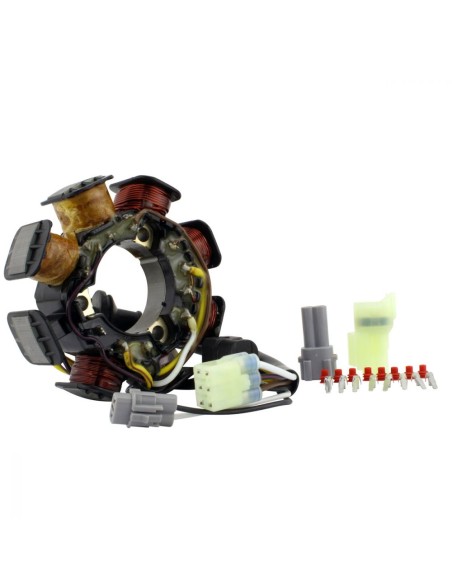

Stator Yamaha Phazer 500 Venture 500 OEM 8DX-85510-00-00

Stator

2006 Yamaha Venture 500

2001 Yamaha Venture 500

2001 Yamaha Phazer 500

2000 Yamaha Venture 500

2000 Yamaha Phazer 500

1999 Yamaha Venture 500

OEM 8DX-85510-00-00

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 103 mm

Thickness: 15 mm

Length of wires stator to grommet: 85 mm

Length of wires grommet to plug: 210 mm

Length of pickup coil's wire to grommet: 85 mm

Other specifications:

Number of wires: 8

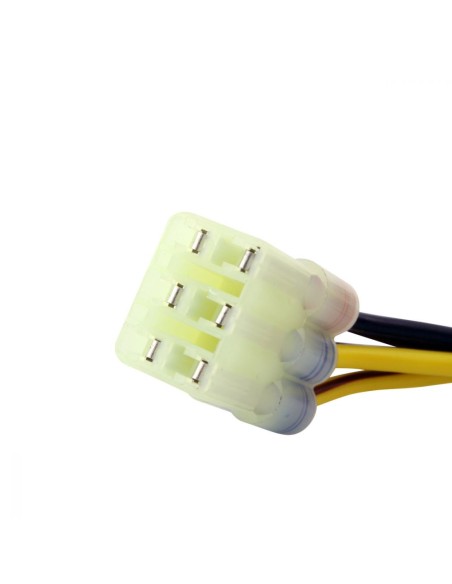

Number of plugs: 2

Number of pins: 8

Number of poles: 8

Wire to wire resistance:

Alternator 1 : Yellow to White = 0.3 ohms +-20%

Alternator 2 : Black to Yellow/Black = 1.3 ohms +-20%

Pickup: White/Green to White/Red = 211 ohms +-20%

Source: Brown to Black/Red = 256 ohms +-20%
