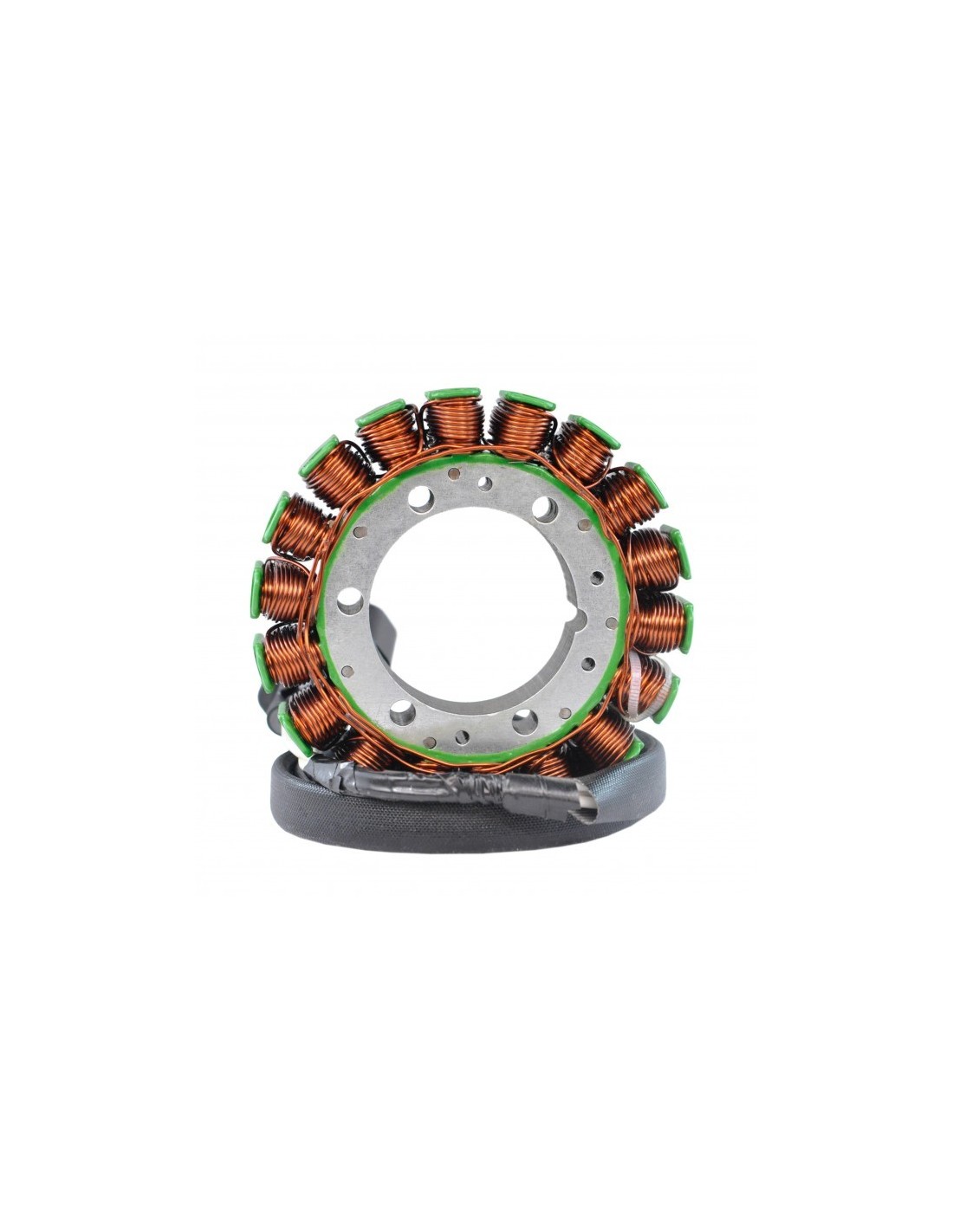

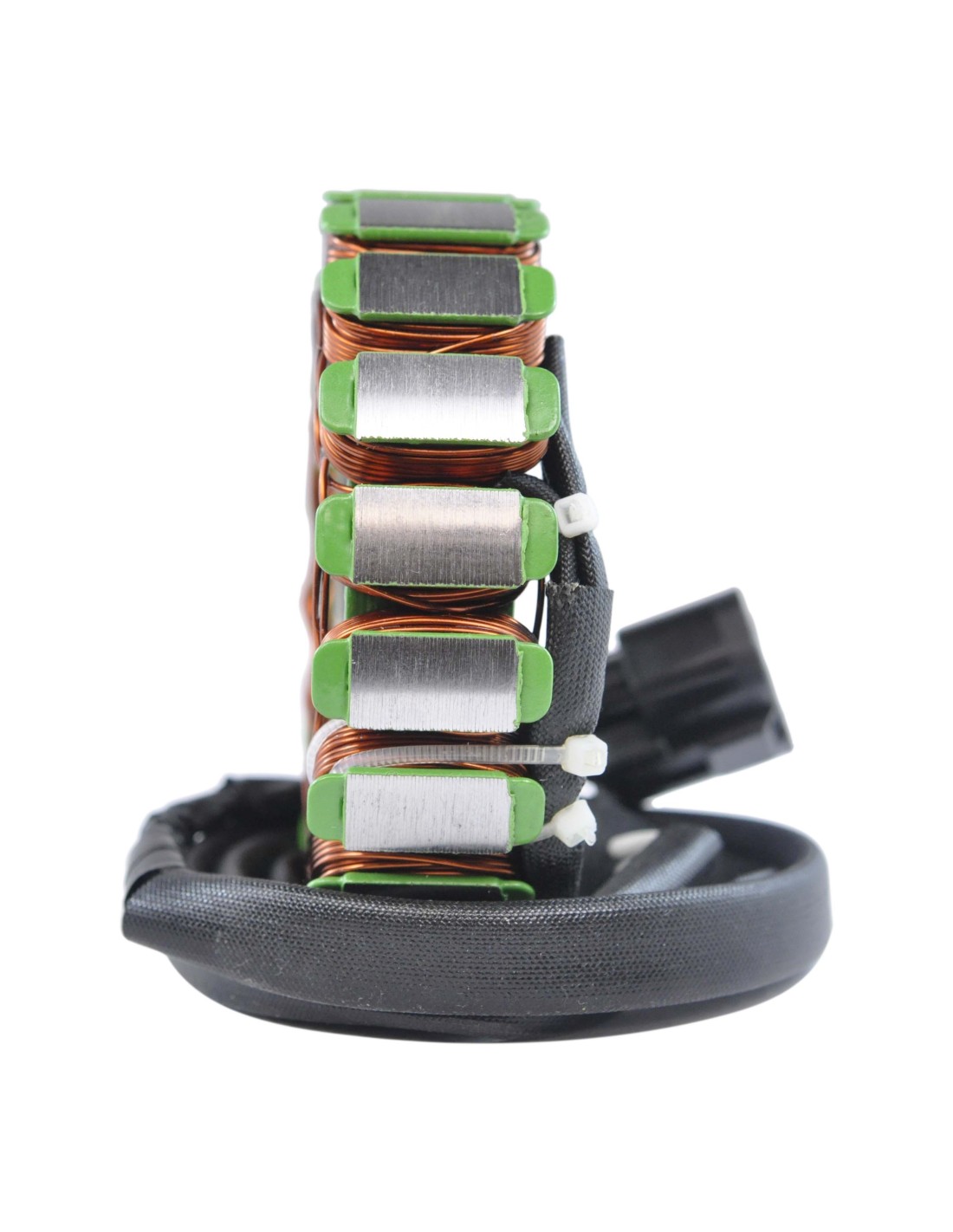

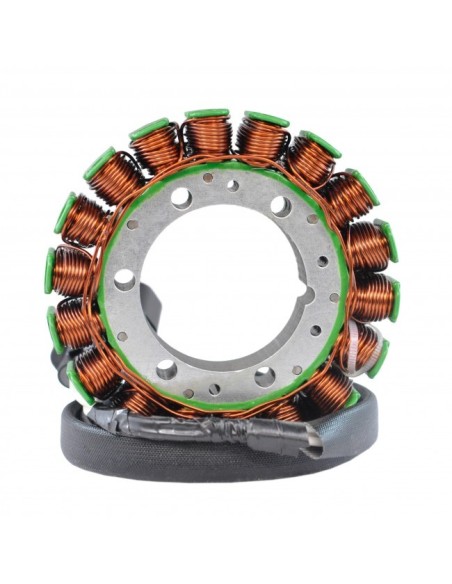

Stator Yamaha Viking 1000 Viper 1000 FX Nytro 1000 Vector 1000 Venture 1000 OEM 8HF-81410-00-00 8HU-81410-00-00

Stator

2023 Yamaha SR Viper 1000 LTX

2022 Yamaha Viking 1000 Professional

2022 Yamaha SR Viper 1000 LTX

2022 Yamaha RS Venture 1000 TF

2021 Yamaha Viking 1000 Professional

2021 Yamaha SR Viper 1000 LTX

2021 Yamaha RS Venture 1000 TF

2020 Yamaha Viking 1000 Professional

2020 Yamaha SR Viper 1000 LTX

2020 Yamaha RS Venture 1000 TF

2019 Yamaha SR Viper 1000 LTX

2018 Yamaha Viking 1000 Professional

2018 Yamaha SR Viper 1000 RTX

2018 Yamaha SR Viper 1000 LTX

2018 Yamaha SR Venture DX 1000 EFI L/C

2018 Yamaha RS Venture 1000 TF

2017 Yamaha RS Venture 1000 TF

2016 Yamaha SR Viper 1000 XTX

2016 Yamaha SR Viper 1000 STX

2016 Yamaha SR Viper 1000 RTX

2016 Yamaha SR Viper 1000 MTX LE

2016 Yamaha SR Viper 1000 MTX

2016 Yamaha SR Viper 1000 LTX LE

2016 Yamaha SR Viper 1000 LTX

2016 Yamaha RS Viking 1000 Professional

2016 Yamaha RS Venture 1000 TF

2016 Yamaha RS Vector 1000

2015 Yamaha SR Viper 1000 XTX

2015 Yamaha SR Viper 1000 STX

2015 Yamaha SR Viper 1000 RTX

2015 Yamaha SR Viper 1000 MTX

2015 Yamaha SR Viper 1000 LTX

2015 Yamaha RS Venture 1000 TF

2015 Yamaha RS Venture 1000 GT

2015 Yamaha RS Vector 1000

2014 Yamaha SR Viper 1000 XTX

2014 Yamaha SR Viper 1000 RTX

2014 Yamaha SR Viper 1000 LTX

2014 Yamaha RS Venture 1000 TF

2014 Yamaha RS Venture 1000 GT

2014 Yamaha RS Vector 1000

2014 Yamaha FX Nytro 1000

2013 Yamaha RS Venture 1000 TF

2013 Yamaha RS Venture 1000 GT

2013 Yamaha RS Vector 1000

2013 Yamaha FX Nytro 1000

2012 Yamaha RS Venture 1000 GT

2012 Yamaha RS Vector 1000

2012 Yamaha FX Nytro 1000

2011 Yamaha RS Venture 1000 GT

2011 Yamaha RS Vector 1000

2010 Yamaha RS Venture 1000 GT

2010 Yamaha RS Vector 1000

2009 Yamaha RS Venture 1000 GT

OEM
8HF-81410-00-00
8HU-81410-00-00

Dimensions :

Interior diameter : 53 mm

Exterior diameter : 115 mm

Thickness : 25 mm

Length of wires stator to grommet : 120 mm

Length of wires grommet to plug : 800 mm

Other specifications :

Number of wires : 3

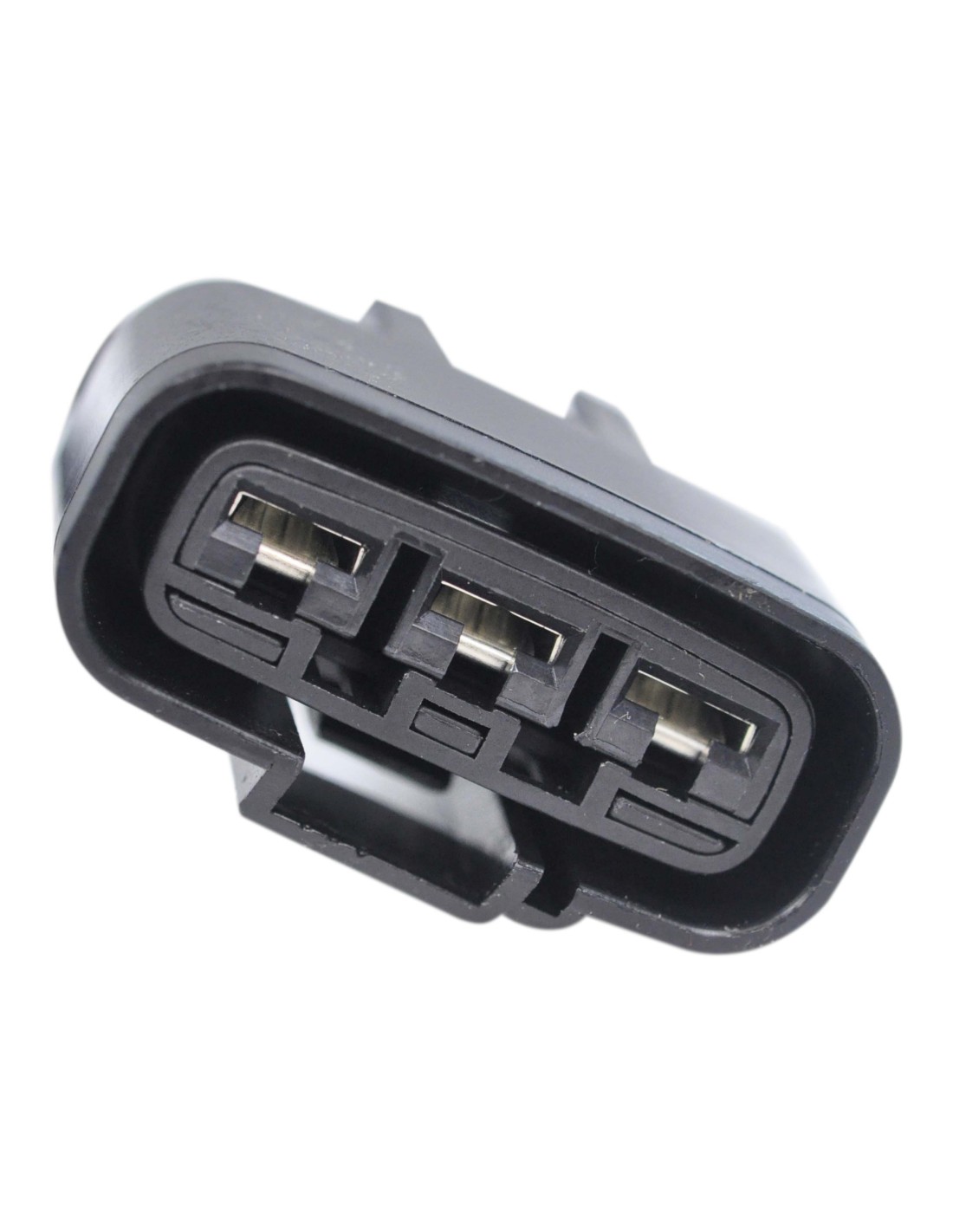

Number of plugs : 1

Number of pins : 3

Wire to wire resistance :

Alternator : Between each White = 0.4 ohms +/-20%
