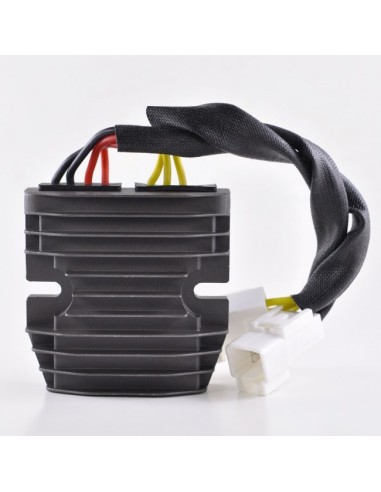

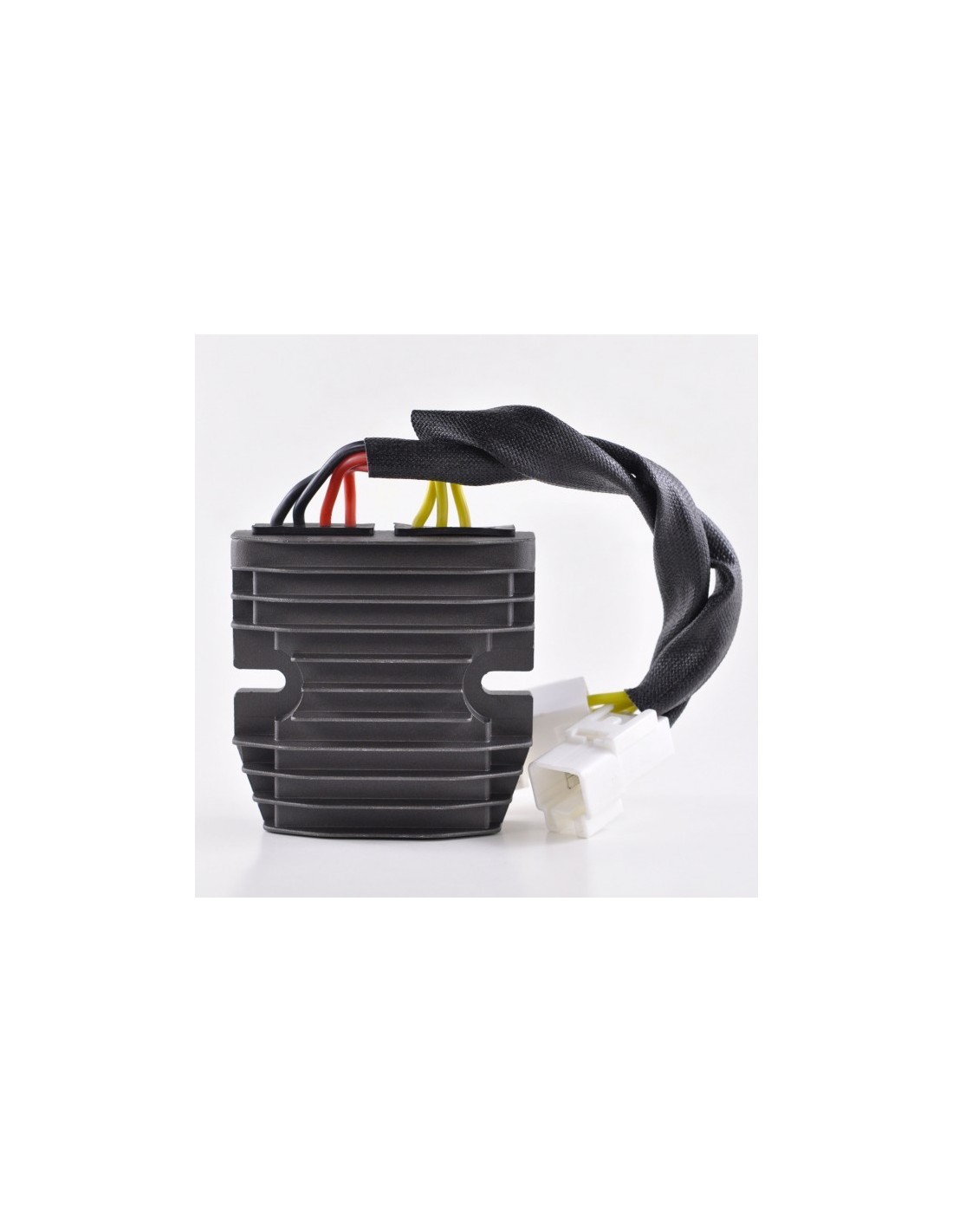

Regulator Rectifier Mosfet Honda NT700V OEM 31600-MEW-921 31600-MFA-D01 31600-KSV-J01

Regulator Rectifier Mosfet Honda NT700V 2010-2011

OEM 31600-MEW-921 31600-MFA-D01 31600-KSV-J01

Dimensions:

Width: 90 mm

Length: 90 mm

Height: 30 mm

Wire lengths: 220 mm and 210 mm

Mounting hole center-to-center distance: 75 mm

Other specifications:

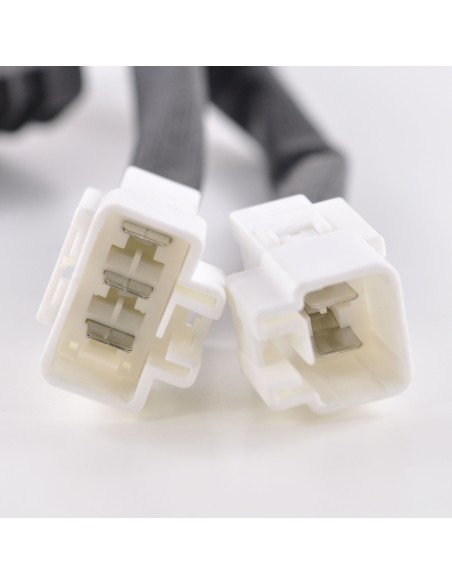

Number of plugs: 2

Number of pins: 5

Number of wires: 5

Minimum charging voltage: 14.5 V ± 0.5 V

Maximum charging current: 50 A 500 W

Open circuit voltage: 15 V

Operating temperature: -20°C to 85°C

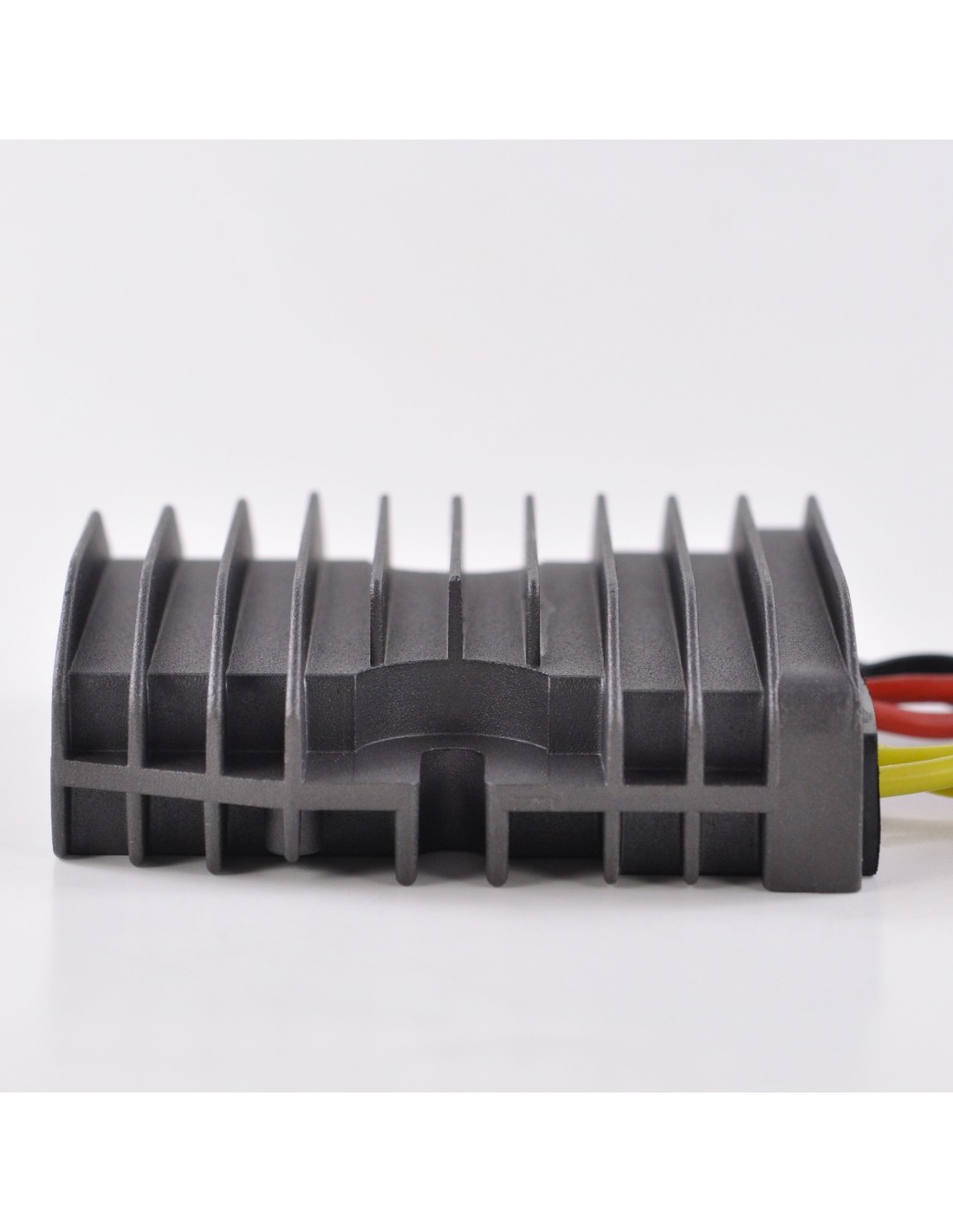

Improved heat sink and charging capabilities

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
