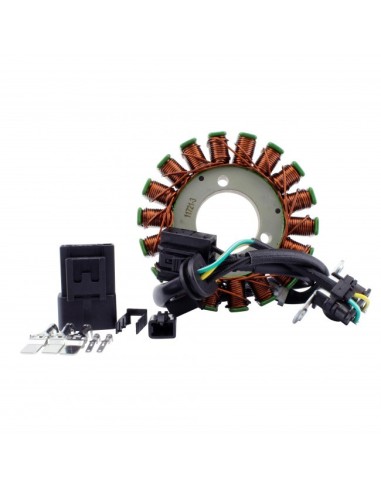

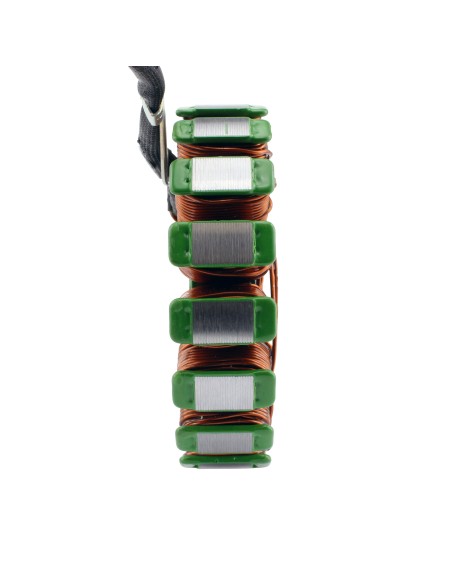

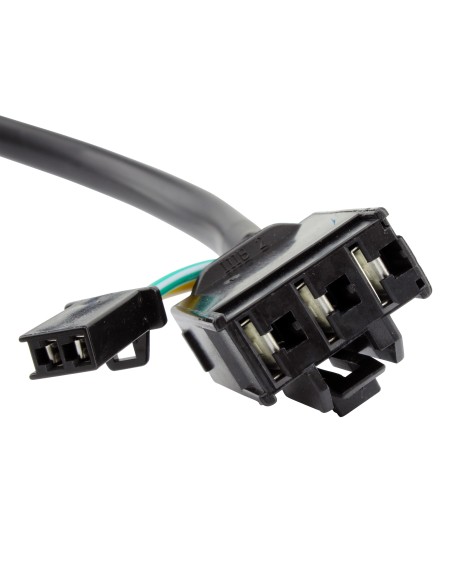

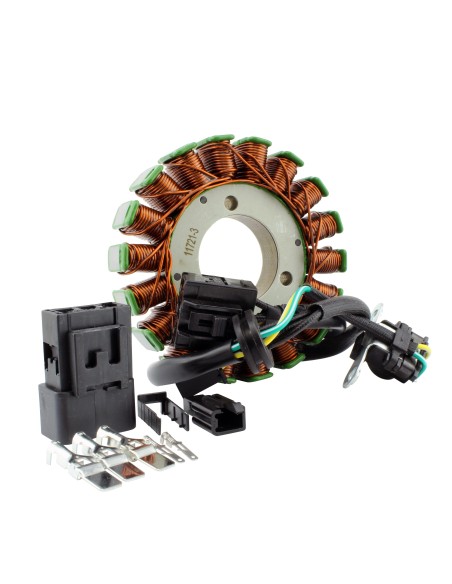

Stator Kawasaki Ninja 300 OEM 21003-0128
Stator Kawasaki Ninja 300 OEM 21003-0128
Stator Kawasaki Ninja 300 OEM 21003-0128
Stator Kawasaki Ninja 300 OEM 21003-0128
Stator Kawasaki Ninja 300 OEM 21003-0128
Stator Kawasaki Ninja 300 OEM 21003-0128
Stator Kawasaki Ninja 300 OEM 21003-0128
Stator Kawasaki Ninja 300 OEM 21003-0128

Stator Kawasaki Ninja 300 OEM 21003-0128

CARMS010-105028
5-7 Days
€208.00
Tax included

OEM 21003-0128



Stator

2017 Kawasaki Ninja 300
2016 Kawasaki Ninja 300
2015 Kawasaki Ninja 300
2014 Kawasaki Ninja 300
2013 Kawasaki Ninja 300
OEM 21003-0128
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 107 mm
Thickness : 16 mm

Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 300 mm
Length of pickup coil's wire to grommet : 65 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Black between each Black = 0.4 ohms +-20%
Pickup : White/Yellow to Green/White = 200 ohms +-20%
Alternator to ground = O.L

Resistant to 200 degrees Celsius
