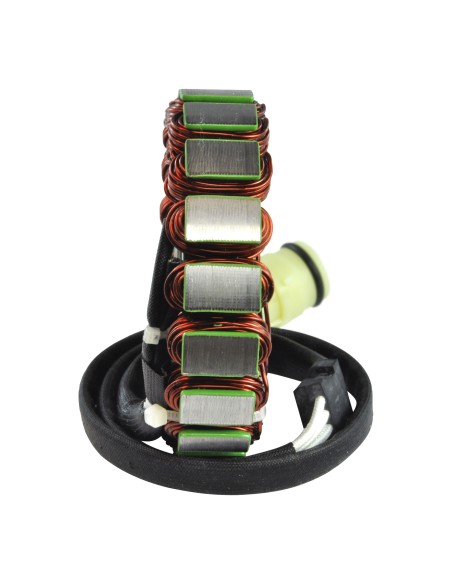

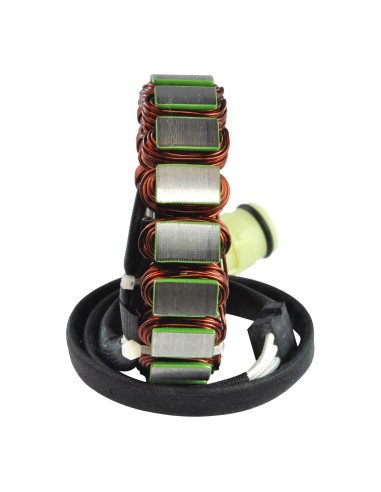

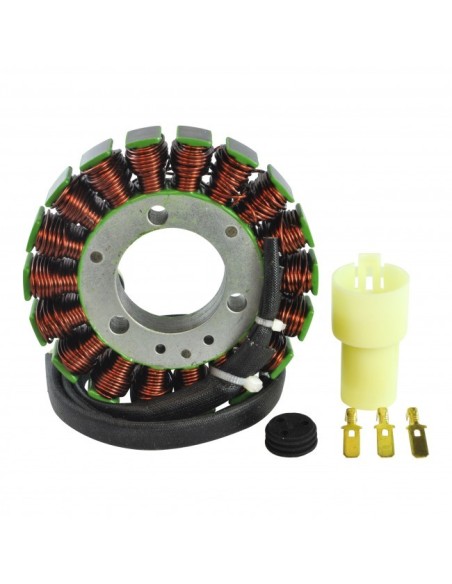

Stator Kawasaki KAF450 Mule 1000 OEM 21003-1174
Stator Kawasaki KAF450 Mule 1000 OEM 21003-1174
Stator Kawasaki KAF450 Mule 1000 OEM 21003-1174
Stator Kawasaki KAF450 Mule 1000 OEM 21003-1174
Stator Kawasaki KAF450 Mule 1000 OEM 21003-1174
Stator Kawasaki KAF450 Mule 1000 OEM 21003-1174

Stator Kawasaki KAF450 Mule 1000 OEM 21003-1174

CARM01112
5-7 Days
€170.40
Tax included
  • Resistant to 200 degrees Celsius
  • Kawasaki KAF 450 Mule 1000 (94-97)


  • Stator
  • Resistant to 200 degrees Celsius

  •     1997
            Kawasaki
                KAF 450 Mule
                    ATV & SxS 1997 Kawasaki KAF 450 Mule 1000
        1996
            Kawasaki
                KAF 450 Mule
                    ATV & SxS 1996 Kawasaki KAF 450 Mule 1000
        1995
            Kawasaki
                KAF 450 Mule
                    ATV & SxS 1995 Kawasaki KAF 450 Mule 1000
        1994
            Kawasaki
                KAF 450 Mule
                    ATV & SxS 1994 Kawasaki KAF 450 Mule 1000



    OEM 21003-1174

  • Dimensions :
    Interior diameter : 38 mm
    Exterior diameter : 102 mm
    Thickness : 20 mm
    Length of wires stator to grommet : 150 mm
    Length of wires grommet to plug : 400 mm

    Other specifications :
    Number of wires : 3
    Number of plugs : 1
    Number of pins : 3

    Wire to wire resistance :
    Alternator : White to White = 1.2 ohms +/-20%
