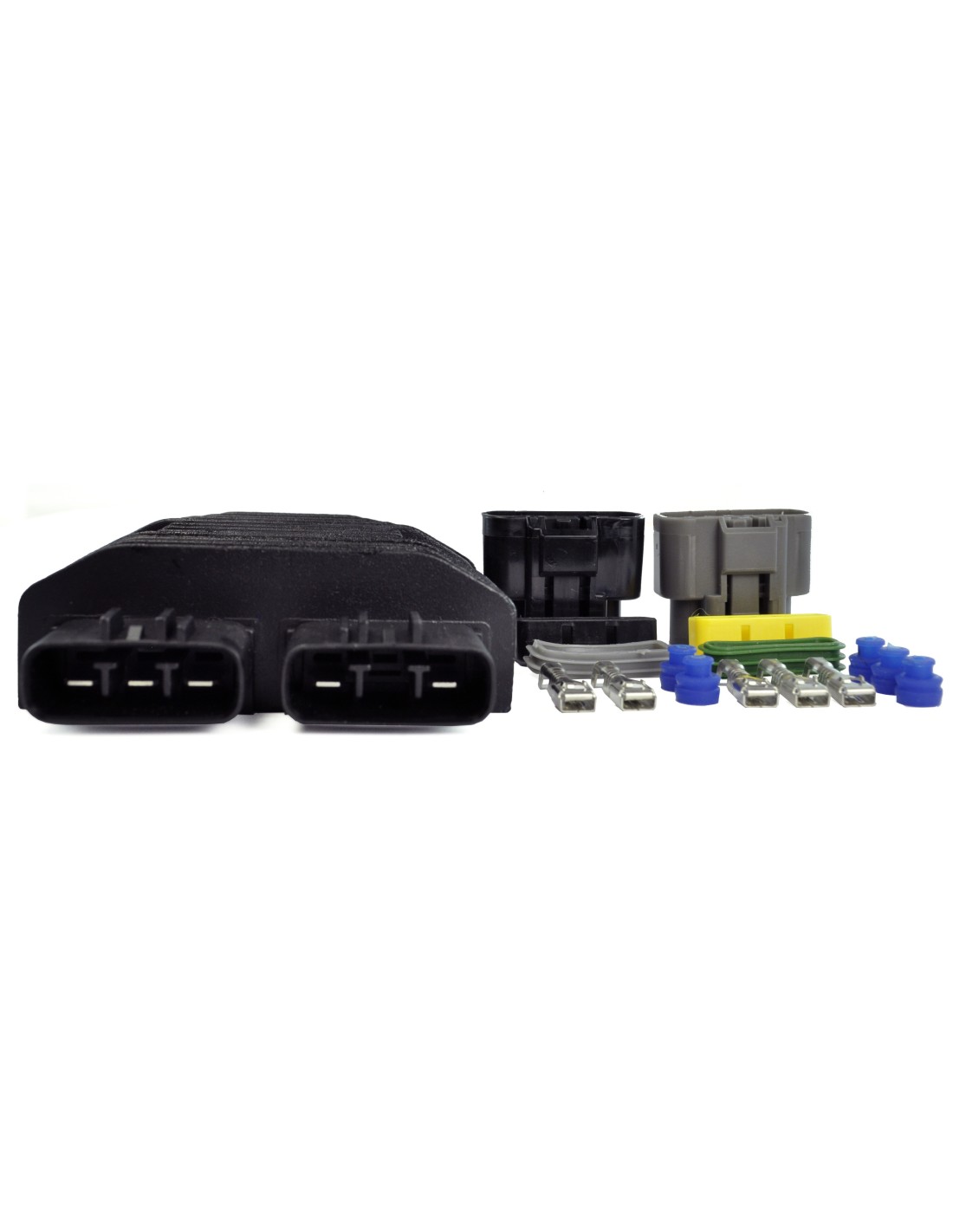

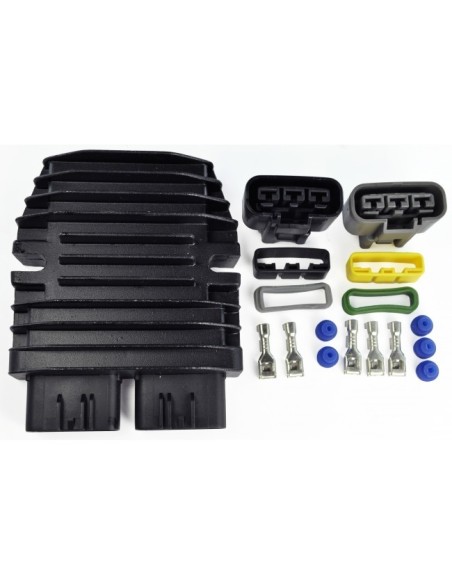

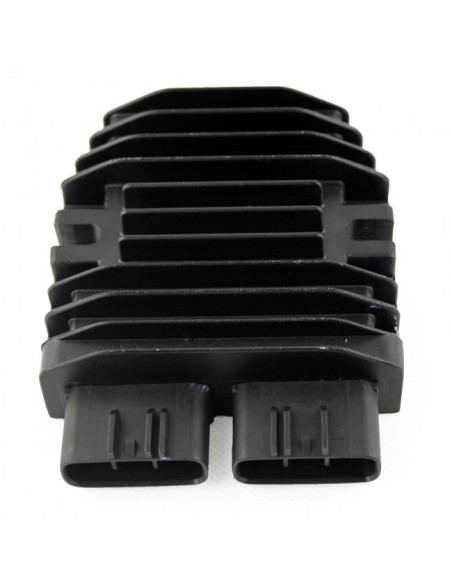

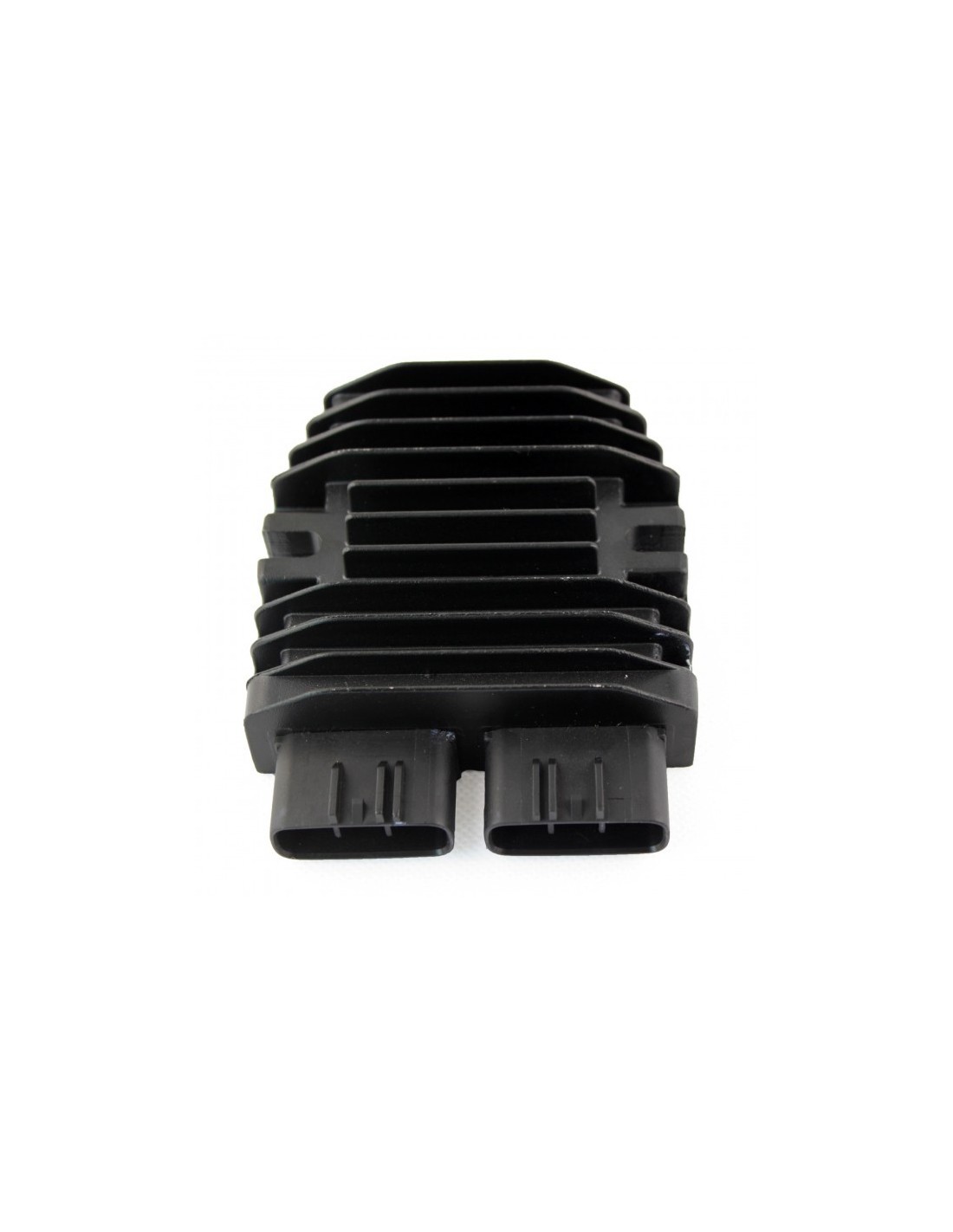

Mosfet Regulator Yamaha MT07 MT09 FZ7 OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
CARM30506H
7-8 Days
€125.00
Tax included
OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
- Regulator Rectifier
-
Yamaha
- MT07 2015-2017
- MT09 2014-2024
- FZ7 2015-2017
- OEM 1D7-81960-00-00 1D7-81960-01-00 27D-81960-00-00 5JW-81960-00-00 8JP-H1960-00-00
- It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Improved heat sink and charging capabilities
Before installing your new voltage regulator rectifier:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors. - Dimensions :
- Width : 95 mm
- Length : 110 mm
- Height: 30 mm
- Fixation holes center to center : 78 mm
- Other specifications :
- Number of plugs : 2
- Number of pins : 5
- Minimum Charging Voltage: 12 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20° to 85°
