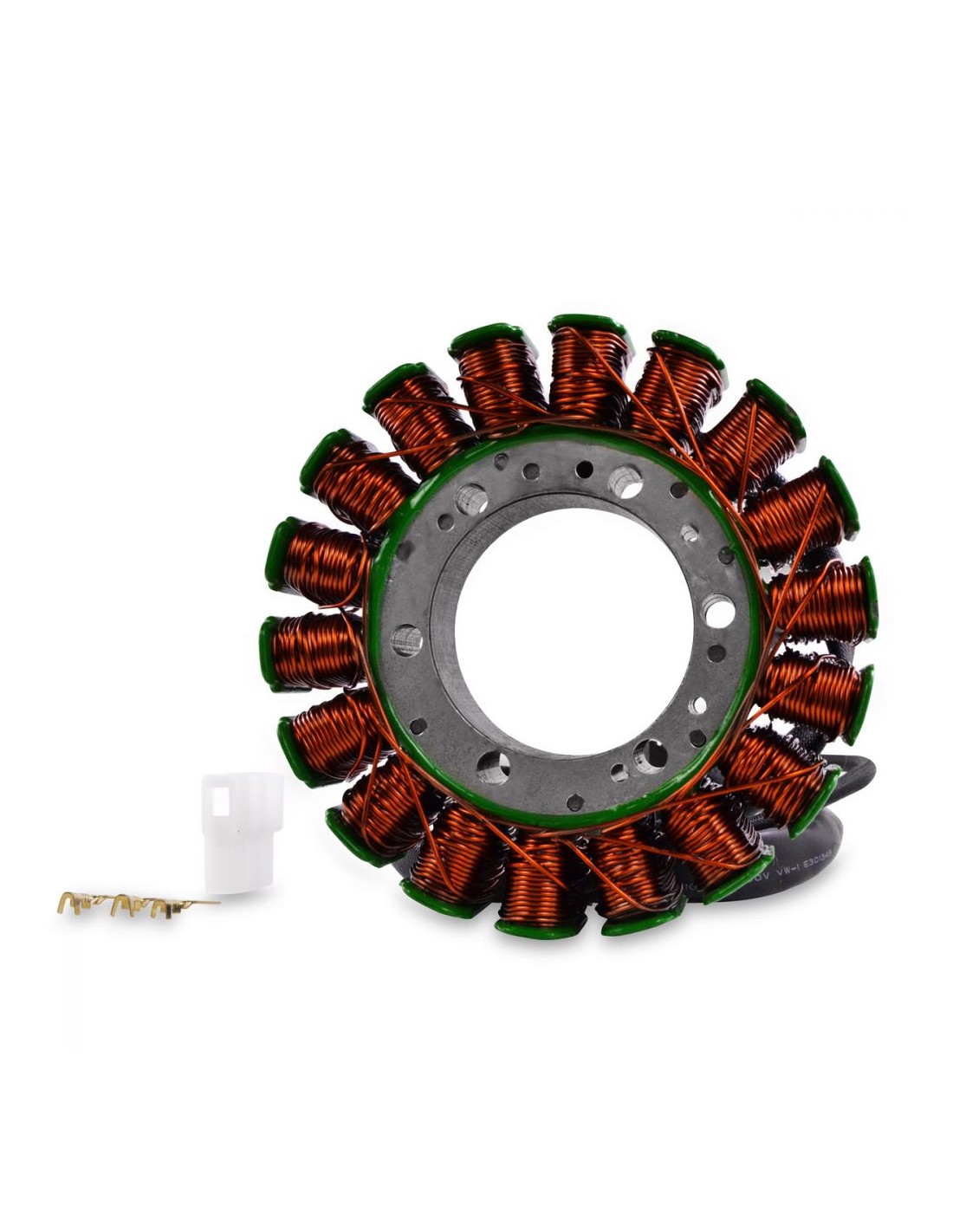

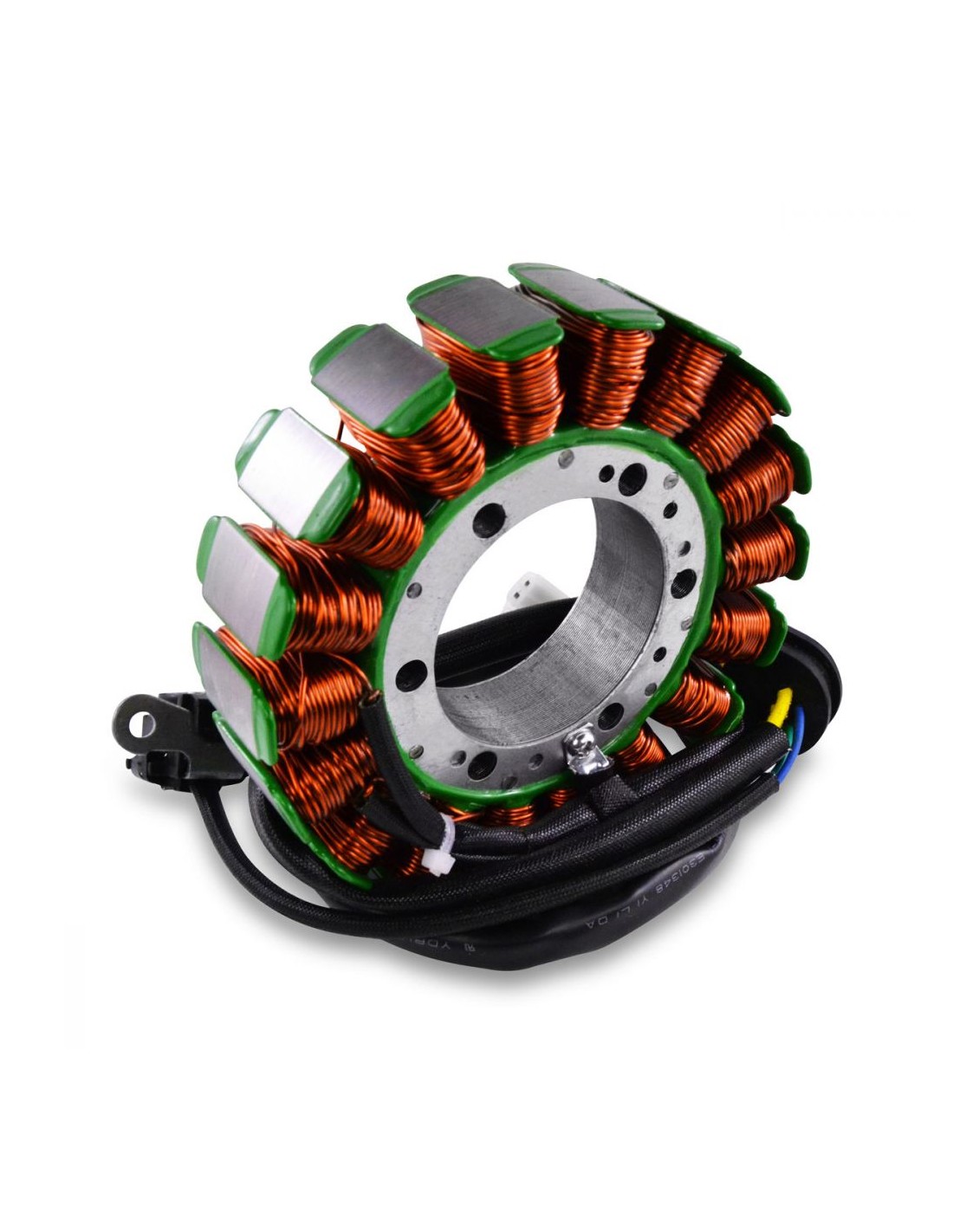

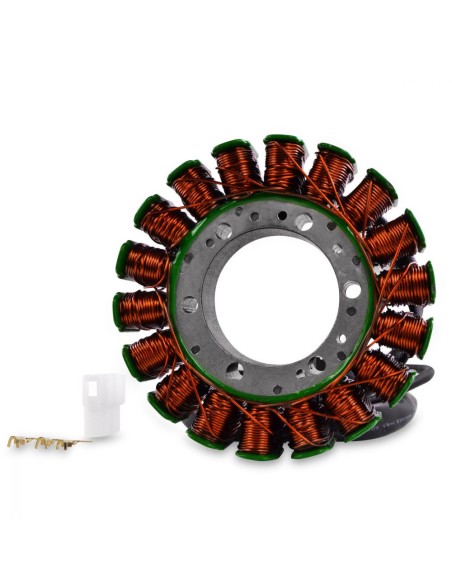

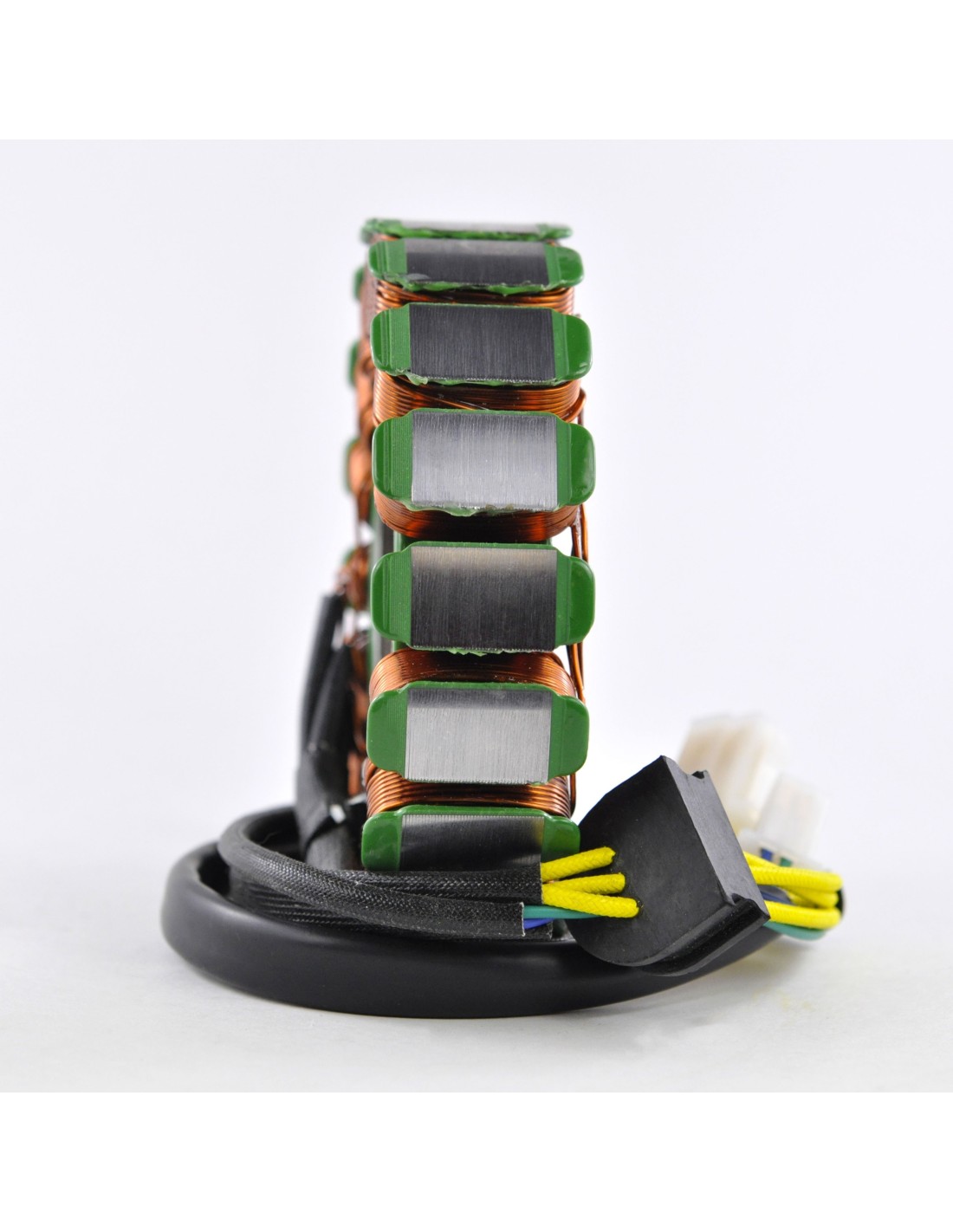

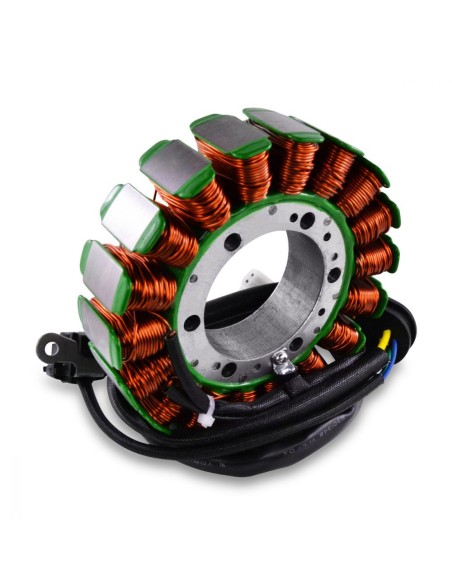

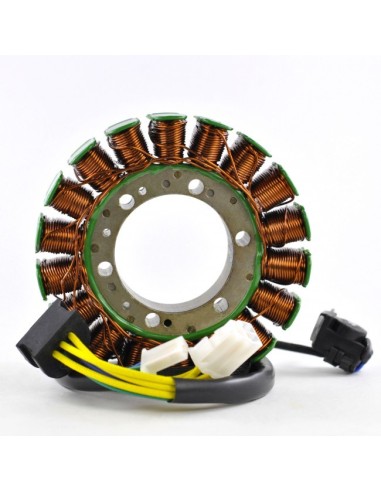

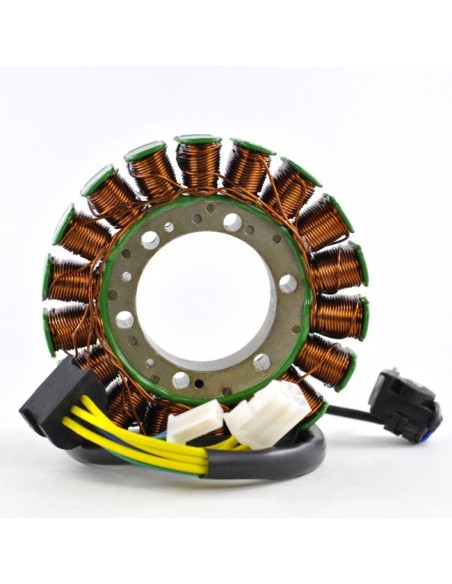

Stator Suzuki Boulevard C50 VL800 Boulevard C50T VL800T Boulevard M50 VZ800 OEM 32101-41F20 32101-41F10

Stator

Resistant to 200 degrees Celsius

2023 Suzuki Boulevard C50T VL800T

2023 Suzuki Boulevard C50 VL800

2022 Suzuki Boulevard C50T VL800T

2022 Suzuki Boulevard C50 VL800

2021 Suzuki Boulevard C50T VL800T

2021 Suzuki Boulevard C50 VL800

2019 Suzuki Boulevard C50T VL800T

2019 Suzuki Boulevard C50 VL800

2018 Suzuki Boulevard C50T VL800T

2018 Suzuki Boulevard C50 VL800

2017 Suzuki Boulevard M50 VZ800

2017 Suzuki Boulevard C50T VL800T

2017 Suzuki Boulevard C50 VL800

2016 Suzuki Boulevard M50 VZ800

2016 Suzuki Boulevard C50T VL800T

2016 Suzuki Boulevard C50 VL800

2015 Suzuki Boulevard M50 VZ800

2015 Suzuki Boulevard C50T VL800T

2015 Suzuki Boulevard C50 VL800

2014 Suzuki Boulevard M50 VZ800

2014 Suzuki Boulevard C50T VL800T

2014 Suzuki Boulevard C50 VL800

2013 Suzuki Boulevard M50 VZ800

2013 Suzuki Boulevard C50T VL800T

2013 Suzuki Boulevard C50 VL800

2012 Suzuki Boulevard M50 VZ800

2012 Suzuki Boulevard C50T VL800T

2012 Suzuki Boulevard C50 VL800

2011 Suzuki Boulevard C50T VL800T

2011 Suzuki Boulevard C50 VL800

2009 Suzuki Boulevard M50 VZ800

2009 Suzuki Boulevard C50T VL800T

2009 Suzuki Boulevard C50 VL800

2008 Suzuki Boulevard M50 VZ800

2008 Suzuki Boulevard C50T VL800T

2008 Suzuki Boulevard C50 VL800

2007 Suzuki Boulevard M50 VZ800

2007 Suzuki Boulevard C50T VL800T

2007 Suzuki Boulevard C50 VL800

2006 Suzuki Boulevard M50 VZ800

2006 Suzuki Boulevard C50T VL800T

2006 Suzuki Boulevard C50 VL800

2005 Suzuki Boulevard M50 VZ800

2005 Suzuki Boulevard C50T VL800T

2005 Suzuki Boulevard C50 VL800

OEM 32101-41F20
32101-41F10

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 24 mm
Length of wires stator to grommet : 325 mm
Length of wires grommet to plug : 340 mm

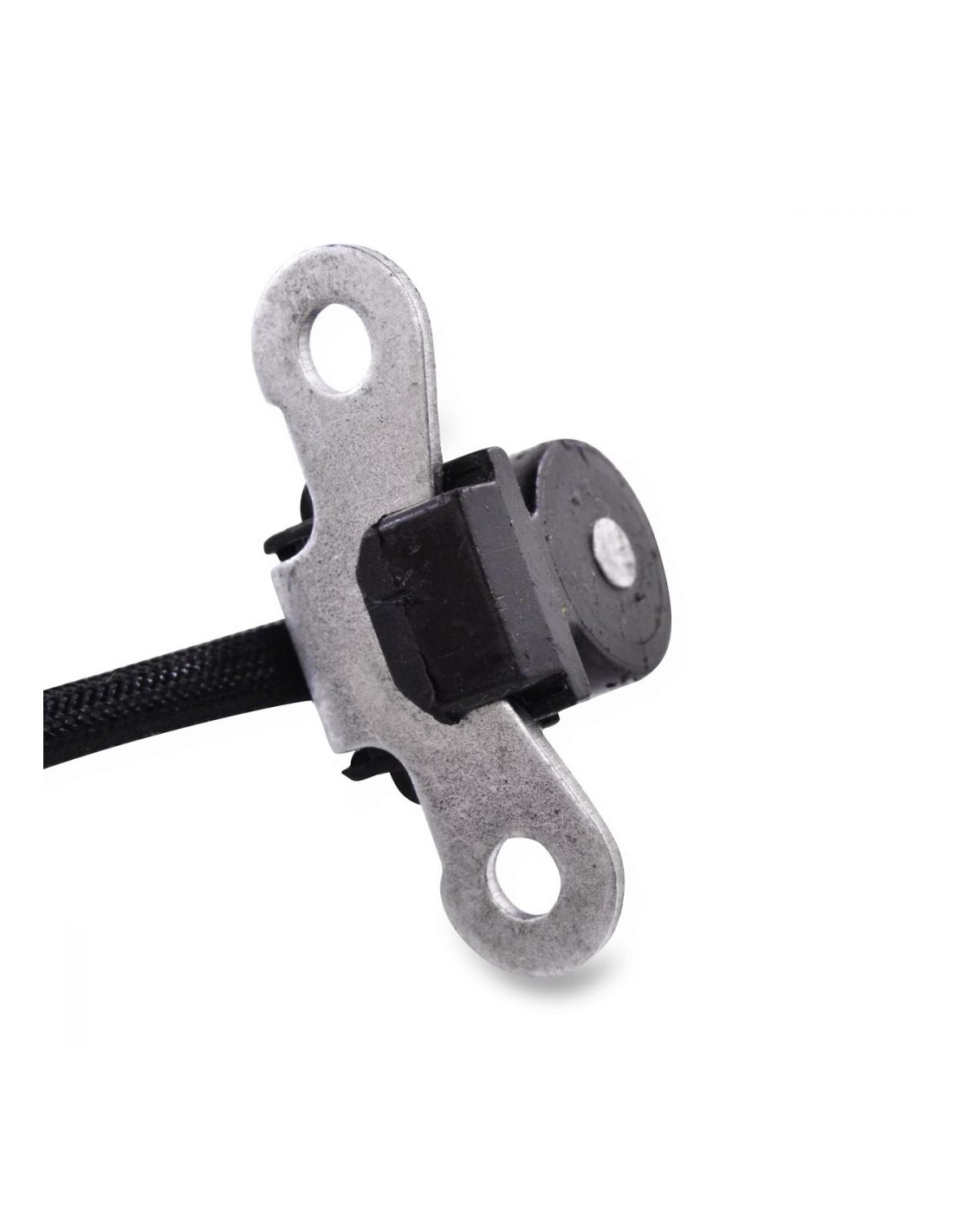

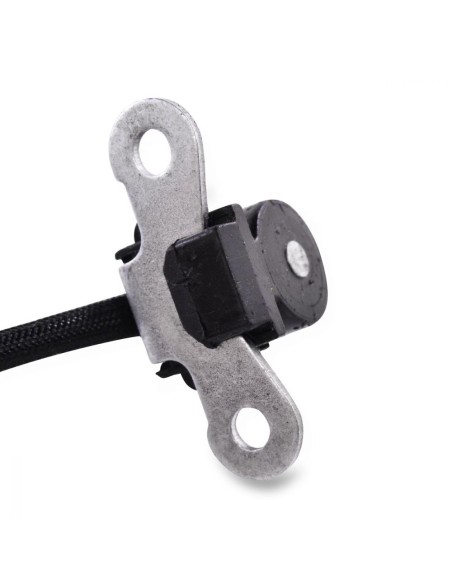

Length of pickup coil's wire to grommet : 175 mm

Other specifications :
Number of wires : 5

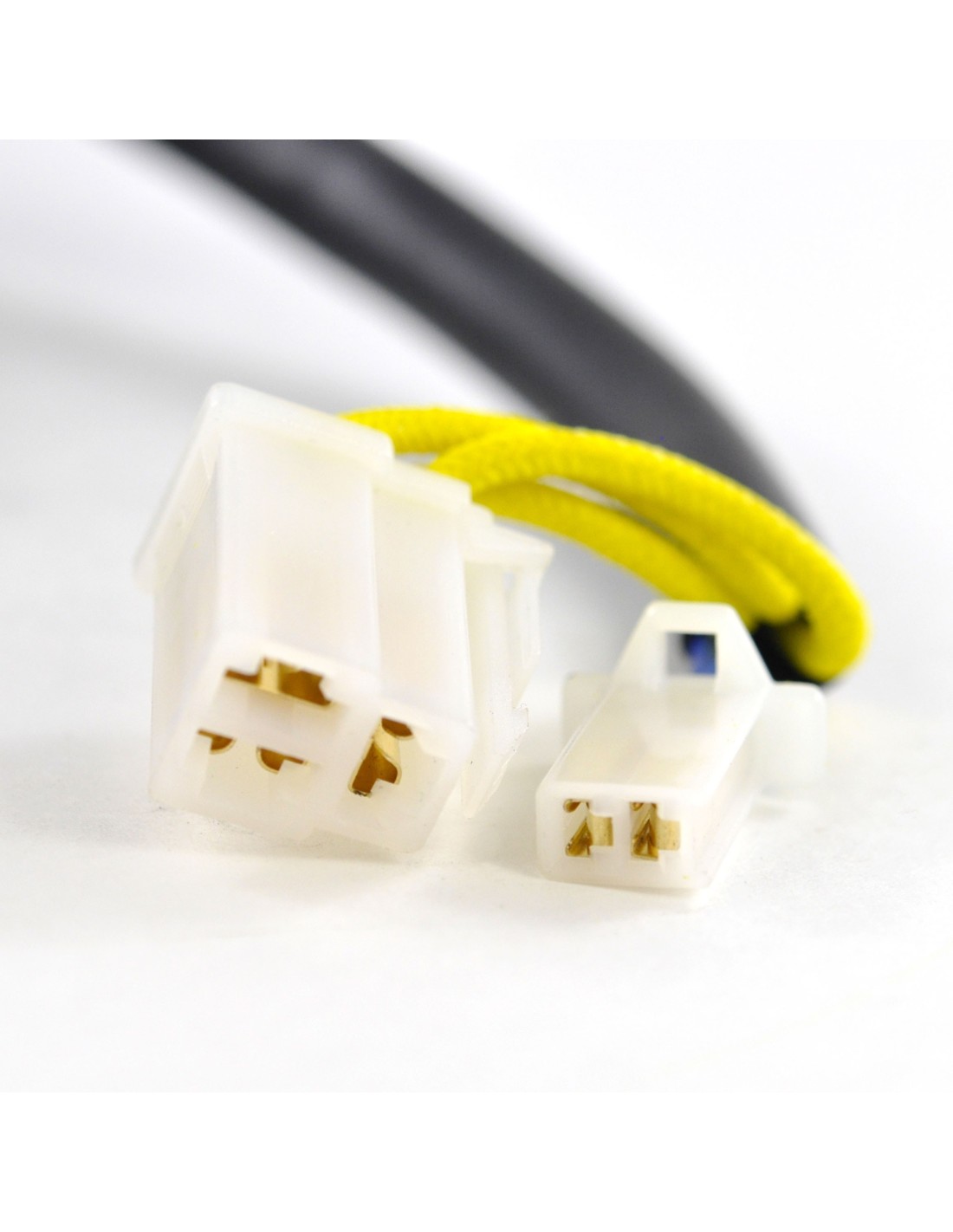

Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.6 ohms +-20%
Pickup : Blue To Green = 246 ohms +-20%
