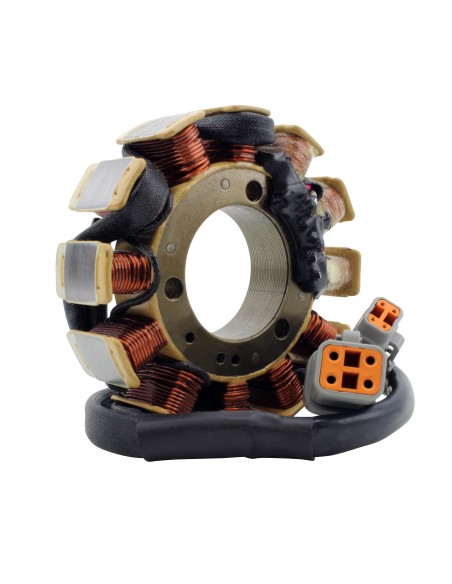

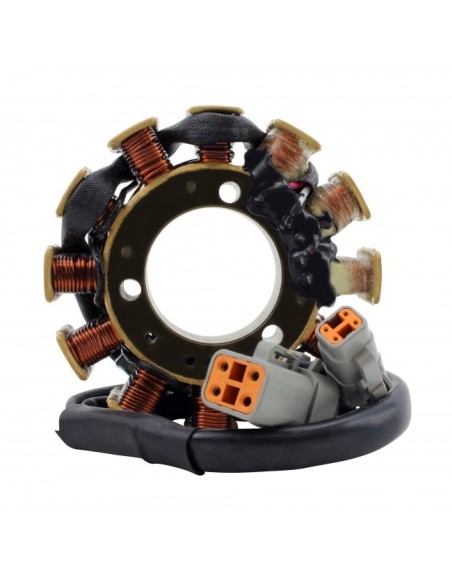

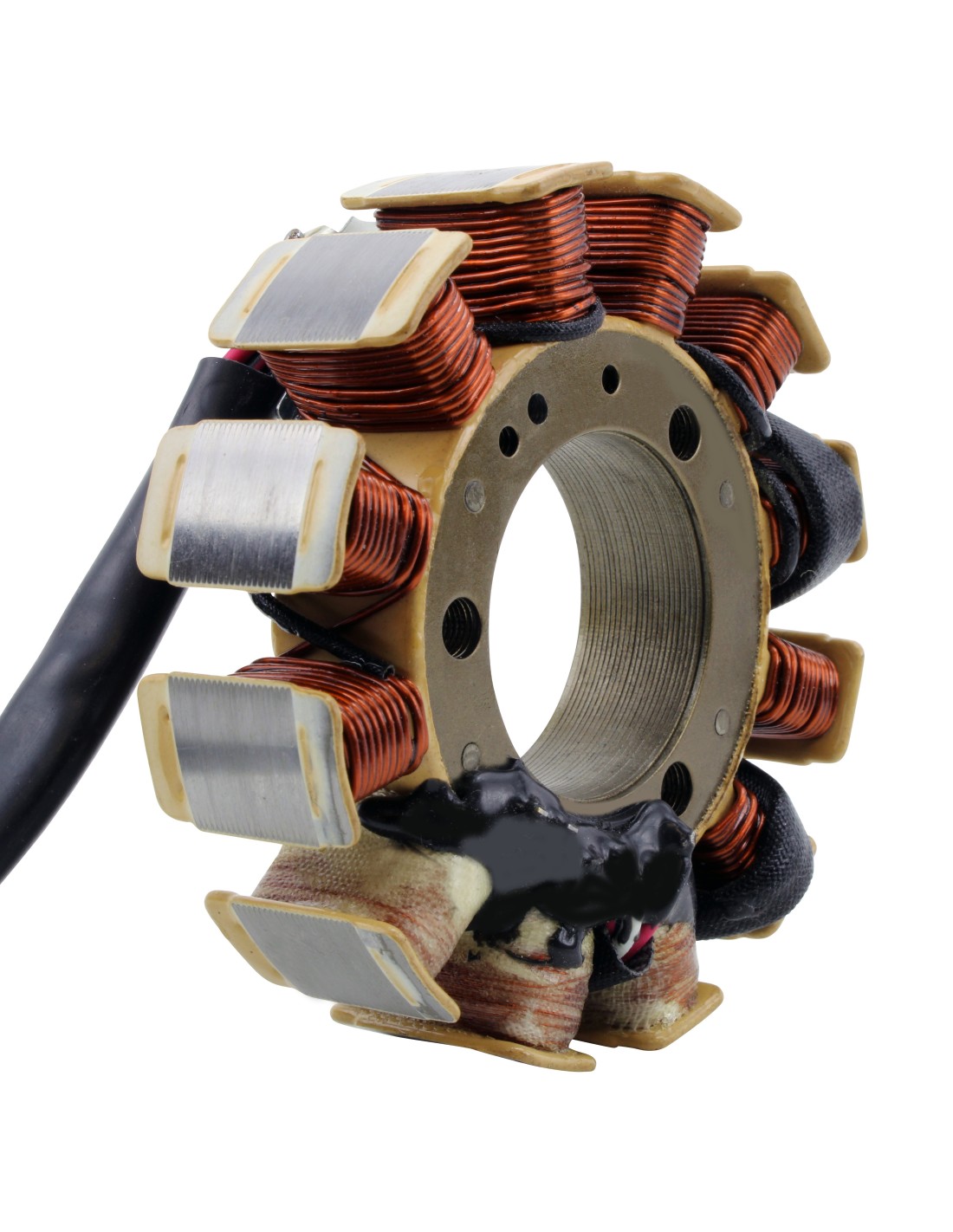

Stator Lynx Racing Lynx Rave 440 Skidoo MX ZX 440 OEM 410922967 410922952 410922967 41092295
CARMS010-106022
5-7 Days
€268.80
Tax included
OEM 410922967 410922952 410922967 41092295
Stator
Resistant to 200 degrees Celsius
Lynx Racing 2004
Lynx Rave 440 2005
Ski-doo MX ZX 440 Carb L/C 2003
Ski-doo MX ZX 440 Racing Carb L/C 2004-2005
Lynx Rave 440 2005
Ski-doo MX ZX 440 Carb L/C 2003
Ski-doo MX ZX 440 Racing Carb L/C 2004-2005
OEM
410922967 410922952 410922967 41092295
410922967 410922952 410922967 41092295
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 103 mm
Thickness : 30 mm
Length of wires : 350 & 380 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Number of poles : 12
Interior diameter : 40 mm
Exterior diameter : 103 mm
Thickness : 30 mm
Length of wires : 350 & 380 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Number of poles : 12
Wire to wire resistance :
Alternator : Between each Yellow = 0.2 ohms +-20%
Source #1: Black/Red to Red = 30 ohms +-20%
Source #2: Black/Red to White = 5 ohms +-20%
Alternator : Between each Yellow = 0.2 ohms +-20%
Source #1: Black/Red to Red = 30 ohms +-20%
Source #2: Black/Red to White = 5 ohms +-20%
