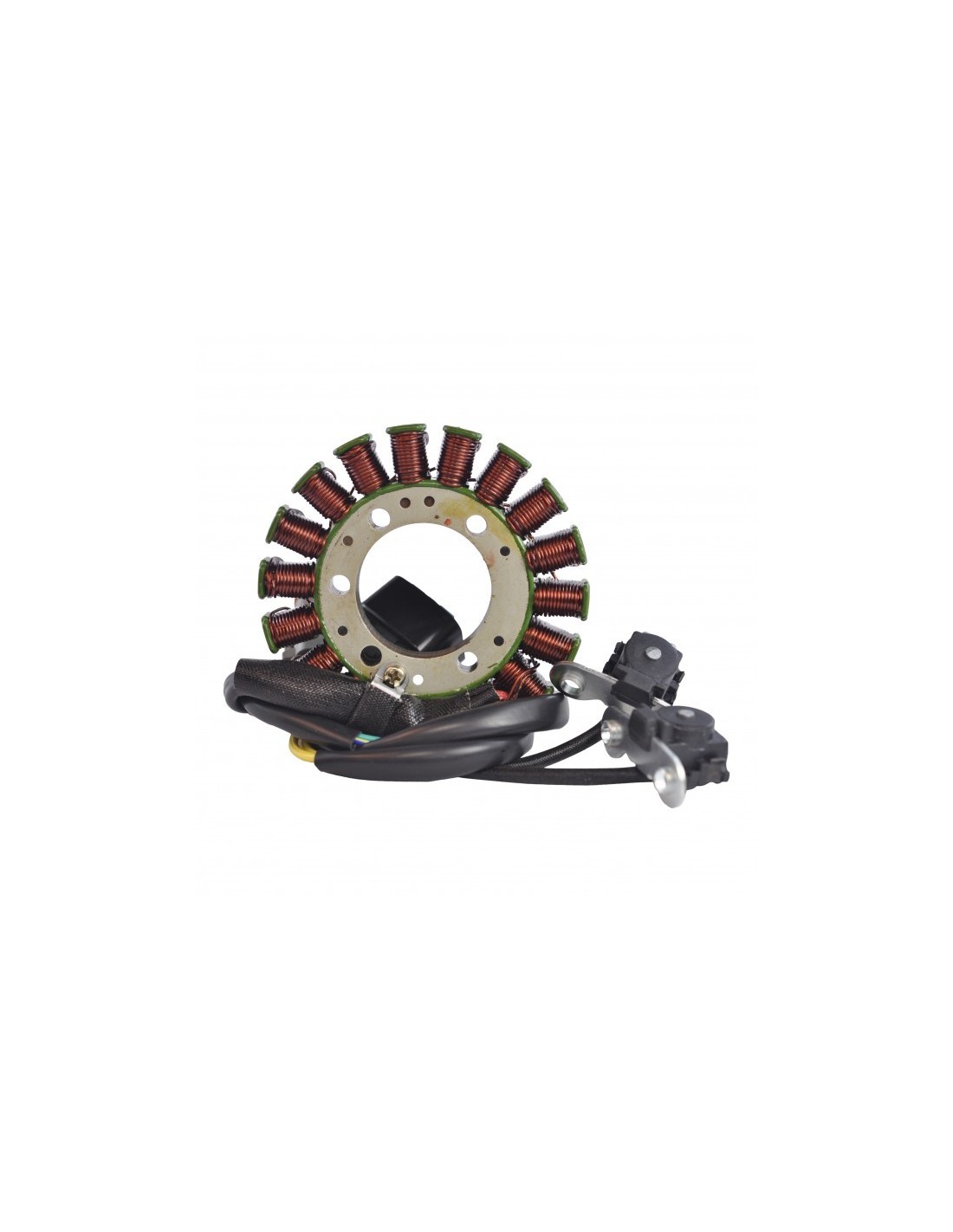

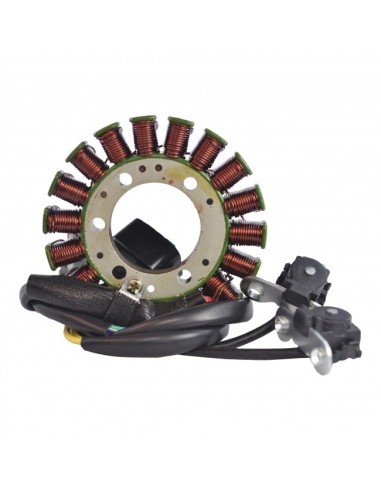

Stator Lynx Rave 600 Rave 800R Xtrim 800R OEM 420889904 420889907 420889909 420889908

Stator

Resistant to 200 degrees Celsius

2010
Lynx
Rave 600
Snowmobile 2010 Lynx Rave 600
Rave RE 800 R
Snowmobile 2010 Lynx Rave RE 800 R Power Tek
Xtrim 800 R
Snowmobile 2010 Lynx Xtrim 800 R Power Tek
2009
Lynx
Rave RE 800 R
Snowmobile 2009 Lynx Rave RE 800 R Power Tek
Xtrim SC 800 R
Snowmobile 2009 Lynx Xtrim SC 800 R Power Tek
2008
Lynx
Rave RS 600
Snowmobile 2008 Lynx Rave RS 600

OEM 420889904 420889907 420889909 420889908

Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 15mm
Length of wires stator to connectors : 300mm
Length of pickup coil's wire to connectors : 380mm

Other specifications :
Number of wires : 7

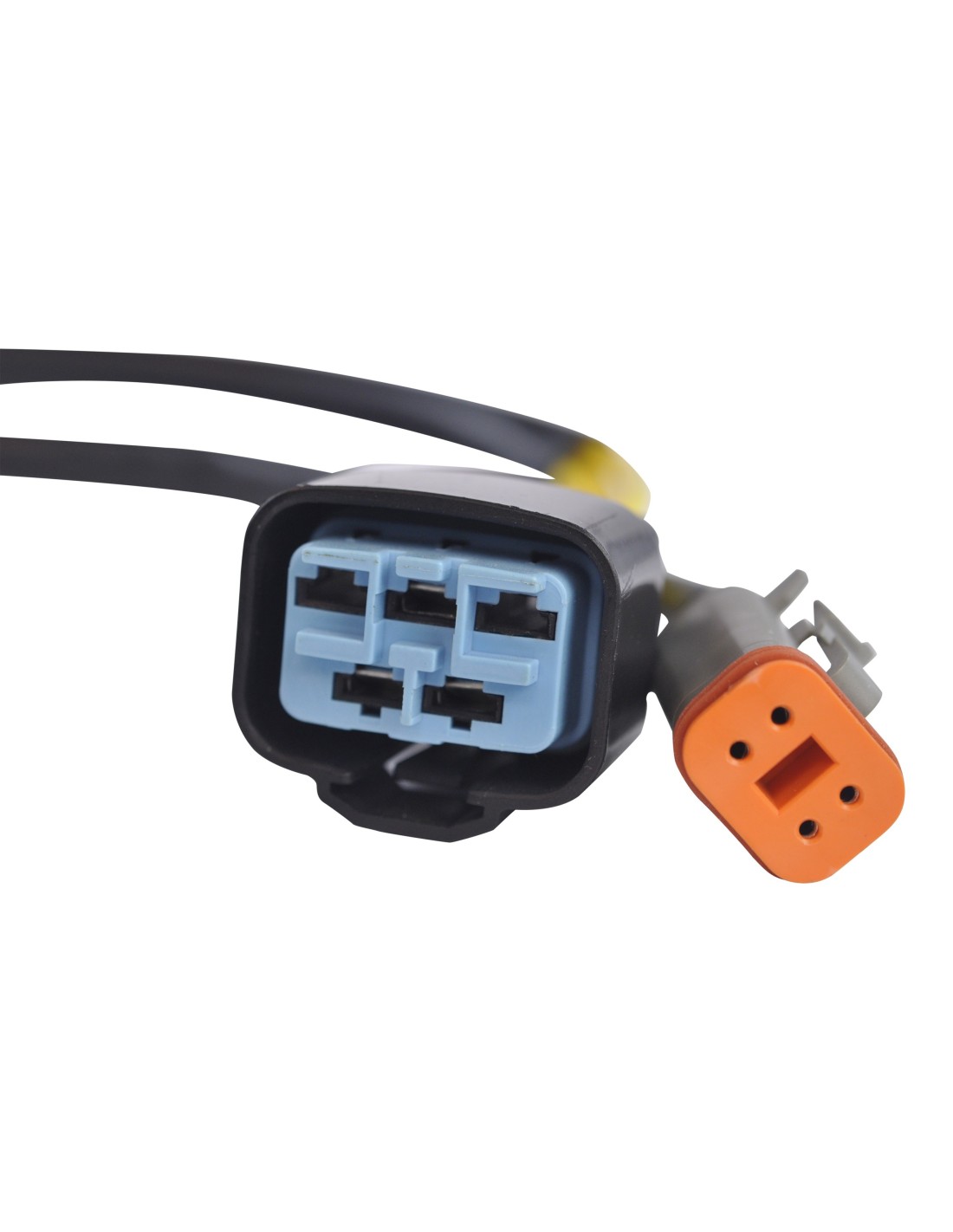

Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Grey to Green = 300ohms +/-20%
Pickup : Yellow/White to Blue = 300ohms +/-20%
