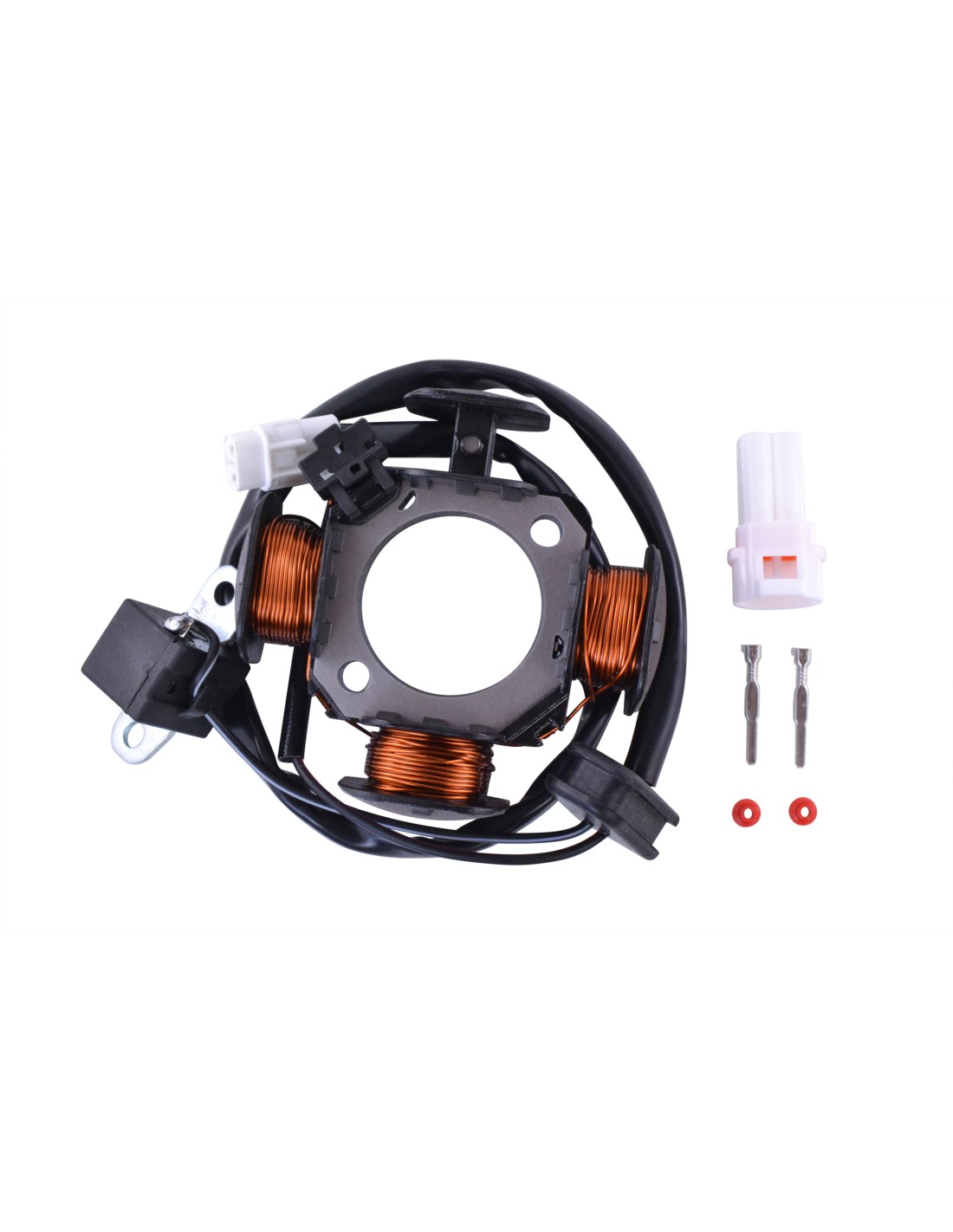

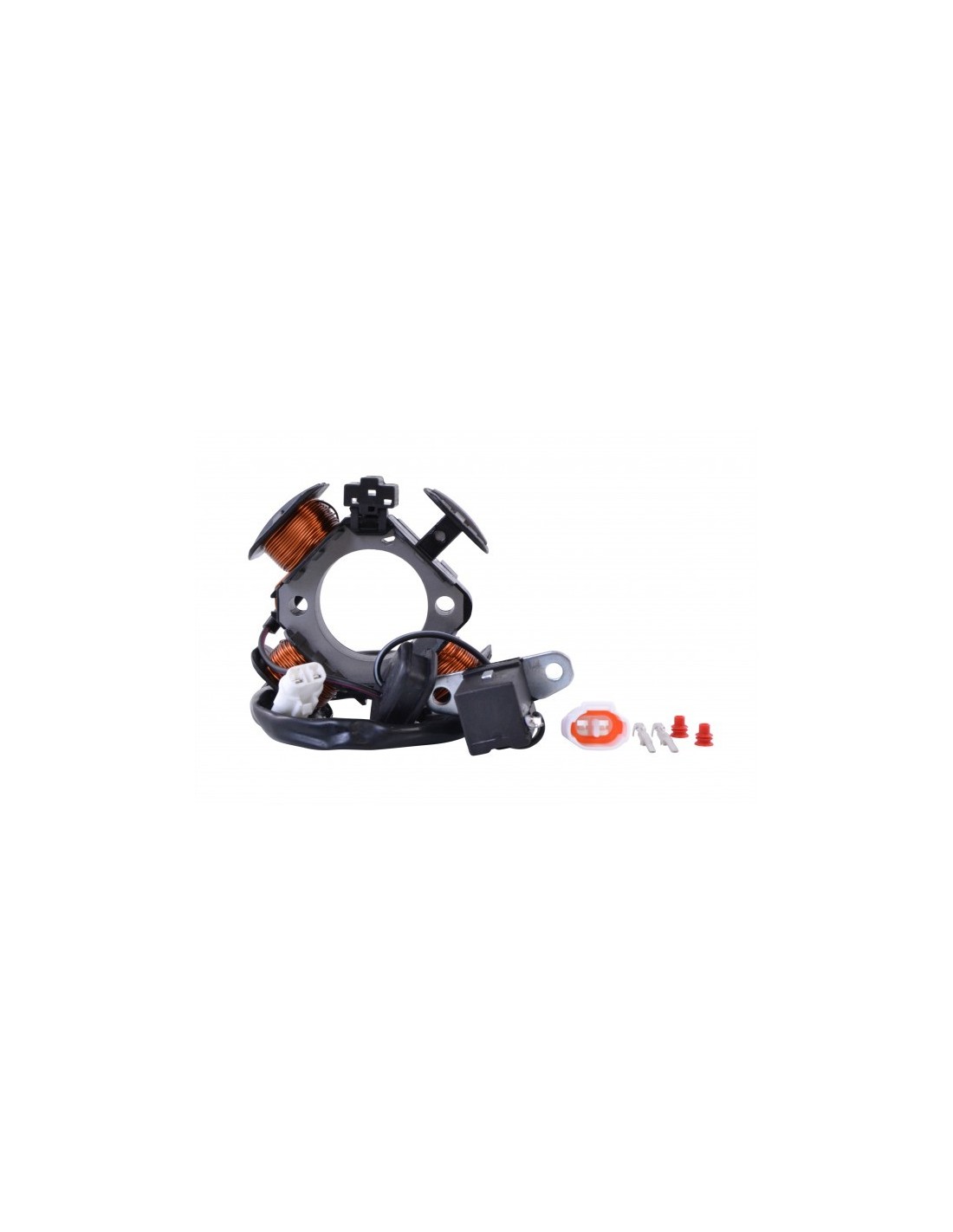

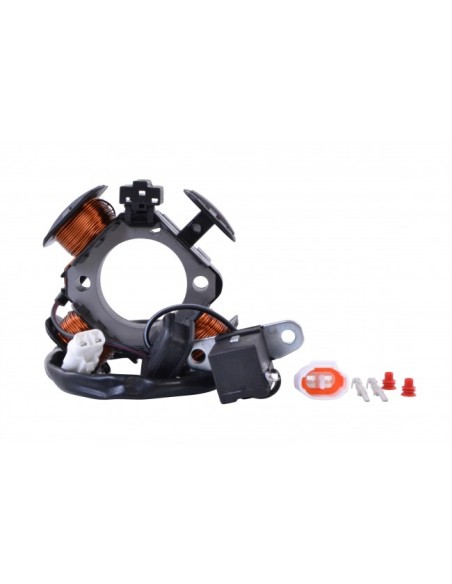

Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00
Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00
Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00
Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00
Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00
Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00
Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00
Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00

Stator Suzuki LTZ50 LTZ90 OEM 32101-08H00 32101-43G00

CARMS010-104525
5-7 Days
€91.20
Tax included

OEM 32101-08H00 32101-43G00


2018 Suzuki LTZ 50 Quadsport Z50
2018 Suzuki LTZ 90 QuadSport Z90
2017 Suzuki LTZ 50 Quadsport Z50
2017 Suzuki LTZ 90 QuadSport Z90
2016 Suzuki LTZ 90 QuadSport Z90
2014 Suzuki LTZ 90 QuadSport Z90
2009 Suzuki LTZ 50 Quadsport Z50
2009 Suzuki LTZ 90 QuadSport Z90
2008 Suzuki LTZ 50 Quadsport Z50
2008 Suzuki LTZ 90 QuadSport Z90
2007 Suzuki LTZ 50 Quadsport Z50
2007 Suzuki LTZ 90 QuadSport Z90
2006 Suzuki LTZ 50 Quadsport Z50
OEM 32101-08H00
32101-43G00
Dimensions :
Interior diameter : 36 mm
Exterior diameter : 84 mm
Thickness : 12 mm
Length of stator to grommet : 75 mm
Length of wires grommet to plug : 480 mm

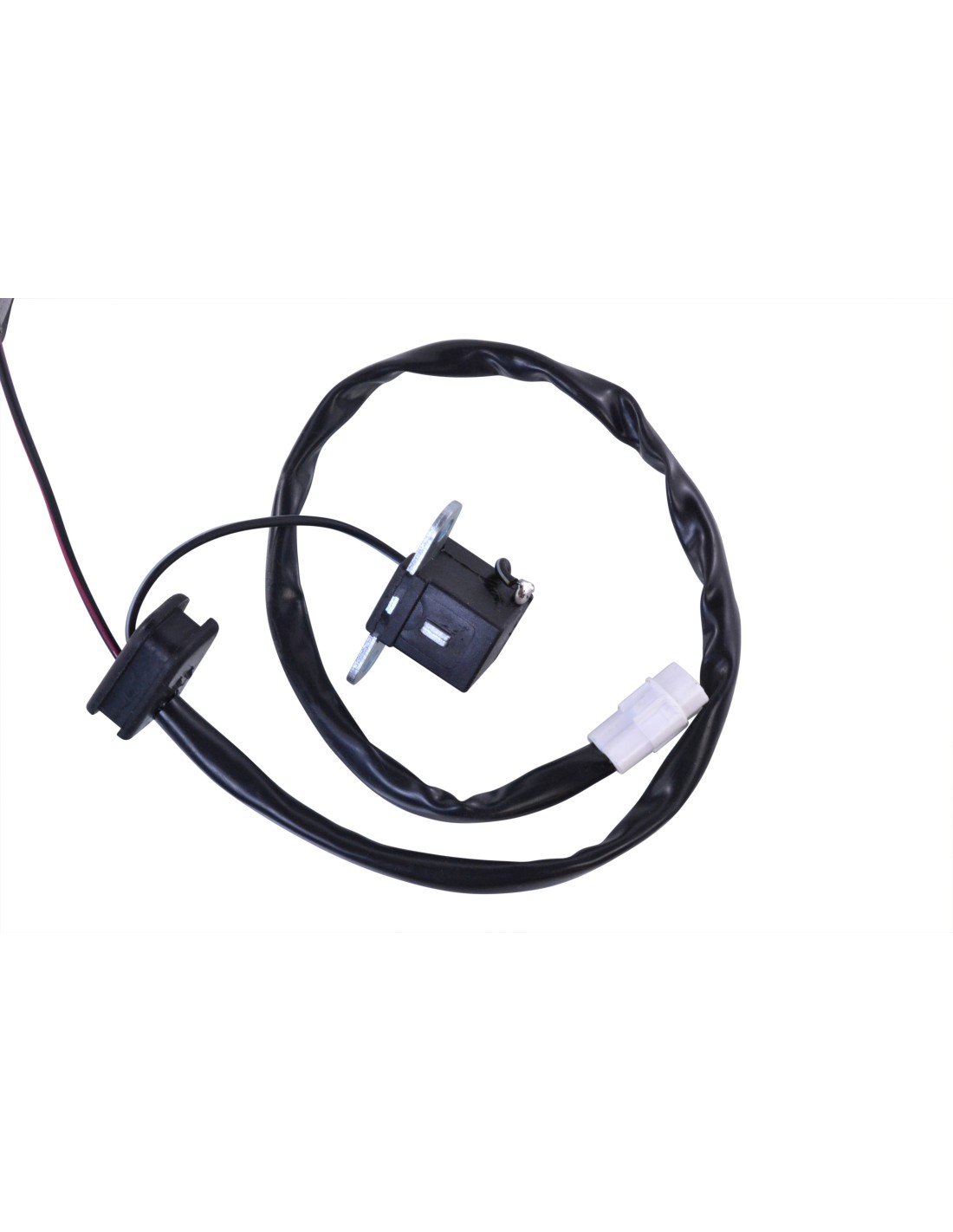

Length of pickup coil's wire to grommet : 40 mm
Other specifications :
Number of wires : 2

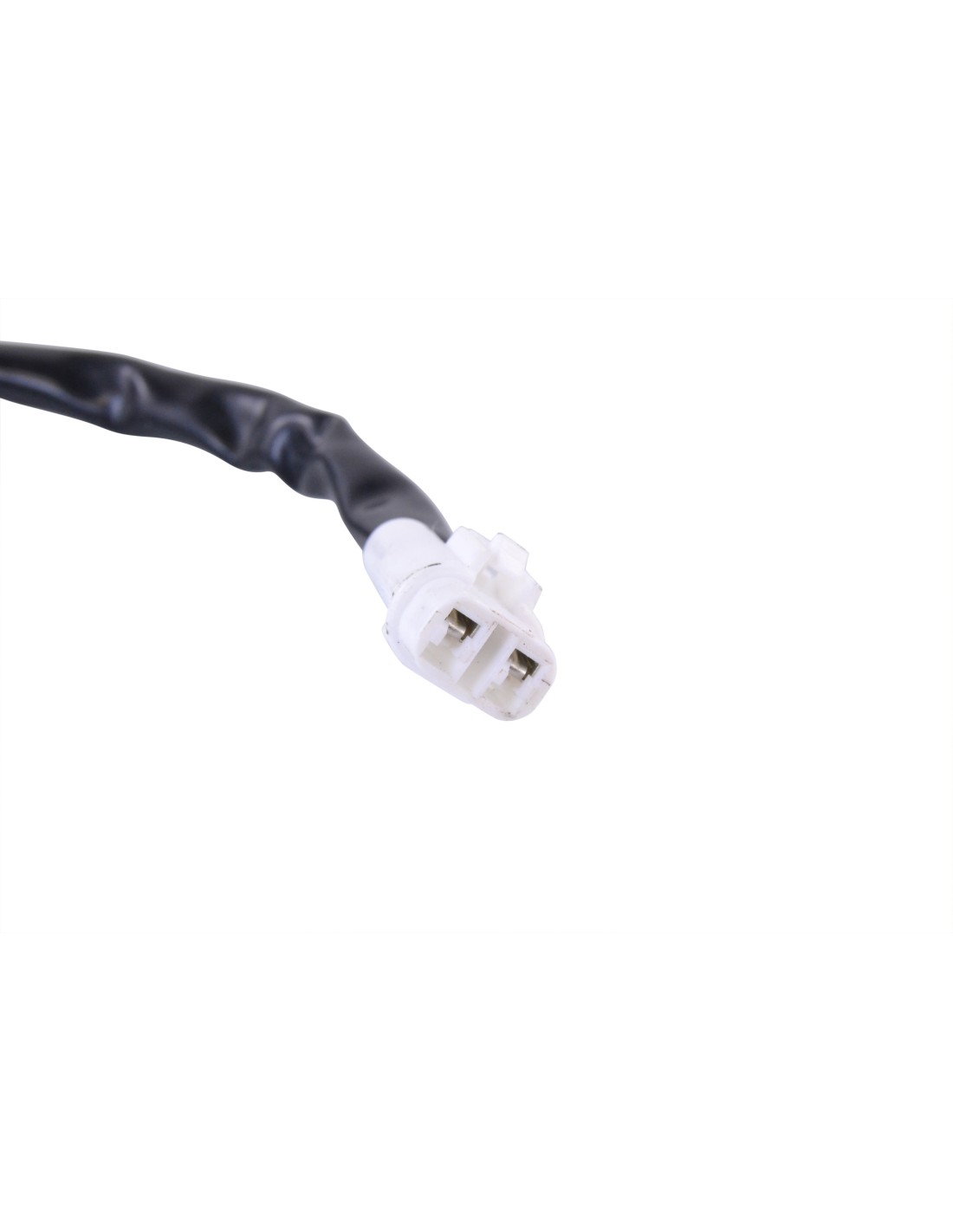

Number of plugs : 1
Number of pins : 2
Number of poles : 4
Wire to wire resistance :
Alternator : Black / Red to Ground = 1.0 ohms +-20%
Pickup : Black / Blue to Ground = 200 ohms +-20%
