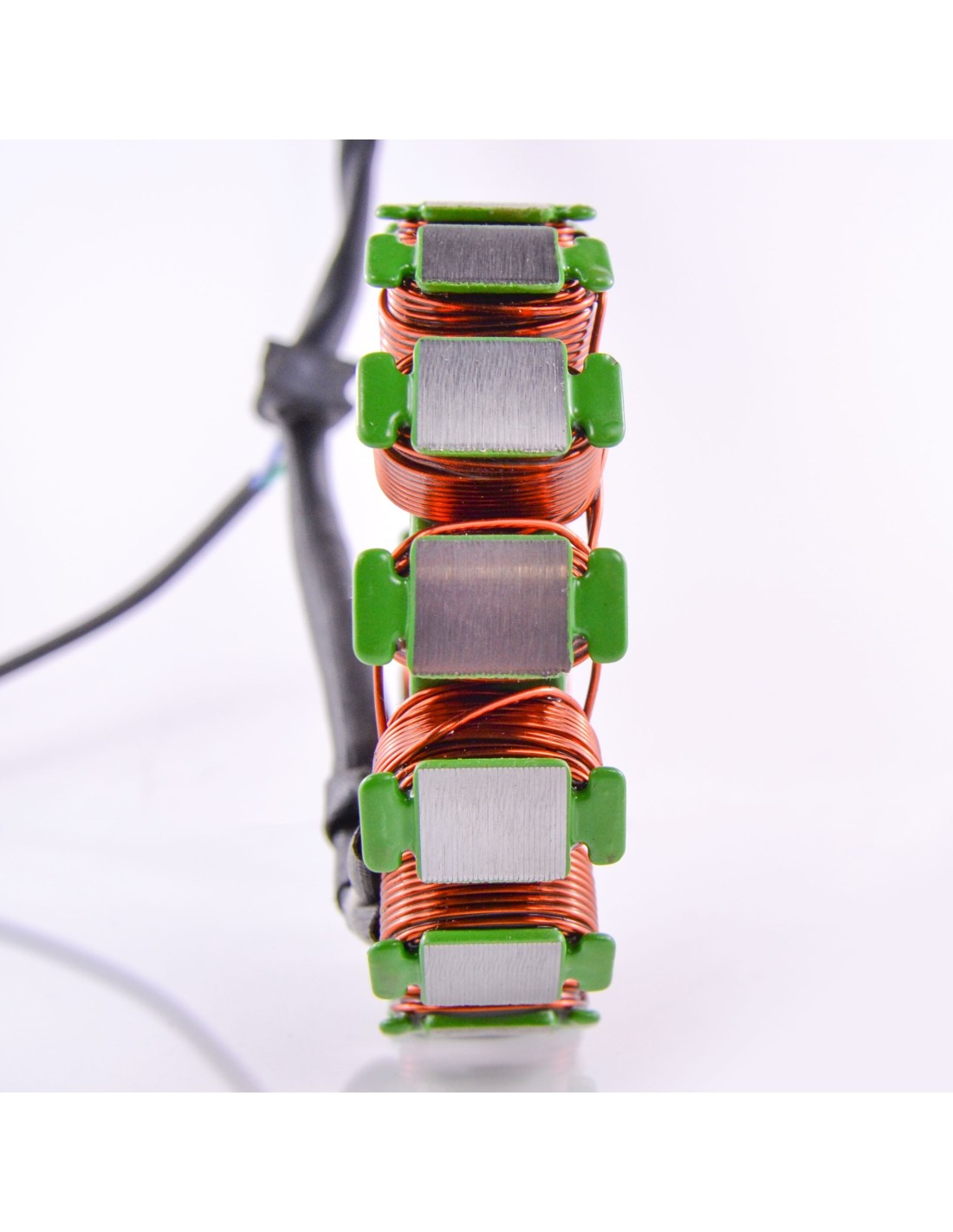

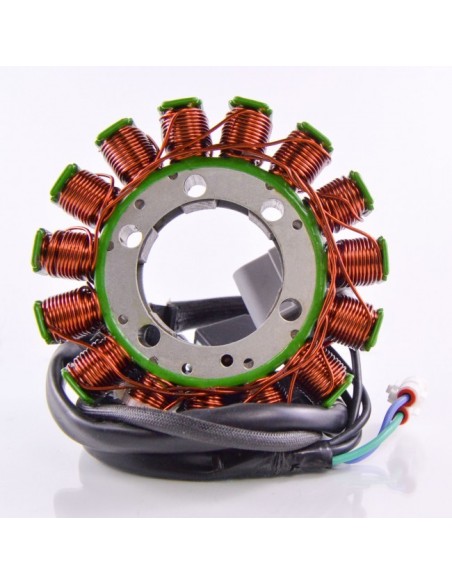

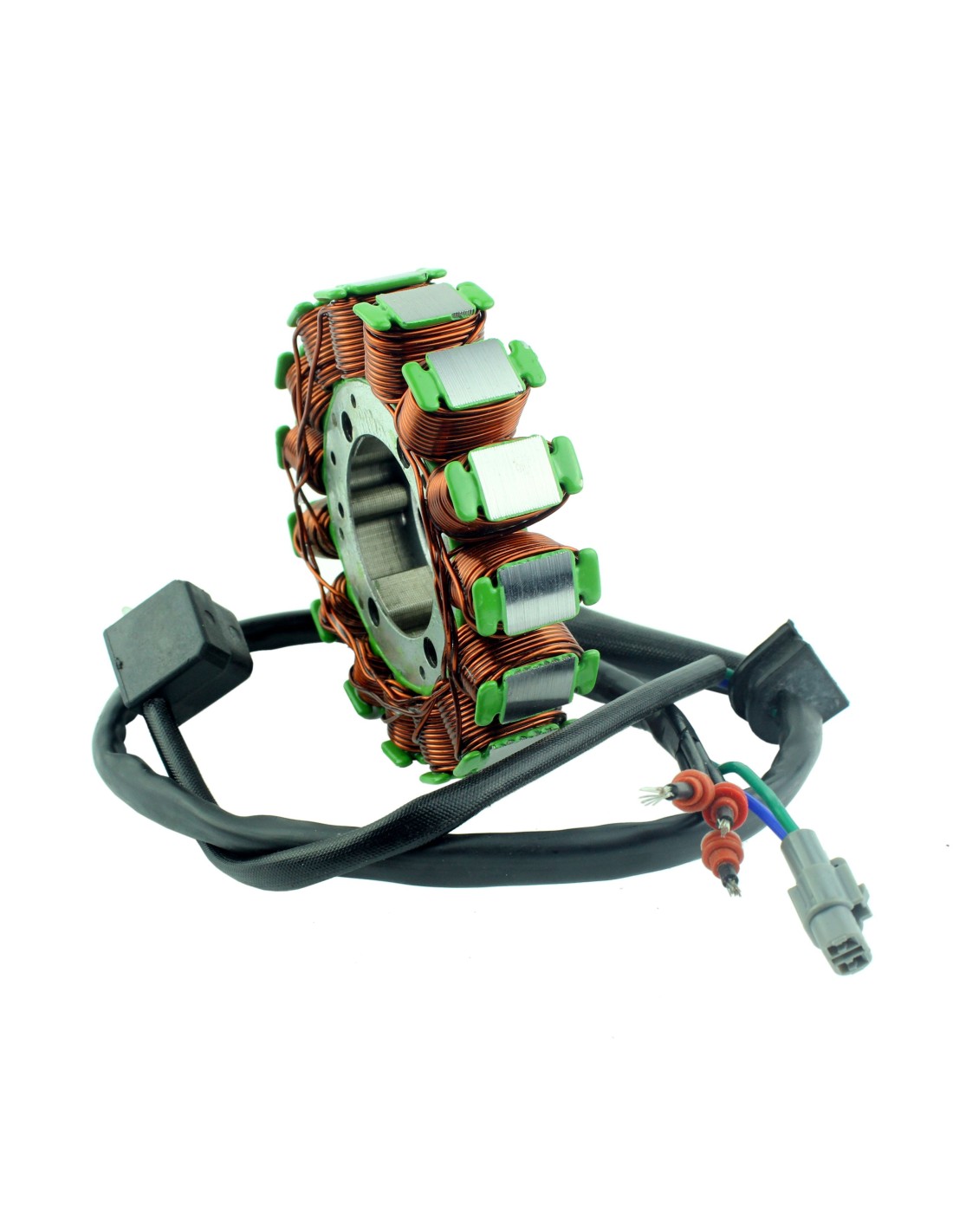

Stator
-
2009-2014 Suzuki LTZ400
-
Resistant to 200 degrees Celsius
-
OEM
32101-33H00
Dimensions :
Interior diameter : 42mm
Exterior diameter : 105mm
Thickness : 15mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 180mm
Length of pickup coil's wire to grommet : 450mm
Other specifications :
Number of wires : 5

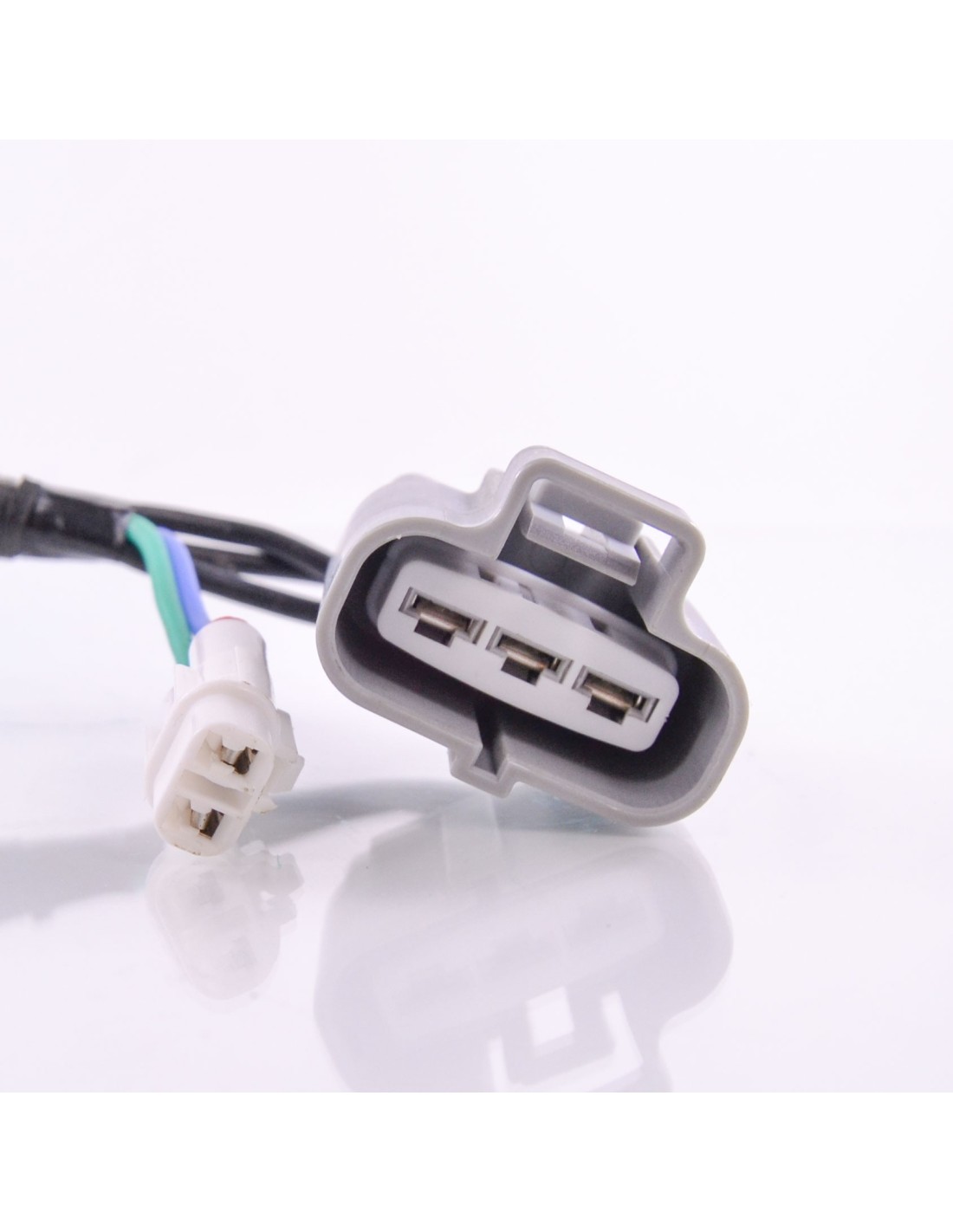

Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Blue to Black = 0.4ohms +/-20%
Pickup : Green to Blue = 500ohms +/-20%
