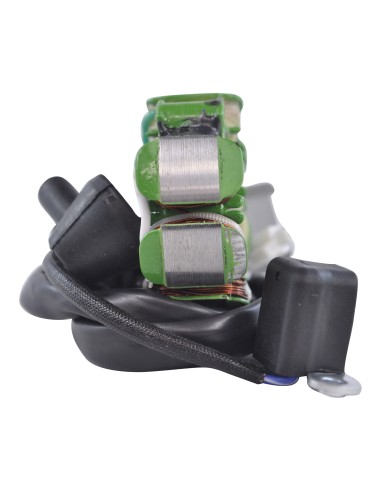

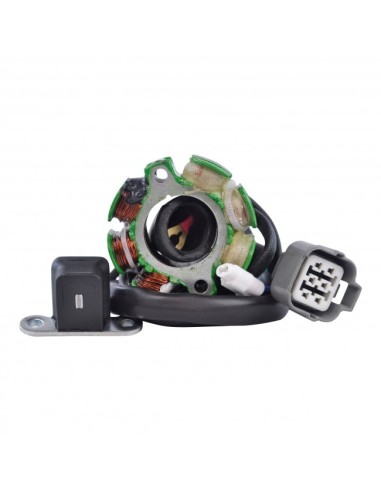

Stator Suzuki RMZ250 Kawasaki KXF250 OEM 21003-0027 21003-0048 21003-0091 K2100-30027 K2100-30048 32101-37F10 21003-0015

Stator

2010 Kawasaki KX 250 F
2009 Kawasaki KX 250 F
2008 Kawasaki KX 250 F
2007 Kawasaki KX 250 F
2006 Kawasaki KX 250 F
2006 Suzuki RM-Z250
2005 Kawasaki KX 250 F
2005 Suzuki RM-Z250

OEM
21003-0027
21003-0048
21003-0091
K2100-30027
K2100-30048

Dimensions :
Interior diameter : 28mm
Exterior diameter : 58mm
Thickness : 15mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 375mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :
Number of wires : 7

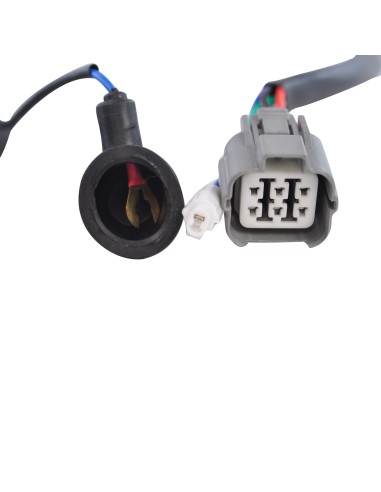

Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White to Yellow = 0.4ohms +/-20%
Pickup : Green to Red = 120ohms +/-20%
Source : White/Red to Black/Red = 38ohms +/-20%


Resistant to 200 degrees Celsius
