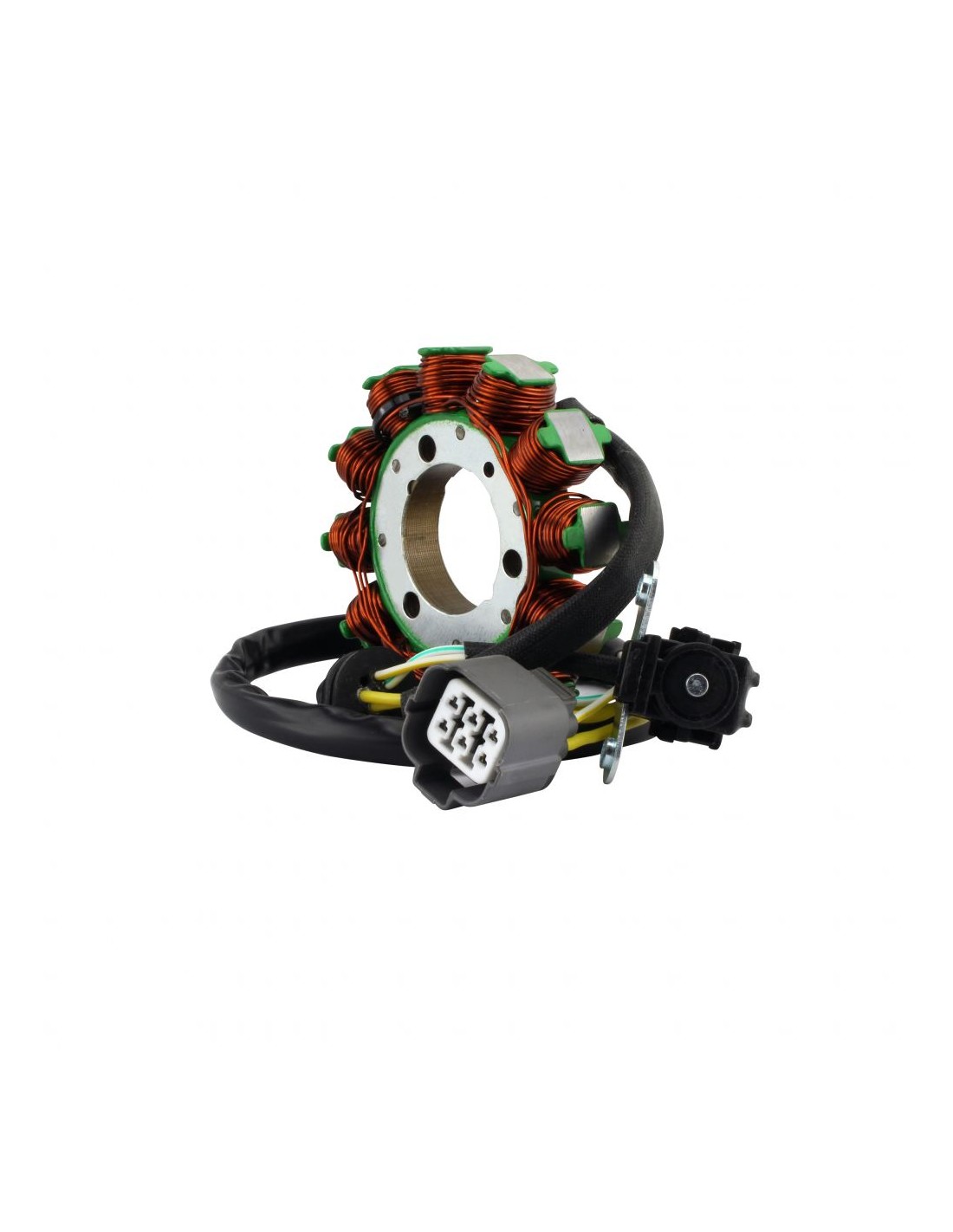

Stator Kawasaki KX250 KX250F KX450F OEM 21003-0082 21003-0148 21003-0102 21003-0147 21003-0168

Stator

2020 Kawasaki KX 250

2019 Kawasaki KX 250 F

2019 Kawasaki KX 250

2018 Kawasaki KX 450 F

2018 Kawasaki KX 250 F

2017 Kawasaki KX 450 F

2017 Kawasaki KX 250 F

2016 Kawasaki KX 450 F

2016 Kawasaki KX 250 F

2015 Kawasaki KX 450 F

2015 Kawasaki KX 250 F

2014 Kawasaki KX 450 F

2014 Kawasaki KX 250 F

2013 Kawasaki KX 450 F

2013 Kawasaki KX 250 F

2012 Kawasaki KX 450 F

2012 Kawasaki KX 250 F

2011 Kawasaki KX 450 F

2011 Kawasaki KX 250 F

2010 Kawasaki KX 450 F

2009 Kawasaki KX 450 F

OEM

21003-0082

21003-0148

21003-0102

21003-0147

21003-0168

Dimensions:

Interior diameter: 35 mm

Exterior diameter: 89 mm

Thickness: 12 mm

Length of wires stator to grommet: 120 mm

Length of wires grommet to plug: 40 mm

Length of pickup coil's wire to grommet: 430 mm

Other specifications:

Number of wires: 5

Number of plugs: 1

Number of pins: 5

Number of poles: 12

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.8 ohms +-20%

Pickup: = White/Yellow to Green/White = 238 ohms +-20%
