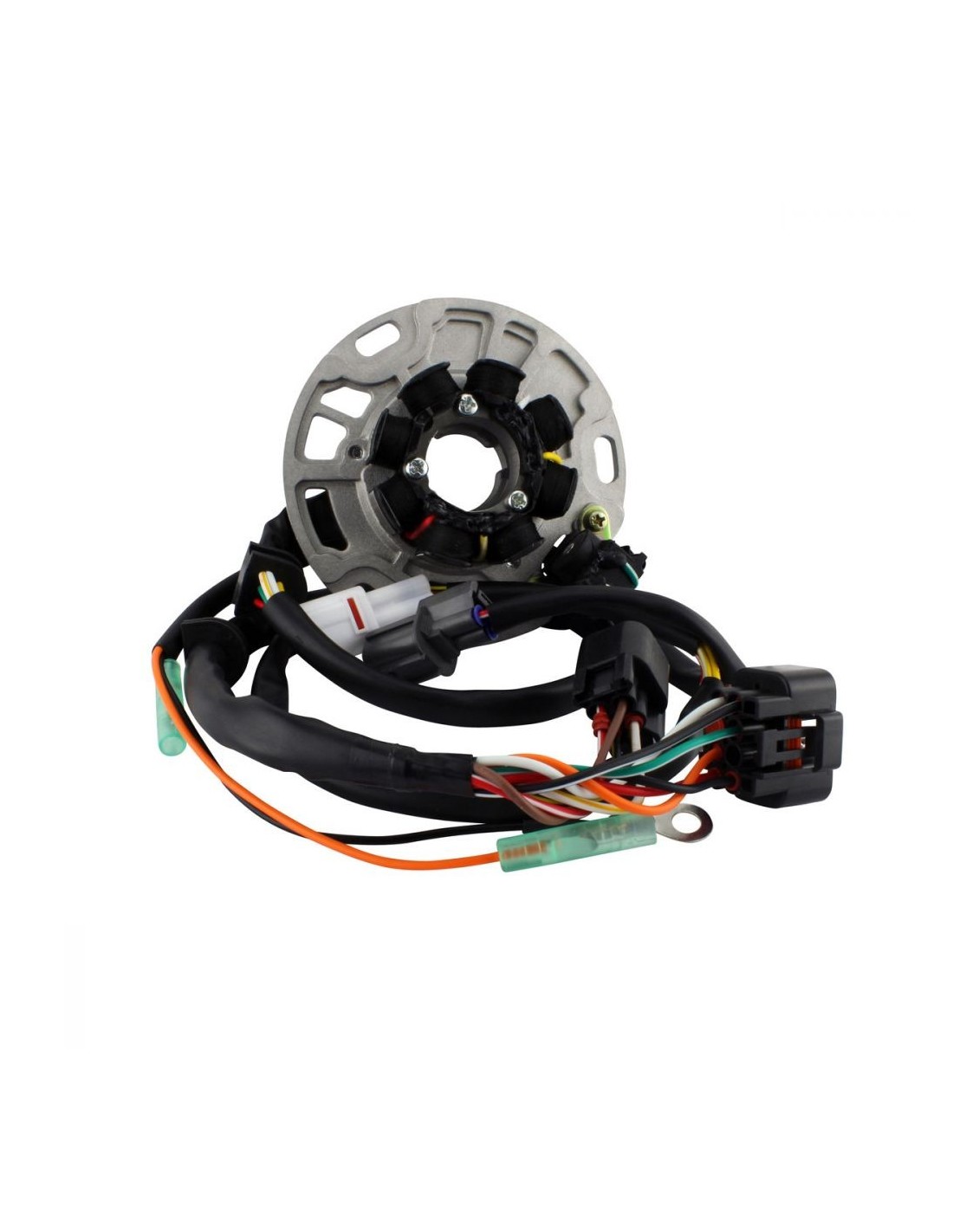

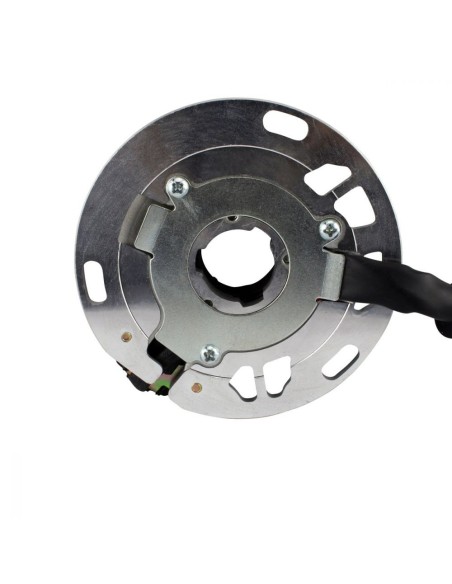

Stator Kawasaki KX250 OEM 21003-1322 21003-1380
CARMS010-108073
5-7 Days
€144.00
Tax included
OEM 21003-1322 21003-1380
Stator
Ignition Only
KX250 (1998)
OEM 21003-1322 / 21003-1380
Dimensions:
Interior diameter: 28 mm
Exterior diameter: 61 mm
Thickness: 14 mm
Length of wires stator to grommet: 45 mm
Length of wires grommet to plug: 925 mm
Length of pickup coil's wire to grommet: 70 mm
Other specifications:
Number of wires: 18
Number of plugs: 7
Number of pins: 18
Number of poles: 8
Wire to wire resistance:
Alternator: Yellow to Yellow/White = 2.4 ohms +-20%
Pickup: White/Yellow to Green/White = 245 ohms +-20%
Source: Red to White = 11.2 ohms +-20%
