Stator Kawasaki KX125 OEM 21003-1321 21003-1379
CARMS010-108071
Contact Us
€139.00
Tax included

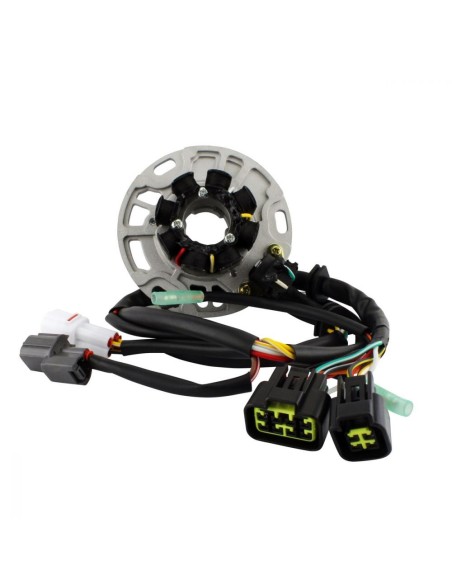

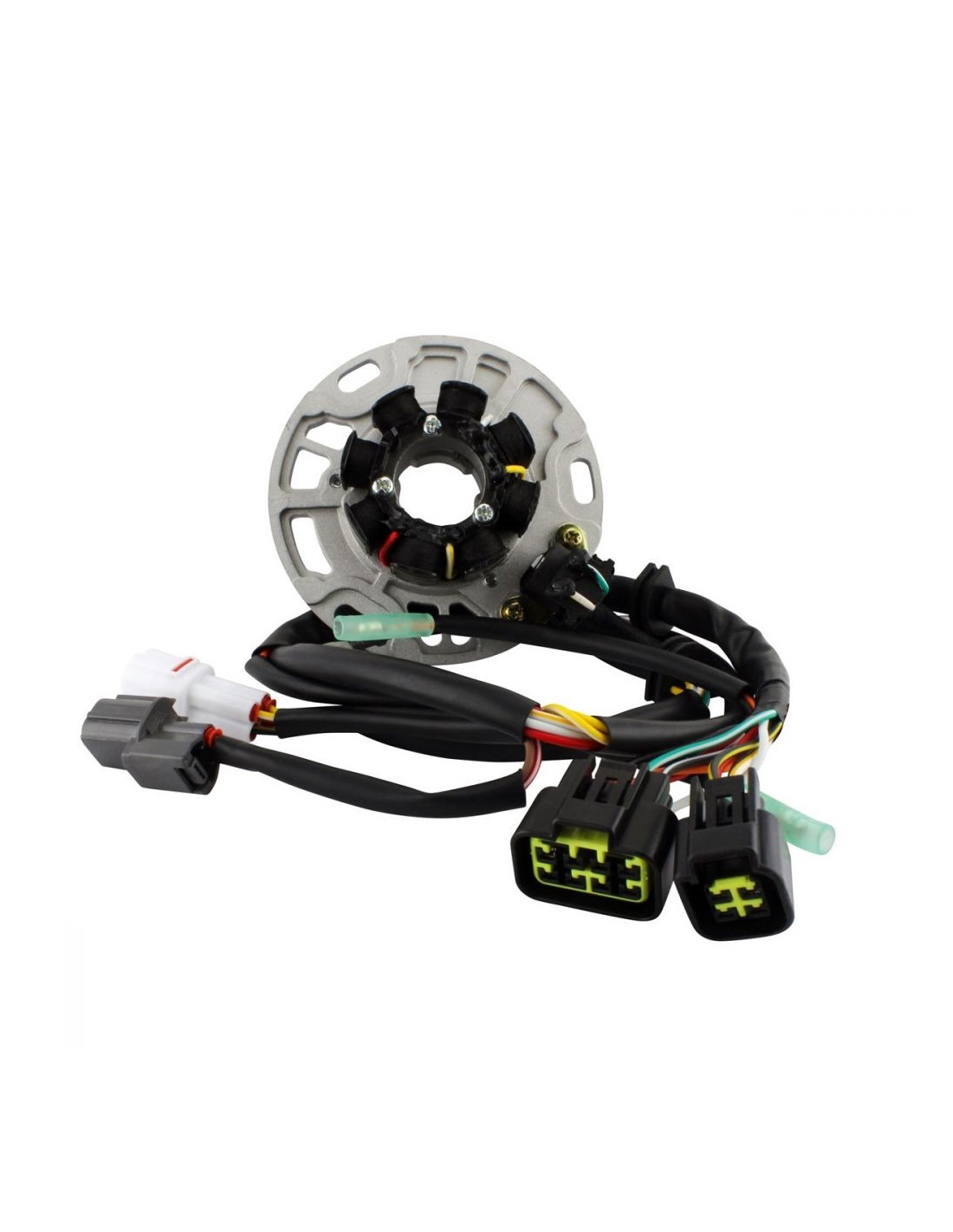

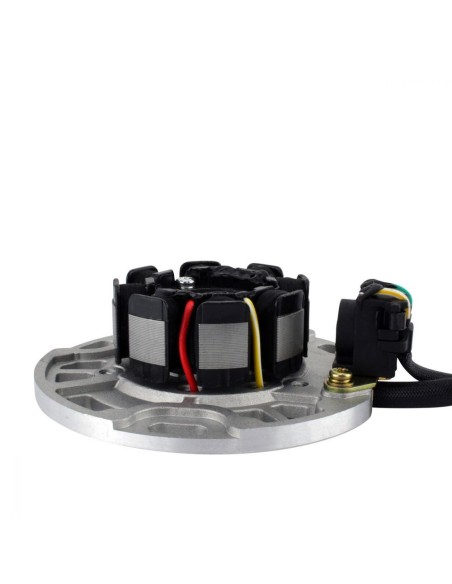

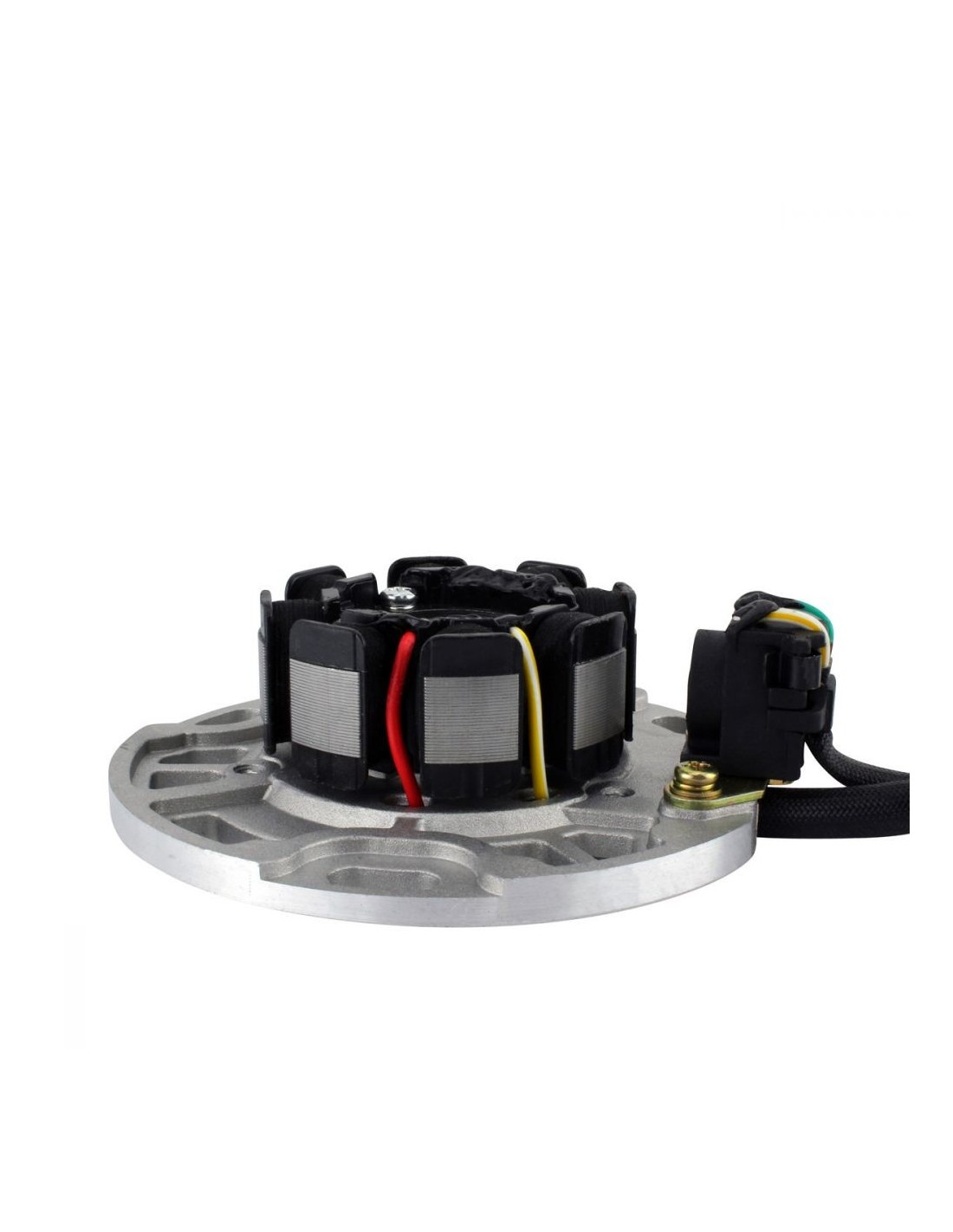

Stator Kawasaki KX125 OEM 21003-1321 21003-1379
Stator
Ignition Only
KX125 (1998)
OEM 21003-1321 21003-1379
Dimensions:
Interior diameter: 27.5 mm
Exterior diameter: 60 mm
Thickness: 14 mm

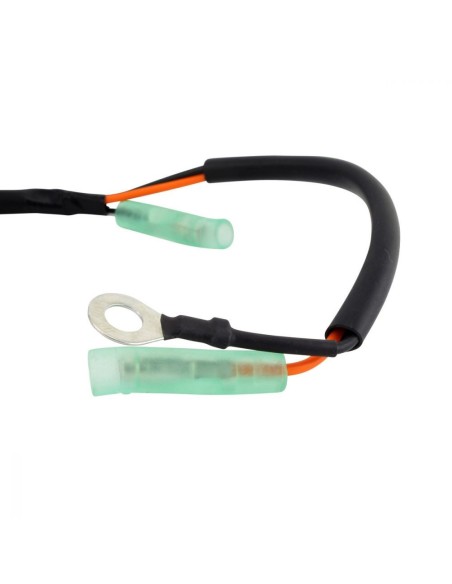

Length of wires stator to grommet: 25 mm
Length of wires grommet to plug: 840 mm
Length of pickup coil's wire to grommet: 70 mm
Other specifications:
Number of wires: 19

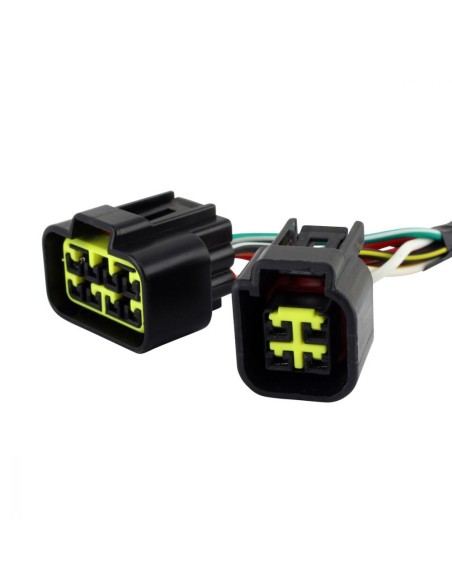

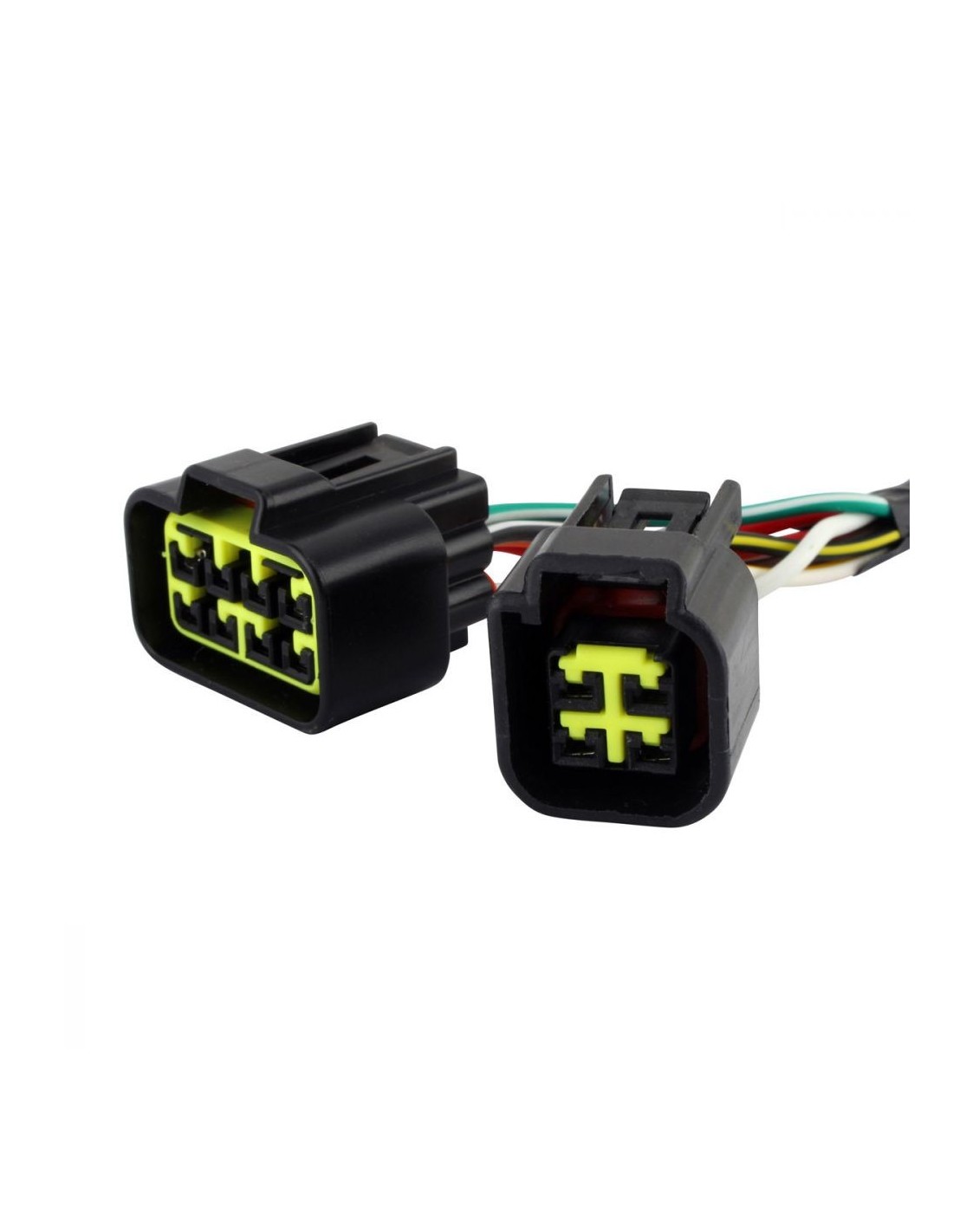

Number of plugs: 5
Number of pins: 15
Number of poles: 8
Wire to wire resistance:
Alternator: Yellow to Yellow/White = 2.4 ohms +-20%
Pickup: White/Yellow to Green/White = 245 ohms +-20%
Source: Red to White = 11.2 ohms +-20%
