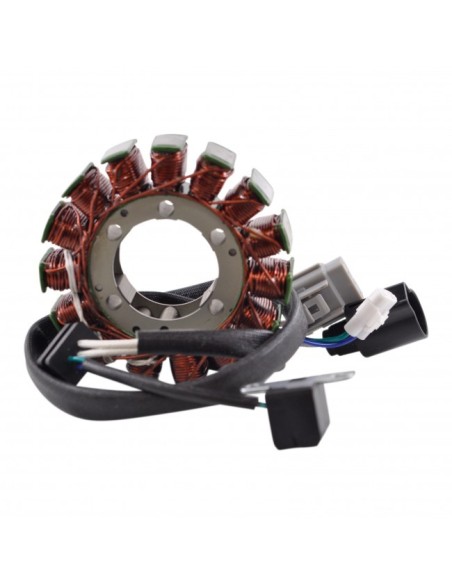

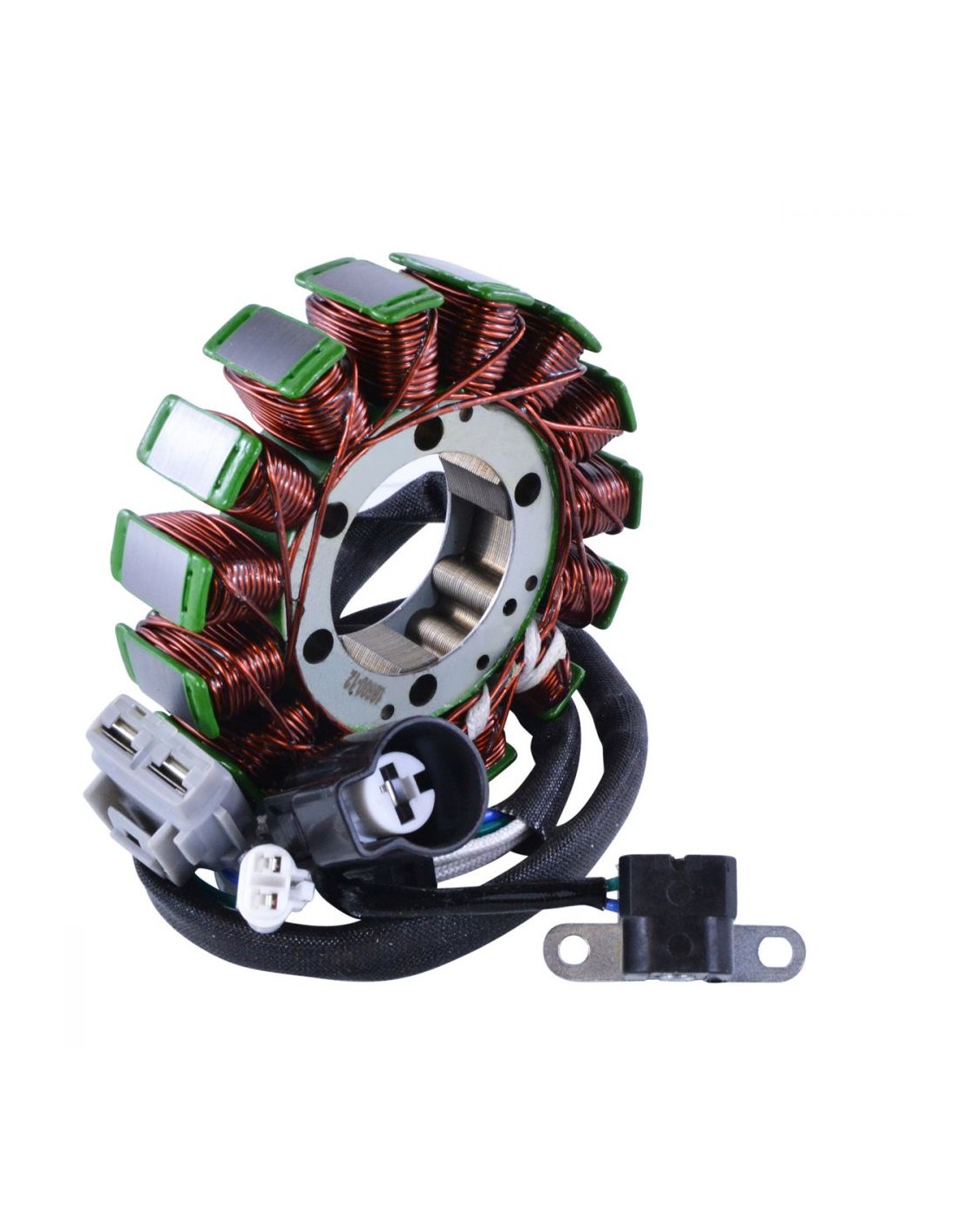

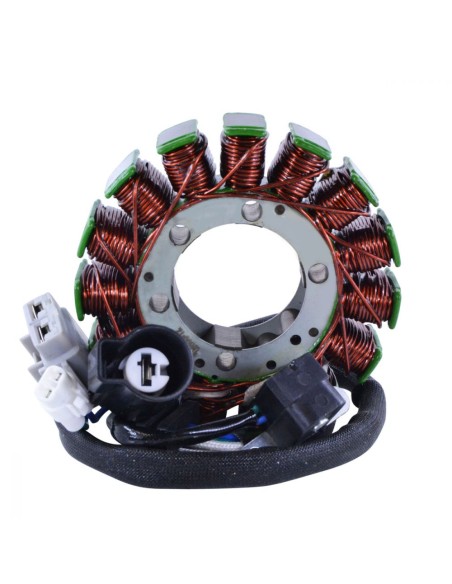

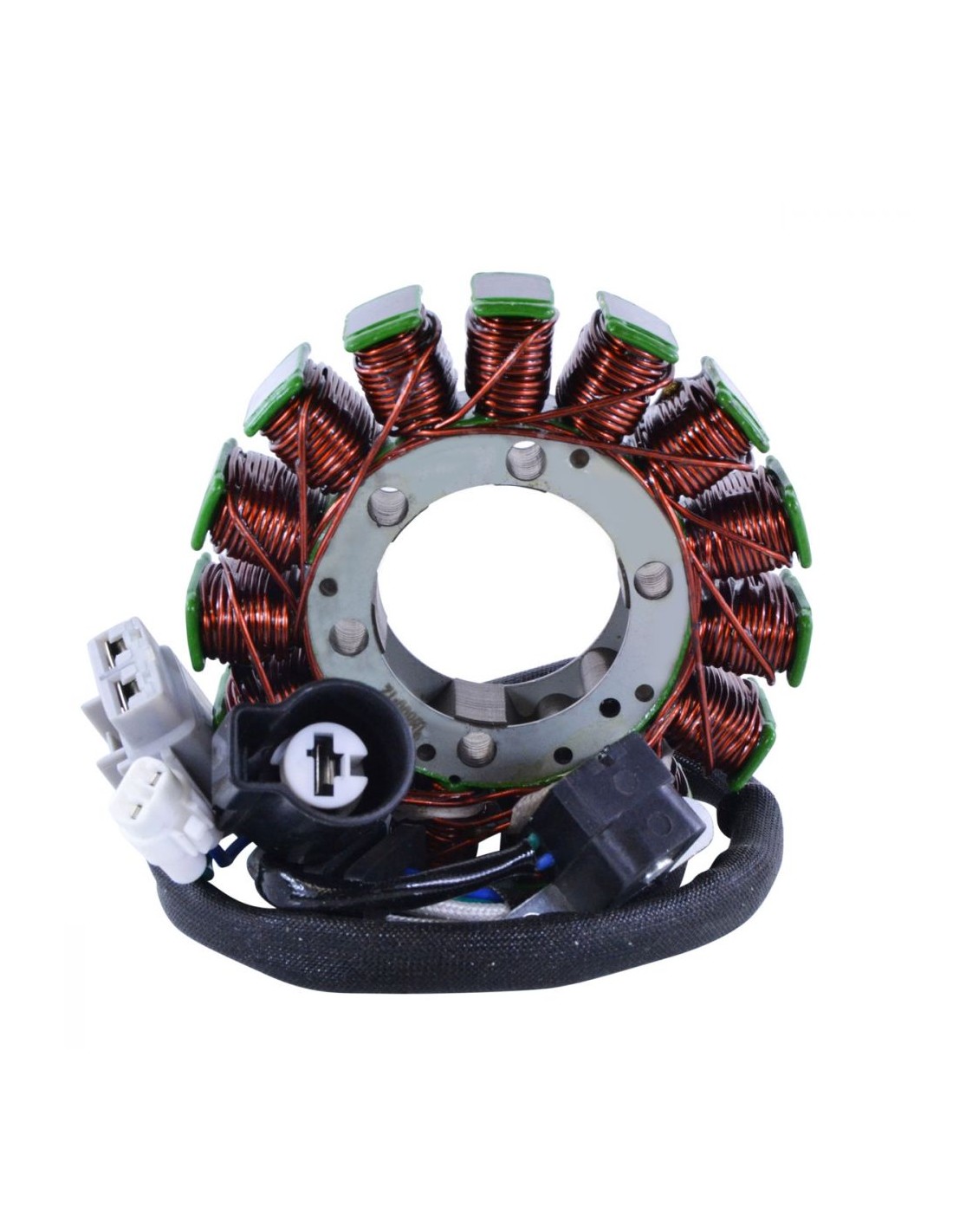

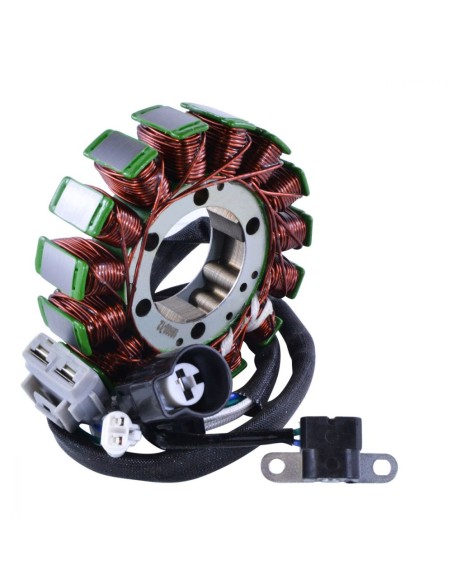

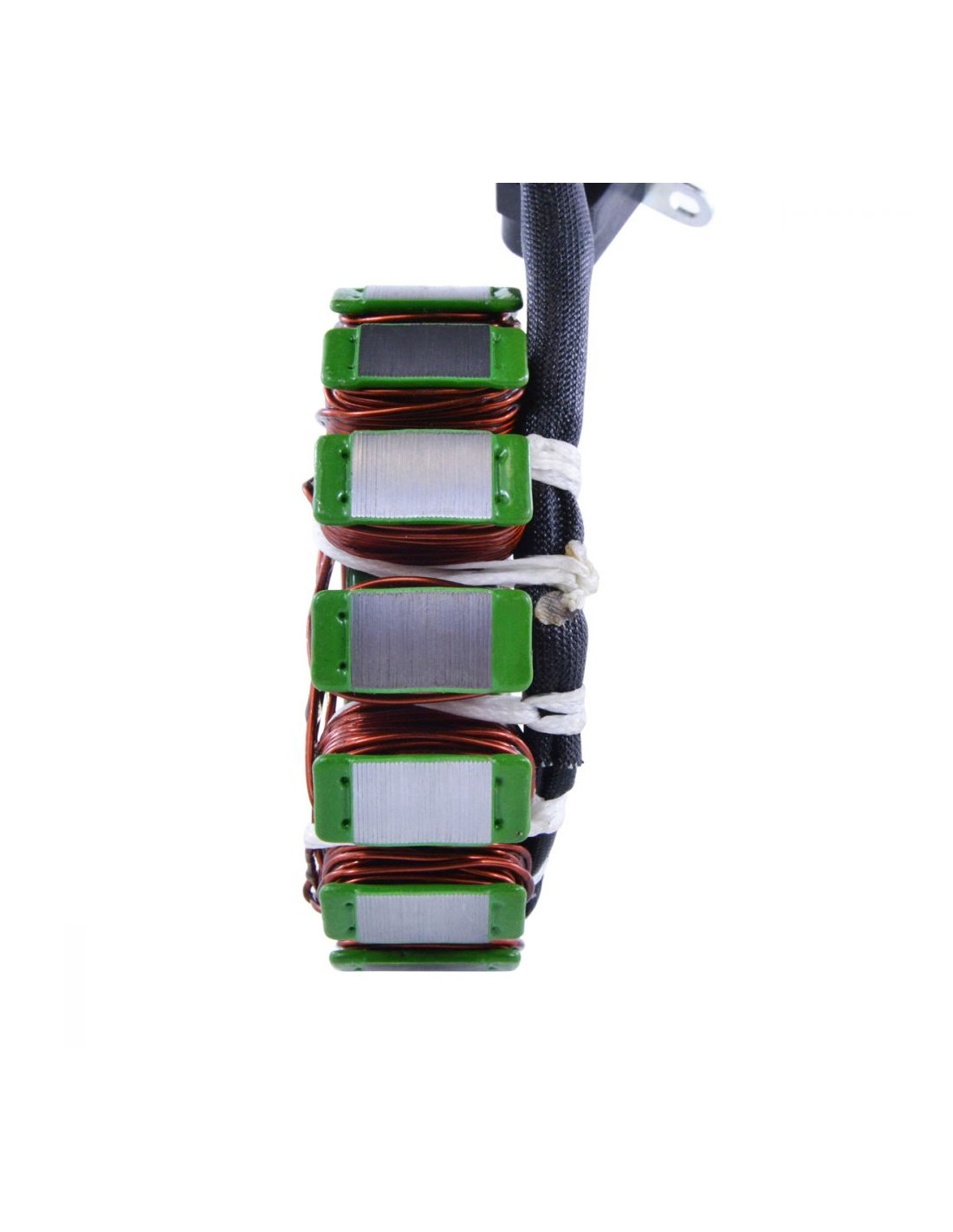

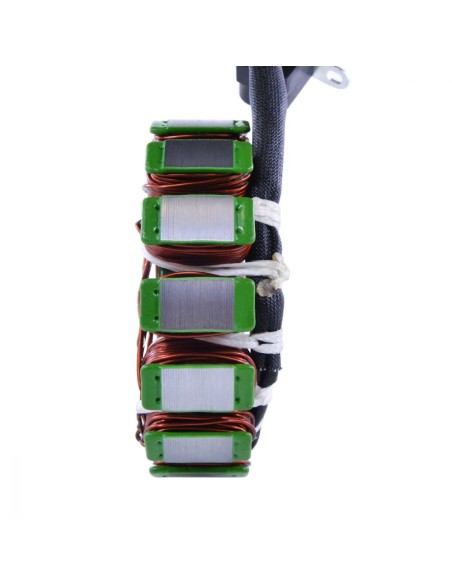

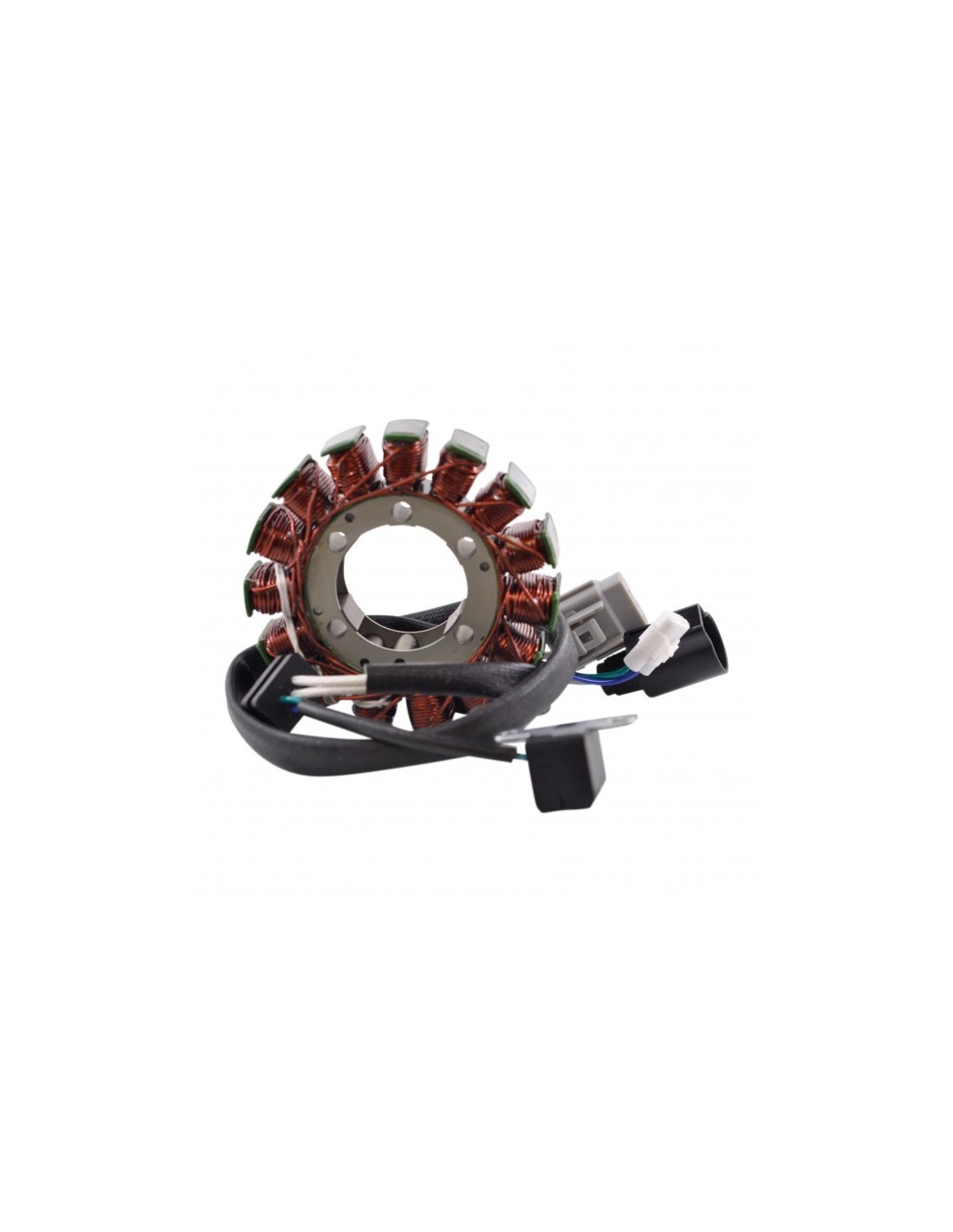

Stator Kawasaki KVF750 Brute Force KRT 750 OEM 21003-0166 21003-0132 21003-0134 21003-0143 21003-0108 21003-0167

2024 Kawasaki KVF 750 Brute Force i

2024 Kawasaki KVF 750 Brute Force EPS

2023 Kawasaki KVF 750 Brute Force i

2023 Kawasaki KVF 750 Brute Force EPS

2023 Kawasaki KVF 750 Brute Force EPS

2023 Kawasaki KRT 800 Teryx 4

2023 Kawasaki KRF 800 Teryx

2022 Kawasaki KVF 750 Brute Force i

2022 Kawasaki KVF 750 Brute Force EPS

2022 Kawasaki KRT 800 Teryx 4

2022 Kawasaki KRF 800 Teryx

2021 Kawasaki KVF 750 Brute Force i

2021 Kawasaki KVF 750 Brute Force EPS

2021 Kawasaki KVF 750 Brute Force

2021 Kawasaki KRT 800 Teryx 4

2021 Kawasaki KRF 800 Teryx

2020 Kawasaki KVF 750 Brute Force i

2020 Kawasaki KVF 750 Brute Force EPS

2020 Kawasaki KVF 750 Brute Force

2020 Kawasaki KRT 800 Teryx 4

2020 Kawasaki KRF 800 Teryx

2019 Kawasaki KVF 750 Brute Force i

2019 Kawasaki KVF 750 Brute Force EPS

2019 Kawasaki KRT 800 Teryx 4

2019 Kawasaki KRF 800 Teryx

2018 Kawasaki KVF 750 Brute Force i

2018 Kawasaki KVF 750 Brute Force EPS

2018 Kawasaki KRT 800 Teryx 4

2018 Kawasaki KRF 800 Teryx

2017 Kawasaki KVF 750 Brute Force i

2017 Kawasaki KVF 750 Brute Force EPS

2017 Kawasaki KRT 800 Teryx 4

2017 Kawasaki KRF 800 Teryx

2016 Kawasaki KVF 750 Brute Force i

2016 Kawasaki KVF 750 Brute Force EPS

2016 Kawasaki KRT 800 Teryx 4

2016 Kawasaki KRF 800 Teryx

2015 Kawasaki KVF 750 Brute Force i

2015 Kawasaki KVF 750 Brute Force EPS

2015 Kawasaki KRT 800 Teryx 4

2015 Kawasaki KRF 800 Teryx

2014 Kawasaki KVF 750 Brute Force i

2014 Kawasaki KVF 750 Brute Force EPS

2014 Kawasaki KRT 800 Teryx 4

2014 Kawasaki KRF 800 Teryx

2013 Kawasaki KVF 750 Brute Force i

2013 Kawasaki KVF 750 Brute Force EPS

2013 Kawasaki KRT 750 Teryx 4

2012 Kawasaki KVF 750 Brute Force i

2012 Kawasaki KVF 750 Brute Force EPS

2012 Kawasaki KRT 750 Teryx 4

OEM 21003-0166
21003-0132
21003-0134
21003-0143
21003-0108
21003-0167

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 950 mm

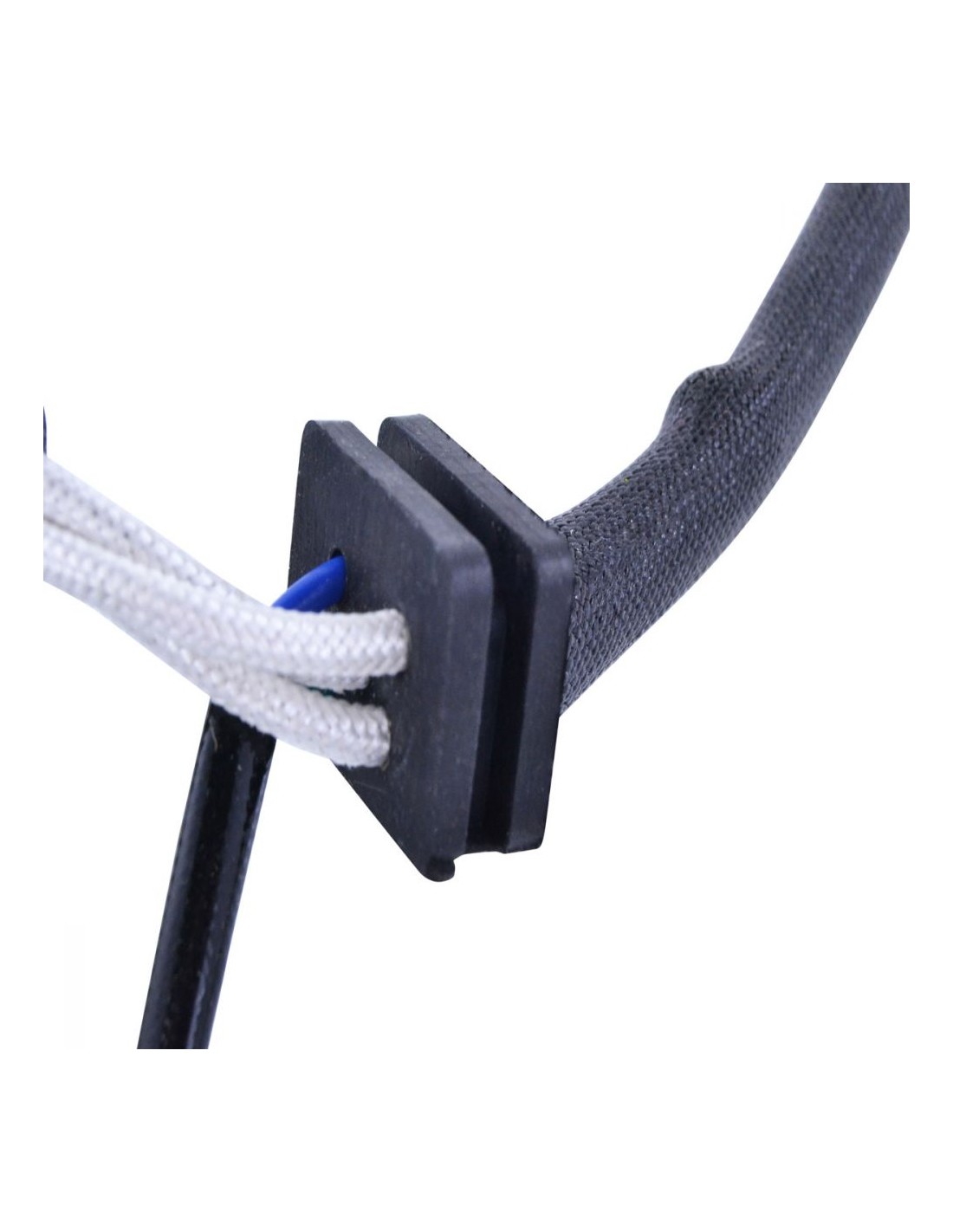

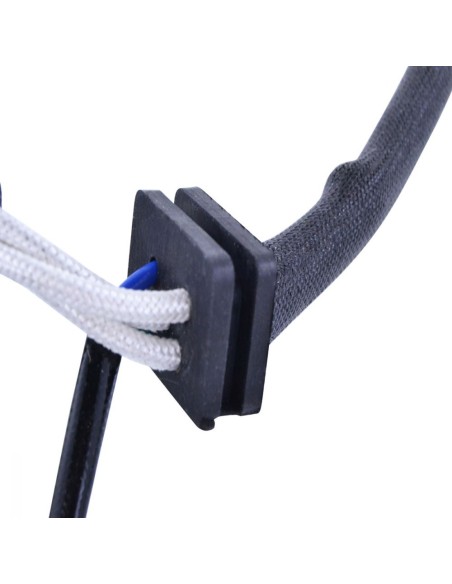

Length of pickup coil's wire to grommet : 90 mm

Other specifications :
Number of wires : 5

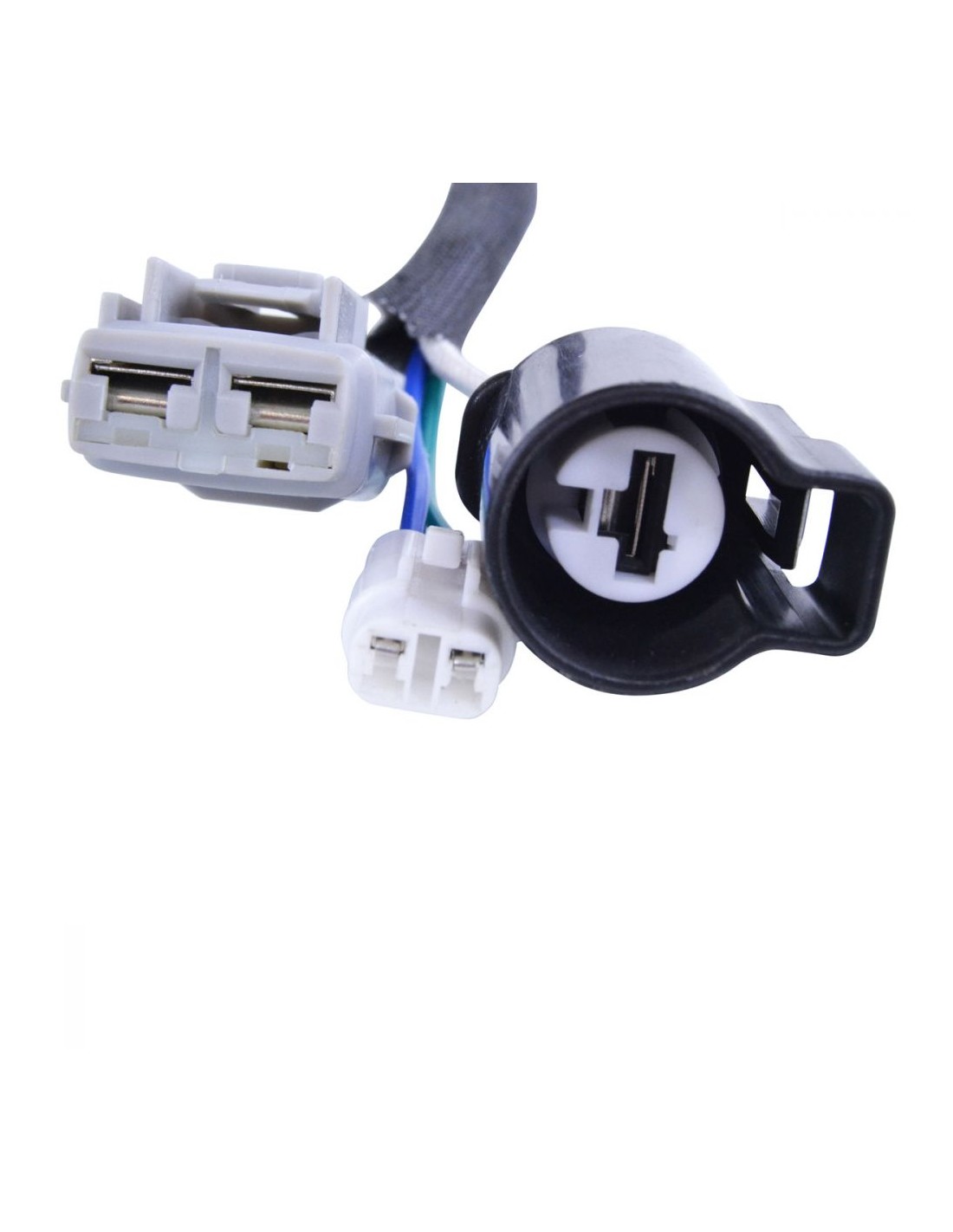

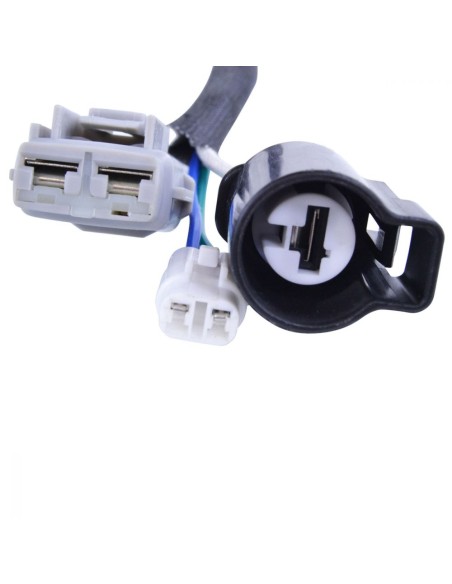

Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.6 ohms +-20%
Pickup : Green to Blue = 500 ohms +-20%

• Resistant to 200 degrees Celsius
