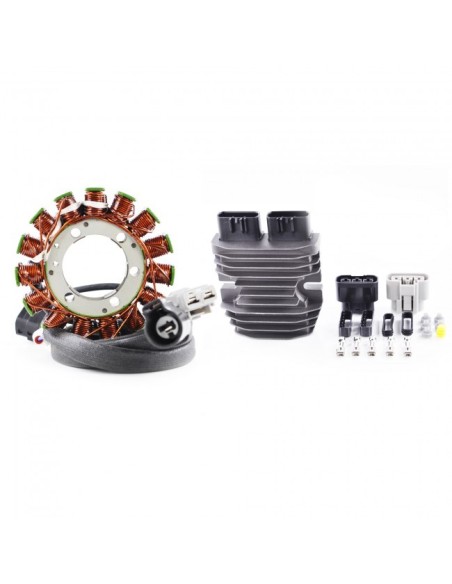

Kit Stator Regulator Rectifier Kawasaki KVF750 Brute Force EPS OEM 21003-0143 21003-0134 21003-0108 21003-0167

• Kit Stator Regulator Rectifier Kawasaki KVF750 Brute Force EPS OEM 21003-0143 21003-0134 21003-0108 21003-0167

2018 Kawasaki KVF 750 Brute Force
2018 Kawasaki KVF 750 Brute Force EPS
2017 Kawasaki KVF 750 Brute Force
2017 Kawasaki KVF 750 Brute Force EPS
2016 Kawasaki KVF 750 Brute Force
2016 Kawasaki KVF 750 Brute Force EPS
2015 Kawasaki KVF 750 Brute Force
2015 Kawasaki KVF 750 Brute Force EPS
2014 Kawasaki KVF 750 Brute Force
2014 Kawasaki KVF 750 Brute Force EPS
2013 Kawasaki KVF 750 Brute Force
2013 Kawasaki KVF 750 Brute Force EPS
2012 Kawasaki KVF 750 Brute Force
2012 Kawasaki KVF 750 Brute Force EPS



OEM 21003-0143 21003-0134 21003-0108 21003-0167

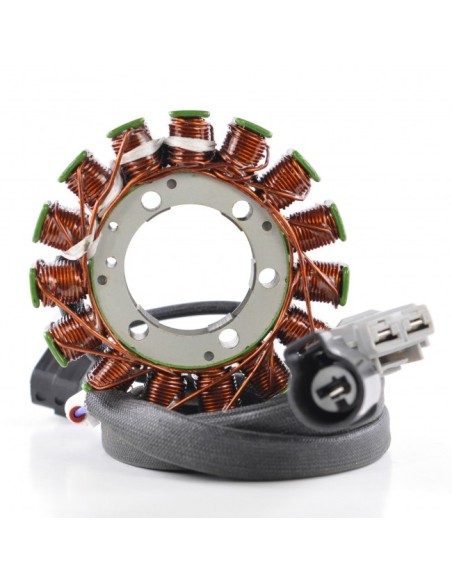

Dimensions Stator:
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 950 mm

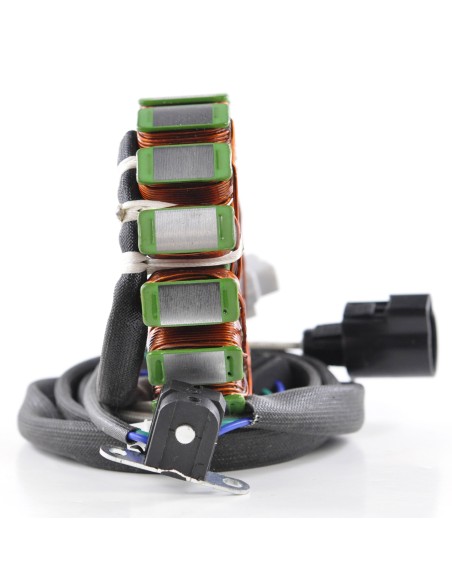

Length of pickup coil's wire to grommet : 70 mm

Other specifications :
Number of wires : 5

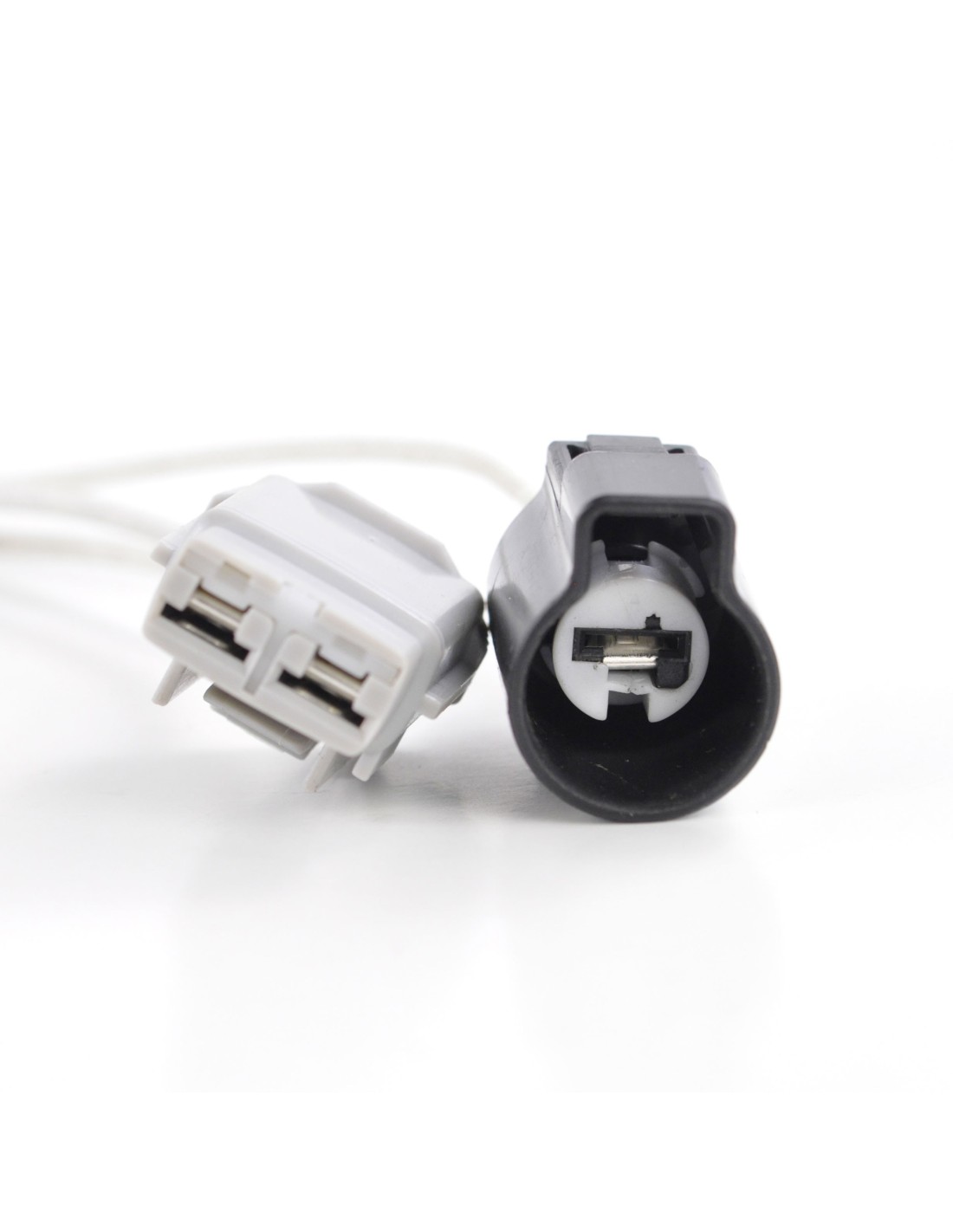

Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : Green to Blue = 500 ohms +/-20%

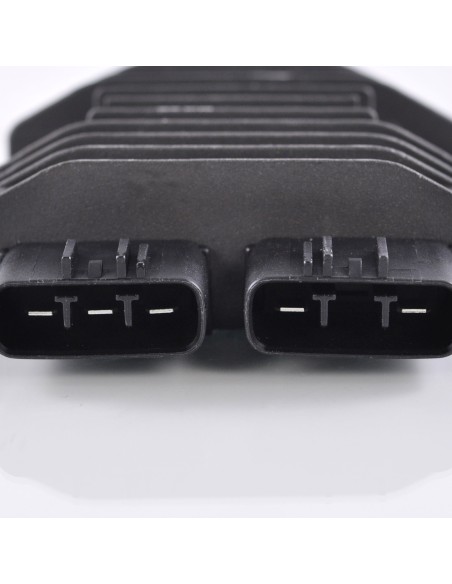

Regulator
Dimensions :
Width : 95 mm
Length : 110 mm
Height: 30 mm
Fixation holes center to center :78 mm

Other specifications :
Number of plugs : 2
Number of pins : 5
