Stator Kawasaki KVF750 Brute Force KRT750 Teryx 4 OEM 21003-0143 21003-0134 21003-0108 21003-0167
CARMS010-101498
5-7 Days
€298.80
Tax included
OEM 21003-0143 21003-0134 21003-0108 21003-0167

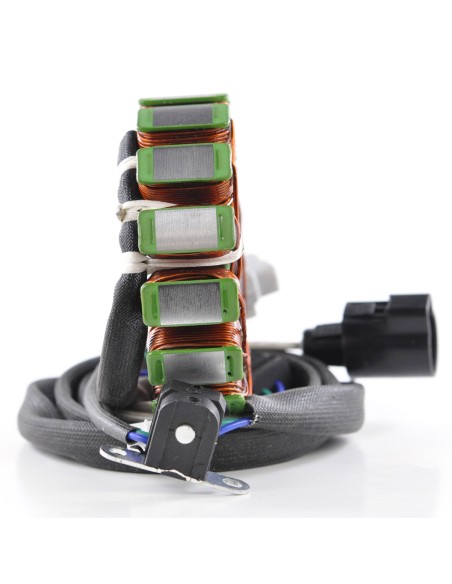

- Stator
- 2017 Kawasaki KVF 750 Brute Force
2017 Kawasaki KVF 750 Brute Force EPS
2016 Kawasaki KVF 750 Brute Force
2016 Kawasaki KVF 750 Brute Force EPS
2015 Kawasaki KVF 750 Brute Force
2015 Kawasaki KVF 750 Brute Force EPS
2014 Kawasaki KVF 750 Brute Force
2014 Kawasaki KVF 750 Brute Force EPS
2013 Kawasaki KVF 750 Brute Force
2013 Kawasaki KVF 750 Brute Force EPS
2012 Kawasaki KVF 750 Brute Force
2012 Kawasaki KVF 750 Brute Force EPS
2013 Kawasaki KRT 750 Teryx 4
2012 Kawasaki KRT 750 Teryx 4
OEM 21003-0143 21003-0134 21003-0108 21003-0167
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 70 mm
Other specifications :
Number of wires : 5

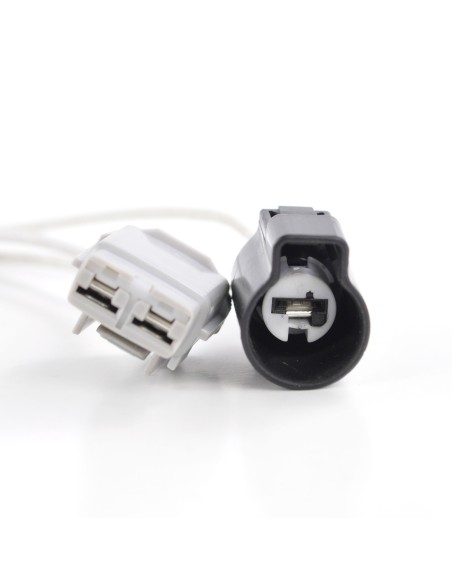

Number of plugs : 3
Number of pins : 5
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : Green to Blue = 500 ohms +/-20%
