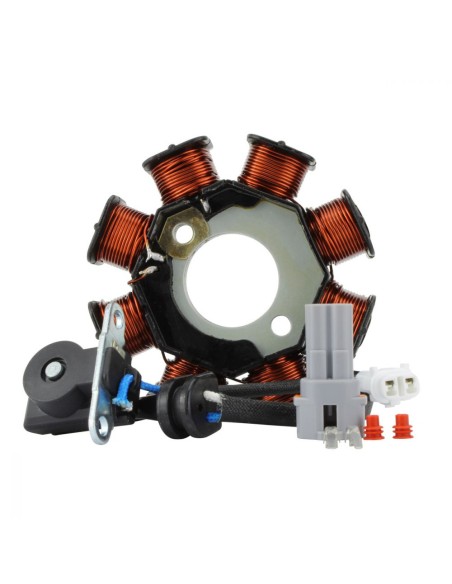

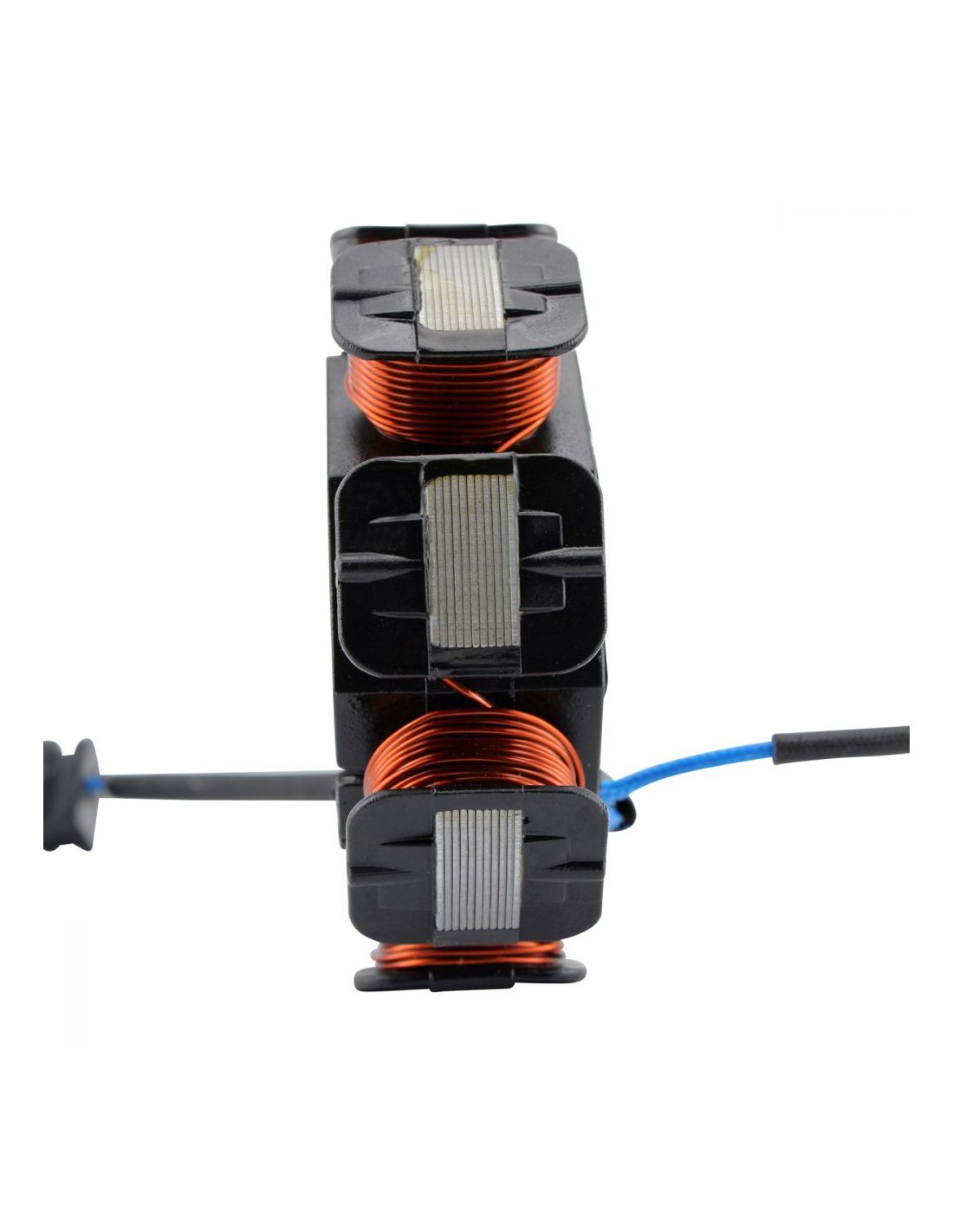

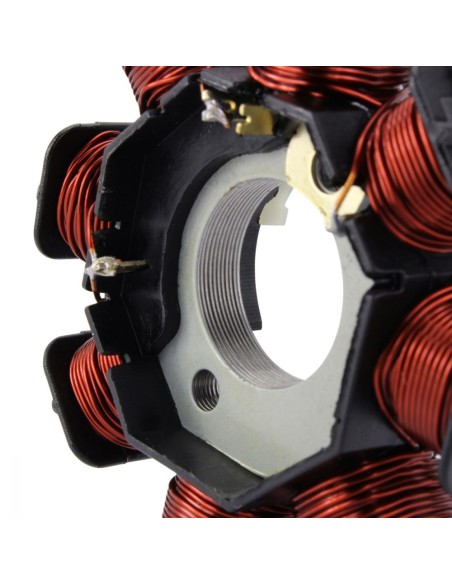

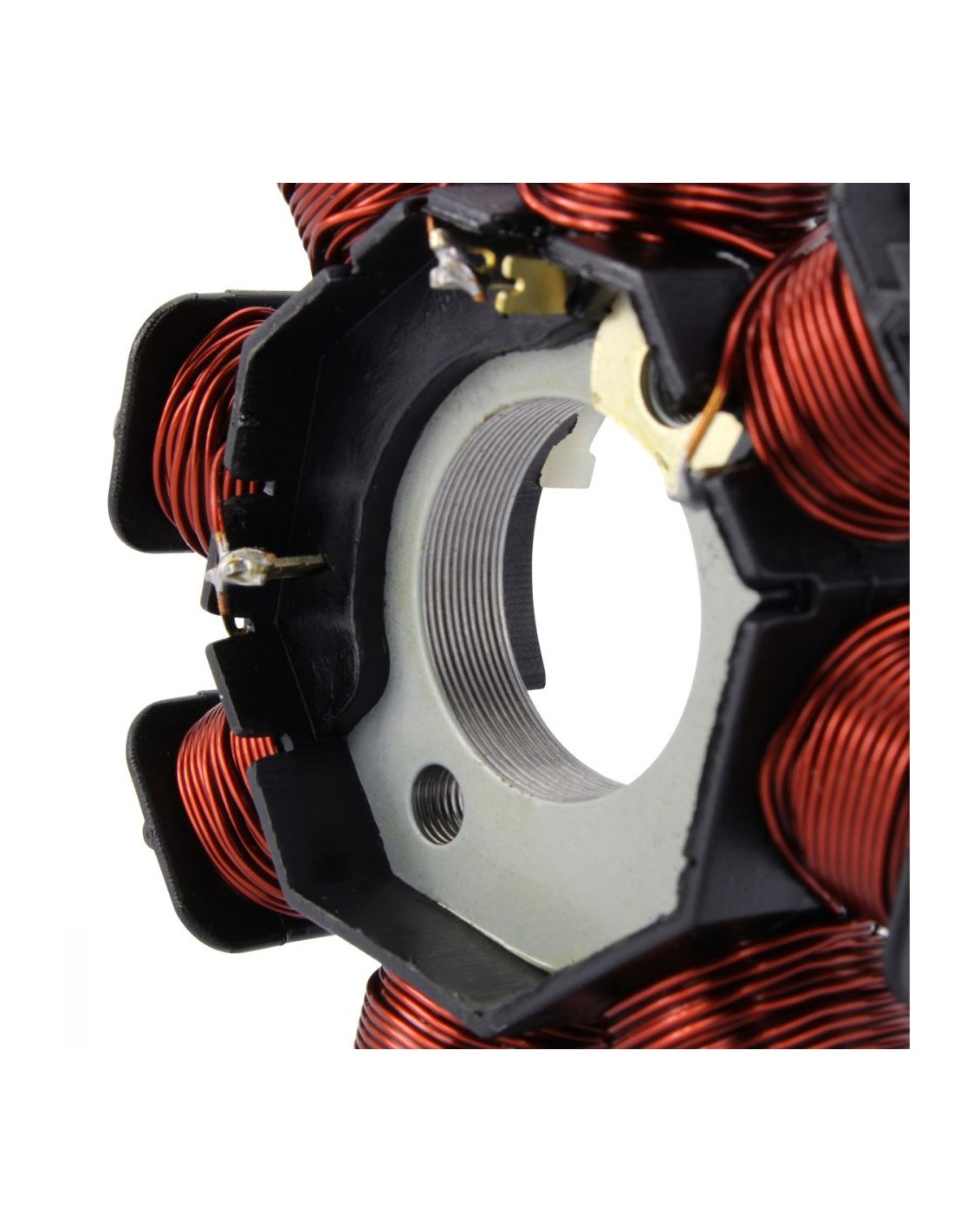

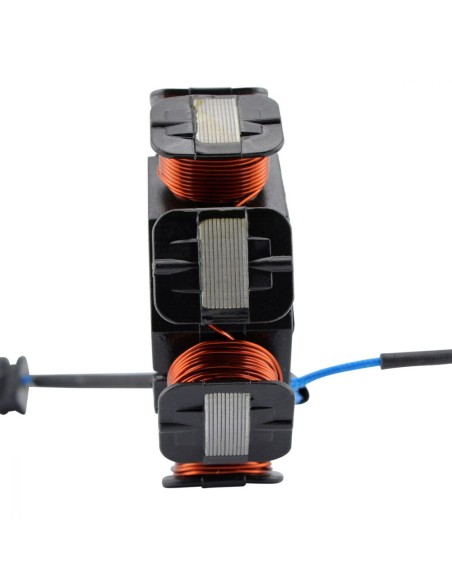

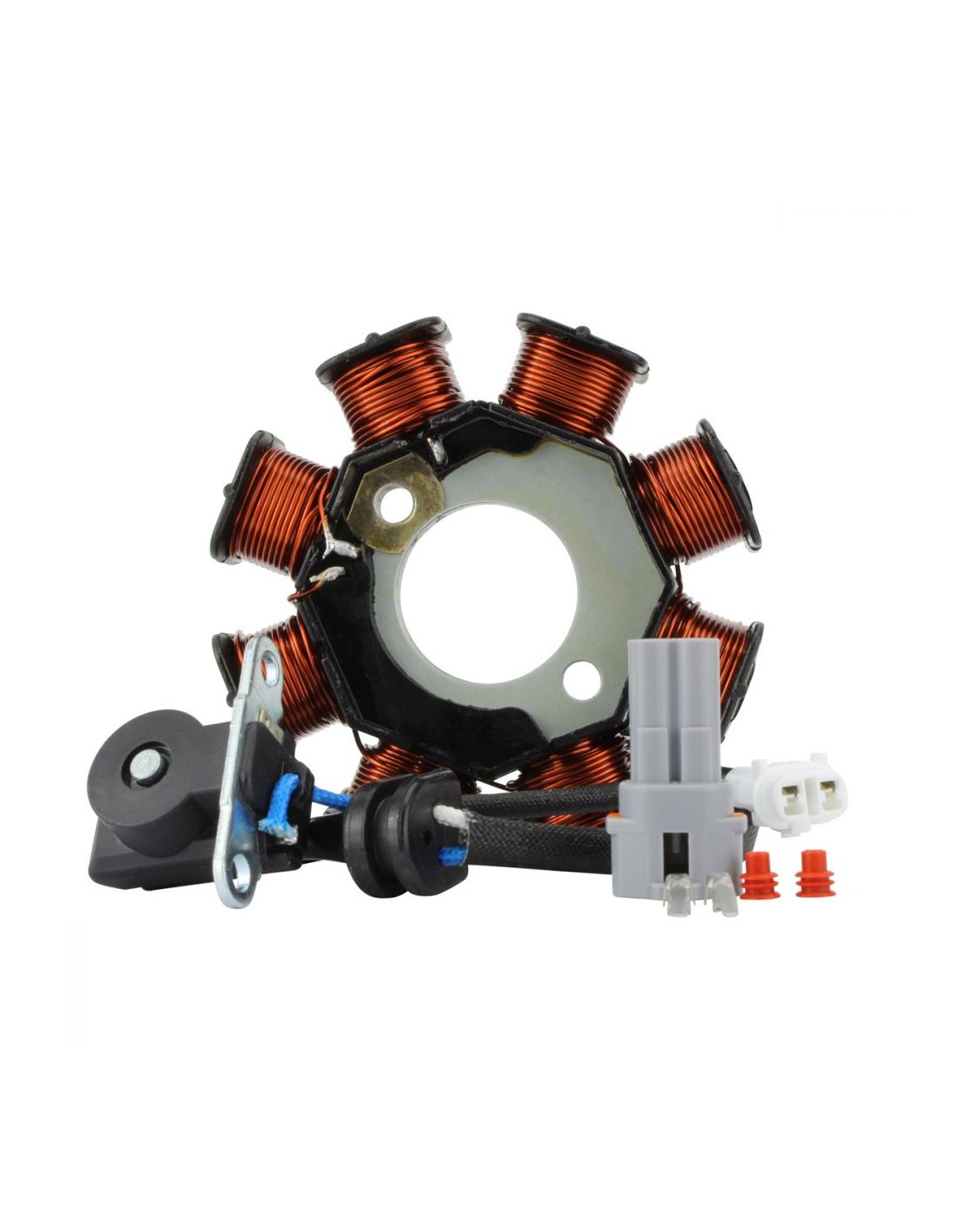

Stator
2010-2024 Kawasaki KLX 110
OEM 21003-0097
Dimensions :
Interior diameter : 29 mm
Exterior diameter : 88 mm
Thickness : 10 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 150 mm

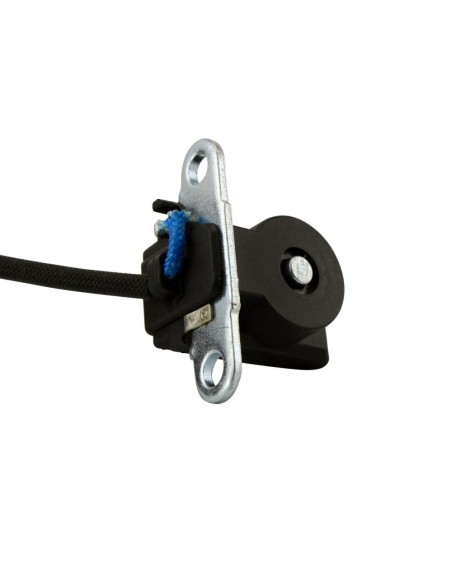

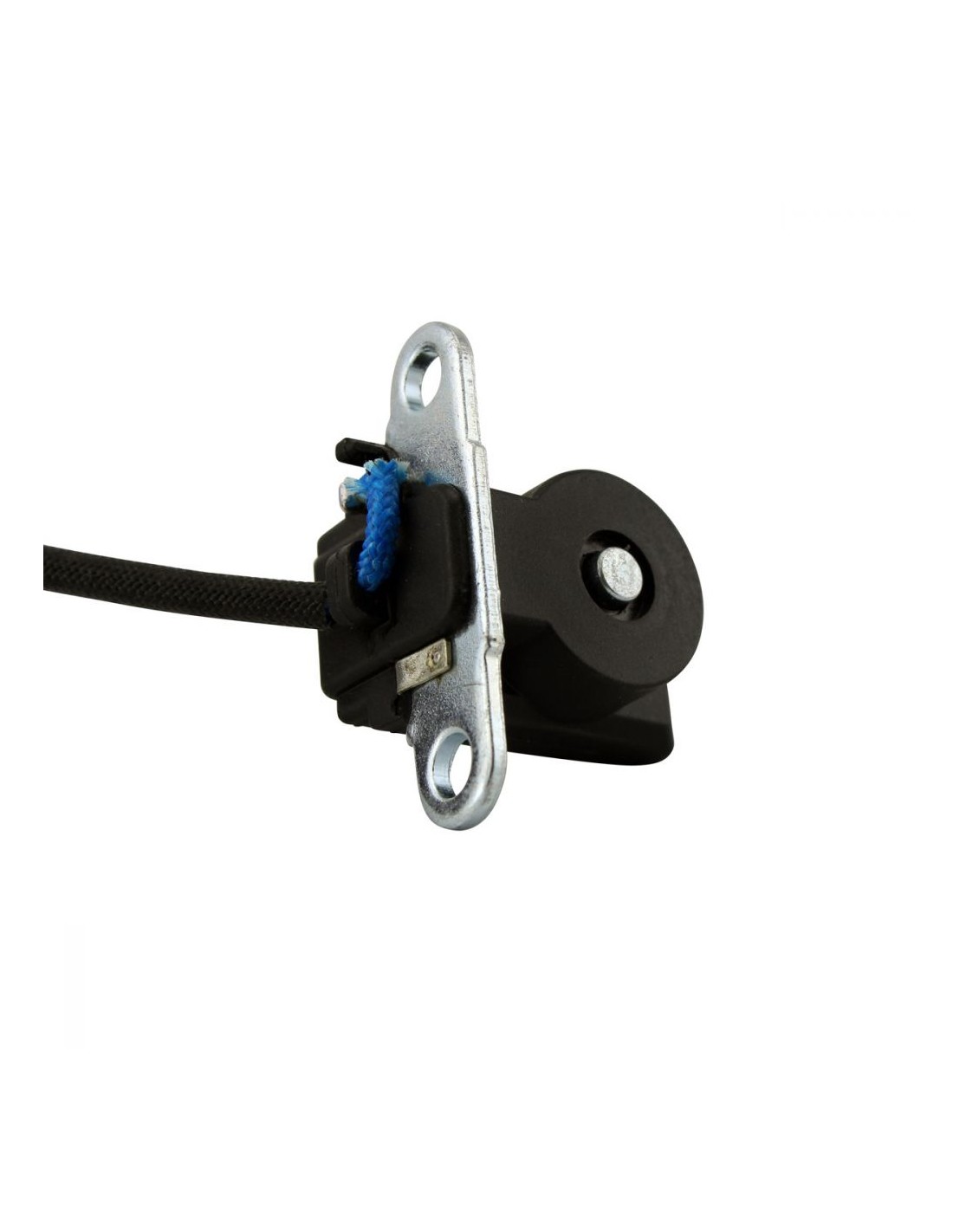

Length of pickup coil's wire to grommet : 120 mm
Other specifications :
Number of wires : 2
Number of plugs : 1
Number of holes : 2
Number of poles : 8
Alternator : White to Ground = 1.2 ohms +-20%
Pickup : Blue/yellow to Ground = 118 ohms +-20%
