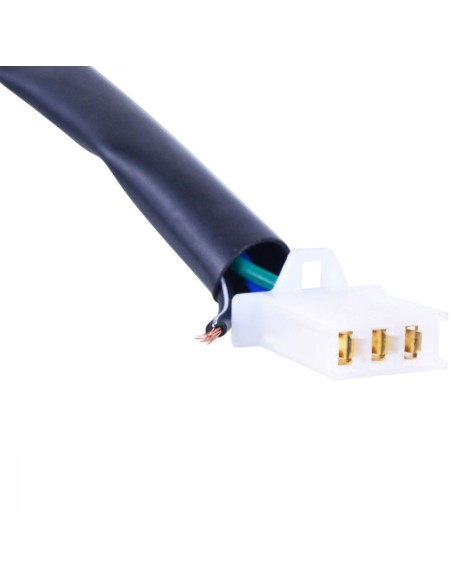

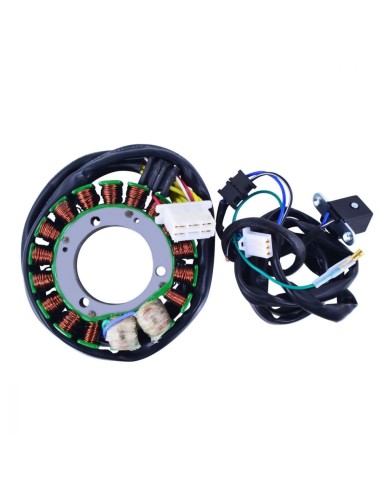

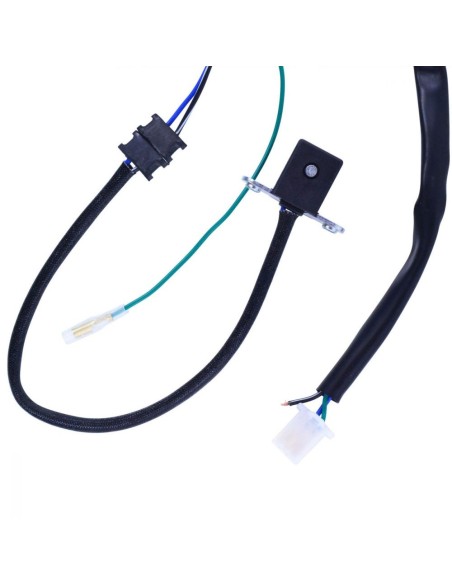

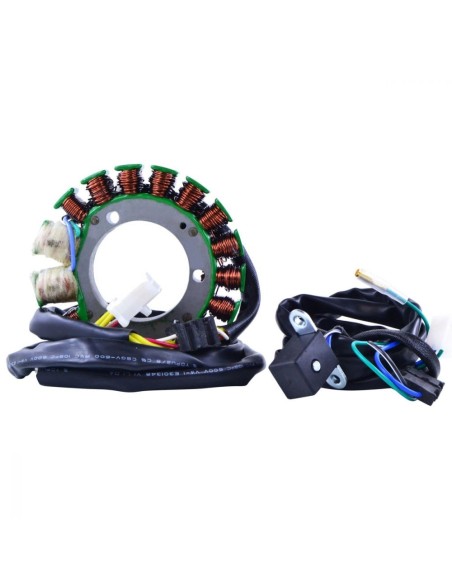

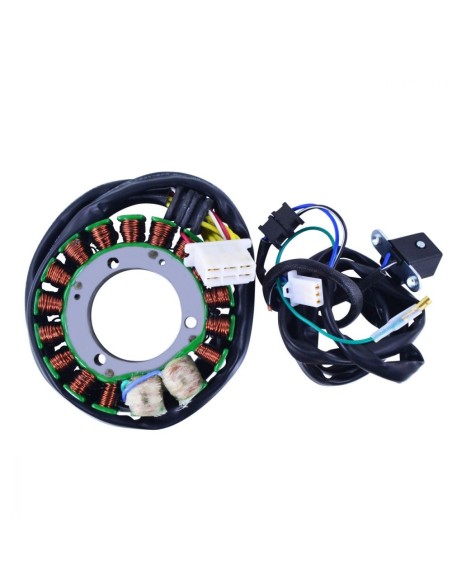

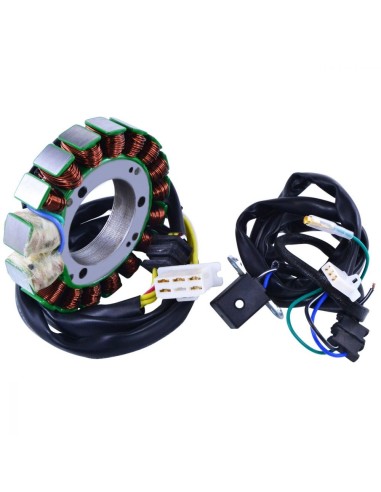

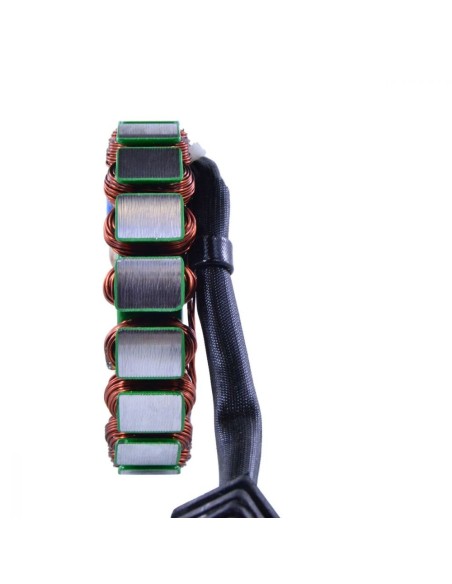

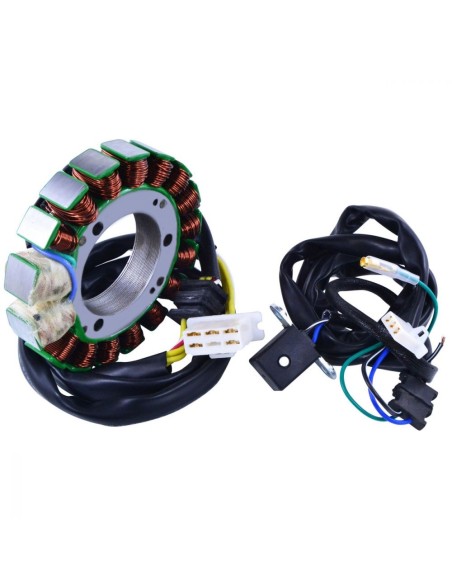

Stator Kawasaki KL 650 Tengai KLR650 OEM 21003-1170

CARM01521

New product

OEM 21003-1170

More details

2 Items

7-8 Days

189,00 € tax incl.

More info

Stator Resistant to 200 °C

2007 Kawasaki KLR 650
2006 Kawasaki KLR 650
2005 Kawasaki KLR 650
2004 Kawasaki KLR 650
2003 Kawasaki KLR 650
2002 Kawasaki KLR 650
2001 Kawasaki KLR 650
2000 Kawasaki KLR 650
1999 Kawasaki KLR 650
1998 Kawasaki KLR 650
1997 Kawasaki KLR 650
1996 Kawasaki KLR 650
1995 Kawasaki KLR 650
1994 Kawasaki KLR 650
1993 Kawasaki KLR 650
1992 Kawasaki KLR 650
1991 Kawasaki KLR 650
1991 Kawasaki KL 650 Tengai
1990 Kawasaki KLR 650
1990 Kawasaki KL 650 Tengai
1989 Kawasaki KLR 650
1988 Kawasaki KLR 650
1987 Kawasaki KLR 650

OEM 21003-1170

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 113 mm
Thickness : 36 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 800 mm

Other specifications :

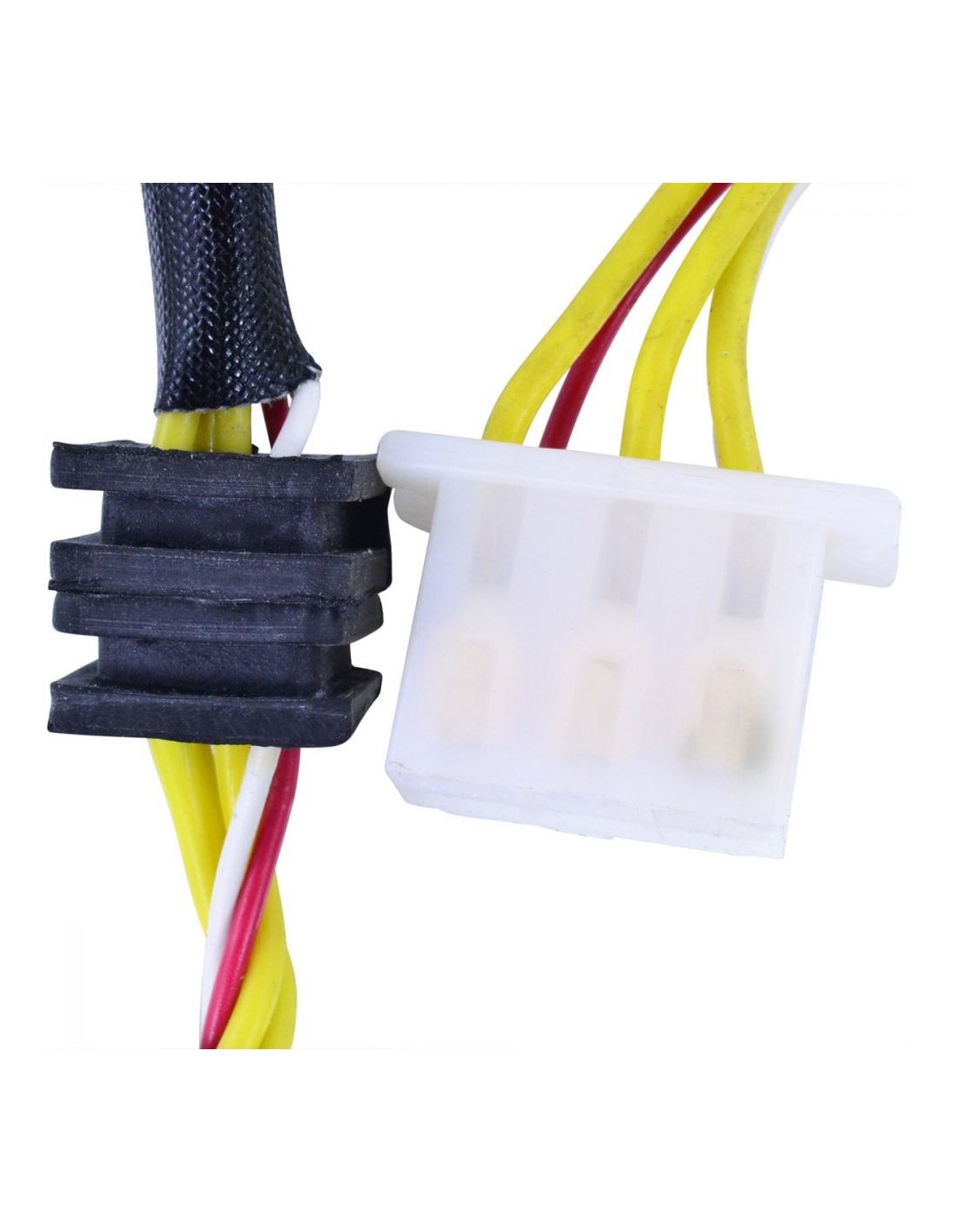

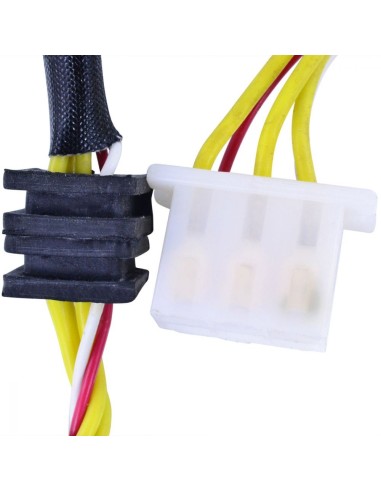

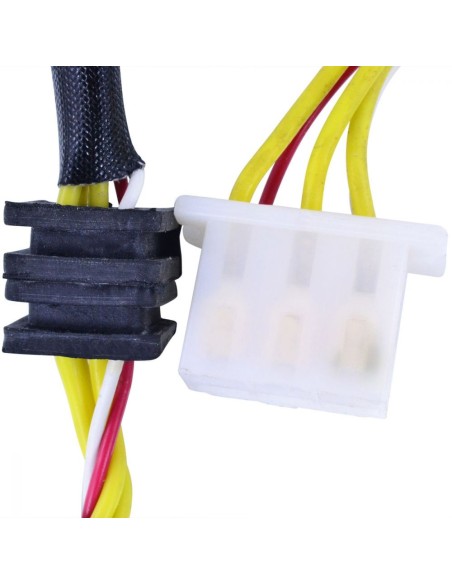

Number of wires : 5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.8 ohms +/-20%
Source : Red to White = 140 ohms +/-20%
