2018 Kawasaki KLR 650
2017 Kawasaki KLR 650
2016 Kawasaki KLR 650
2015 Kawasaki KLR 650
2014 Kawasaki KLR 650
2013 Kawasaki KLR 650
2012 Kawasaki KLR 650
2011 Kawasaki KLR 650

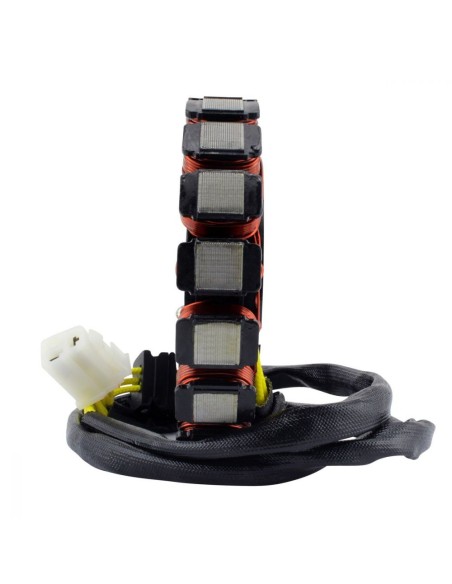

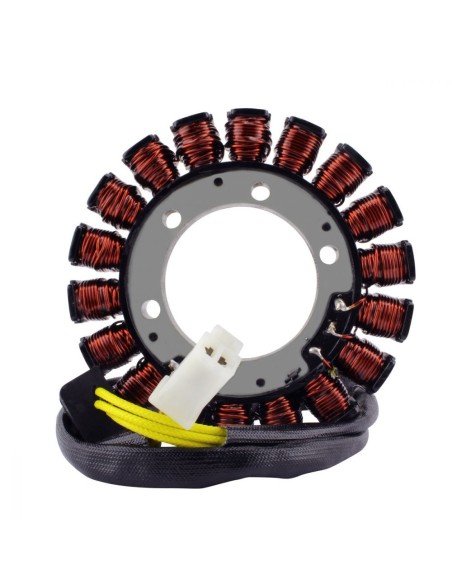

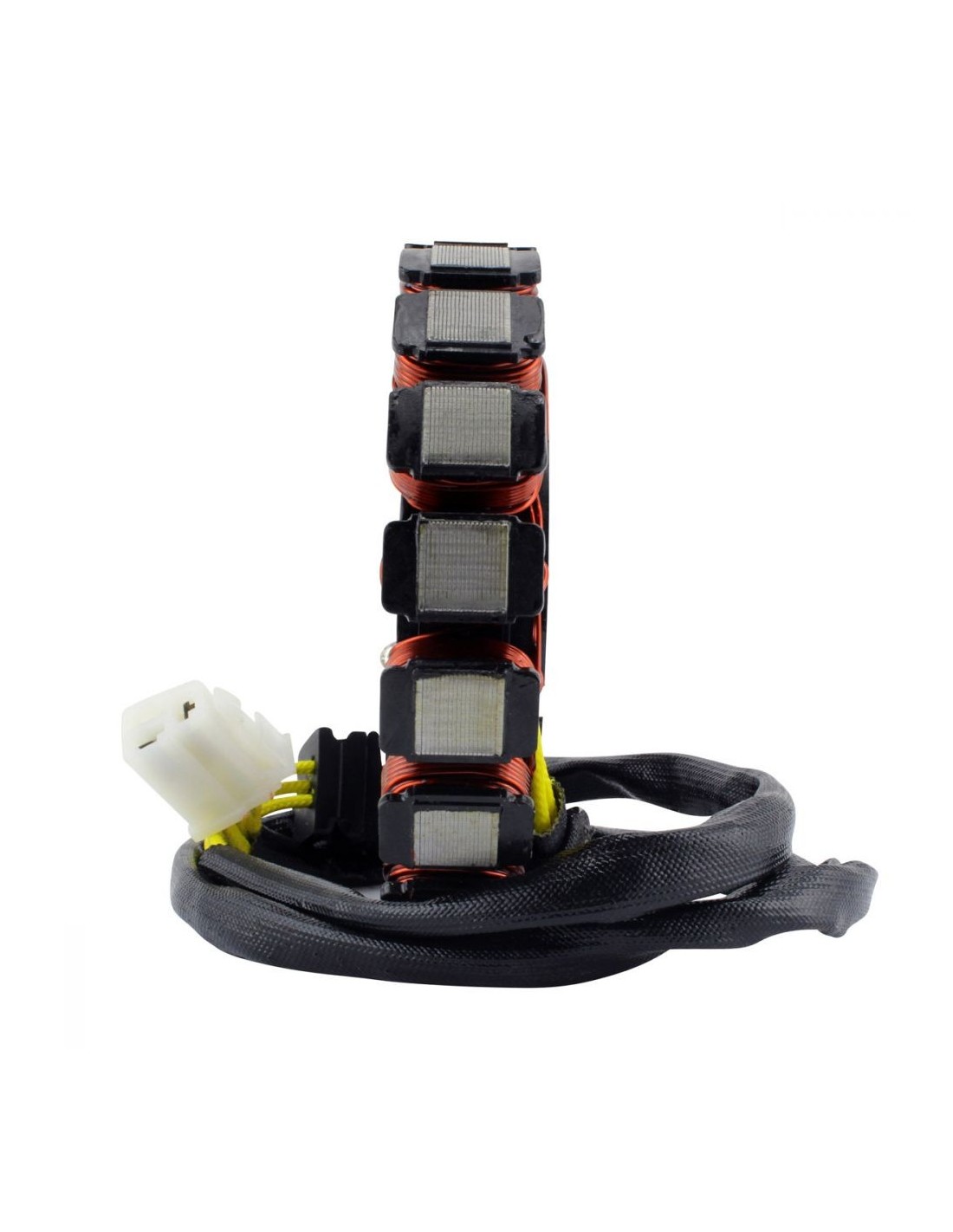

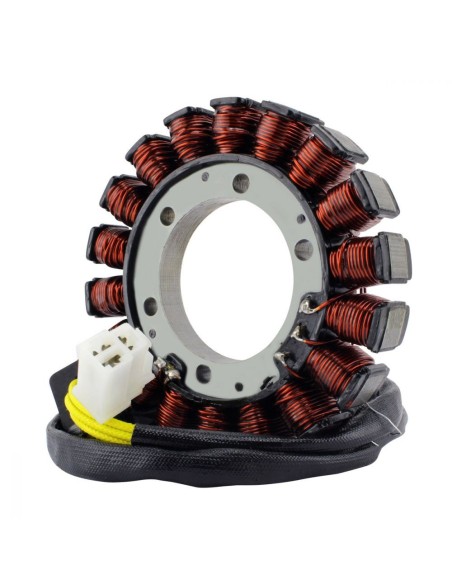

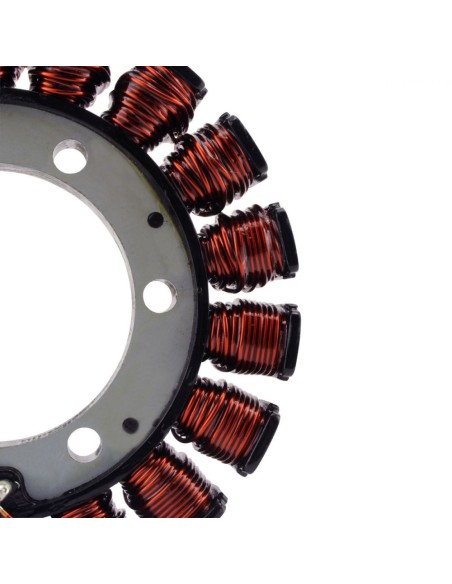

OEM 21003-0106
Dimensions:
Interior diameter: 54mm
Exterior diameter: 119mm
Thickness: 12mm
Length of wires stator to grommet: 90mm
Length of wires grommet to plug: 730mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: = 1 ohms +-20%
Alternator: to ground = O.L
