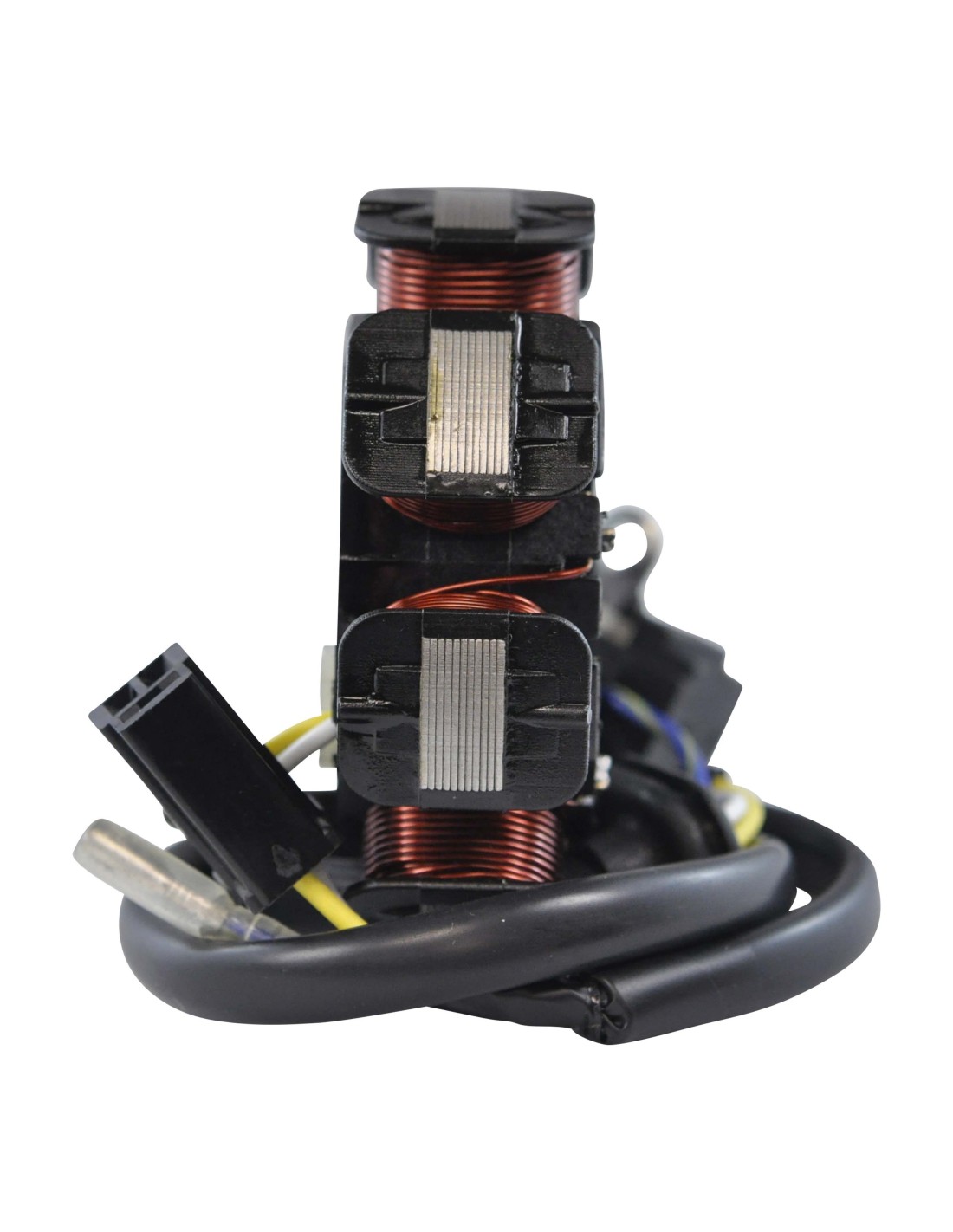

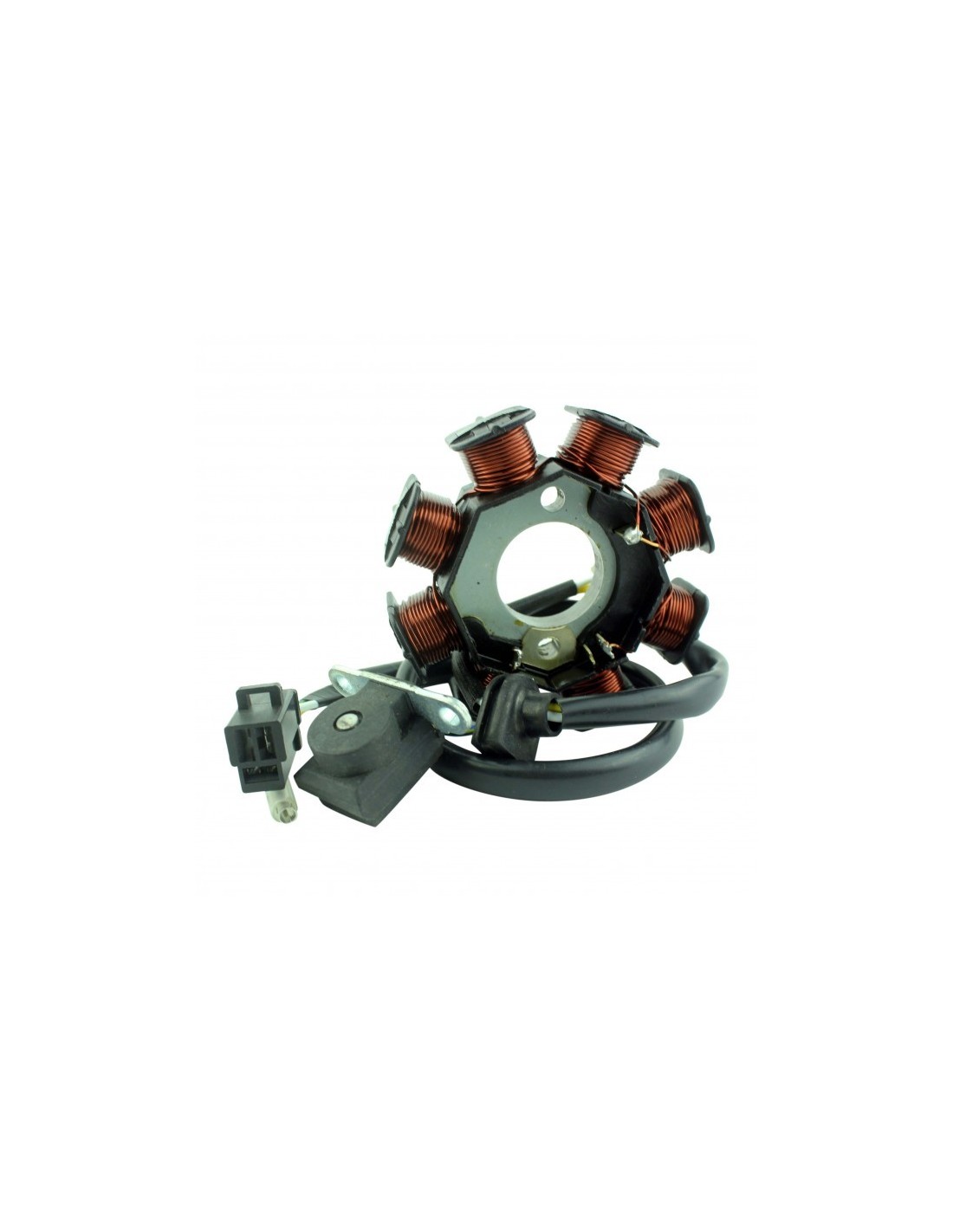

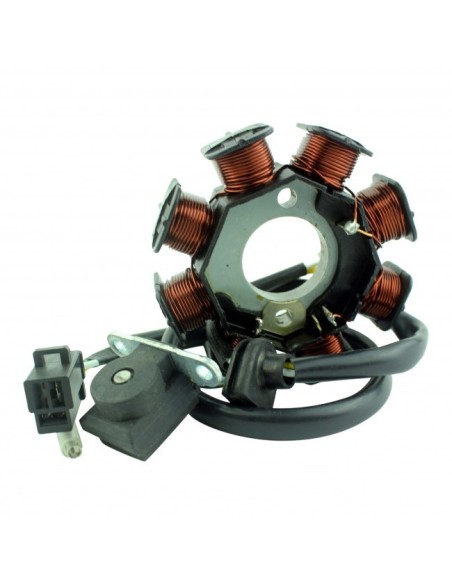

Stator Kawasaki KFX50 OEM 21003-Y003

Stator Kawasaki KFX50 2007-2024

OEM 21003-Y003

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

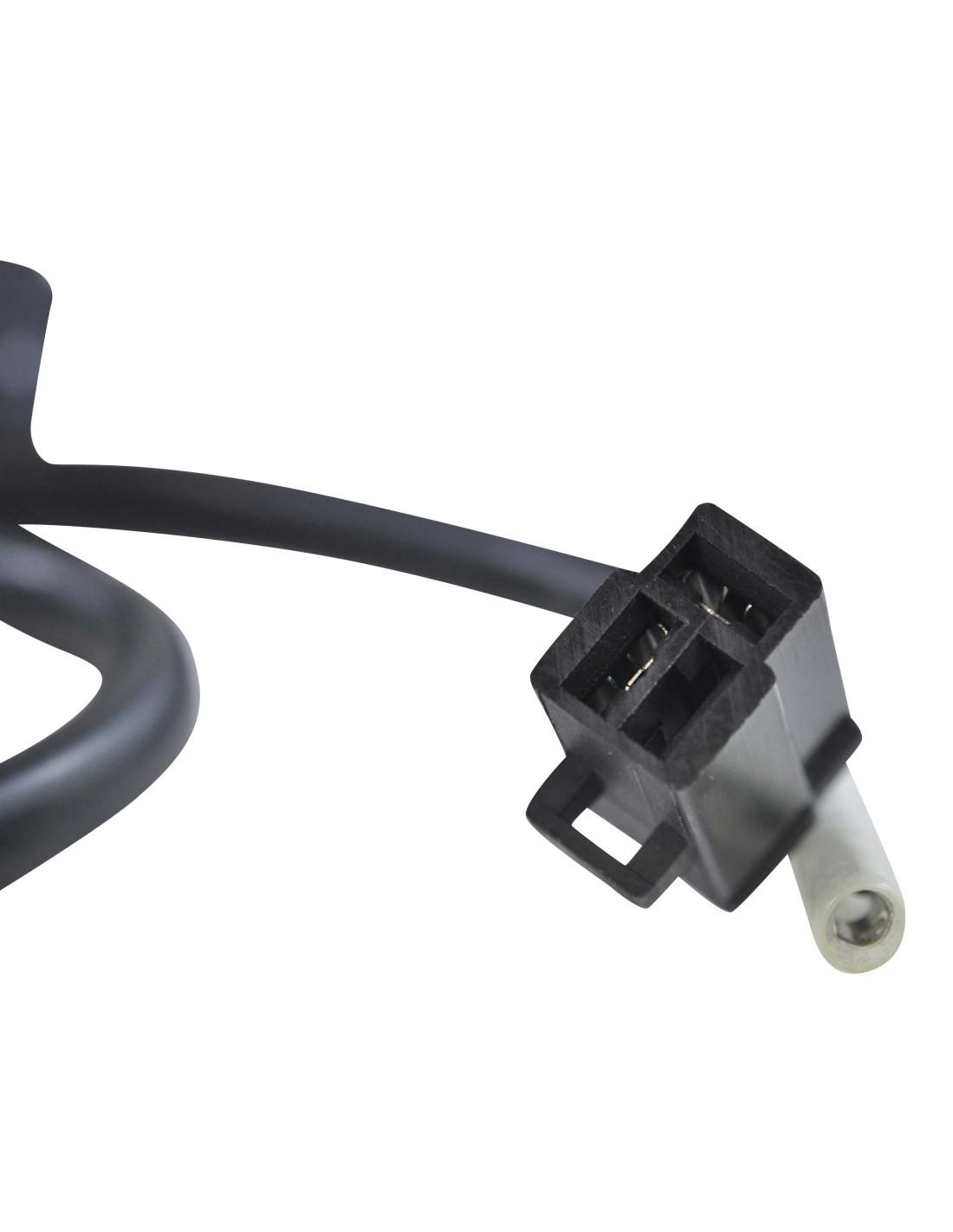

Connector included
Rubber grommet included
All products shipped are tested



Dimensions:
Interior diameter: 28mm
Exterior diameter: 88mm
Thickness: 8mm
Length of wires stator to grommet: 75mm
Length of wires grommet to plug: 400mm
Length of pickup coil's wire to grommet: 5mm

Other specifications:
Number of wires: 3
Number of plugs: 2
Number of pins: 3

Wire to wire resistance:
Alternator: = 0.4 ohms +/-20%
Pickup: = 120 ohms =+/-20%
