Rotor Stator Kit Suzuki GSXR 600 750 OEM 31401-01H00 31402-01H20 11483-01H00

2024 Suzuki GSXR 750

2024 Suzuki GSXR 600

2023 Suzuki GSXR 750

2023 Suzuki GSXR 600

2022 Suzuki GSXR 750

2022 Suzuki GSXR 600

2021 Suzuki GSXR 750

2021 Suzuki GSXR 600

2019 Suzuki GSXR 750

2019 Suzuki GSXR 600

2018 Suzuki GSXR 750

2018 Suzuki GSXR 600

2017 Suzuki GSXR 750

2017 Suzuki GSXR 600

2016 Suzuki GSXR 750

2016 Suzuki GSXR 600

2015 Suzuki GSXR 750

2015 Suzuki GSXR 600

2014 Suzuki GSXR 750

2014 Suzuki GSXR 600

2013 Suzuki GSXR 750

2013 Suzuki GSXR 600

2009 Suzuki GSXR 750

2009 Suzuki GSXR 600

2008 Suzuki GSXR 750

2008 Suzuki GSXR 600

2007 Suzuki GSXR 750

2007 Suzuki GSXR 600

2006 Suzuki GSXR 750

2006 Suzuki GSXR 600

OEM 31402-01H00
31402-01H20
31402-01H10

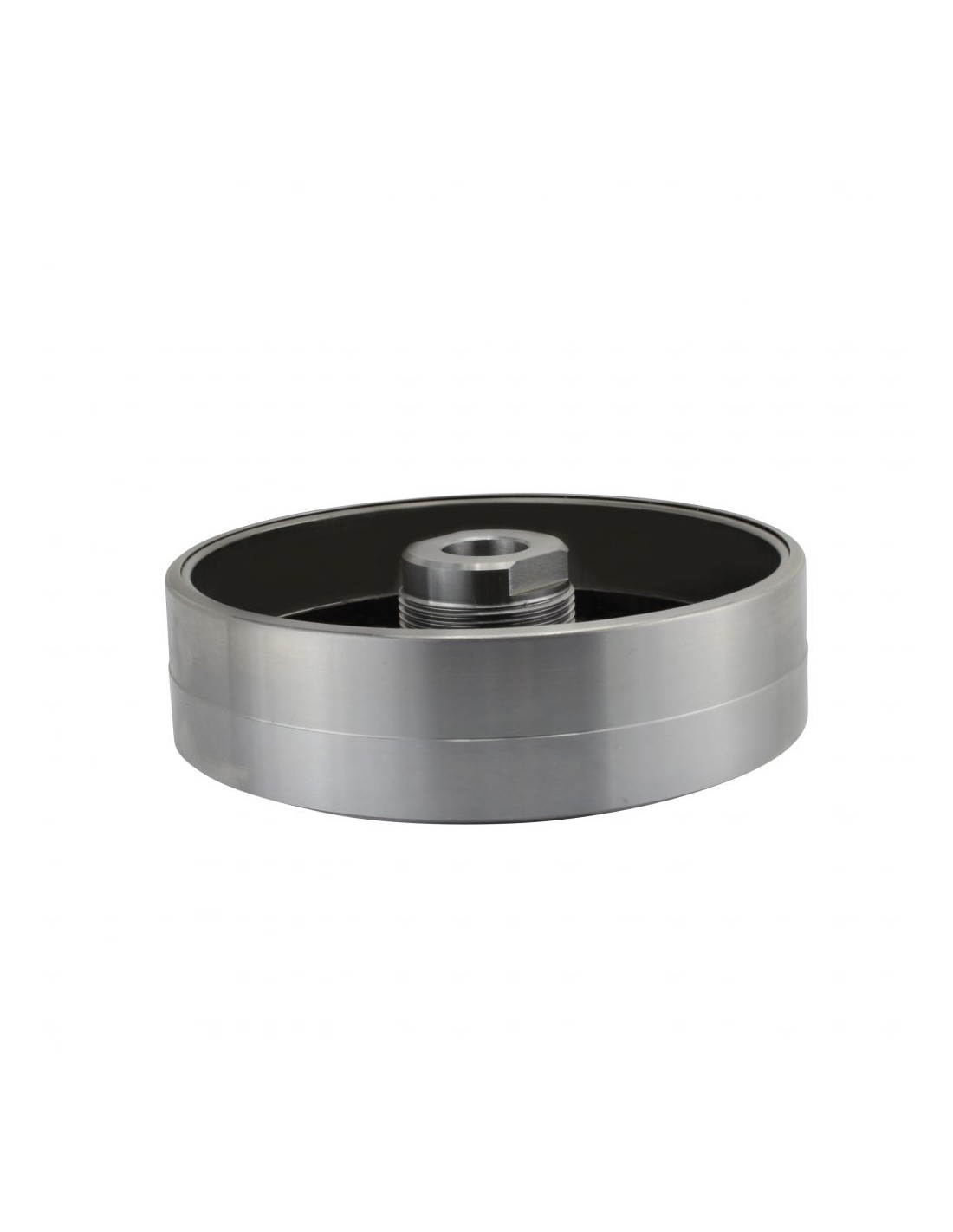

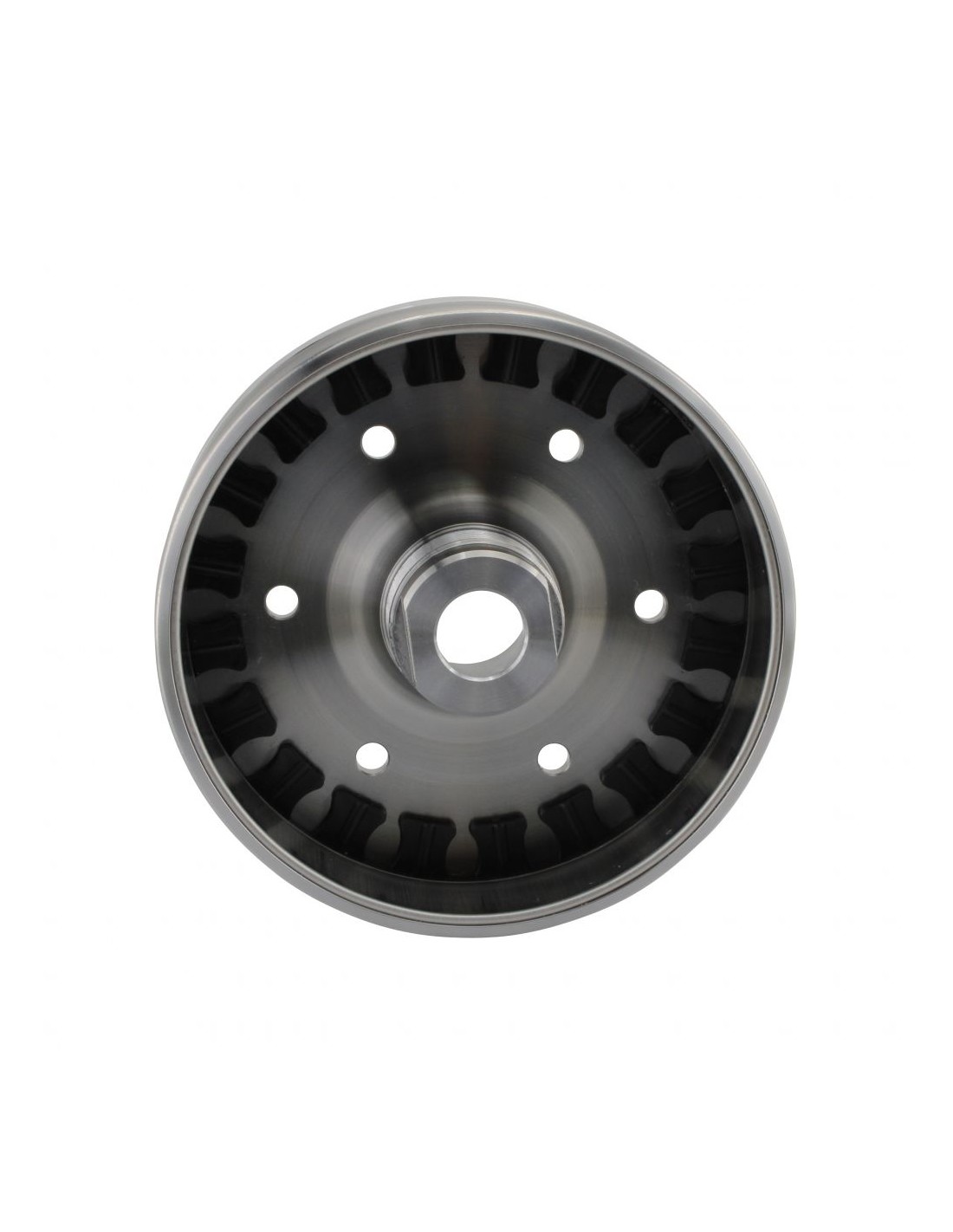

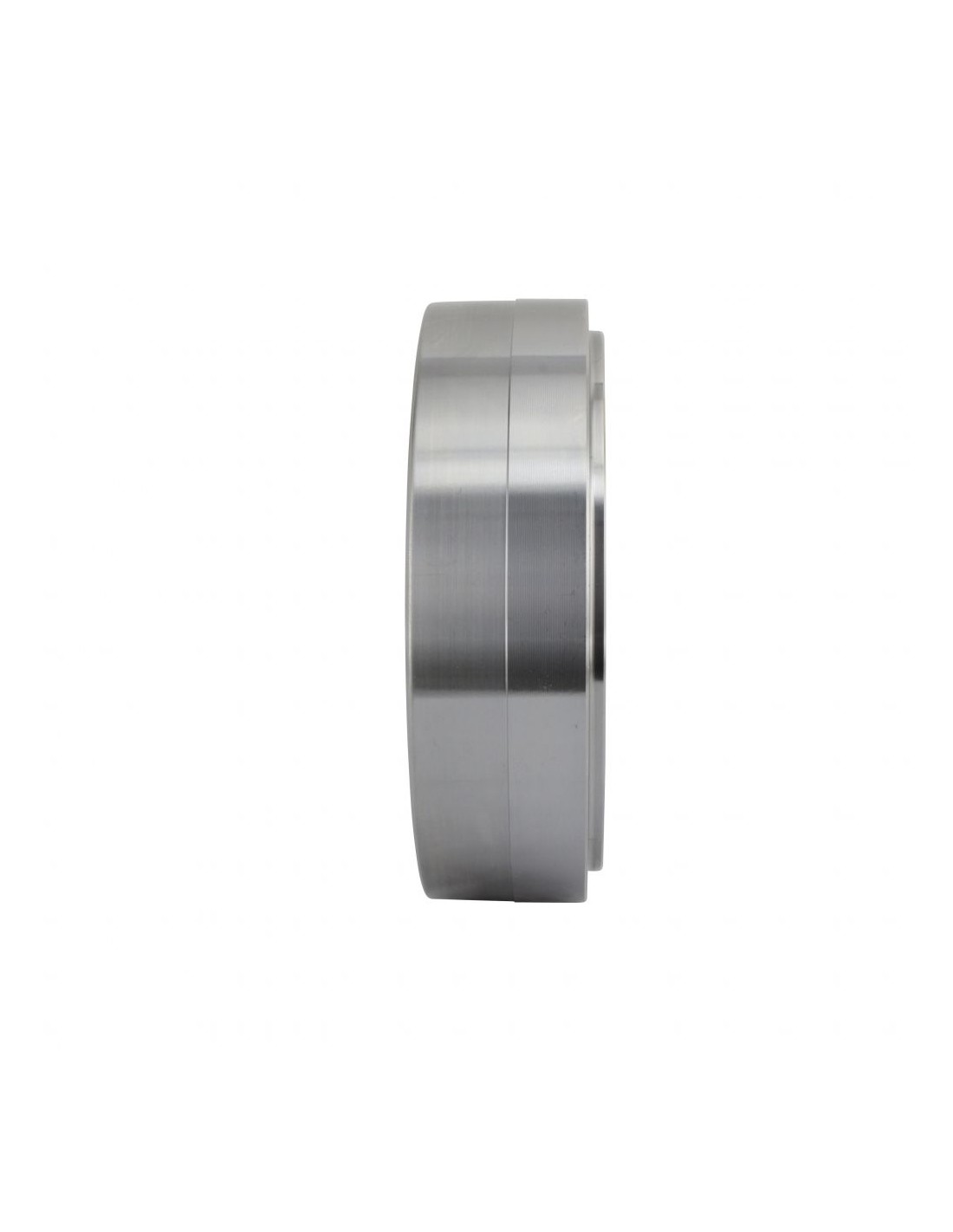

• Rotor Dimensions:
  Exterior Diameter: 118 mm
  Interior Diameter: 108 mm
  Interior Diameter Center Housing: 25 mm
  Exterior Diameter Center Housing: 33 mm
  Thickness (exterior): 34 mm
  Thickness (interior): 27 mm

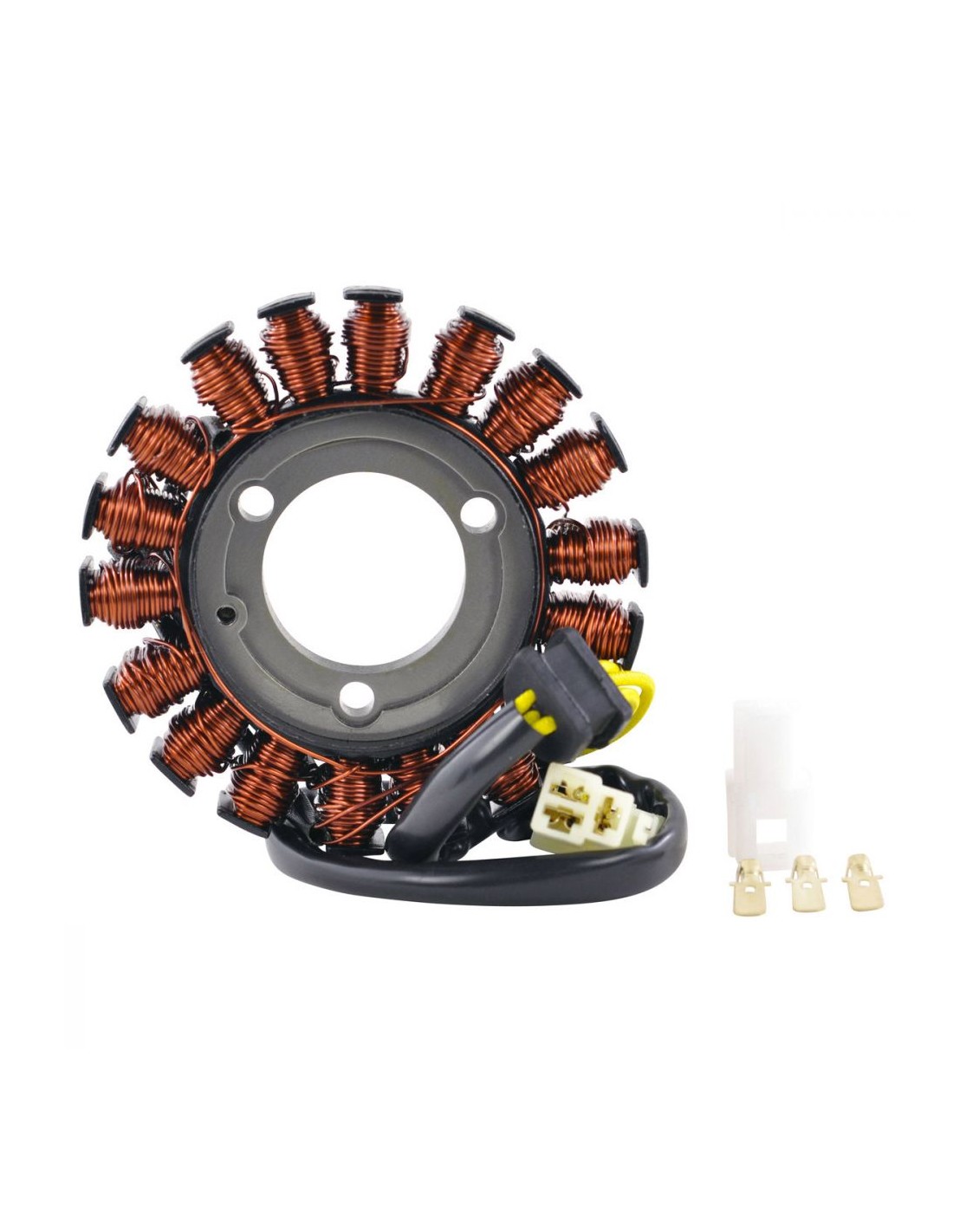

• Stator Dimensions

  Interior diameter: 38 mm

  Exterior diameter: 107 mm

  Thickness: 12 mm

  Length of wires stator to grommet : 160 mm

  Length of wires grommet to plug : 330 mm

  Other specifications:

  Number of wires:3

  Number of plugs: 1

  Number of pins: 3

  Wire to wire resistance:

  Alternator: Yellow to Yellow = 0.5 ohms +/-20%

• Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

  High grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

  Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
