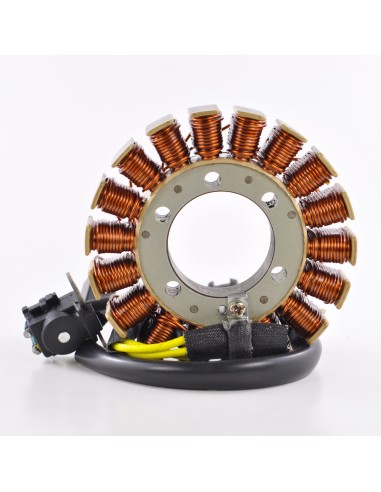

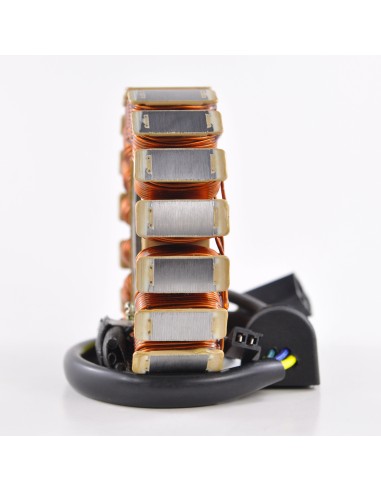

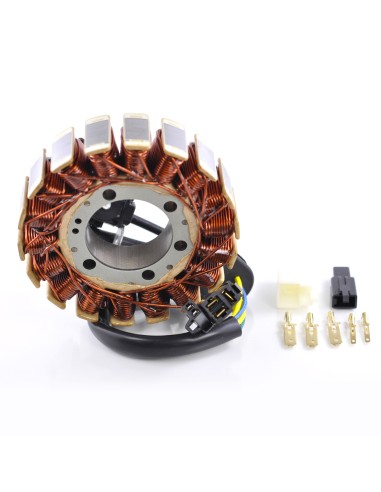

Stator Suzuki GSX1300 BKing OEM 32101-24F20 32101-24F30
CARM01597
10-12 Days
€182.40
Tax included
Resistant to 200 degrees Celsius
GSX1300 B-King(08-09)
Stator
Resistant to 200 degrees Celsius
2008 Suzuki Street Bike, GSX1300 B-King
2009 Suzuki Street Bike, GSX1300 B-King
OEM 32101-24F20
32101-24F30
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 55 mm
Other specifications :
Number of wires : 5

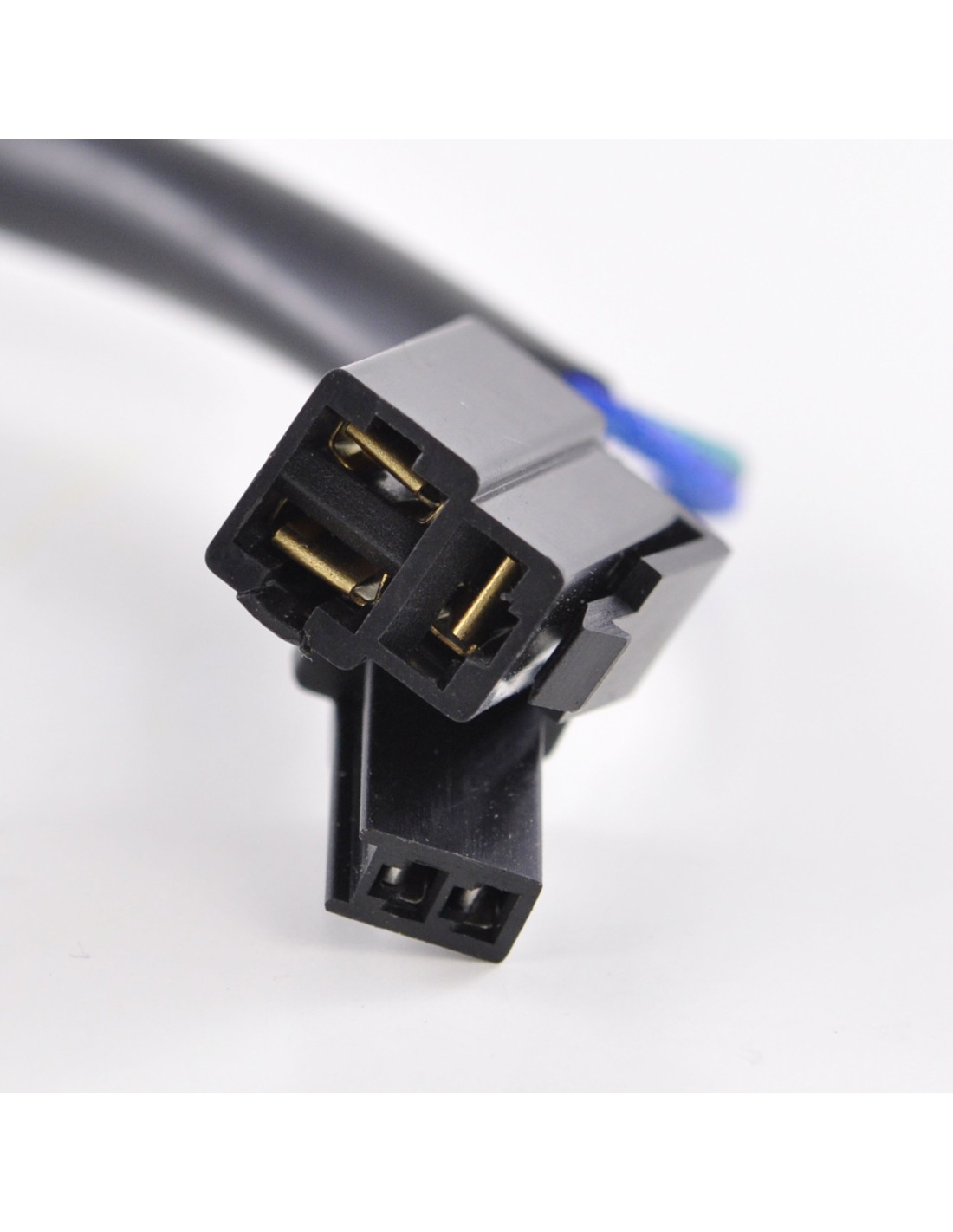

Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White to White = 0.5 ohms +-20%
Pickup : Blue to Green = 239 ohms +-20%
