Kit Stator CDI SkiDoo Skandic WT SWT SUV GTX MXZ Summit 550F OEM 420889365 420886602 410922749
CARMS900-106631
5-7 Days
€585.60
Tax included
OEM Stator 420889368 420889366 420889369 512060006 415098300 515175459
OEM CDI 512059626 512060040 512059945 512059628
2011 Ski-doo Skandic 550 WT Carb F/C
2010 Ski-doo Skandic 550 SUV Carb F/C
2010 Ski-doo Skandic 550 WT Carb F/C
2009 Ski-doo GSX 550 Carb F/C
2009 Ski-doo MX ZX 550 Electric Start Carb F/C
2009 Ski-doo Skandic 550 SUV Carb F/C
2009 Ski-doo Skandic 550 WT Carb F/C
2008 Ski-doo GSX 550 Carb F/C
2008 Ski-doo MX ZX 550 Electric Start Carb F/C
2008 Ski-doo Skandic 550 SUV Carb F/C
2008 Ski-doo Skandic 550 SWT Carb F/C
2008 Ski-doo Skandic 550 WT Carb F/C
2008 Ski-doo Summit 550 Carb F/C
2007 Ski-doo GSX 550 Carb F/C
2007 Ski-doo GTX 550 Carb F/C
2007 Ski-doo MX ZX 550 Electric Start Carb F/C
2007 Ski-doo Skandic 550 SUV Carb F/C
2007 Ski-doo Skandic 550 SWT Carb F/C
2007 Ski-doo Skandic 550 WT Carb F/C
2007 Ski-doo Summit 550 Carb F/C
2006 Ski-doo Expedition 550 Sport Electric Start Carb F/C
2006 Ski-doo GSX 550 Carb F/C
2006 Ski-doo GTX 550 Carb F/C
2006 Ski-doo MX Z 550 Carb F/C
2006 Ski-doo MX ZX 550 Carb F/C
2006 Ski-doo Skandic 550 SUV Carb F/C
2006 Ski-doo Skandic 550 SWT Carb F/C
2006 Ski-doo Skandic 550 WT Carb F/C
2006 Ski-doo Summit 550 Carb F/C
2005 Ski-doo Expedition 550 Electric Start Carb F/C
2005 Ski-doo GSX 550 Carb F/C
2005 Ski-doo GTX 550 Carb F/C
2005 Ski-doo MX Z 550 Carb F/C
2005 Ski-doo Skandic 550 SUV Carb F/C
2005 Ski-doo Skandic 550 SWT Carb F/C
2005 Ski-doo Skandic 550 WT Carb F/C
2005 Ski-doo Summit 550 Carb F/C
2004 Ski-doo Legend 550 Carb F/C
2004 Ski-doo MX Z 550 Carb F/C
2004 Ski-doo Skandic 550 Carb F/C
2004 Ski-doo Skandic 550 SUV Carb F/C
2004 Ski-doo Skandic 550 SWT Carb F/C
2004 Ski-doo Skandic 550 WT Carb F/C
2004 Ski-doo Summit 550 Carb F/C
2003 Ski-doo Grand Touring 550 Carb F/C
2003 Ski-doo MX Z 550 Carb F/C
2003 Ski-doo Summit 550 Carb F/C
2010 Ski-doo Skandic 550 SUV Carb F/C
2010 Ski-doo Skandic 550 WT Carb F/C
2009 Ski-doo GSX 550 Carb F/C
2009 Ski-doo MX ZX 550 Electric Start Carb F/C
2009 Ski-doo Skandic 550 SUV Carb F/C
2009 Ski-doo Skandic 550 WT Carb F/C
2008 Ski-doo GSX 550 Carb F/C
2008 Ski-doo MX ZX 550 Electric Start Carb F/C
2008 Ski-doo Skandic 550 SUV Carb F/C
2008 Ski-doo Skandic 550 SWT Carb F/C
2008 Ski-doo Skandic 550 WT Carb F/C
2008 Ski-doo Summit 550 Carb F/C
2007 Ski-doo GSX 550 Carb F/C
2007 Ski-doo GTX 550 Carb F/C
2007 Ski-doo MX ZX 550 Electric Start Carb F/C
2007 Ski-doo Skandic 550 SUV Carb F/C
2007 Ski-doo Skandic 550 SWT Carb F/C
2007 Ski-doo Skandic 550 WT Carb F/C
2007 Ski-doo Summit 550 Carb F/C
2006 Ski-doo Expedition 550 Sport Electric Start Carb F/C
2006 Ski-doo GSX 550 Carb F/C
2006 Ski-doo GTX 550 Carb F/C
2006 Ski-doo MX Z 550 Carb F/C
2006 Ski-doo MX ZX 550 Carb F/C
2006 Ski-doo Skandic 550 SUV Carb F/C
2006 Ski-doo Skandic 550 SWT Carb F/C
2006 Ski-doo Skandic 550 WT Carb F/C
2006 Ski-doo Summit 550 Carb F/C
2005 Ski-doo Expedition 550 Electric Start Carb F/C
2005 Ski-doo GSX 550 Carb F/C
2005 Ski-doo GTX 550 Carb F/C
2005 Ski-doo MX Z 550 Carb F/C
2005 Ski-doo Skandic 550 SUV Carb F/C
2005 Ski-doo Skandic 550 SWT Carb F/C
2005 Ski-doo Skandic 550 WT Carb F/C
2005 Ski-doo Summit 550 Carb F/C
2004 Ski-doo Legend 550 Carb F/C
2004 Ski-doo MX Z 550 Carb F/C
2004 Ski-doo Skandic 550 Carb F/C
2004 Ski-doo Skandic 550 SUV Carb F/C
2004 Ski-doo Skandic 550 SWT Carb F/C
2004 Ski-doo Skandic 550 WT Carb F/C
2004 Ski-doo Summit 550 Carb F/C
2003 Ski-doo Grand Touring 550 Carb F/C
2003 Ski-doo MX Z 550 Carb F/C
2003 Ski-doo Summit 550 Carb F/C
OEM Stator 420889368 420889366 420889369 512060006 415098300 515175459
OEM CDI 512059626 512060040 512059945 512059628
OEM CDI 512059626 512060040 512059945 512059628

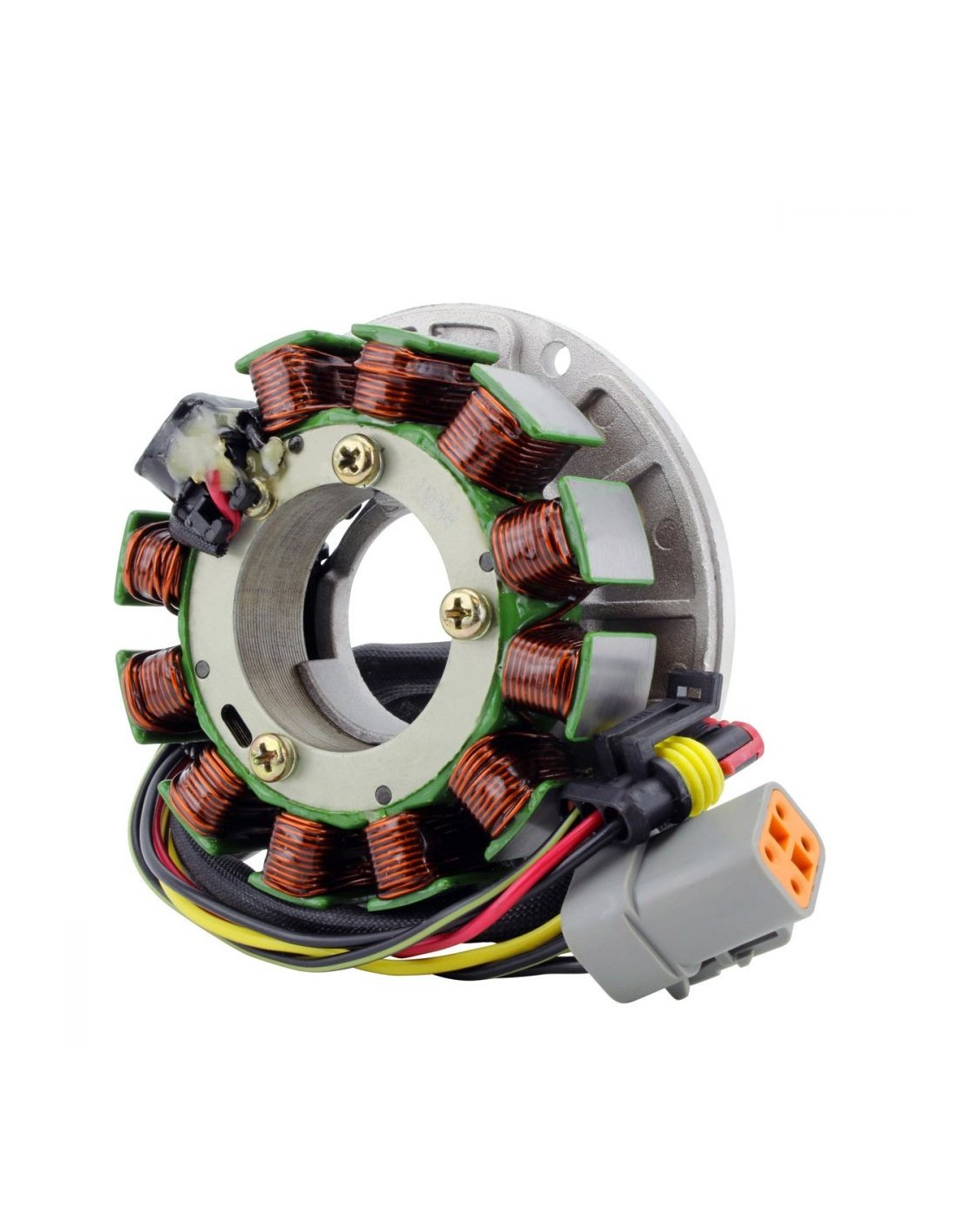

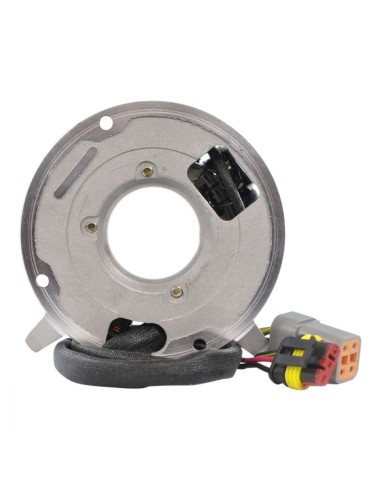

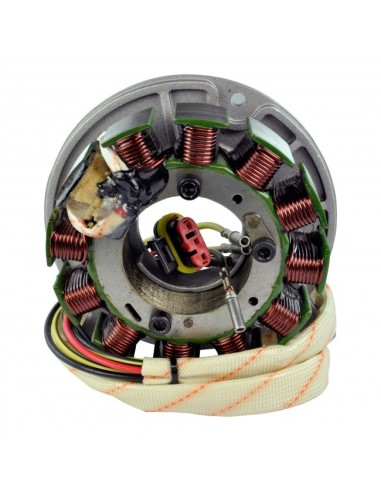

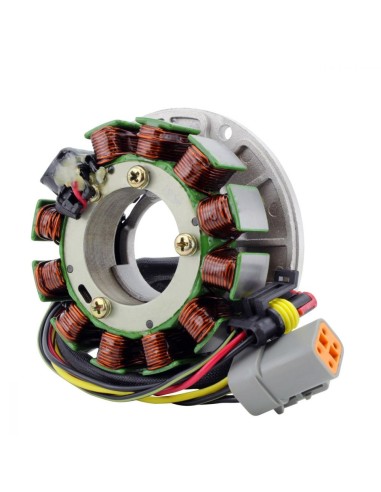

Stator Dimensions:
Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to plug : 500 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black = 8 ohms +/-20%
Alternator : Between each Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black = 8 ohms +/-20%

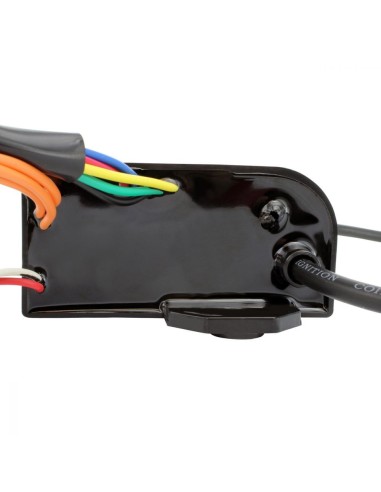

CDI Box Dimensions:
Height: 49 mm
Length: 95 mm
Width: 88 mm
Fixation holes center to center: 72 mm
Other specifications:
Number of plugs: 4
Number of pins: 7
Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.
