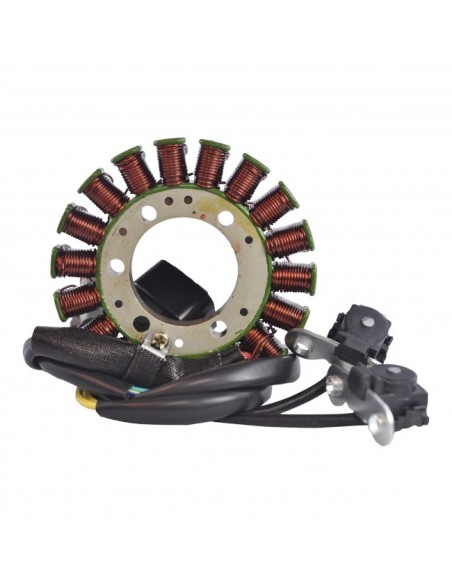

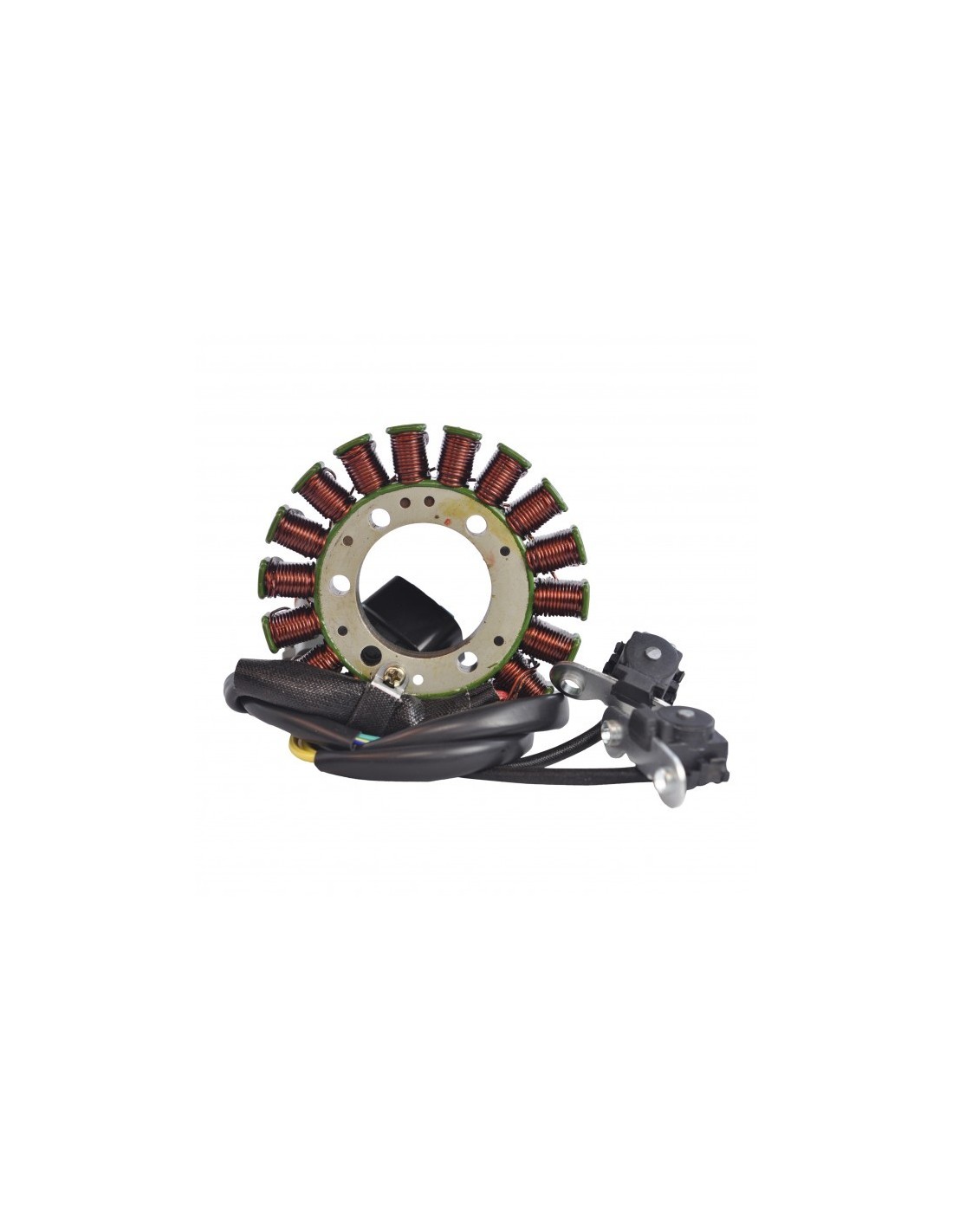

Stator SkiDoo Grand Touring Sport Renegade GSX MXZ Summit OEM 420889904 420889907 420889909 420889908

Stator

Resistant to 200 degrees Celsius

Ski-doo
Grand Touring Sport 600 Carb L/C
2010 Ski-doo Grand Touring Sport 600 Carb L/C
GSX 500 SS Sport Carb L/C
2008 Ski-doo GSX 500 SS Sport Carb L/C
GSX 600 Sport Carb L/C
2010 Ski-doo GSX 600 Sport Carb L/C
GSX 800 R Limited Carb L/C
Power Tek
2008 Ski-doo GSX 800 R Limited Carb L/C Power Tek
MX Z 500 SS TNT Carb L/C
2008 Ski-doo MX Z 500 SS TNT Carb L/C
MX Z 500 SS Trail Carb L/C
2008 Ski-doo MX Z 500 SS Trail Carb L/C
MX Z 600 HO TNT EFI L/C
E-TEC REV-XP 120''
2010 Ski-doo MX Z 600 HO TNT EFI L/C E-TEC REV-XP 120''
MX Z 600 RS Carb L/C
2008 Ski-doo MX Z 600 RS Carb L/C
MX Z 600 Sport Carb L/C
REV-XP 120"
2010 Ski-doo MX Z 600 Sport Carb L/C REV-XP 120"
MX Z 800 R Adrenaline Carb L/C
2008 Ski-doo MX Z 800 R Adrenaline Carb L/C
Power Tek
2008 Ski-doo MX Z 800 R Adrenaline Carb L/C Power Tek
2009 Ski-doo MX Z 800 R Adrenaline Carb L/C Power Tek
2010 Ski-doo MX Z 800 R Adrenaline Carb L/C Power Tek
MX Z 800 R Renegade Carb L/C
Power Tek
2008 Ski-doo MX Z 800 R Renegade Carb L/C Power Tek
2008 Ski-doo MX Z 800 R Renegade Carb L/C
MX Z X-RS 800 R Carb L/C
Power Tek
2010 Ski-doo MX Z X-RS 800 R Carb L/C Power Tek
MX ZX 800 HO Renegade X Carb L/C
2008 Ski-doo MX ZX 800 HO Renegade X Carb L/C
MX ZX 800 R Carb L/C
Power Tek
2009 Ski-doo MX ZX 800 R Carb L/C Power Tek
2010 Ski-doo MX ZX 800 R Carb L/C Power Tek
MX ZX 800 R Renegade X Carb L/C
Power Tek
2008 Ski-doo MX ZX 800 R Renegade X Carb L/C Power Tek
2009 Ski-doo MX ZX 800 R Renegade X Carb L/C Power Tek
Renegade 800 R Adrenaline Carb L/C
Power Tek
2010 Ski-doo Renegade 800 R Adrenaline Carb L/C Power Tek
Renegade 800 R Backcountry Carb L/C
Power Tek
2010 Ski-doo Renegade 800 R Backcountry Carb L/C Power Tek
Renegade X 800 R Carb L/C
Power Tek
2010 Ski-doo Renegade X 800 R Carb L/C Power Tek
Renegade X Backcountry 800R PTEK L/C
Power Tek
2010 Ski-doo Renegade X Backcountry 800R PTEK L/C Power Tek
Summit 600 Sport Carb L/C
2010 Ski-doo Summit 600 Sport Carb L/C
Summit 800 R Carb L/C
Power TEK 50th Anniversary
2009 Ski-doo Summit 800 R Carb L/C Power TEK 50th Anniversary
Summit 800 R Everest Carb L/C
Power Tek
2008 Ski-doo Summit 800 R Everest Carb L/C Power Tek
2009 Ski-doo Summit 800 R Everest Carb L/C Power Tek
2010 Ski-doo Summit 800 R Everest Carb L/C Power Tek
Summit 800 R Hillclimb Carb L/C
REV-XP
2009 Ski-doo Summit 800 R Hillclimb Carb L/C REV-XP
2010 Ski-doo Summit 800 R Hillclimb Carb L/C
Summit 800 R HO X Carb L/C
2008 Ski-doo Summit 800 R HO X Carb L/C
Summit 800 R X Carb L/C
Power Tek
2009 Ski-doo Summit 800 R X Carb L/C Power Tek
2010 Ski-doo Summit 800 R X Carb L/C Power Tek

OEM 420889904 420889907 420889909 420889908

Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 15mm
Length of wires stator to connectors : 300mm
Length of pickup coil's wire to connectors : 380mm

Other specifications :

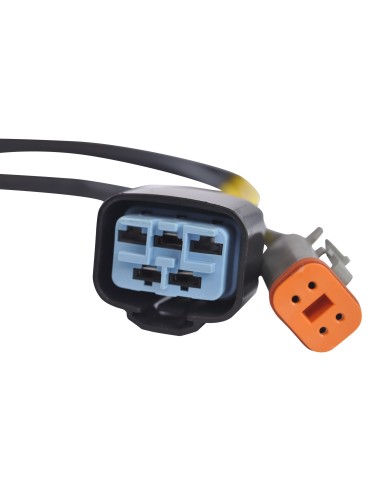

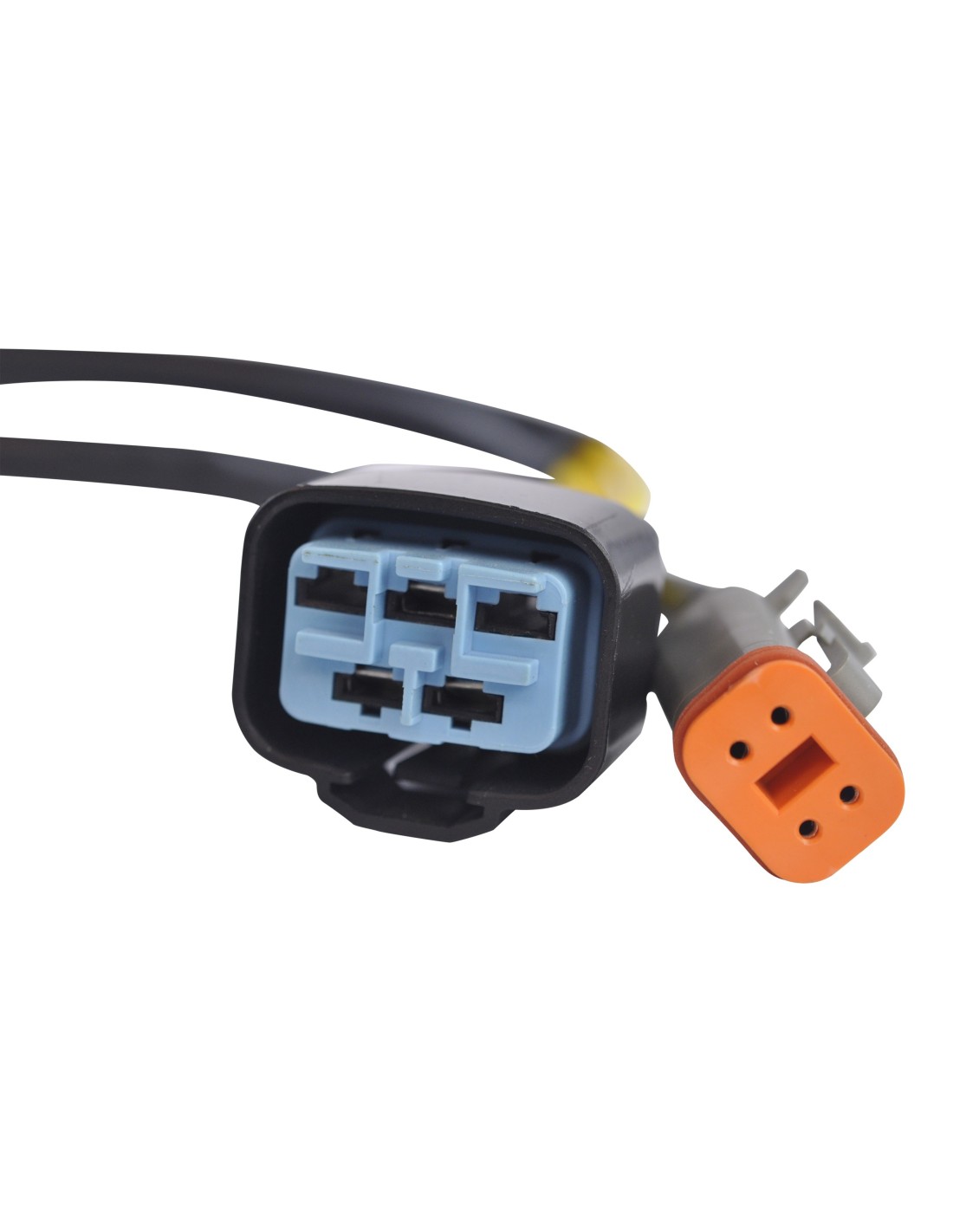

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Grey to Green = 300ohms +/-20%
Pickup : Yellow/White to Blue = 300ohms +/-20%
