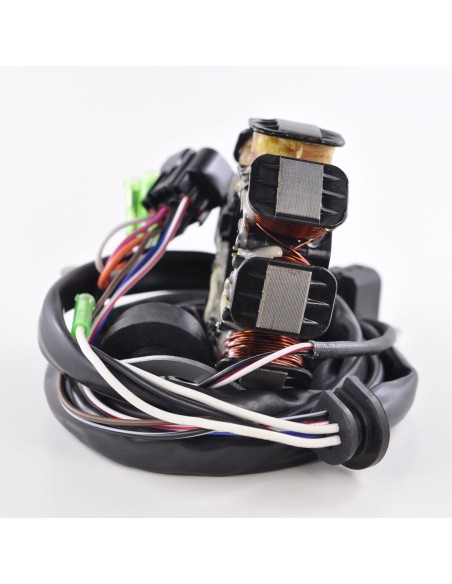

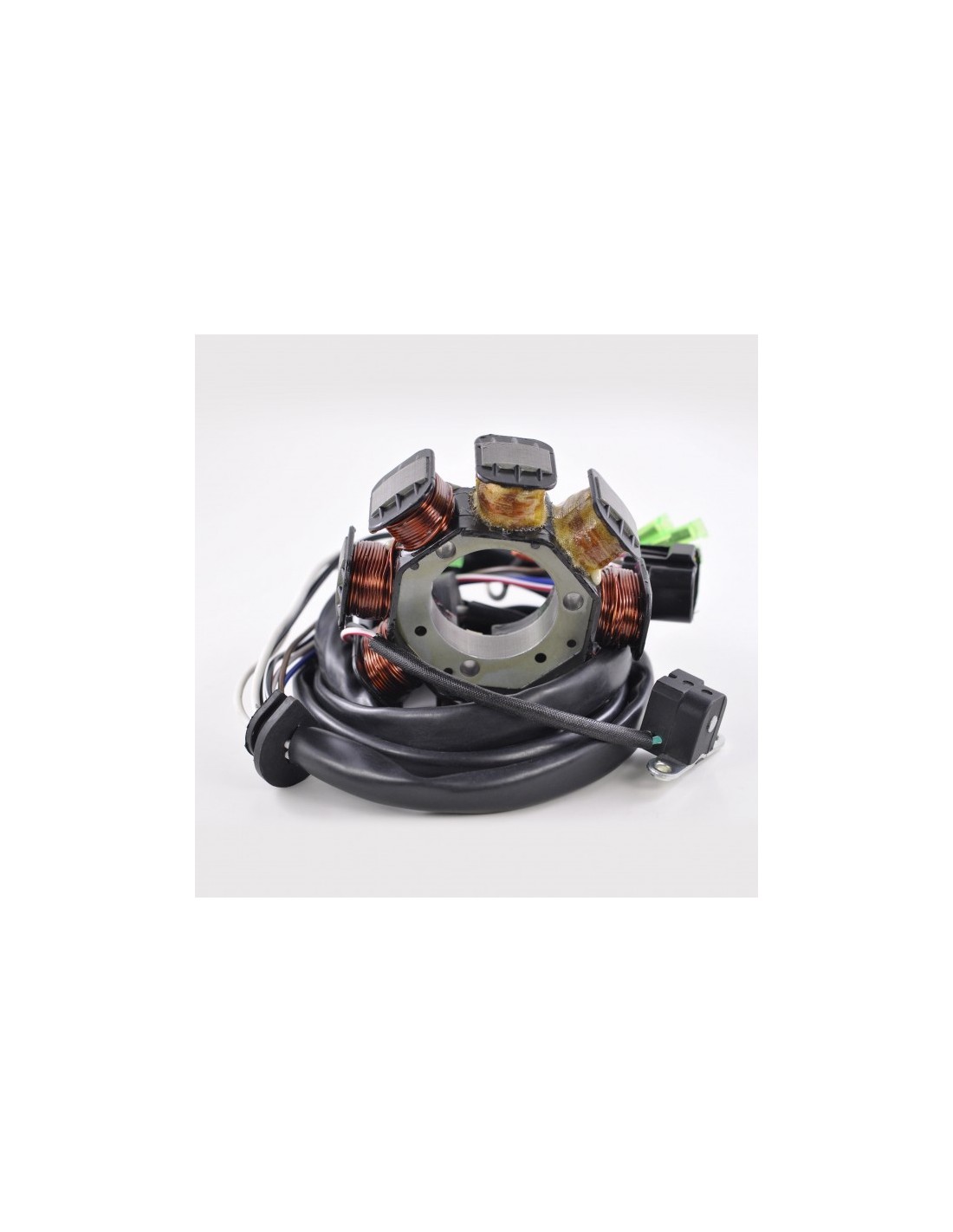

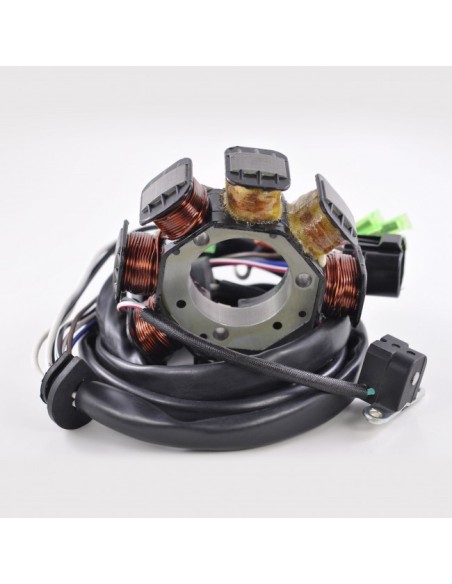

Stator Yamaha Waverunner XLT800 XL800 Waverunner GP800 GP800R OEM 66E-85510-00-00

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

    2005
        Yamaha
            Waverunner GP 800 R
                PWC 2005 Yamaha Waverunner GP 800 R
    2004
        Yamaha
            Waverunner GP 800 R
                PWC 2004 Yamaha Waverunner GP 800 R
            Waverunner XLT 800
                PWC 2004 Yamaha Waverunner XLT 800
    2003
        Yamaha
            Waverunner GP 800 R
                PWC 2003 Yamaha Waverunner GP 800 R
            Waverunner XLT 800
                PWC 2003 Yamaha Waverunner XLT 800
    2002
        Yamaha
            Waverunner GP 800 R
                PWC 2002 Yamaha Waverunner GP 800 R
            Waverunner XLT 800
                PWC 2002 Yamaha Waverunner XLT 800
    2001
        Yamaha
            Waverunner GP 800 R
                PWC 2001 Yamaha Waverunner GP 800 R
            Waverunner XL 800
                PWC 2001 Yamaha Waverunner XL 800
    2000
        Yamaha
            Waverunner GP 800
                PWC 2000 Yamaha Waverunner GP 800
            Waverunner XL 800
                PWC 2000 Yamaha Waverunner XL 800
    1999
        Yamaha
            Waverunner GP 800
                PWC 1999 Yamaha Waverunner GP 800
    1998
        Yamaha
            Waverunner GP 800
                PWC 1998 Yamaha Waverunner GP 800

OEM 66E-85510-00-00


Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 16 mm
Length of wires stator to grommet : 45 mm
Length of wires grommet to plug : 1485 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires :11

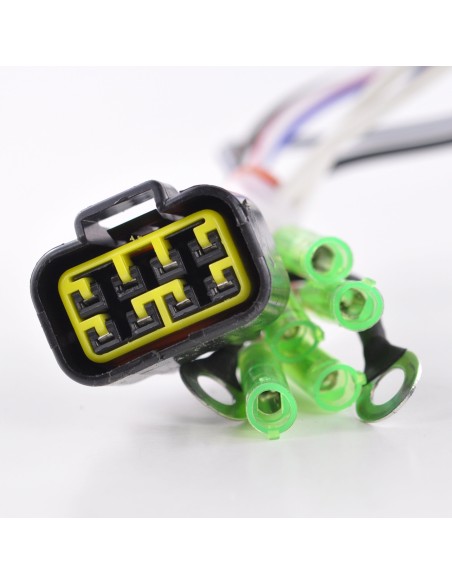

Number of plugs : 6
Number of pins : 11

Wire to wire resistance :
Alternator : White To White = 1.2 ohms +-20%
Pickup : White/Black To White/Red = 524 ohms +-20%
Source : Blue To Brown = 344 ohms +-20%
