Kit Stator Mosfet Regulator Yamaha FZS1000 FZ1 FZ8 YZF R1 OEM 2D1-81410-00-00 2D1-81410-01-00 2D1-81410-10-00 5VY-81410-00-00

2014 Yamaha FZ1 1000

2013 Yamaha FZ1 1000

2012 Yamaha FZ8 800

2012 Yamaha FZ1 1000

2011 Yamaha FZ8 800

2011 Yamaha FZ1 1000

2010 Yamaha FZ1 1000

2009 Yamaha FZ1 1000

2008 Yamaha YZF R1 1000

2008 Yamaha FZ1 1000

2007 Yamaha YZF R1 1000

2007 Yamaha FZ1 1000

2006 Yamaha FZ1 1000

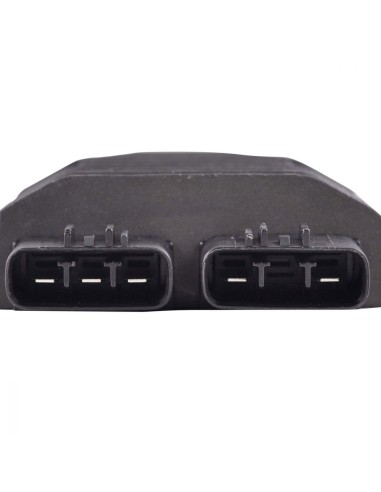

Mosfet Regulator Rectifier Dimensions

Width : 95 mm

Length : 110 mm

Height: 30 mm

Fixation holes center to center : 78 mm

Other specifications :

Number of plugs : 2

Number of pins : 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20° to 85°

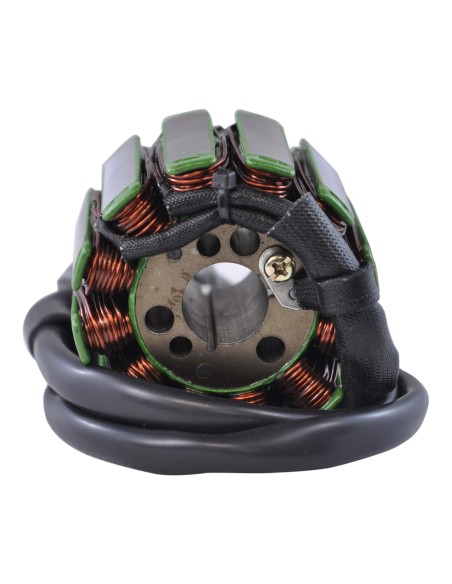

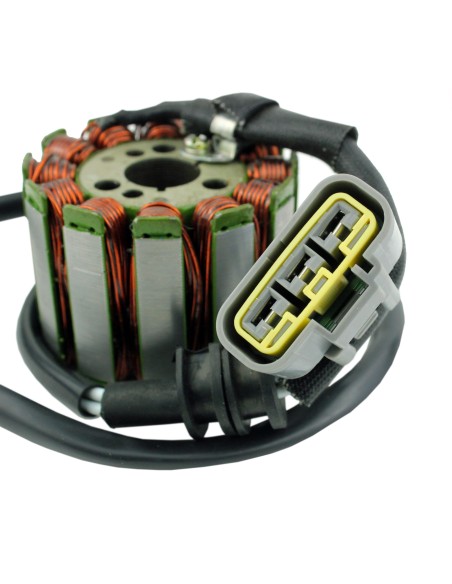

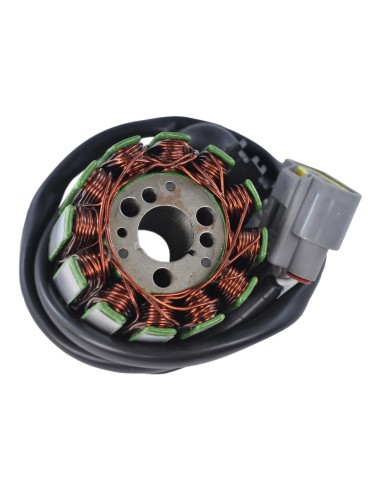

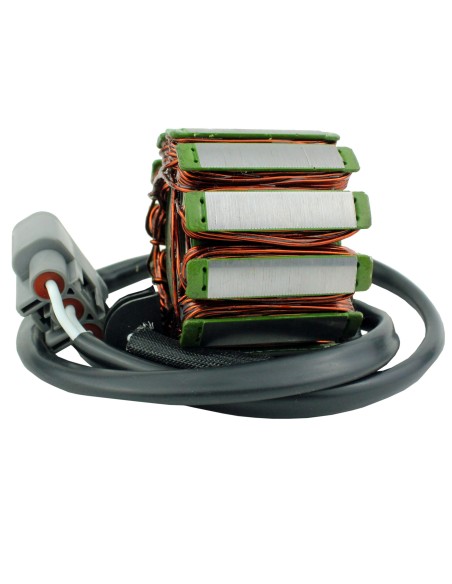

Generator Stator Dimensions

Interior diameter : 18 mm

Exterior diameter : 68 mm

Thickness : 42 mm

Length of wires stator to grommet : 125 mm

Length of wires grommet to plug : 500 mm

Other specifications :

Number of wires : 3

Number of plugs : 1

Number of pins : 3

Wire to wire resistance :

Alternator : Between each White = 0.4 ohms +/-20%

OEM 2D1-81410-01-00
5VY-81410-00-00
2D1-81410-10-00
