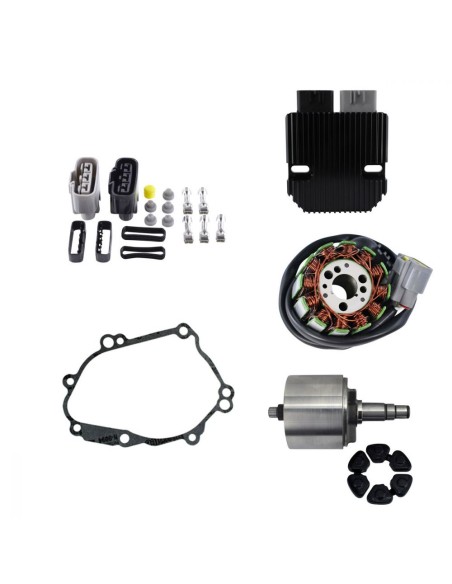

REVOLT Voltage Regulator Stator Flywheel Gasket Yamaha FZS1 FZ8 FZ1 YZF R1 OEM 5VY-81450-00-00 2D1-81410-00-00 2D1-81410-01-00

Stator Dimensions :

Interior diameter : 18 mm

Exterior diameter : 68 mm

Thickness : 42 mm

Length of wires stator to grommet : 125 mm

Length of wires grommet to plug : 500 mm

Other specifications :

Number of wires : 3

Number of plugs : 1

Number of pins : 3

Wire to wire resistance :

Alternator : Between each White = 0.4 ohms +/-20%

REVOLT Regulator Dimensions :

Width: 103 mm

Length: 103 mm

Height: 28 mm

Fixation holes center to center: 80 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: 15 V

Operation Temperature: -20⁰ to 85⁰

SOLVES THE MAJOR CAUSE OF FAILURE

REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN NORTH AMERICA

REVOLT is engineered, designed, and manufactured in North America under strict quality control standards.

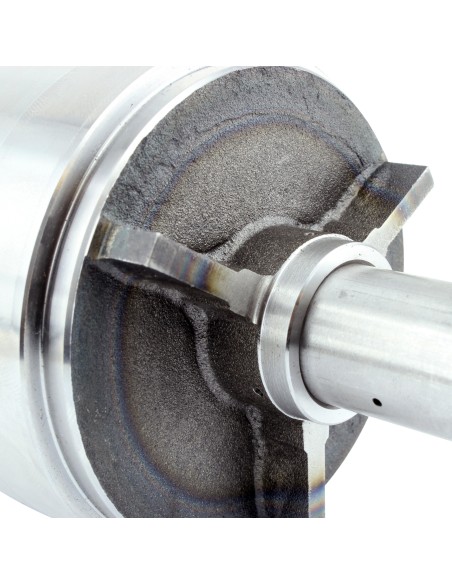

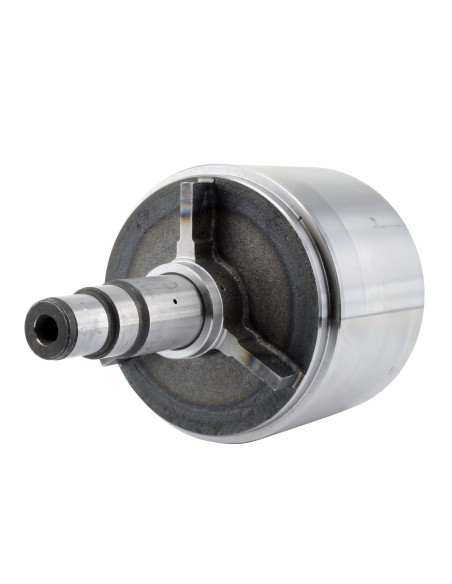

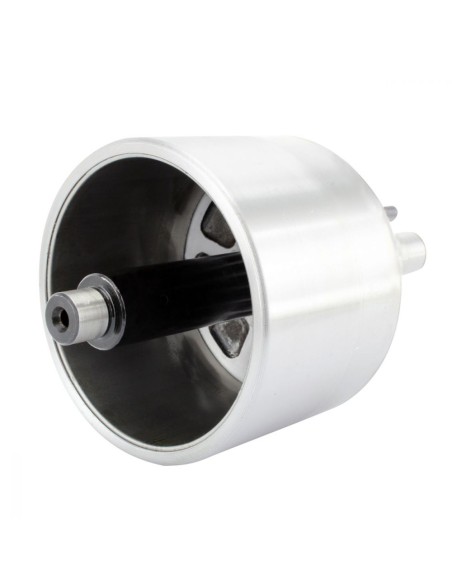

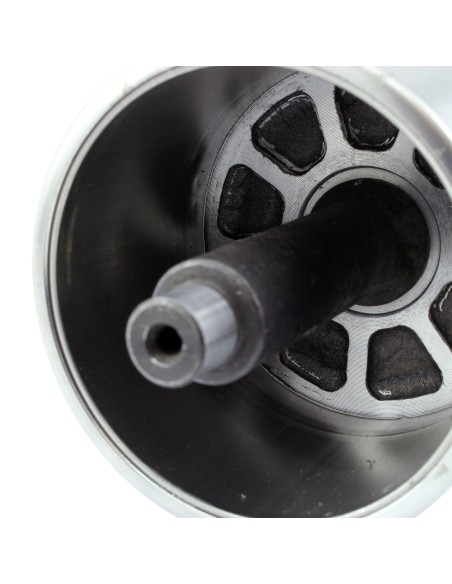

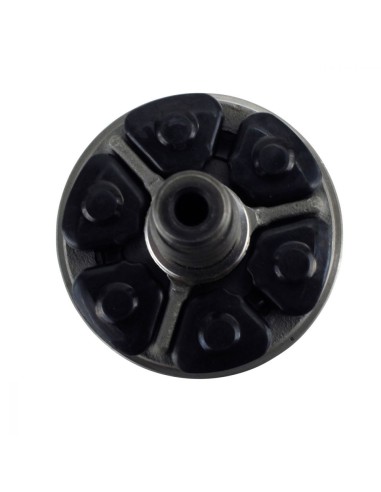

Flywheel Dimensions :

Exterior Diameter: 80 mm

Interior Diameter: 69 mm

Interior Diameter Center Housing: 12 mm

Exterior Diameter Center Housing: 18 mm

Thickness (exterior): 11 mm

Thickness (interior): 6 mm

Diameter of the Shaft largest to the narrowest:

26 mm

20 mm

18 mm

15 mm
