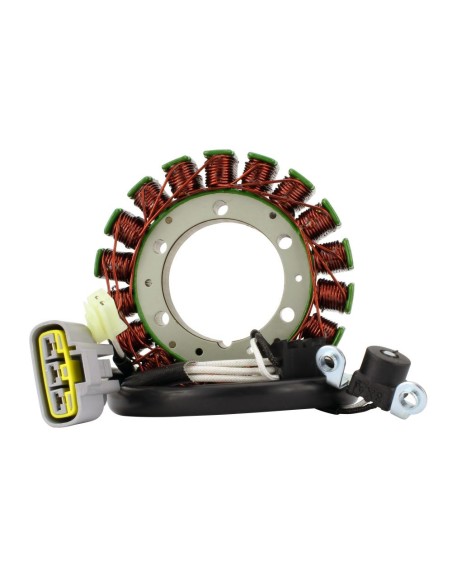

Stator Yamaha YZF R7 XTZ700 Tenere XSR700 MT07 FZ700 OEM 1WS-81410-00-00

2024 Yamaha YZF-R7

2024 Yamaha XTZ 700 Tenere

2024 Yamaha XSR 700

2024 Yamaha MT-07

2023 Yamaha YZF-R7

2023 Yamaha XTZ 700 Tenere

2023 Yamaha XSR 700

2023 Yamaha MT-07

2022 Yamaha YZF-R7

2022 Yamaha XTZ 700 Tenere

2022 Yamaha XSR 700

2022 Yamaha MT-07

2021 Yamaha XTZ 700 Tenere

2021 Yamaha XSR 700

2021 Yamaha MT-07

2020 Yamaha XSR 700

2020 Yamaha MT-07

2019 Yamaha XSR 700

2019 Yamaha MT-07

2018 Yamaha XSR 700

2018 Yamaha MT-07

2017 Yamaha FZ-07

2017 Yamaha FZ 700

2016 Yamaha FZ-07

2016 Yamaha FZ 700

2015 Yamaha FZ-07

2015 Yamaha FZ 700

OEM 1WS-81410-00-00

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 500 mm

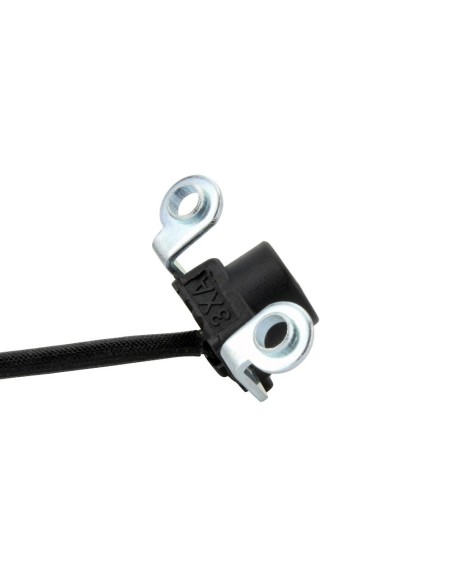

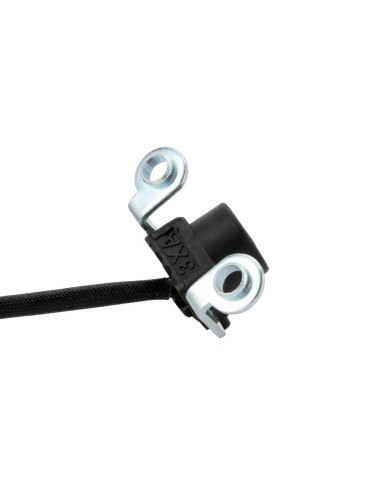

Length of pickup coil's wire to grommet : 100 mm

Other specifications :
Number of wires : 5

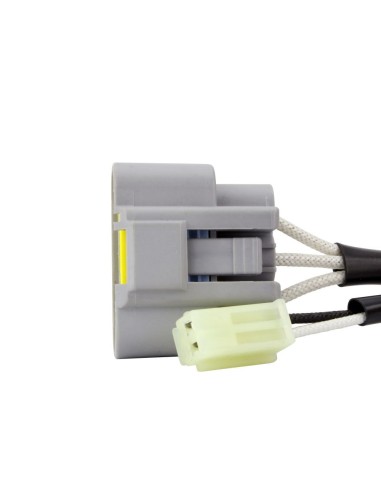

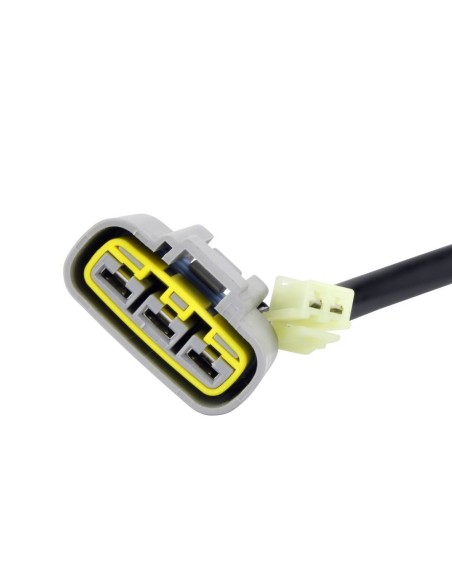

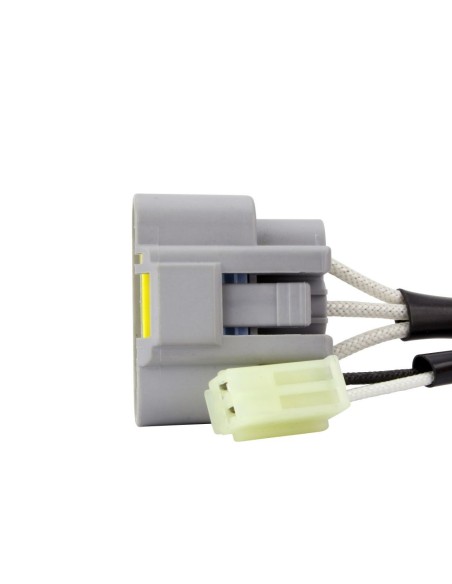

Number of plugs : 2
Number of holes : 3

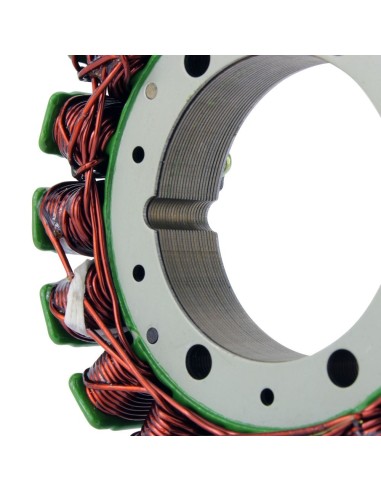

Number of poles : 18
Alternator : White to White = 0.5 ohms +-20%
Pickup : Black to Grey = 269 ohms +-20%
