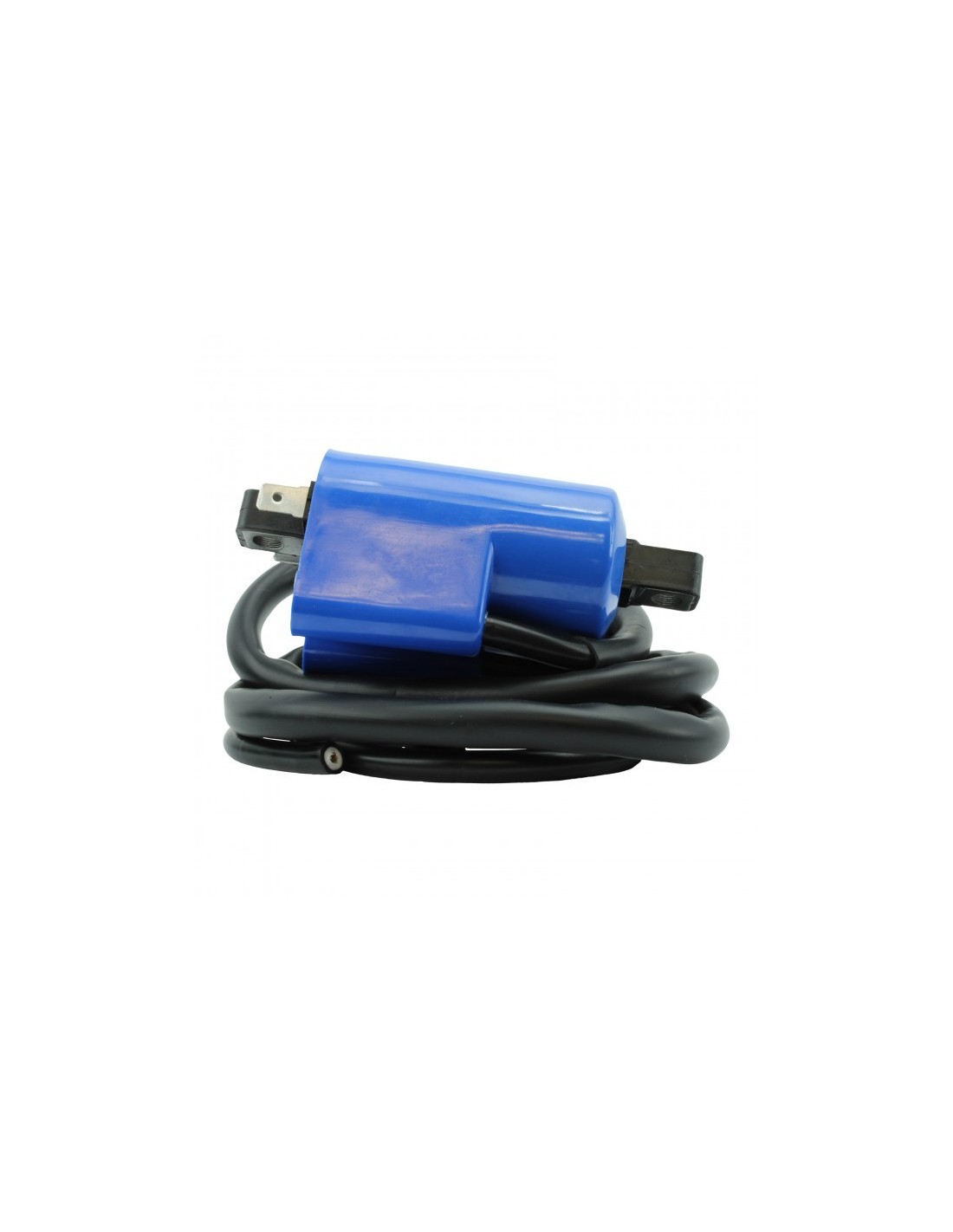

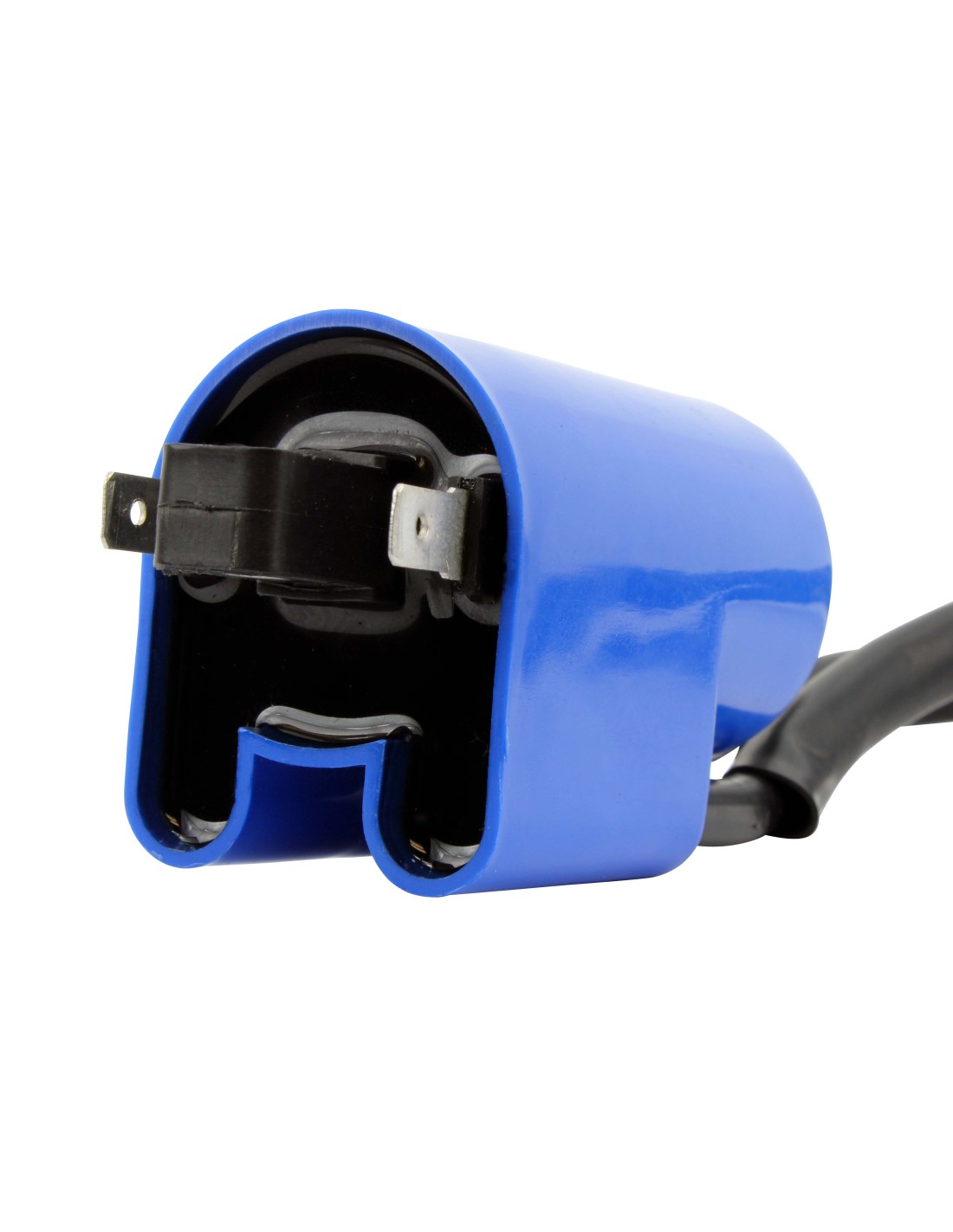

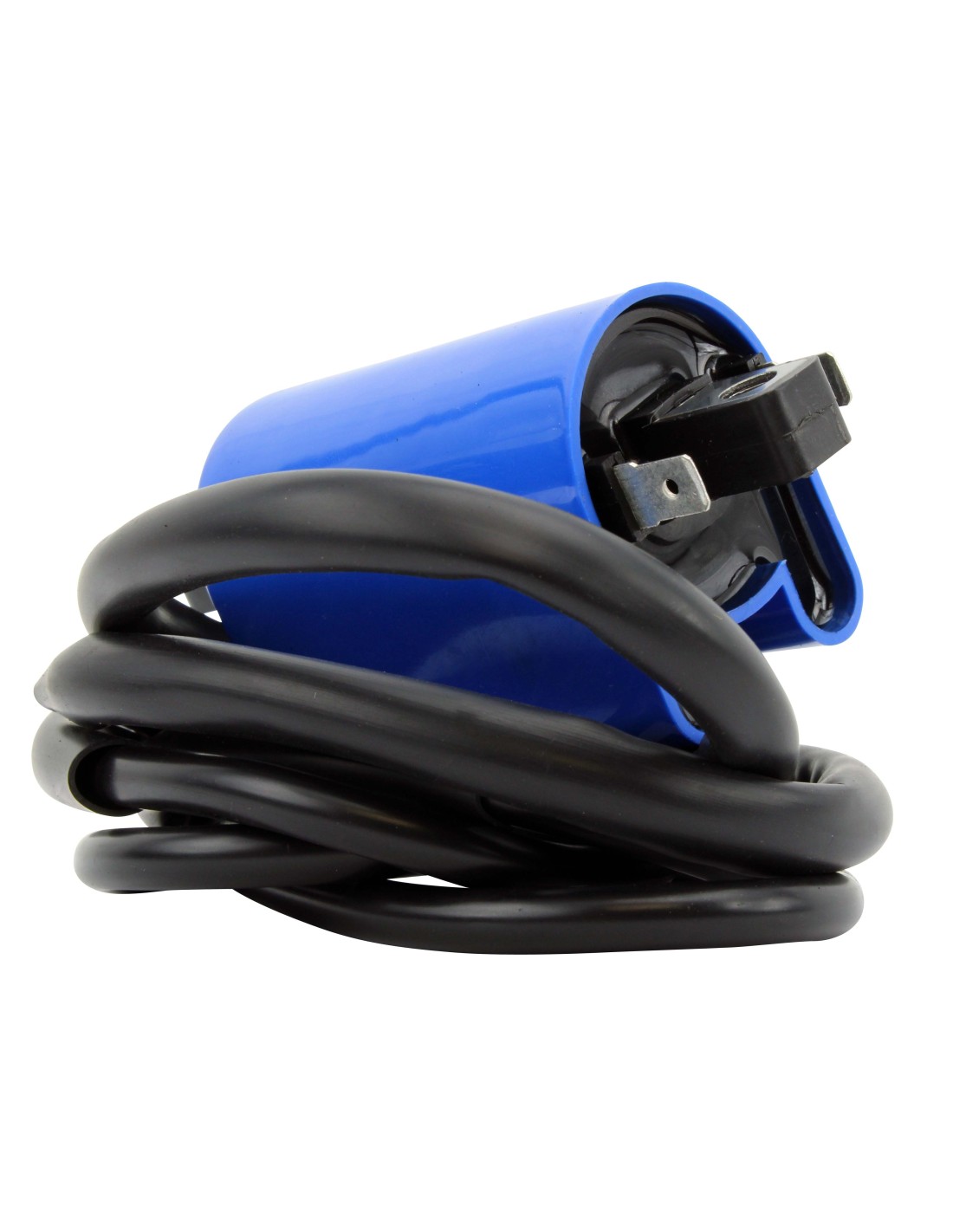

External Ignition Coil Yamaha XP 500 TMAX Road Star 1600 1700 GTS 1000 TDM 850 FZ600 XJ700 FJ 600 1100 1200 FJR1300

2014 Yamaha Road Star Silverado S 1700
2014 Yamaha Road Star S 1700
2013 Yamaha Road Star Silverado S 1700
2013 Yamaha Road Star S 1700
2012 Yamaha Road Star Silverado S 1700
2012 Yamaha Road Star S 1700
2012 Yamaha FJR 1300
2011 Yamaha XP 500 TMAX
2011 Yamaha Road Star Silverado S 1700
2011 Yamaha Road Star S 1700
2011 Yamaha FJR 1300
2010 Yamaha XP 500 TMAX
2010 Yamaha Road Star Silverado S 1700
2010 Yamaha Road Star Silverado 1700
2010 Yamaha Road Star S 1700
2010 Yamaha FJR 1300
2009 Yamaha XP 500 TMAX
2009 Yamaha Road Star Silverado S 1700
2009 Yamaha Road Star Silverado 1700
2009 Yamaha Road Star S 1700
2009 Yamaha Road Star 1700
2009 Yamaha FZ6 600
2009 Yamaha FJR 1300
2008 Yamaha Road Star Silverado S 1700
2008 Yamaha Road Star Silverado 1700
2008 Yamaha Road Star S 1700
2008 Yamaha Road Star 1700
2008 Yamaha FZ6 600
2008 Yamaha FJR 1300
2007 Yamaha FZ6 600
2007 Yamaha FJR 1300
2006 Yamaha FZ6 600
2006 Yamaha FJR 1300
2005 Yamaha FZ6 600
2005 Yamaha FJR 1300
2004 Yamaha FZ6 600
2004 Yamaha FJR 1300
2003 Yamaha Road Star Silverado 1600
2003 Yamaha Road Star Midnight 1600
2003 Yamaha Road Star 1600
2003 Yamaha FJR 1300
2002 Yamaha Road Star Silverado 1600
2002 Yamaha Road Star 1600
2001 Yamaha Road Star Silverado 1600
2001 Yamaha Road Star Midnight 1600
2001 Yamaha Road Star 1600
2000 Yamaha Road Star Silverado 1600
2000 Yamaha Road Star 1600
1999 Yamaha Road Star Silverado 1600
1999 Yamaha Road Star 1600
1994 Yamaha GTS 1000
1993 Yamaha TDM 850
1993 Yamaha GTS 1000
1992 Yamaha TDM 850
1987 Yamaha FZ 600
1987 Yamaha FJ 1200
1986 Yamaha XJ 700 X Maxim X
1986 Yamaha XJ 700 Maxim
1986 Yamaha FZ 600
1986 Yamaha FJ 1200
1985 Yamaha XJ 700 X Maxim X
1985 Yamaha XJ 700 Maxim
1985 Yamaha FJ 600
1985 Yamaha FJ 1100
1984 Yamaha FJ 600
1984 Yamaha FJ 1100

OEM
1AA-82310-09-00
1AA-82310-10-00
1AA-82320-10-00
1FG-82310-10-00
1FG-82320-10-00
33M-82310-60-00
33M-82320-60-00
36Y-82310-60-00
36Y-82320-60-00
3LD-82310-01-00
3VD-82310-00-00
4BH-82310-01-00
4BH-82310-00-00
5MB-82310-00-00
4WM-82310-00-00
4WM-82310-10-00
3P6-82310-00-00
3P6-82320-00-00
4B5-82320-00-00
5JW-82310-00-00
5JW-82320-00-00
5VX-82310-00-00
5VX-82320-00-00

Dimensions:
Width: 95 mm
Length: 150 mm
Height: 50 mm
Wires length: 590 mm
Fixation holes center to center: 90 mm
Resistance: 4.3 ohms

There are also two different external ignition coil used for the 2008-2014 Road star models. The main difference between the two are the length of the wires and the primary resistance. This part has a primary resistance of 4.3 ohm, if your part has a primary resistance of 2.8 ohms please look for CARM06188
