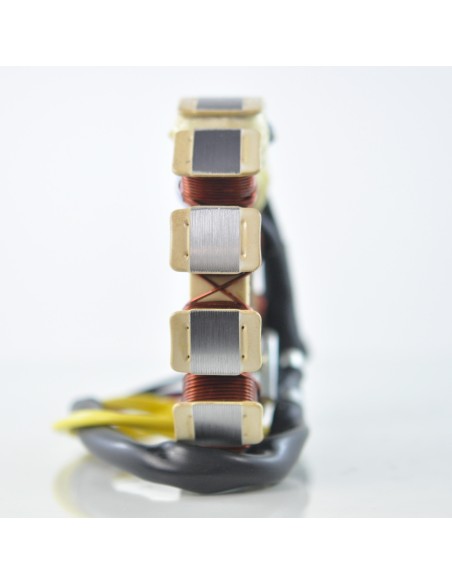

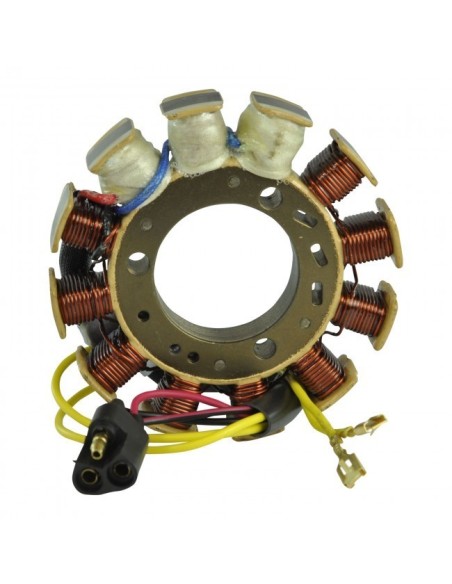

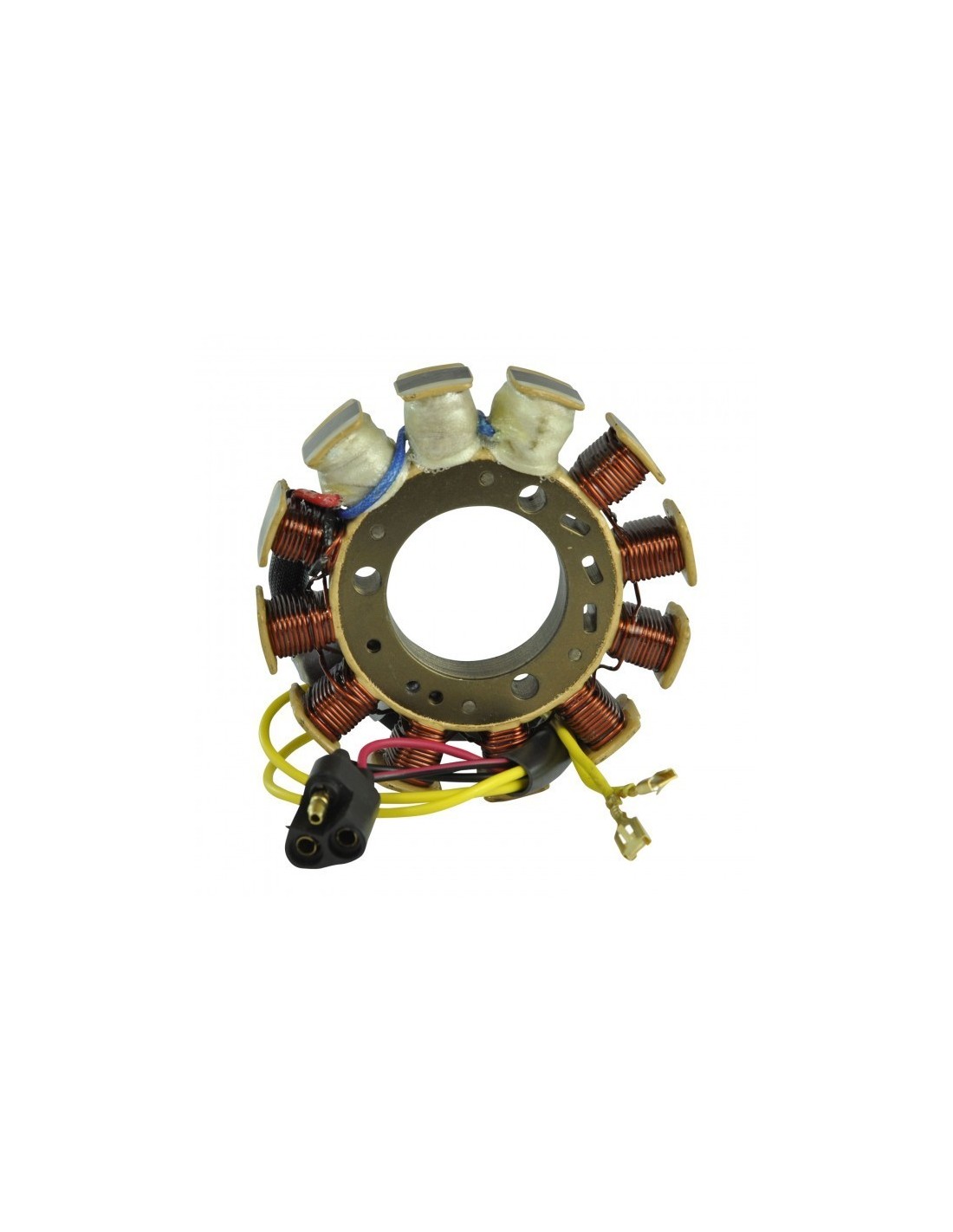

Stator SkiDoo Formula MXZ Grand Touring Mach1 650 Mach Z 780 Skandic Summit OEM 410919000 410916500

Stator
Resistant to 200 degrees Celsius

1998 Ski-doo MX ZX 440 Carb L/C

1997 Ski-doo Summit 670 Carb L/C

1997 Ski-doo Summit 583 Carb L/C

1997 Ski-doo Summit 500 Carb L/C

1997 Ski-doo Skandic 500 SWT Carb L/C

1997 Ski-doo MX ZX 440 Carb L/C

1997 Ski-doo MX Z 670 Carb L/C

1997 Ski-doo MX Z 583 Carb L/C

1997 Ski-doo MX Z 580 Carb L/C

1997 Ski-doo MX Z 440 Carb L/C

1997 Ski-doo Grand Touring 583 Carb L/C

1997 Ski-doo Grand Touring 500 Carb L/C

1997 Ski-doo Formula Z 583 Carb L/C

1997 Ski-doo Formula Z 500 Carb L/C

1997 Ski-doo Formula 583 Carb L/C

1997 Ski-doo Formula 500 Deluxe Carb L/C

1997 Ski-doo Formula 500 Carb L/C

1996 Ski-doo Summit 670 Carb L/C

1996 Ski-doo Summit 583 Carb L/C

1996 Ski-doo Summit 500 Carb L/C

1996 Ski-doo MX Z 670 Carb L/C

1996 Ski-doo MX Z 583 Carb L/C

1996 Ski-doo MX Z 440 Carb L/C

1996 Ski-doo Grand Touring 670 Carb L/C

1996 Ski-doo Grand Touring 580 Carb L/C

1996 Ski-doo Grand Touring 500 Carb L/C

1996 Ski-doo Formula Z 670 Carb L/C

1996 Ski-doo Formula Z 583 Carb L/C

1996 Ski-doo Formula STX 583 Carb L/C

1996 Ski-doo Formula SS 670 Carb L/C

1996 Ski-doo Formula SLS 500 Carb L/C

1996 Ski-doo Formula Mach 1 670 Carb L/C

1995 Ski-doo Summit 670 Carb L/C

1995 Ski-doo Summit 583 Carb L/C

1995 Ski-doo Grand Touring 670 Carb L/C

1995 Ski-doo Grand Touring 580 Carb L/C

1995 Ski-doo Grand Touring 470 Carb L/C

1995 Ski-doo Formula Z 583 Carb L/C

1995 Ski-doo Formula STX 583 Carb L/C

1995 Ski-doo Formula SS 670 Carb L/C

1995 Ski-doo Formula Mach 1 670 Carb L/C

1995 Ski-doo Formula MX Z 470 Carb L/C

1995 Ski-doo Formula MX Z 440 Carb L/C

1995 Ski-doo Formula MX 467 Carb L/C

1994 Ski-doo Summit 583 Carb L/C

1994 Ski-doo Summit 470 Carb L/C

1994 Ski-doo Mach 1 650 Carb L/C

1994 Ski-doo Grand Touring 670 Carb L/C

1994 Ski-doo Grand Touring 583 Carb L/C

1994 Ski-doo Formula Z 583 Carb L/C

1994 Ski-doo Formula STX II 583 Carb L/C

1994 Ski-doo Formula STX 583 Carb L/C

1994 Ski-doo Formula ST 470 Carb L/C

1994 Ski-doo Formula Mach 1 670 Carb L/C

1994 Ski-doo Formula MX ZX 470 Carb L/C

1994 Ski-doo Formula MX Z 470 Carb L/C

1994 Ski-doo Formula MX 467 Carb L/C

1993 Ski-doo Grand Touring 580 Carb L/C

1993 Ski-doo Formula XTC R 467 Carb L/C

1993 Ski-doo Formula Plus XTC 580 Carb L/C

1993 Ski-doo Formula Plus II 580 Carb L/C

1993 Ski-doo Formula Plus 580 EFI L/C

1993 Ski-doo Formula Plus 580 Carb L/C

1993 Ski-doo Formula Mach 1 II 670 Carb L/C

1993 Ski-doo Formula Mach 1 670 Carb L/C

1993 Ski-doo Formula MX Z 467 Carb L/C

1993 Ski-doo Formula MX II 467 L/C

1993 Ski-doo Formula MX 467 Carb L/C

OEM 410919000
410916500

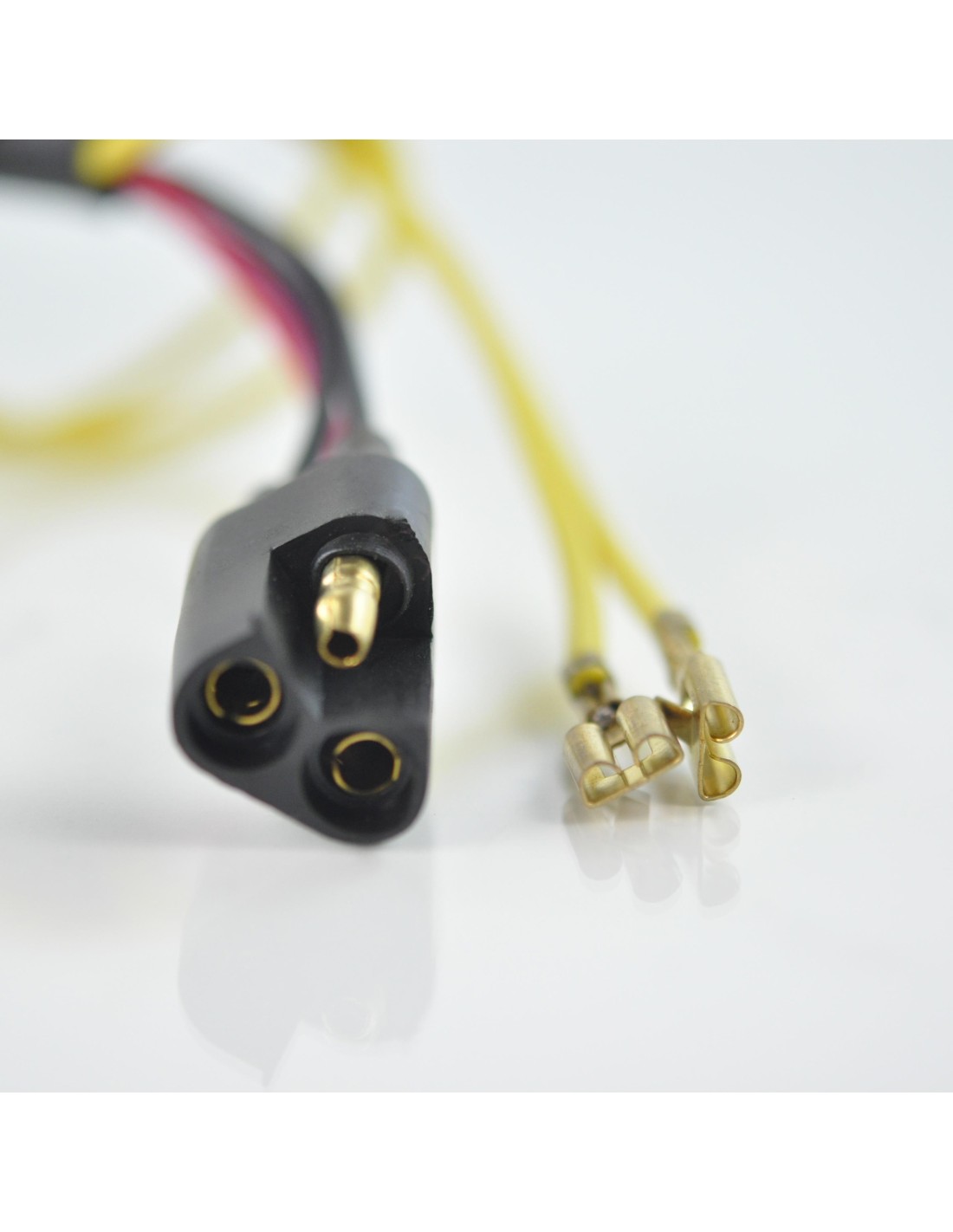

Number of wires : 5

Number of terminals : 5

Alternator : Yellow to Yellow = 0.4 ohms+/-20%

Alternator : Yellow to Ground = O.L ON DISPLAY

Source Coil : Black/Red to Red = 13 ohms+/-20%
