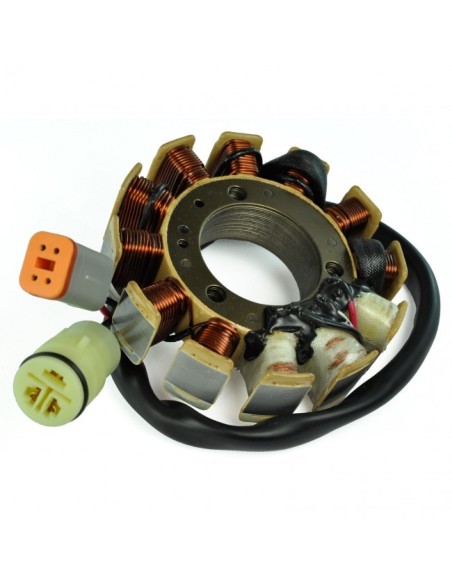

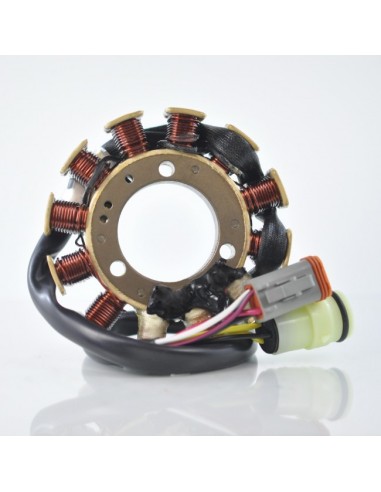

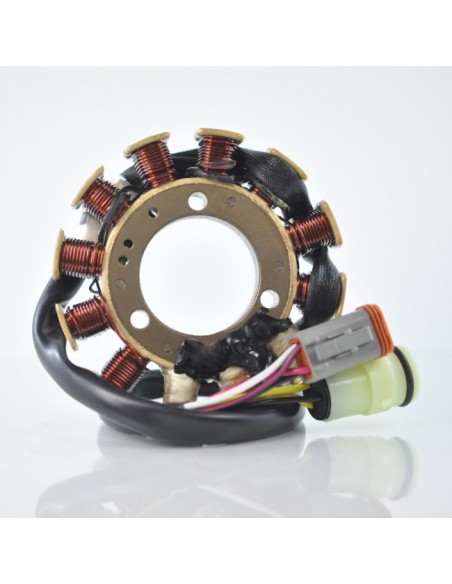

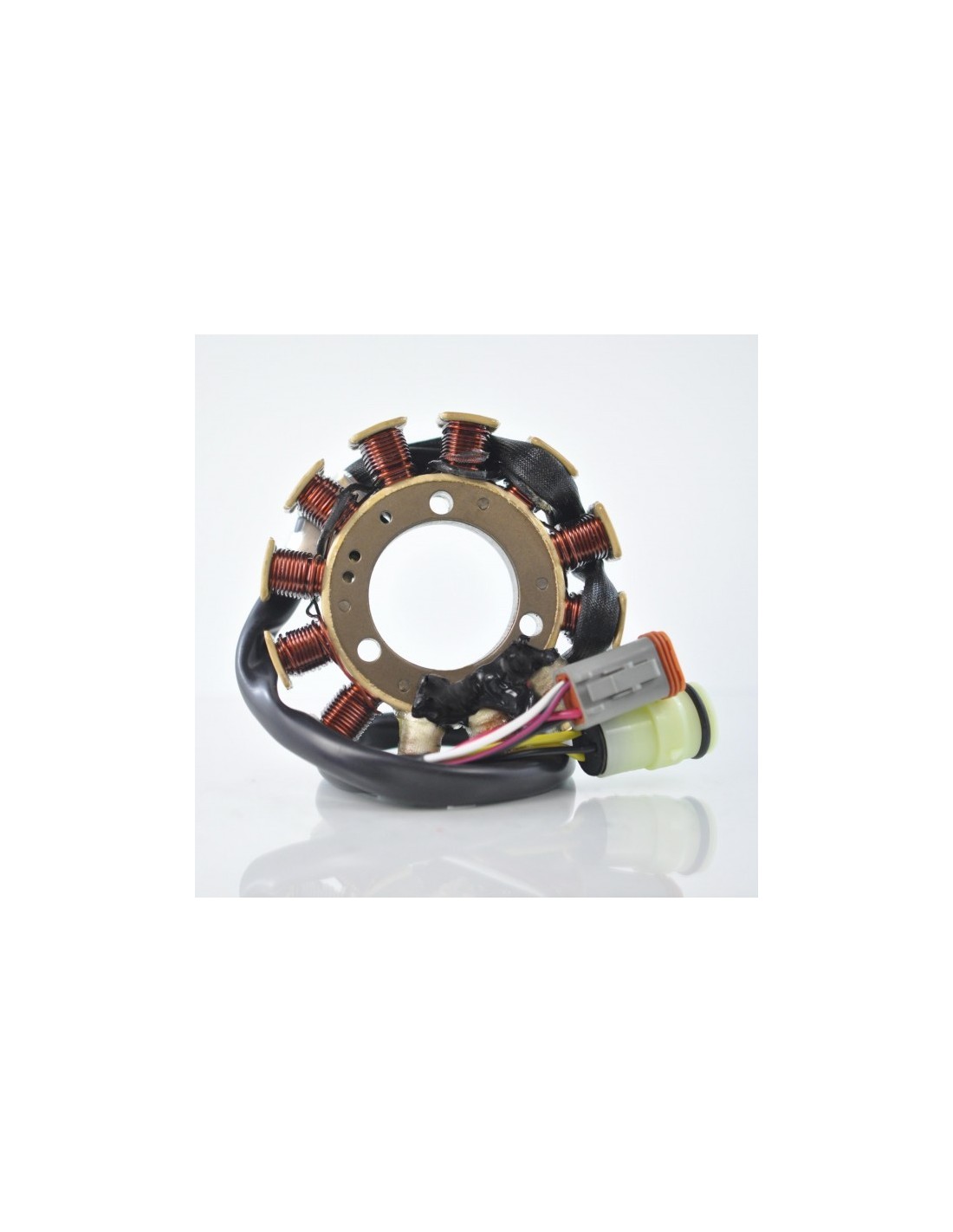

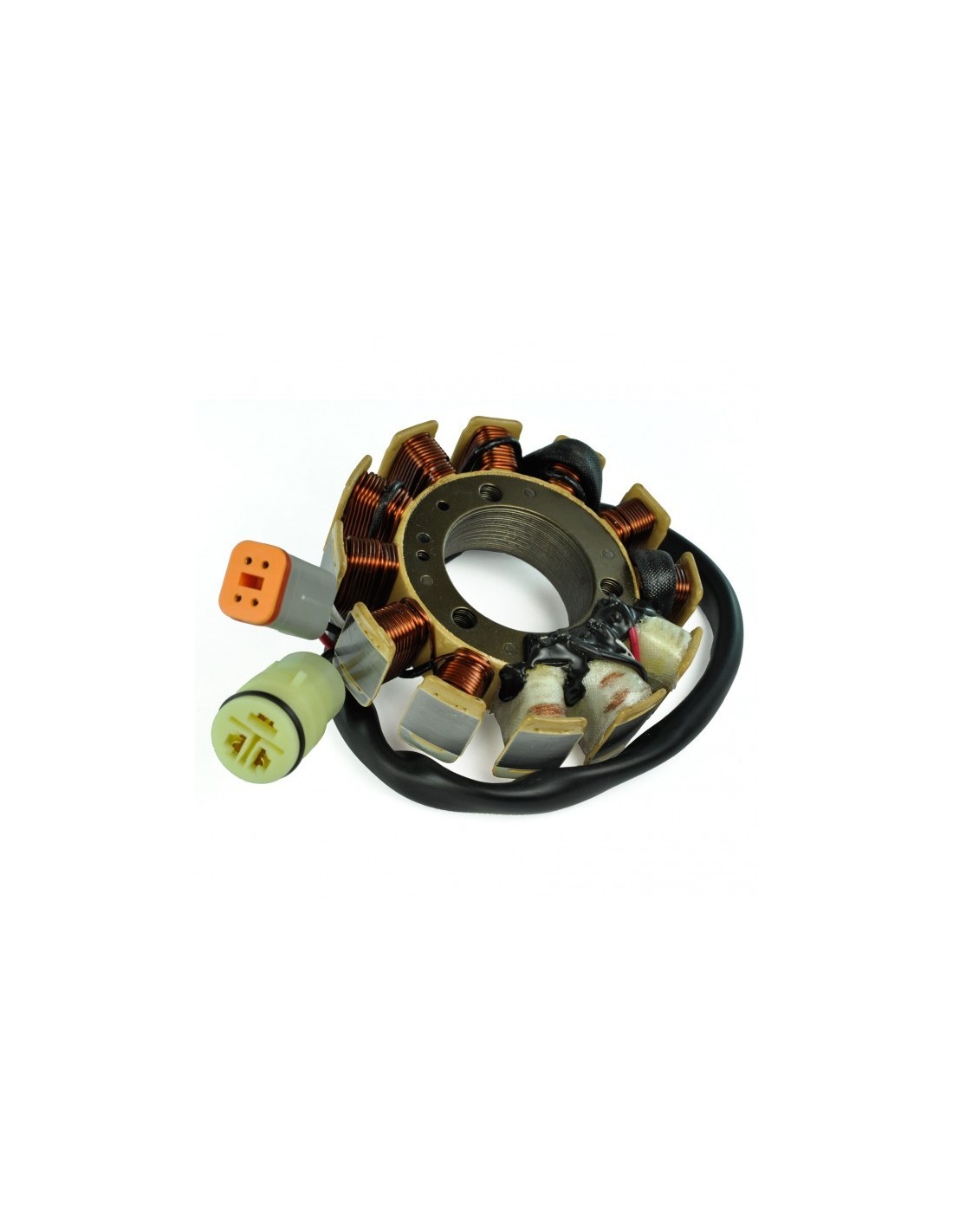

Stator SkiDoo Formula III Grand Touring Mach 1 Mach Z 600 700 800 OEM 410922927 410922700 410922901

Stator

Resistant to 200 degrees Celsius

    2003
        Ski-doo
            Mach Z 800 Carb L/C
                Snowmobile 2003 Ski-doo Mach Z 800 Carb L/C Tech Plus
    2002
        Ski-doo
            Mach Z 800 Carb L/C
                Snowmobile 2002 Ski-doo Mach Z 800 Carb L/C Tech Plus
            Mach Z 800 Sport Carb L/C
                Snowmobile 2002 Ski-doo Mach Z 800 Sport Carb L/C
    2001
        Ski-doo
            Mach Z 800 Carb L/C
                Snowmobile 2001 Ski-doo Mach Z 800 Carb L/C
                Snowmobile 2001 Ski-doo Mach Z 800 Carb L/C Tech Plus
    2000
        Ski-doo
            Formula III 700 Carb L/C
                Snowmobile 2000 Ski-doo Formula III 700 Carb L/C
            Formula III 800 Carb L/C
                Snowmobile 2000 Ski-doo Formula III 800 Carb L/C
            Mach 1 700 Carb L/C
                Snowmobile 2000 Ski-doo Mach 1 700 Carb L/C
            Mach Z 800 Carb L/C
                Snowmobile 2000 Ski-doo Mach Z 800 Carb L/C
    1999
        Ski-doo
            Formula III 600 Carb L/C
                Snowmobile 1999 Ski-doo Formula III 600 Carb L/C
            Formula III 700 Carb L/C
                Snowmobile 1999 Ski-doo Formula III 700 Carb L/C
            Formula III 800 Carb L/C
                Snowmobile 1999 Ski-doo Formula III 800 Carb L/C
            Mach 1 700 Carb L/C
                Snowmobile 1999 Ski-doo Mach 1 700 Carb L/C
            Mach 1 700 R Carb L/C
                Snowmobile 1999 Ski-doo Mach 1 700 R Carb L/C
            Mach Z 800 Carb L/C
                Snowmobile 1999 Ski-doo Mach Z 800 Carb L/C
                Snowmobile 1999 Ski-doo Mach Z 800 Carb L/C LT
            Mach Z 800 R Carb L/C
                Snowmobile 1999 Ski-doo Mach Z 800 R Carb L/C
                Snowmobile 1999 Ski-doo Mach Z 800 R Carb L/C LT
                Snowmobile 1999 Ski-doo Mach Z 800 R Carb L/C M.H.
    1998
        Ski-doo
            Formula III 600 Carb L/C
                Snowmobile 1998 Ski-doo Formula III 600 Carb L/C
                Snowmobile 1998 Ski-doo Formula III 600 Carb L/C LT
            Formula III 700 Carb L/C
                Snowmobile 1998 Ski-doo Formula III 700 Carb L/C
            Grand Touring 700 Carb L/C
                Snowmobile 1998 Ski-doo Grand Touring 700 Carb L/C
                Snowmobile 1998 Ski-doo Grand Touring 700 Carb L/C SE
            Mach 1 700 Carb L/C
                Snowmobile 1998 Ski-doo Mach 1 700 Carb L/C
            Mach Z 800 Carb L/C
                Snowmobile 1998 Ski-doo Mach Z 800 Carb L/C
                Snowmobile 1998 Ski-doo Mach Z 800 Carb L/C LT


OEM 410922700
410922901
410922927

Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 18mm
Length of wires stator to plug: 350mm

Other specifications :
Number of wires : 7

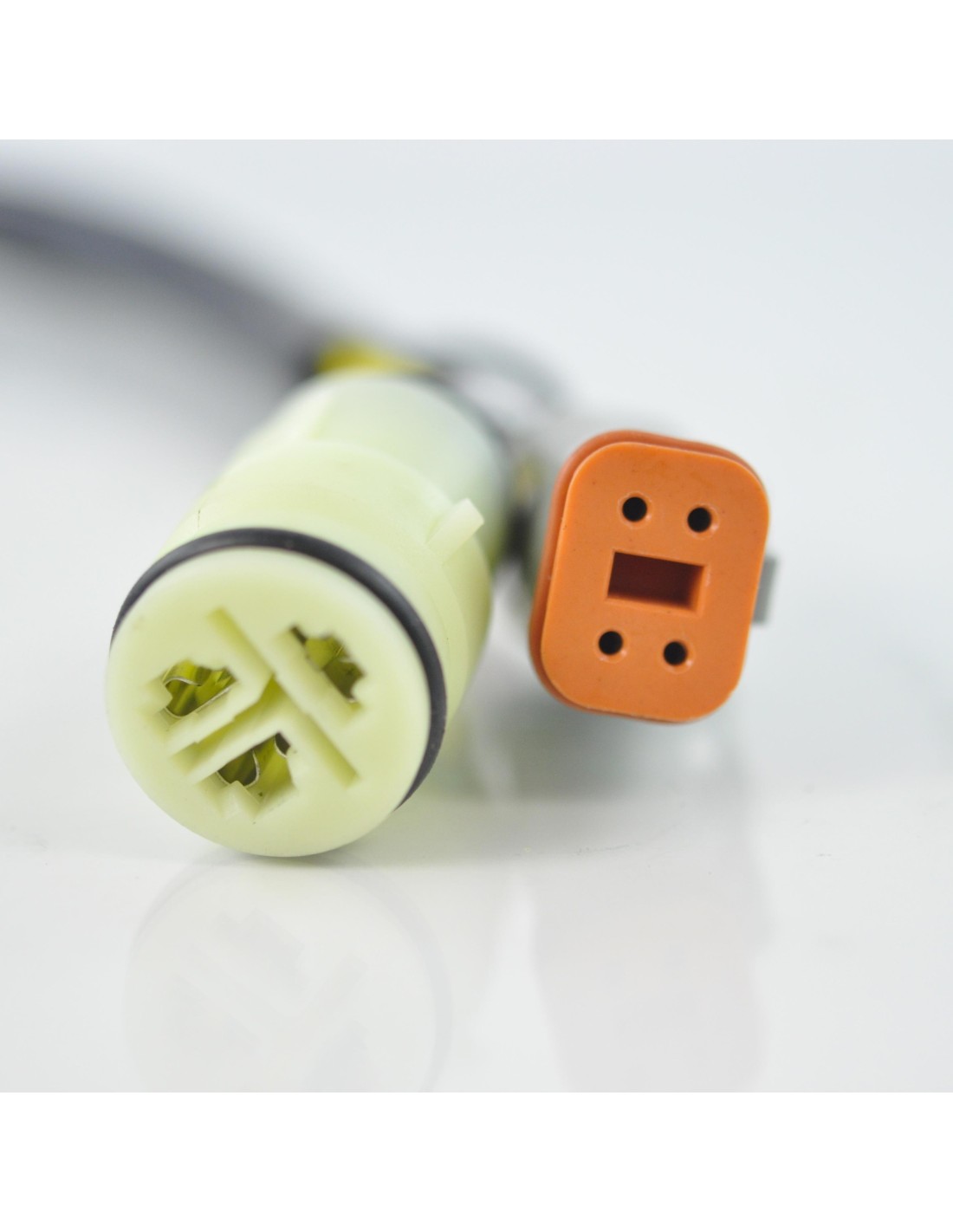

Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Source : Red to White = 28ohms +/-20%
Source 2: Black/Red to White = 4ohms +/-20%
