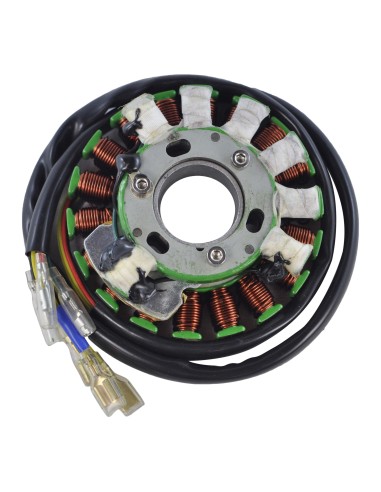

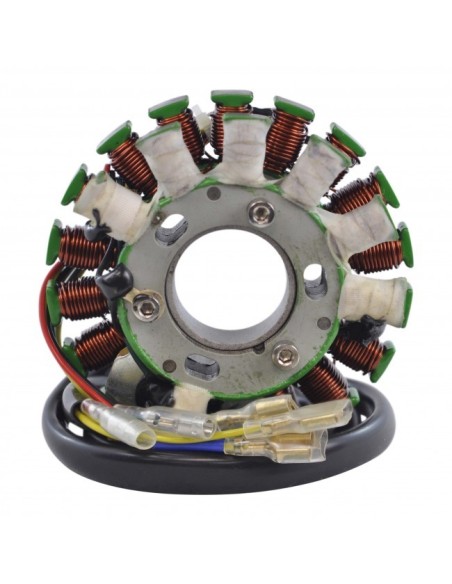

Stator SEM Husaberg FC400 FE400 FS400 FX400 FC470 FX470 FE500 FX500 FE501 FC550 FE600 FX600 FE650 FS650 FX650

SEM Direct Replacement Stator Ignition Lighting

2003

    Husaberg
        FE 400 E
            Motorcycle 2003 Husaberg FE 400 E Euro
        FE 501 E
            Motorcycle 2003 Husaberg FE 501 E Euro
        FE 650 E
            Motorcycle 2003 Husaberg FE 650 E Euro
        FS 400 E
            Motorcycle 2003 Husaberg FS 400 E Euro
        FS 650 E
            Motorcycle 2003 Husaberg FS 650 E Euro
        FX 650 E
            Motorcycle 2003 Husaberg FX 650 E Euro

2002

    Husaberg
        FC 470
            Motorcycle 2002 Husaberg FC 470 Euro
        FC 470 E
            Motorcycle 2002 Husaberg FC 470 E Euro
        FC 550
            Motorcycle 2002 Husaberg FC 550 Euro
        FE 400 E
            Motorcycle 2002 Husaberg FE 400 E Euro
        FE 501 E
            Motorcycle 2002 Husaberg FE 501 E Euro
        FE 650 E
            Motorcycle 2002 Husaberg FE 650 E Euro
        FS 650 E
            Motorcycle 2002 Husaberg FS 650 E Euro
        FX 470 E
            Motorcycle 2002 Husaberg FX 470 E Euro
        FX 650 E
            Motorcycle 2002 Husaberg FX 650 E Euro

2001

    Husaberg
        FC 470
            Motorcycle 2001 Husaberg FC 470 Euro
        FC 550
            Motorcycle 2001 Husaberg FC 550 Euro
        FE 400 E
            Motorcycle 2001 Husaberg FE 400 E Euro
        FE 501 E
            Motorcycle 2001 Husaberg FE 501 E Euro
        FE 650 E
            Motorcycle 2001 Husaberg FE 650 E Euro
        FX 470 E
            Motorcycle 2001 Husaberg FX 470 E Euro
        FX 650 E
            Motorcycle 2001 Husaberg FX 650 E Euro

2000

    Husaberg
        FC 501
            Motorcycle 2000 Husaberg FC 501 Euro
        FC 600
            Motorcycle 2000 Husaberg FC 600 Euro
        FE 400
            Motorcycle 2000 Husaberg FE 400 Euro
        FE 400 E
            Motorcycle 2000 Husaberg FE 400 E Euro
        FE 501
            Motorcycle 2000 Husaberg FE 501 Euro
        FE 501 E
            Motorcycle 2000 Husaberg FE 501 E Euro
        FE 600
            Motorcycle 2000 Husaberg FE 600 Euro
        FE 600 E
            Motorcycle 2000 Husaberg FE 600 E Euro
        FX 600 E
            Motorcycle 2000 Husaberg FX 600 E Euro

1999

    Husaberg
        FC 400
            Motorcycle 1999 Husaberg FC 400 Euro
        FC 501
            Motorcycle 1999 Husaberg FC 501 Euro
        FC 600
            Motorcycle 1999 Husaberg FC 600 Euro
        FE 400
            Motorcycle 1999 Husaberg FE 400 Euro
        FE 400 E
            Motorcycle 1999 Husaberg FE 400 E Euro
        FE 501
            Motorcycle 1999 Husaberg FE 501 Euro
        FE 501 E
            Motorcycle 1999 Husaberg FE 501 E Euro
        FE 600 E
            Motorcycle 1999 Husaberg FE 600 E Euro
        FS 600 E
            Motorcycle 1999 Husaberg FS 600 E Euro
        FX 501 E
            Motorcycle 1999 Husaberg FX 501 E Euro
        FX 600 E
            Motorcycle 1999 Husaberg FX 600 E E

Dimensions :
Interior diameter : 28mm
Exterior diameter : 91mm
Thickness : 23mm
Length of wires stator to plug : 700mm

Other specifications :

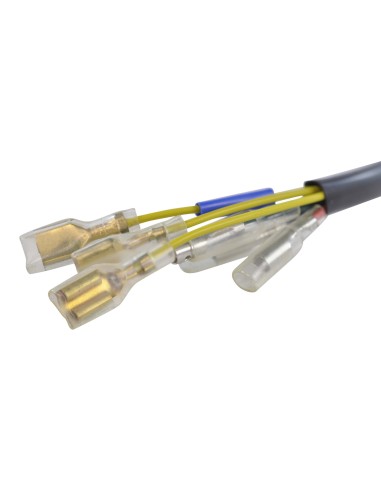

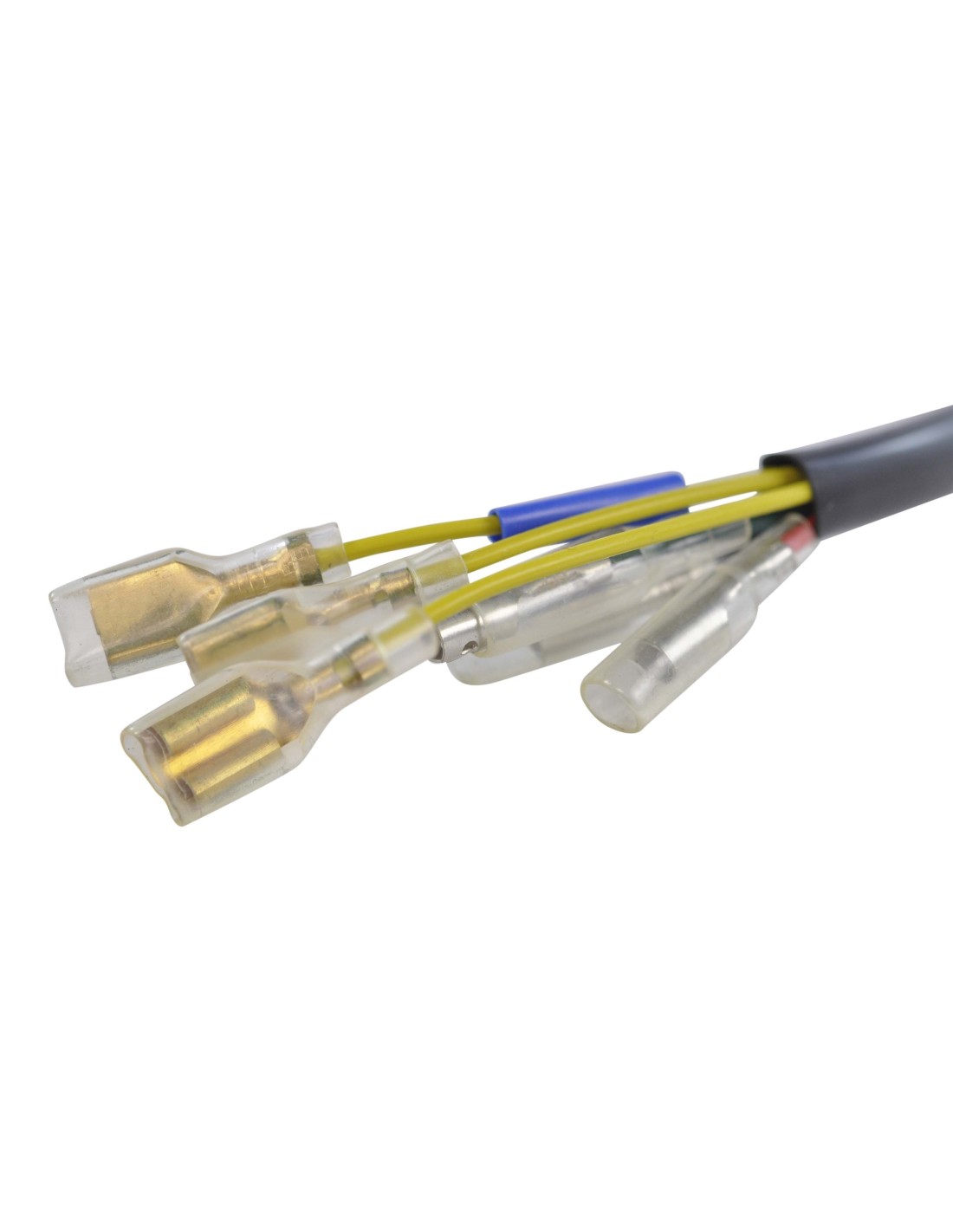

Number of wires : 6
Number of plugs : 6
Number of pins : 6

Wire to wire resistance :
Alternator :Yellow Between each Yellow = 0.4 ohms +/-20%
Pickup : Black To Green = 179 ohms +/-20%
Source : Red To Black = 1260 ohms +/-20%

OEM 250202-02 / 250202-01 / 250272-01 / 250285-01 / 250272-02 / 250286-01
