Stator Kawasaki ER6N Ninja 650R Versys 650 OEM 21003-0041 21003-0042

Stator

    2014
        Kawasaki
            Versys
                Motorcycle 2014 Kawasaki Versys 650
    2013
        Kawasaki
            Versys
                Motorcycle 2013 Kawasaki Versys 650
    2012
        Kawasaki
            Versys
                Motorcycle 2012 Kawasaki Versys 650
    2011
        Kawasaki
            ER-6N
                Motorcycle 2011 Kawasaki ER-6N
            Ninja
                Motorcycle 2011 Kawasaki Ninja 650R
            Versys
                Motorcycle 2011 Kawasaki Versys 650
    2010
        Kawasaki
            ER-6N
                Motorcycle 2010 Kawasaki ER-6N
            Ninja
                Motorcycle 2010 Kawasaki Ninja 650R
            Versys
                Motorcycle 2010 Kawasaki Versys 650
    2009
        Kawasaki
            ER-6N
                Motorcycle 2009 Kawasaki ER-6N
            Ninja
                Motorcycle 2009 Kawasaki Ninja 650R
            Versys
                Motorcycle 2009 Kawasaki Versys 650
    2008
        Kawasaki
            Versys
                Motorcycle 2008 Kawasaki Versys 650
    2007
        Kawasaki
            Versys
                Motorcycle 2007 Kawasaki Versys 650

OEM
21003-0042

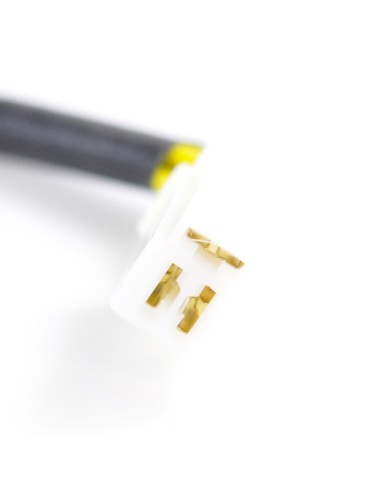

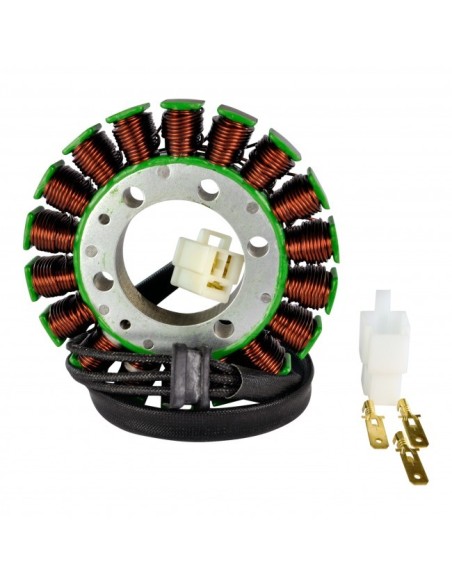

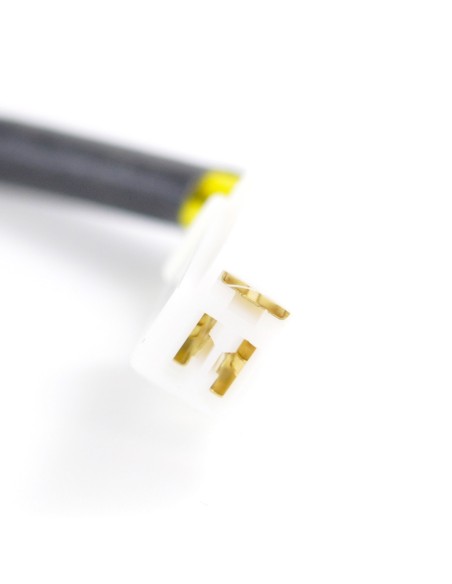

Connector included
Resistant to 200 degrees Celsius

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires stator to grommet: 65 mm
Length of wires grommet to plug: 300 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
