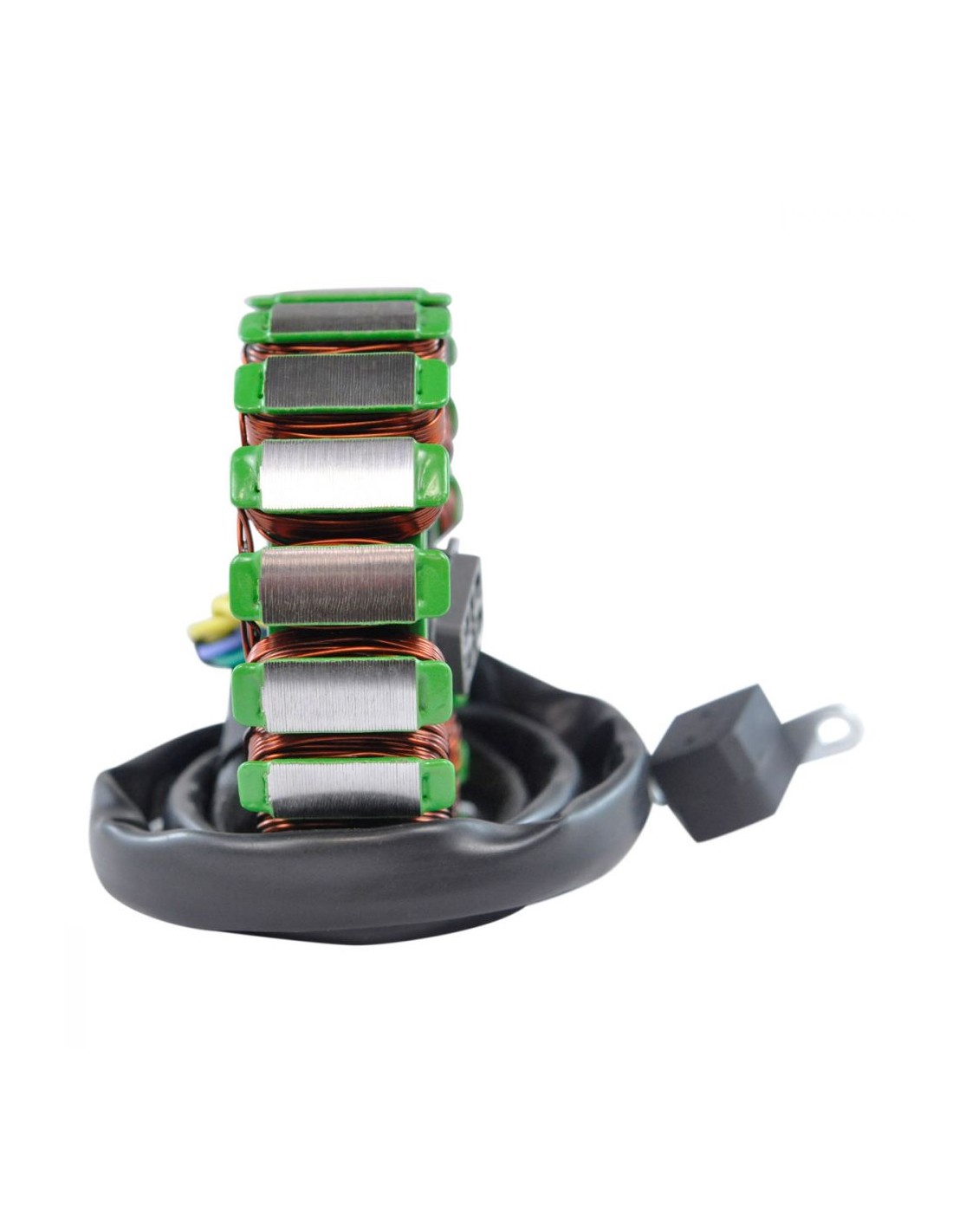

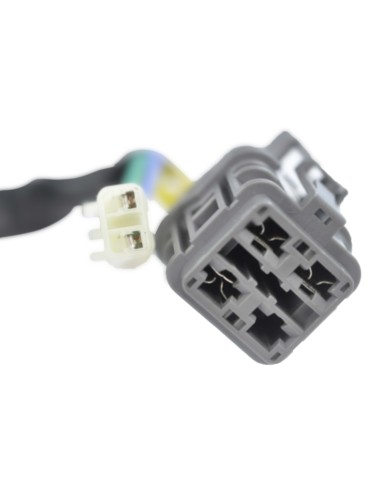

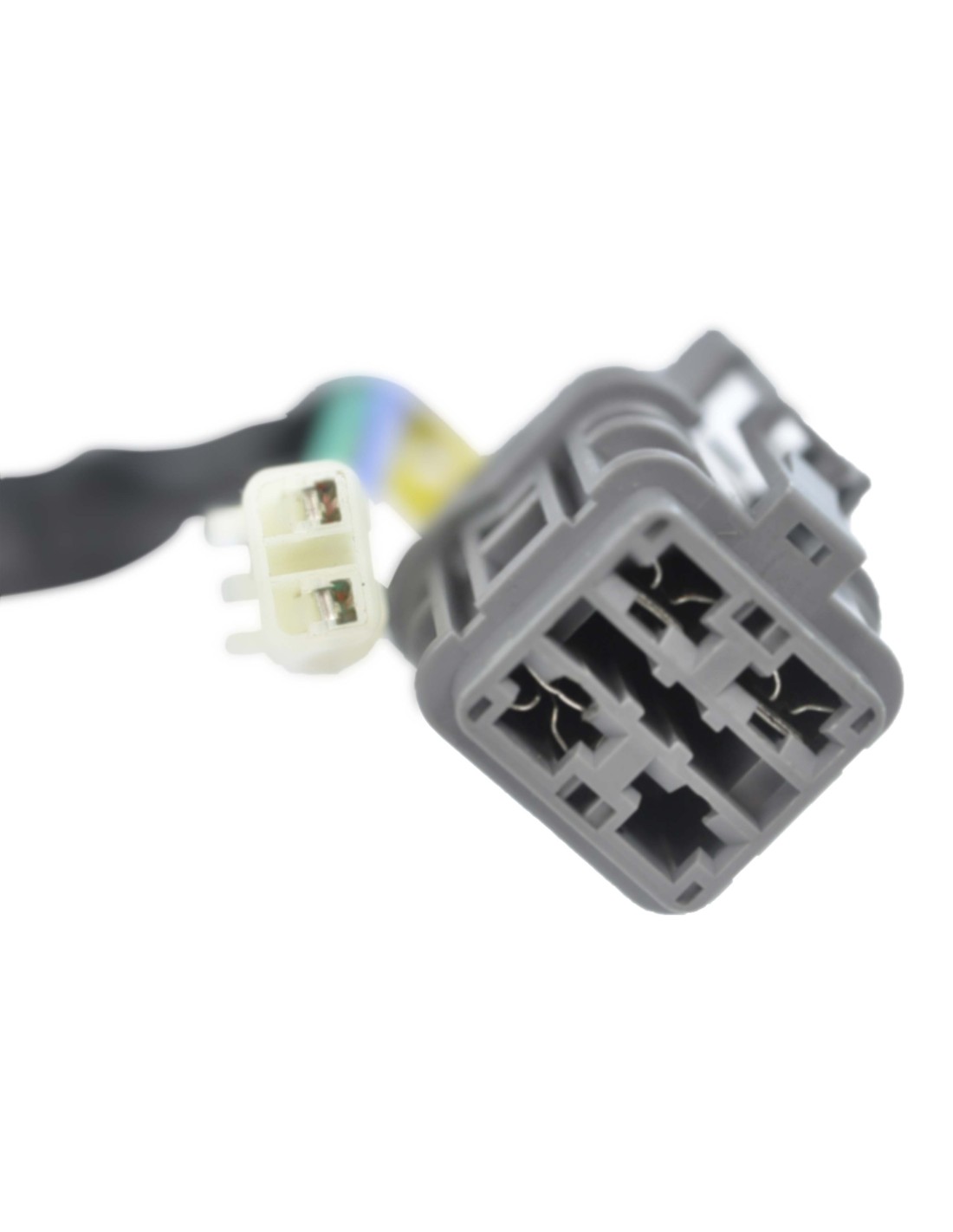

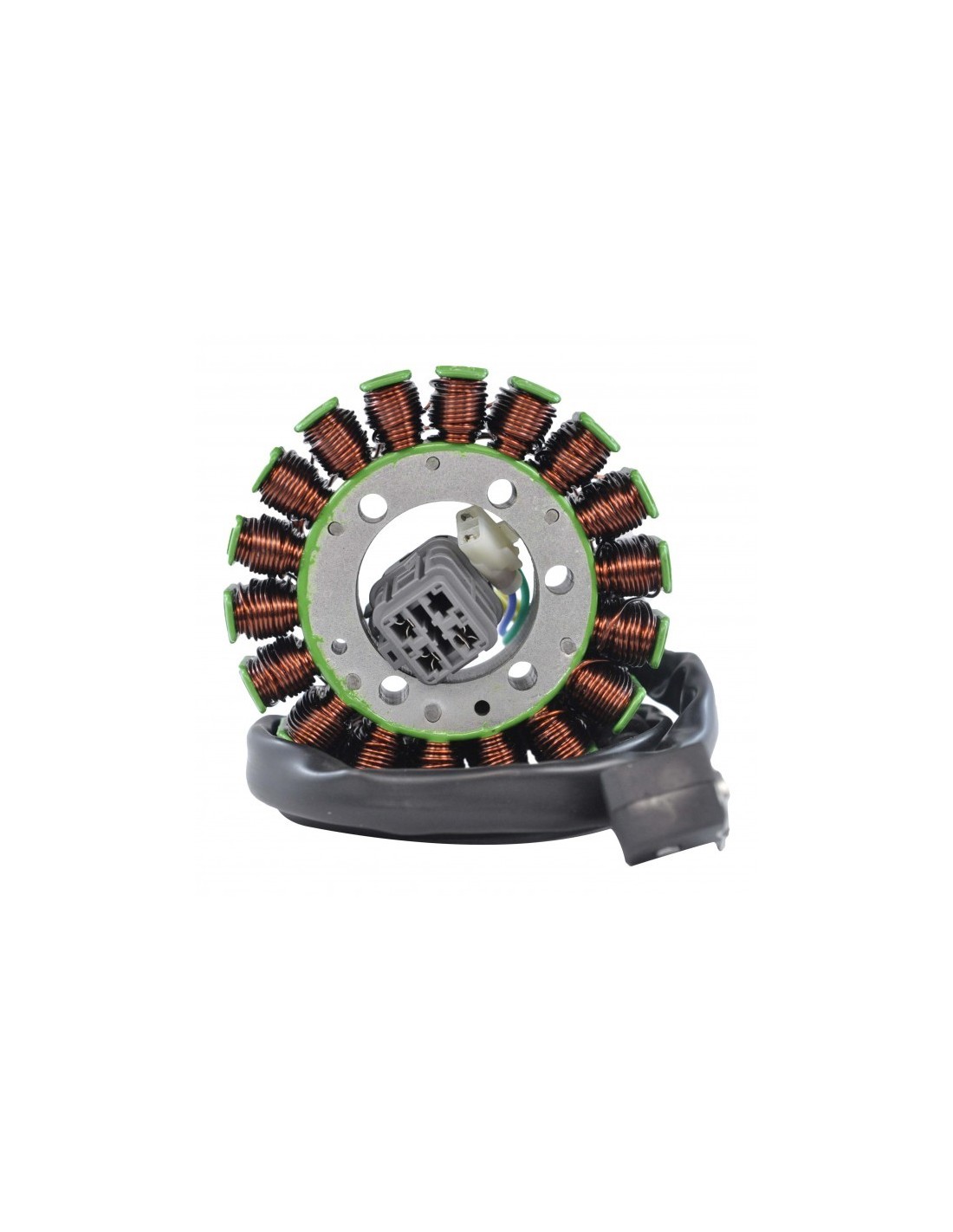

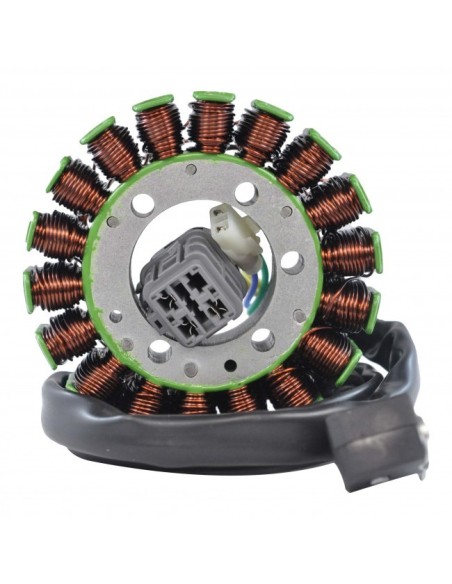

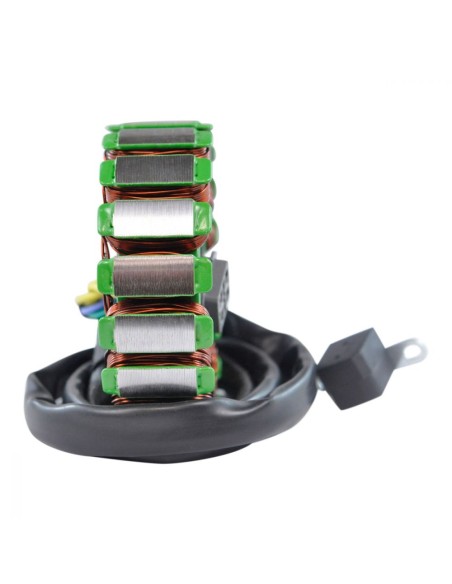

Stator CanAm DS250 OEM S31120RCA000
CARM01286
5-7 Days
€150.00
Tax included
- Resistant to 200 degrees Celsius - Stator CanAm DS250
Stator
2008-2024 Can-am DS 250
OEM S31120RCA000
Dimensions:
Interior diameter: 41mm
Exterior diameter: 103mm
Thickness: 25mm
Length of wires stator to grommet: 120mm
Length of wires grommet to plug: 700mm
Length of pickup coil's wire to grommet: 40mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Pickup: = 515ohms =+/-20%
- Resistant to 200 degrees Celsius
