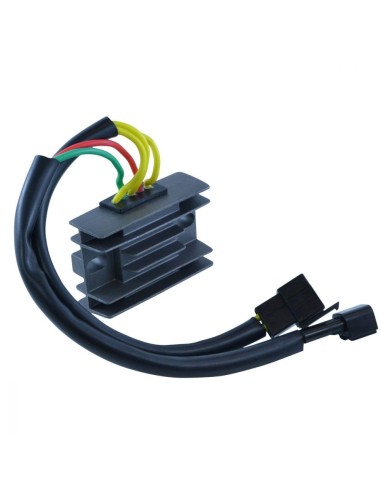

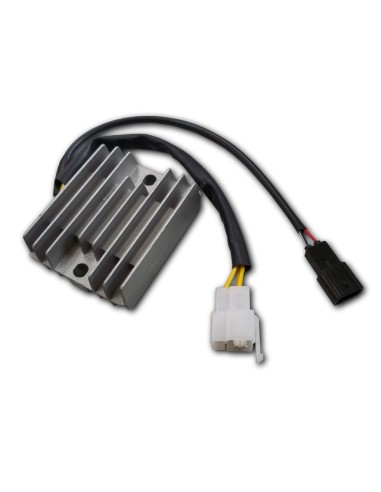

Regulator Rectifier Suzuki DRZ400 Kawasaki KLX400 OEM 21066-S005 32800-29F00

Regulator Rectifier

2024 Suzuki DRZ 400 SM

2023 Suzuki DRZ 400 SM

2023 Suzuki DRZ 400 S

2022 Suzuki DRZ 400 S

2021 Suzuki DRZ 400 S

2020 Suzuki DRZ 400 SM

2020 Suzuki DRZ 400 S

2019 Suzuki DRZ 400 SM

2019 Suzuki DRZ 400 S

2018 Suzuki DRZ 400 SM

2018 Suzuki DRZ 400 S

2017 Suzuki DRZ 400 SM

2017 Suzuki DRZ 400 S

2016 Suzuki DRZ 400 SM

2016 Suzuki DRZ 400 S

2015 Suzuki DRZ 400 SM

2015 Suzuki DRZ 400 S

2014 Suzuki DRZ 400 SM

2014 Suzuki DRZ 400 S

2013 Suzuki DRZ 400 SM

2013 Suzuki DRZ 400 S

2012 Suzuki DRZ 400 S

2011 Suzuki DRZ 400 S

2010 Suzuki DRZ 400 SM

2010 Suzuki DRZ 400 S

2009 Suzuki DRZ 400 SM

2009 Suzuki DRZ 400 S

2008 Suzuki DRZ 400 SM

2008 Suzuki DRZ 400 S

2007 Suzuki DRZ 400 SM

2007 Suzuki DRZ 400 S

2006 Suzuki DRZ 400 SM

2006 Suzuki DRZ 400 S

2005 Suzuki DRZ 400 SM

2005 Suzuki DRZ 400 S

2004 Suzuki DRZ 400 S

2004 Suzuki DRZ 400 E

2004 Kawasaki KLX 400 SR

2004 Kawasaki KLX 400 R

2003 Suzuki DRZ 400 S

2003 Suzuki DRZ 400 E

2003 Kawasaki KLX 400 SR

2003 Kawasaki KLX 400 R

2002 Suzuki DRZ 400 S

2002 Suzuki DRZ 400 E

2001 Suzuki DRZ 400 S

2001 Suzuki DRZ 400 E

2000 Suzuki DRZ 400 S

2000 Suzuki DRZ 400 E

Dimensions:

Width: 75 mm

Length: 50 mm

Height: 28 mm

Wires length: 215 mm & 285 mm

Fixation holes center to center: 63 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Number of wires: 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: 15 V

Operation Temperature: -20⁰ to 85⁰

This regulator is for the Suzuki DR-Z400 E (electric start) 2000-2004 models. If you have a DR-Z400 (kick start) model for this year range, please use CARMS020-107313

OEM 21066-S005
32800-29F00

Improved heat sink and charging capabilities
