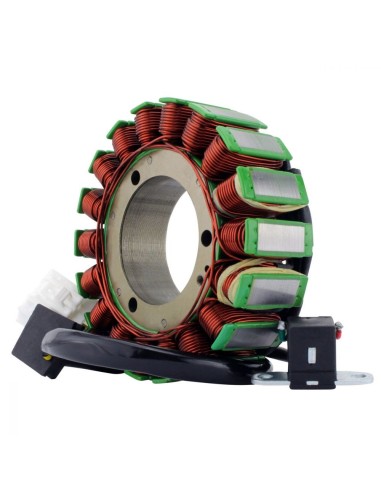

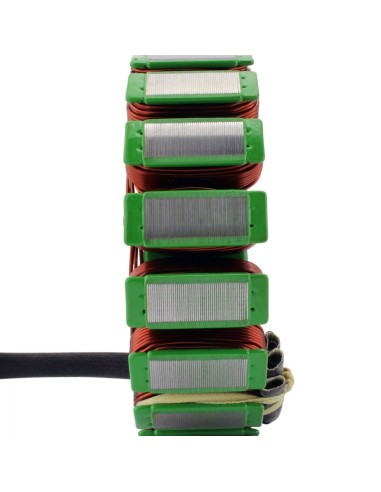

Stator Suzuki VStrom OEM 1050 32101-31J00 32101-06L00
CARMS010-107579
5-7 Days
€236.40
Tax included
OEM 1050 32101-31J00 32101-06L00
Stator
2024 Suzuki V-Strom 1050
2023 Suzuki V-Strom 1050
2022 Suzuki V-Strom 1050
2020 Suzuki V-Strom 1050 XT
2020 Suzuki V-Strom 1050
OEM 32101-31J00 32101-06L00
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 119 mm
Thickness: 26 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 270 mm
Length of pickup coil's wire to grommet: 150 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.6 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Green to Red = 192 ohms +-20%
