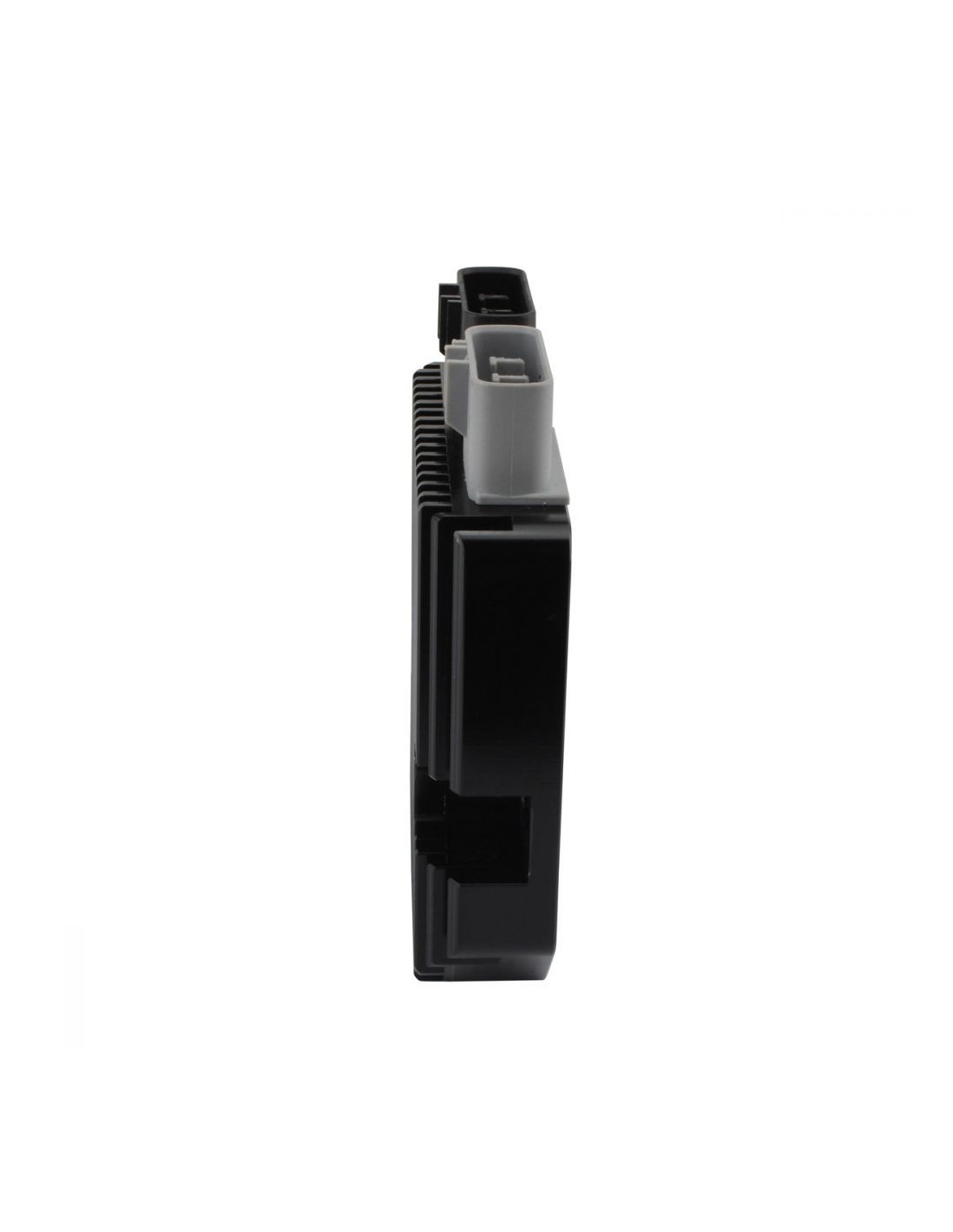

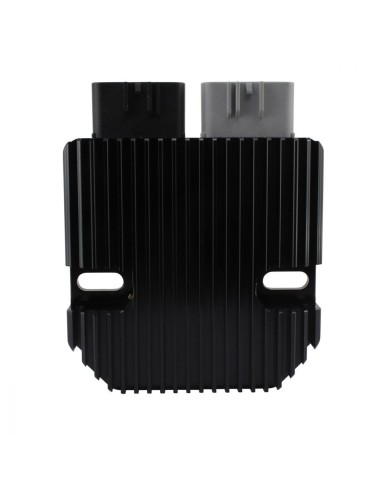

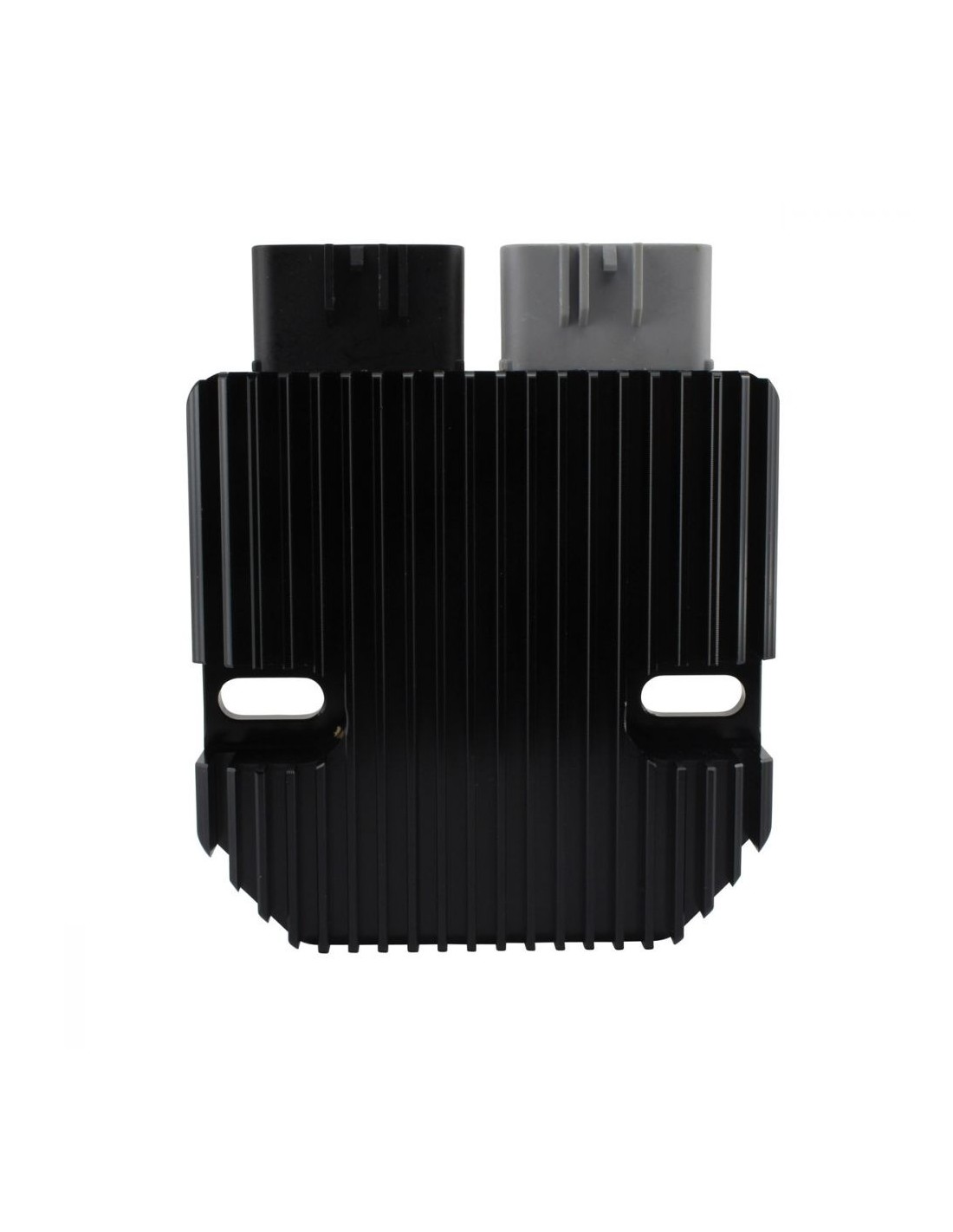

REVOLT Regulator Ducati SS939 Hyperstrada 820 939 Panigale 899 1100 1199 1285 1299 Multistrada 1200 OEM 54040301B

2018 Ducati Supersport 939

2018 Ducati Panigale V4 1100

2018 Ducati Multistrada 1260

2018 Ducati Multistrada 1200 Enduro Pro EFI L/C

2018 Ducati 959 Panigale EFI L/C

2018 Ducati 959 Panigale Corse EFI L/C

2018 Ducati 1299 Panigale R Finale Edition EFI L/C

2017 Ducati Xdiavel 1200 EFI L/C

2017 Ducati Supersport 939

2017 Ducati Superbike 1299 EFI L/C

2017 Ducati Panigale R 1285

2017 Ducati Multistrada 950 EFI L/C

2017 Ducati Multistrada 1200 EFI L/C

2017 Ducati Diavel Carbon 1200 EFI L/C

2017 Ducati Diavel 1200 EFI L/C

2017 Ducati 959 Panigale EFI L/C

2016 Ducati Xdiavel 1200 EFI L/C

2016 Ducati Multistrada 1200 EFI L/C

2016 Ducati Hyperstrada 939 EFI L/C

2016 Ducati Diavel Carbon 1200 EFI L/C

2016 Ducati Diavel 1200 EFI L/C

2016 Ducati 959 Panigale EFI L/C

2016 Ducati 1299 Panigale EFI L/C

2016 Ducati 1199 Panigale R EFI L/C

2015 Ducati Multistrada 1200 EFI L/C

2015 Ducati Hyperstrada 820

2015 Ducati Diavel Carbon 1200 EFI L/C

2015 Ducati Diavel 1200 EFI L/C

2015 Ducati 899 Panigale

2015 Ducati 1299 Panigale EFI L/C

2015 Ducati 1199 Panigale R EFI L/C

2014 Ducati Multistrada 1200 EFI L/C

2014 Ducati Hyperstrada 820

2014 Ducati Diavel Carbon 1200 EFI L/C

2014 Ducati Diavel 1200 EFI L/C

2014 Ducati 899 Panigale

2014 Ducati 1199 Panigale R EFI L/C

2014 Ducati 1199 Panigale EFI L/C

2013 Ducati Multistrada 1200 EFI L/C

2013 Ducati Hyperstrada 820

2013 Ducati Diavel Carbon 1200 EFI L/C

2013 Ducati Diavel 1200 EFI L/C

2013 Ducati 1199 Panigale EFI L/C

2012 Ducati 1199 Panigale EFI L/C

2011 Ducati Multistrada 1200

2010 Ducati Multistrada 1200

OEM 54040301B

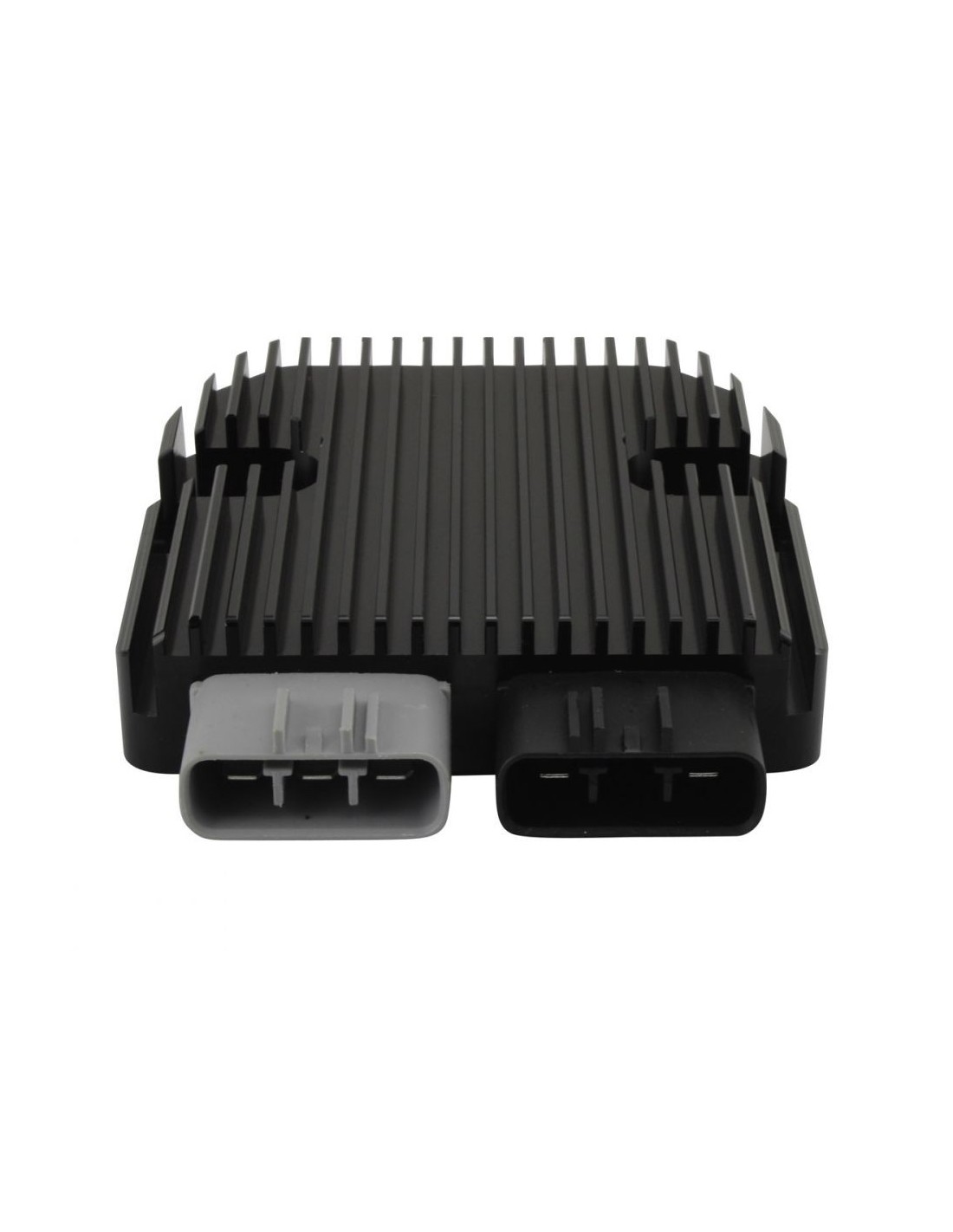

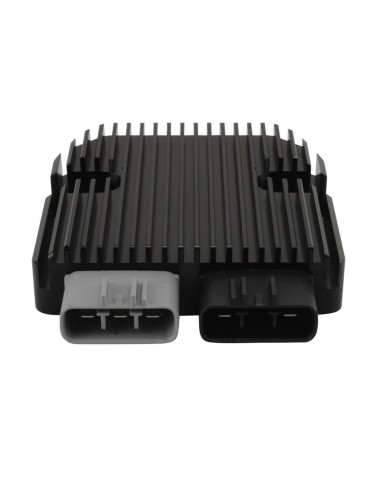

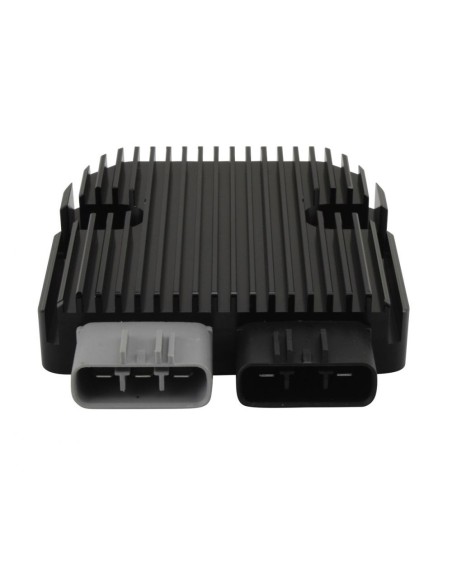

REVOLT Voltage Regulator Rectifier:
Width: 103mm
Length: 102 mm
Height: 26mm

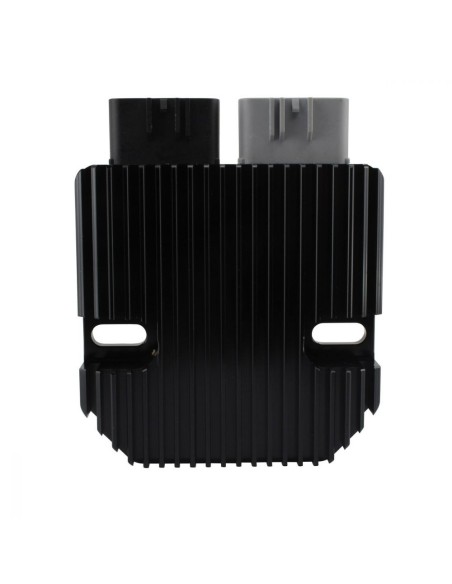

Fixing holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A / 500W
Open Circuit Voltage: <15V
Operating Temperature: -20°C to 85°C

REVOLT Harness
Wire length: 150mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3

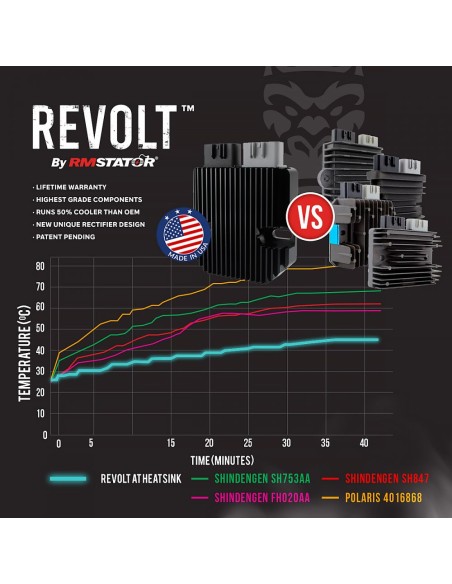

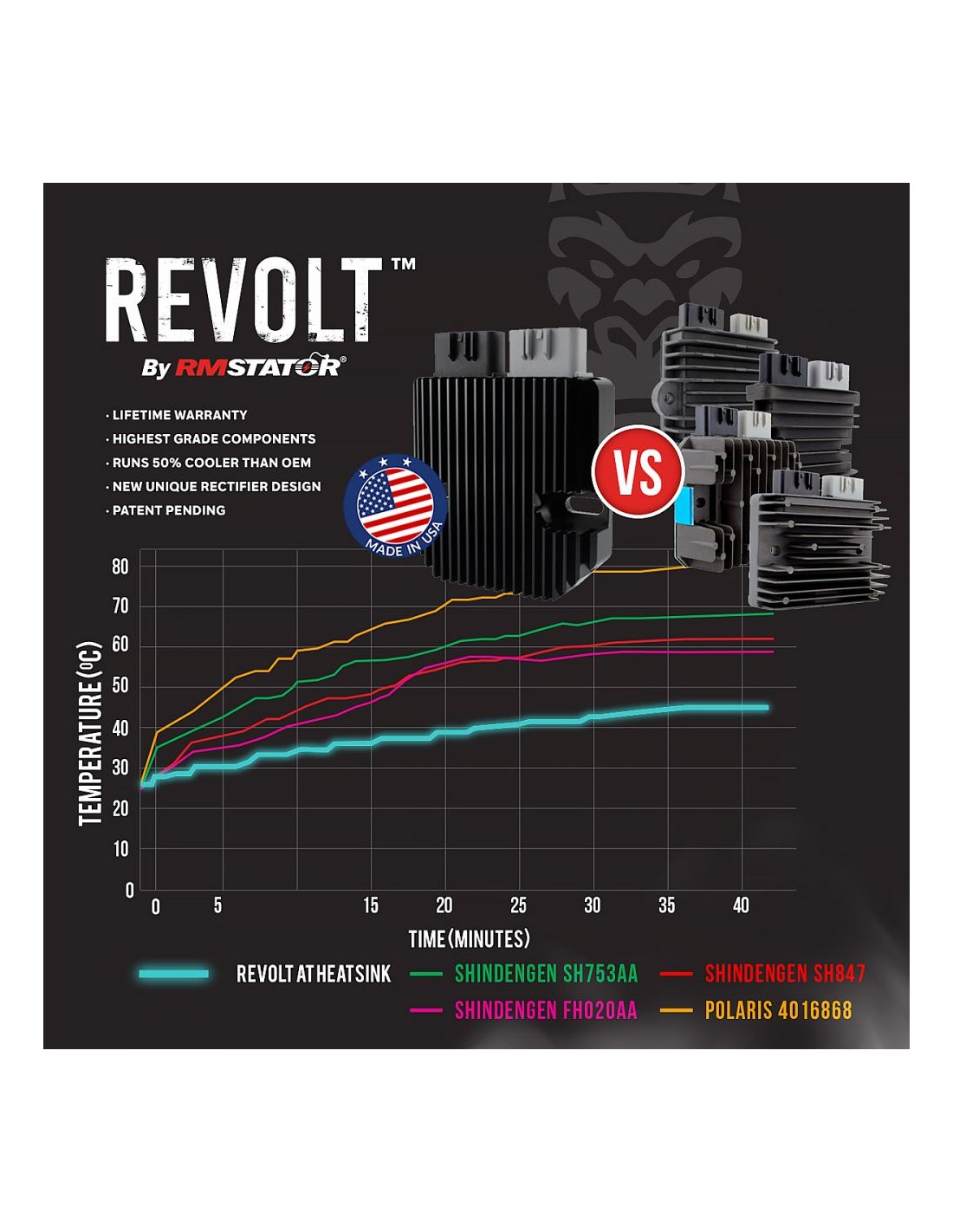

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM

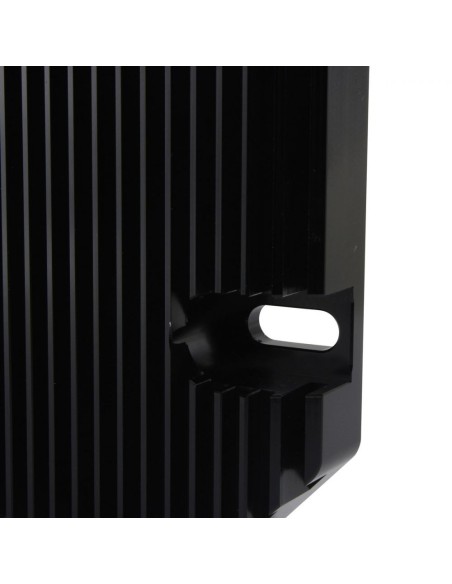

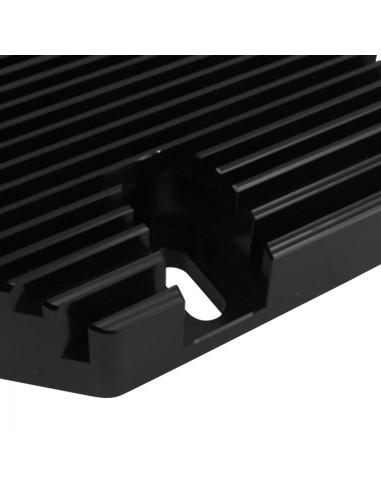

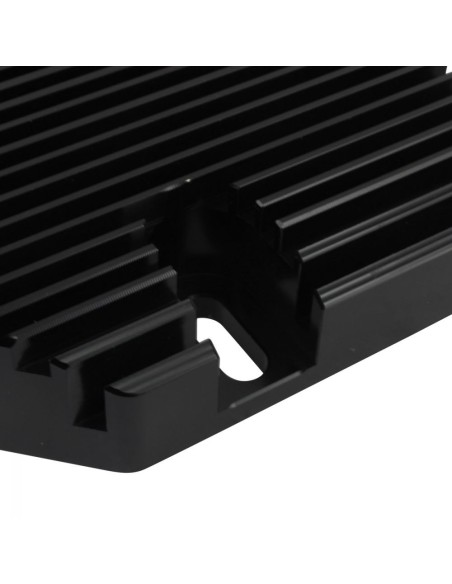

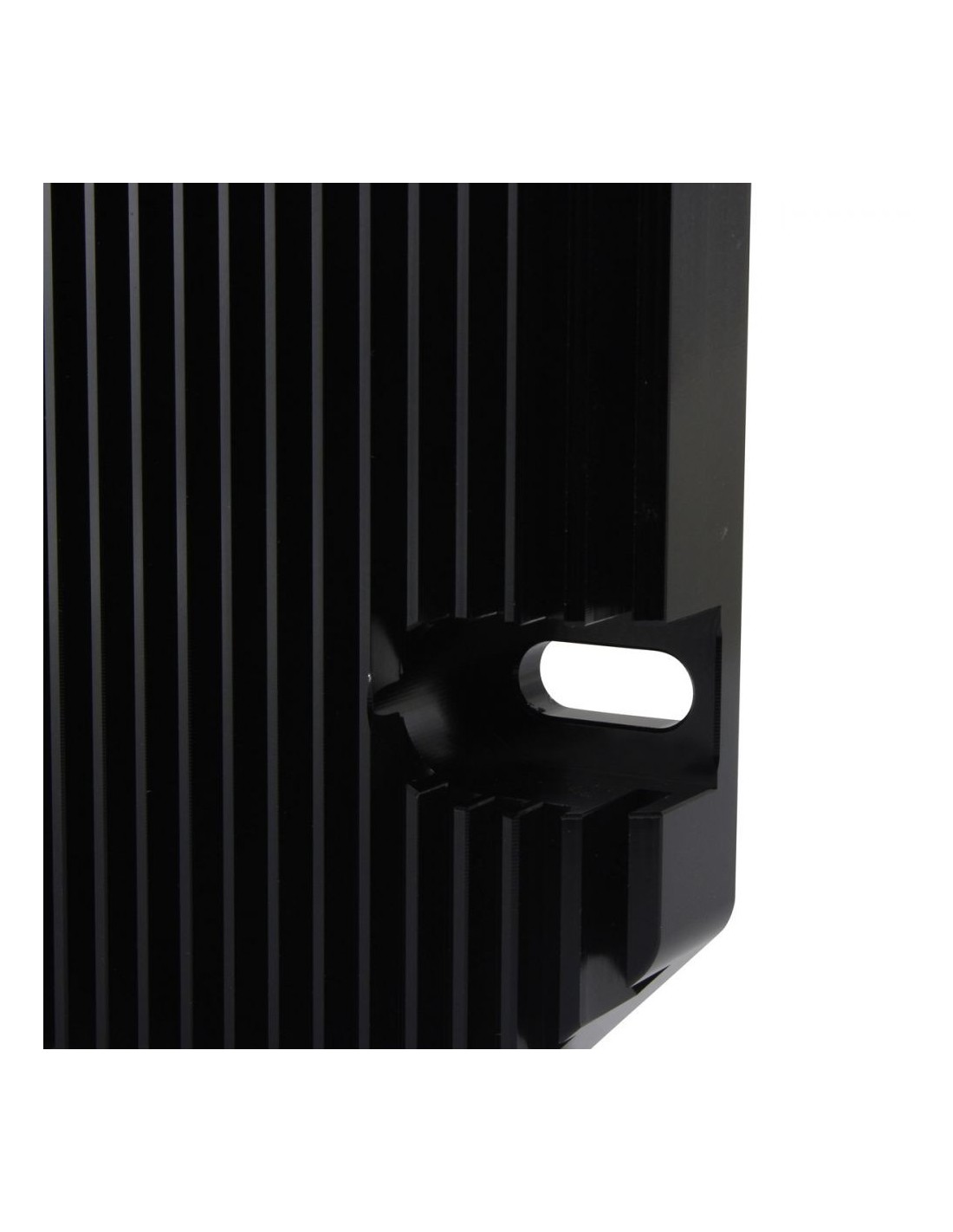

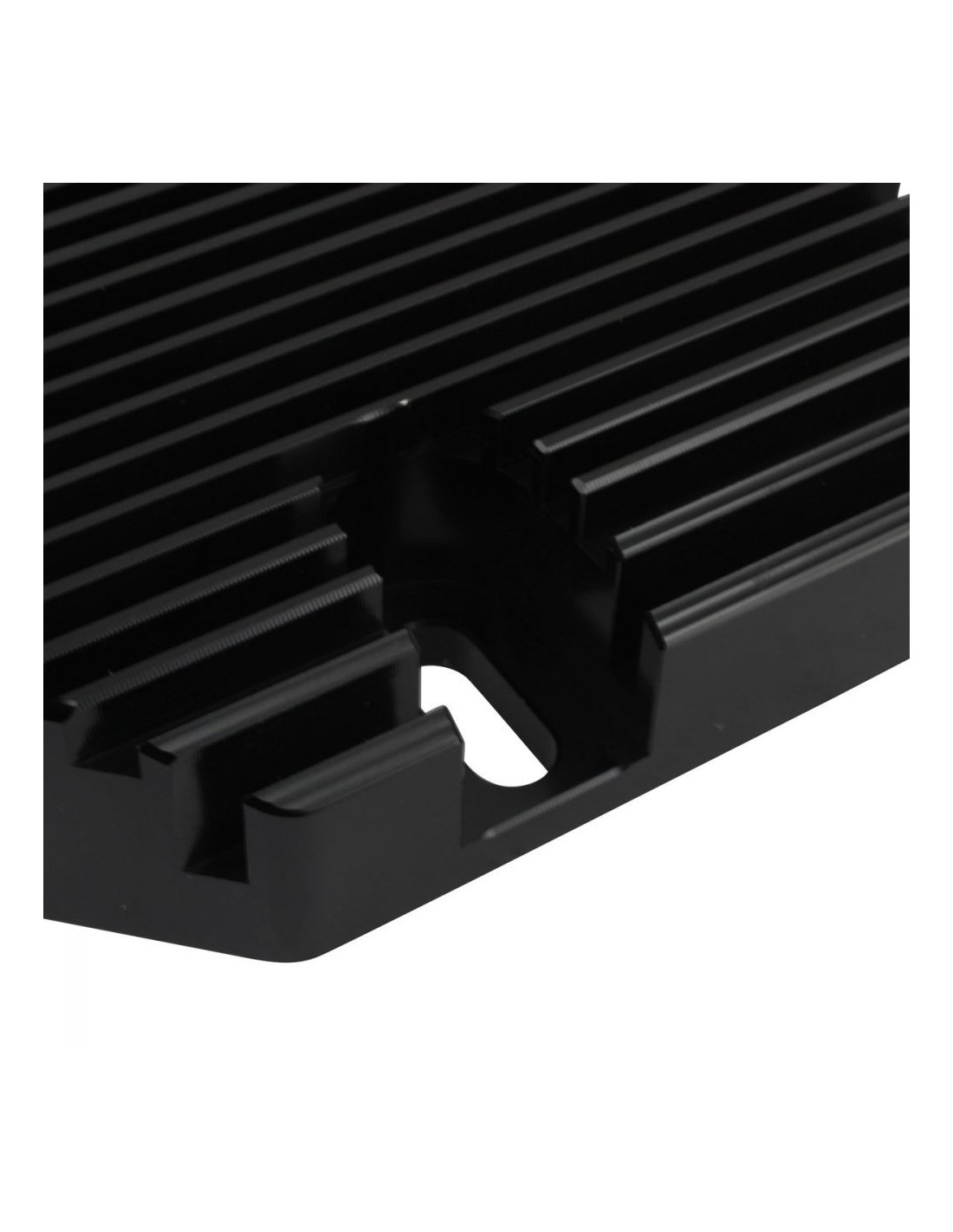

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
