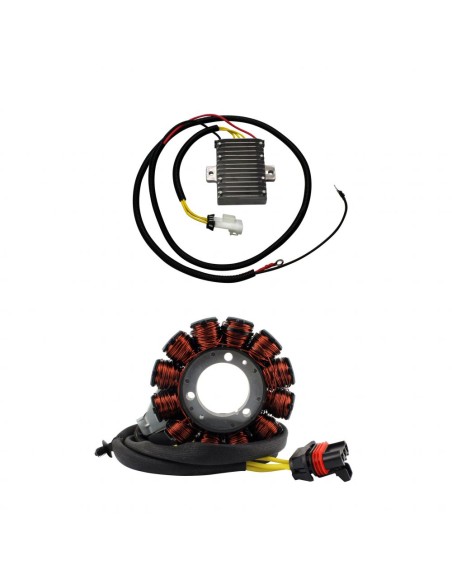

Stator Regulator Kit CanAm Maverick 1000RR Turbo Maverick Max 1000RR Turbo OEM 420686363 710006824

Stator 850W

2024 Can-Am Maverick Max 1000RR Turbo

2024 Can-Am Maverick 1000RR Turbo

2023 Can-Am Maverick Max 1000RR Turbo

2023 Can-Am Maverick 1000RR Turbo

2022 Can-Am Maverick Max 1000RR Turbo

2022 Can-Am Maverick 1000RR Turbo

2021 Can-Am Maverick Max 1000RR Turbo

2021 Can-Am Maverick 1000RR Turbo

OEM 420686363 710006824

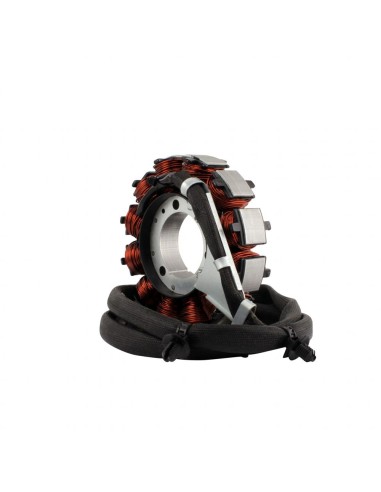

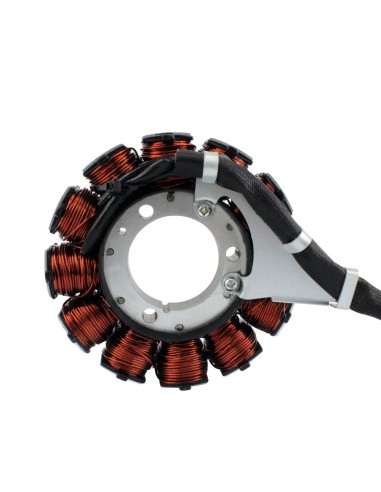

Dimensions Stator

Interior diameter: 42 mm

Exterior diameter: 115 mm

Thickness: 17 mm

Length of wires stator to grommet: 280 mm

Length of wires grommet to plug: 995 mm

Other specifications:

Number of wires: 3

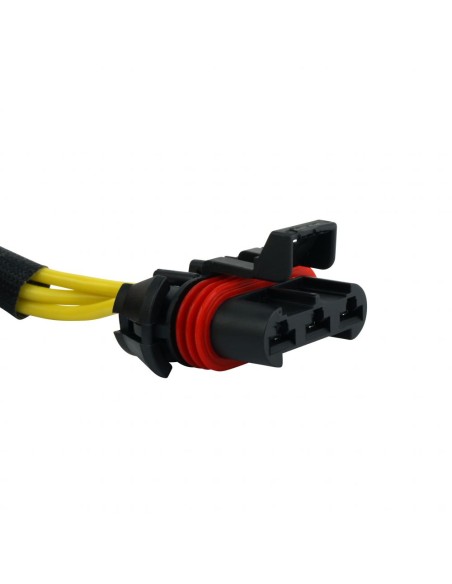

Number of plugs: 1

Number of pins: 3

Number of poles: 12

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.3 ohms +/-20%

Alternator: Yellow to ground = O.L

Voltage Regulator:

Dimensions:

Width: 89 mm

Length: 120 mm

Height: 40 mm

Stator Wires length: 280 mm

Distance between fixation holes center to center: 112 mm

Other specifications:

Number of plugs: 3

Number of pins: 5

Number of wires: 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 65 A / 850 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20°C to 85°C
