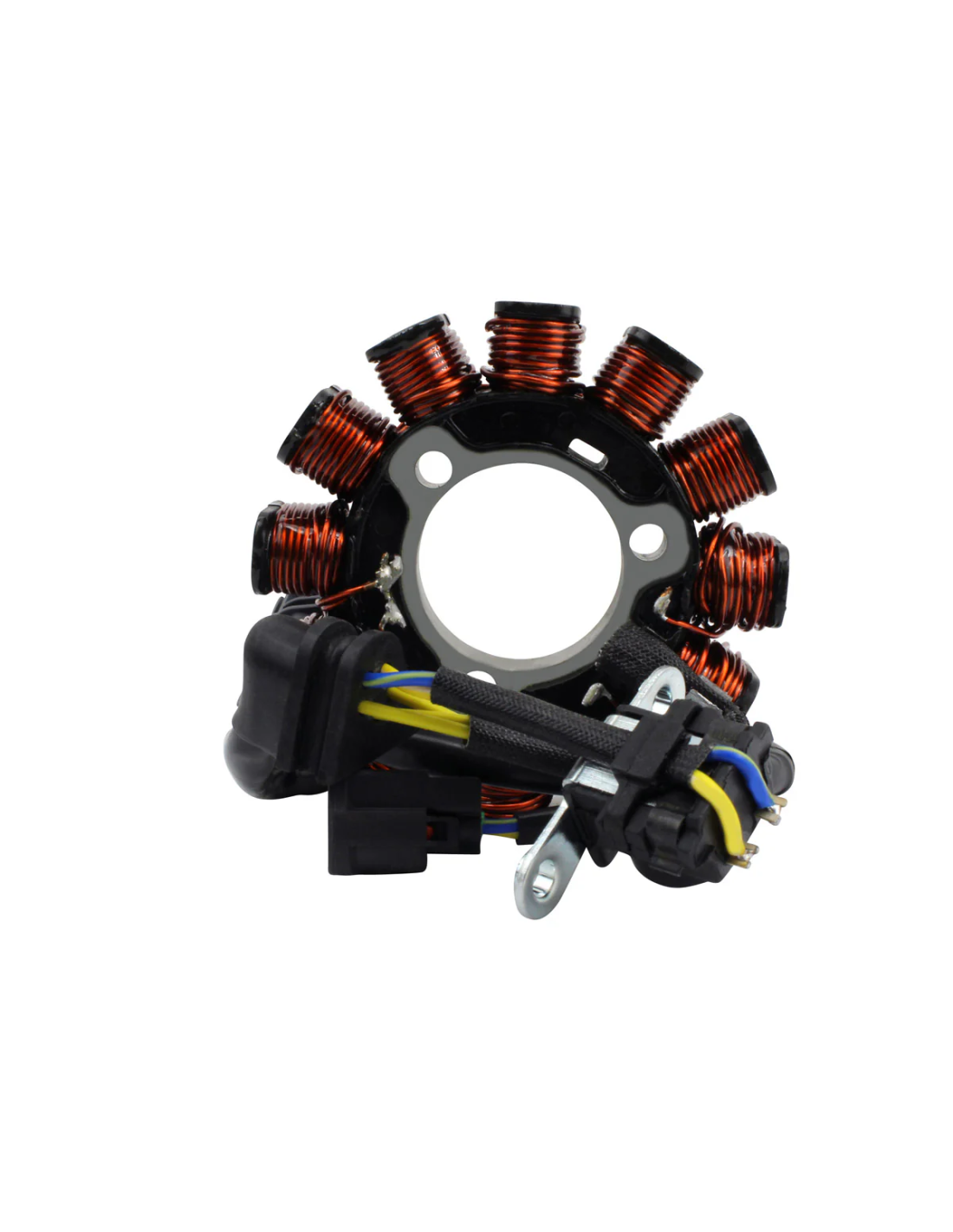

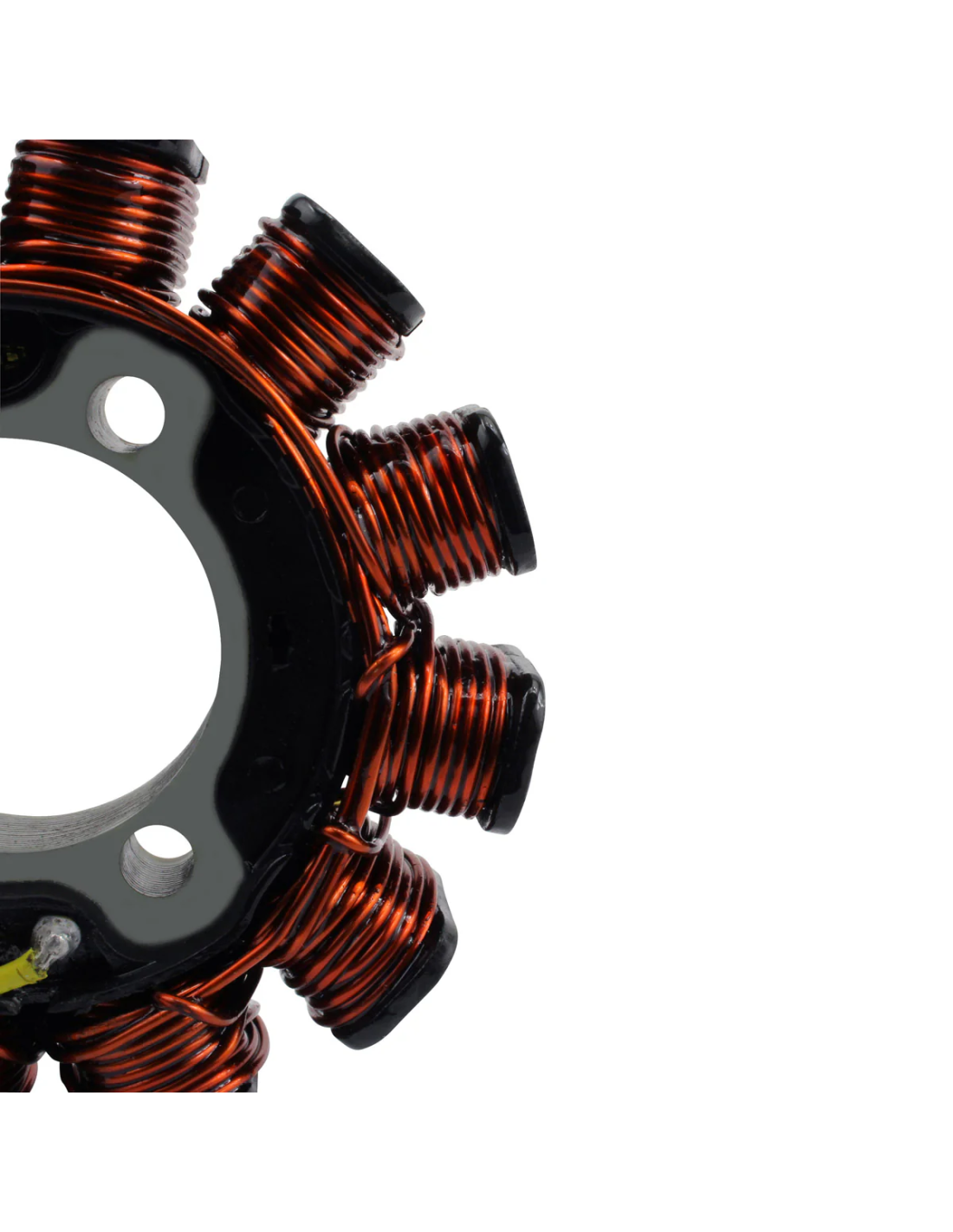

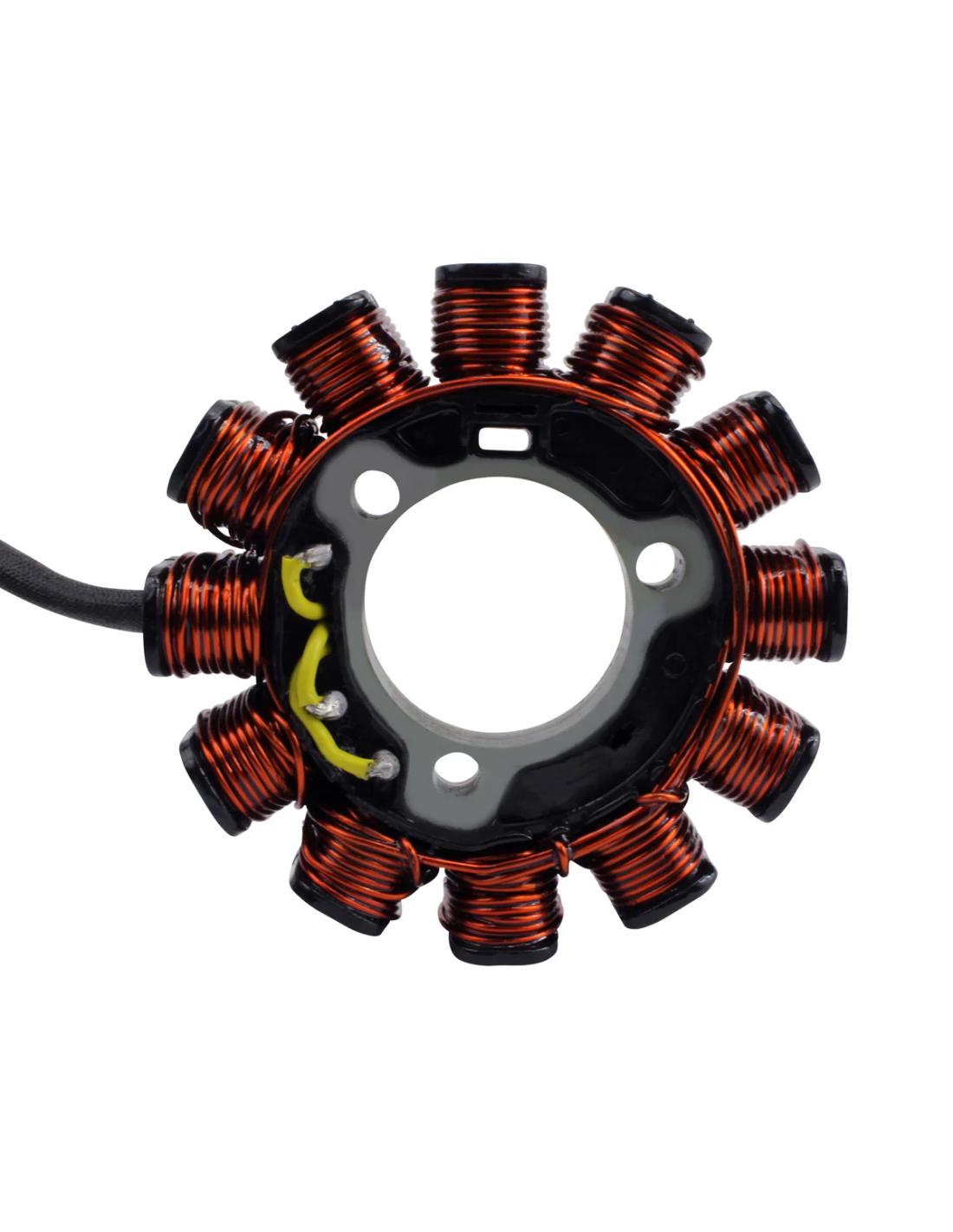

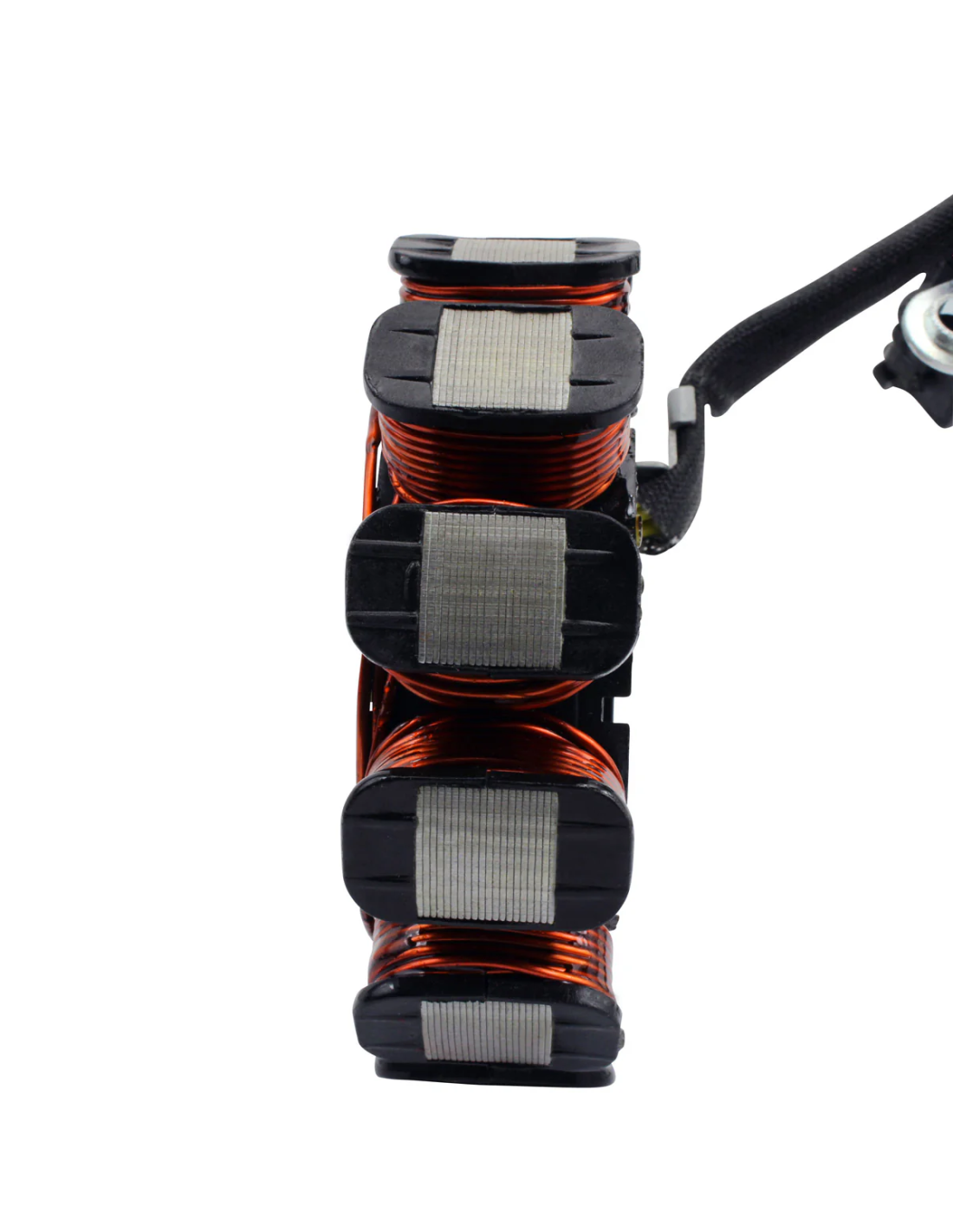

Stator 200 W Honda CRF450R CRF450RX OEM 31120-MKE-AF1

Stator 200 W Resistant to 200°C

2025 Honda CRF 450 X

2025 Honda CRF 450 RL

2024 Honda CRF 450 X

2024 Honda CRF 450 RL

2023 Honda CRF 450 X

2023 Honda CRF 450 RL

2022 Honda CRF 450 X

2022 Honda CRF 450 RL

2021 Honda CRF 450 X

2021 Honda CRF 450 RL

2020 Honda CRF 450 X

2020 Honda CRF 450 L

2019 Honda CRF 450 X

2019 Honda CRF 450 L

OEM 31120-MKE-A51

Dimensions:

Interior diameter: 35 mm

Exterior diameter: 89 mm

Thickness: 12 mm

Length of wires stator to grommet: 80 mm

Length of wires grommet to plug: 250 mm and 310 mm

Length of pickup coil's wire to grommet: 45 mm

Other specifications:

Number of wires: 5

Number of plugs: 2

Number of pins: 5

Number of poles: 12

Wire to wire resistance:

Alternator: Yellow to Yellow = 1.3 ohms +/-20%

Alternator: Yellow to ground = O.L

Pickup: Blue/Yellow to White/Yellow = 240 ohms +/-20%
